Dodge Nitro. Manual - part 393





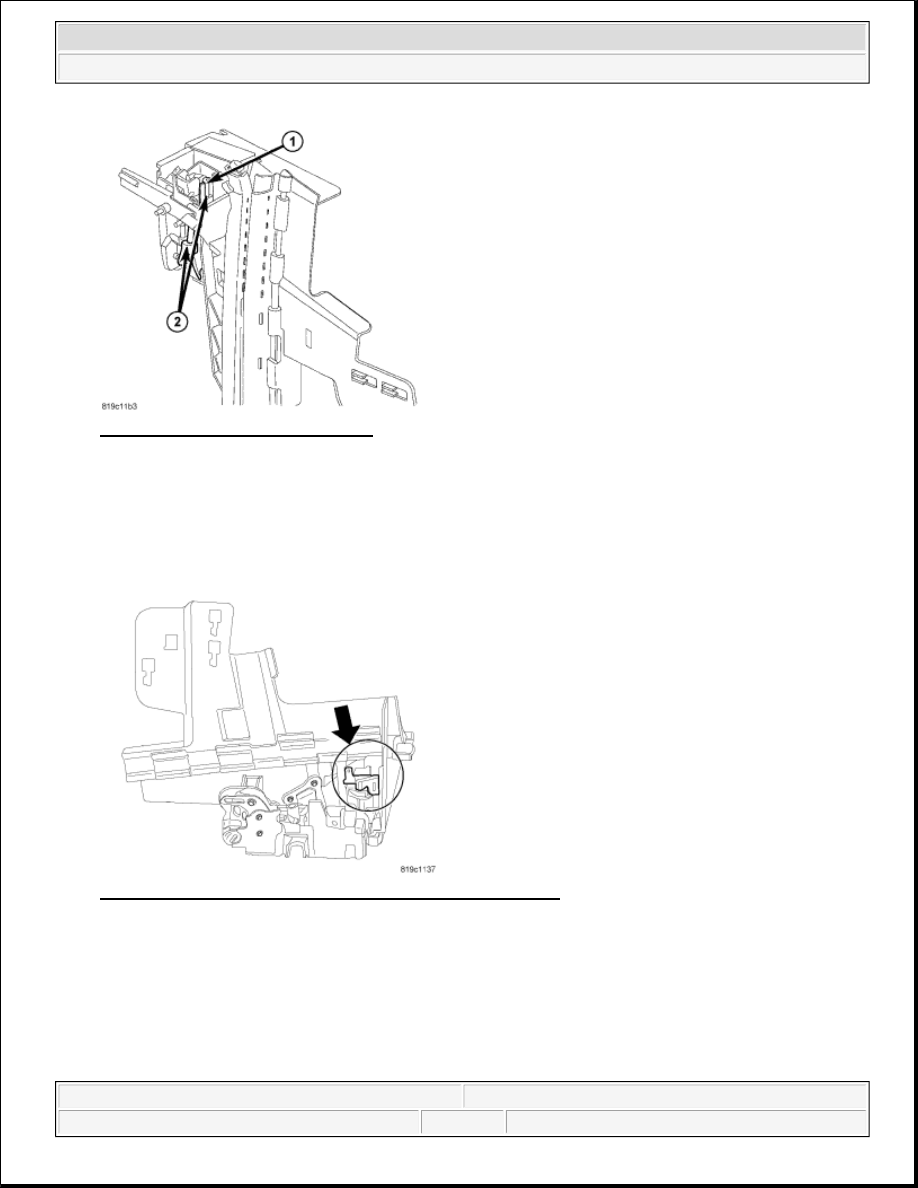

Fig. 99: Release Rod & Swing Clips
Courtesy of CHRYSLER LLC

5. Remove the release rod (1) by disengaging the two swing clips (2).

Fig. 100: Removing/Installing First Latch Attachment Point
Courtesy of CHRYSLER LLC

6. Remove the first latch attachment point from the latch bracket.

NOTE:

All the lock rods are color coded to help identify the location for the
particular lock rod.

NOTE:

The latch has three attachment points to the latch bracket.



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro



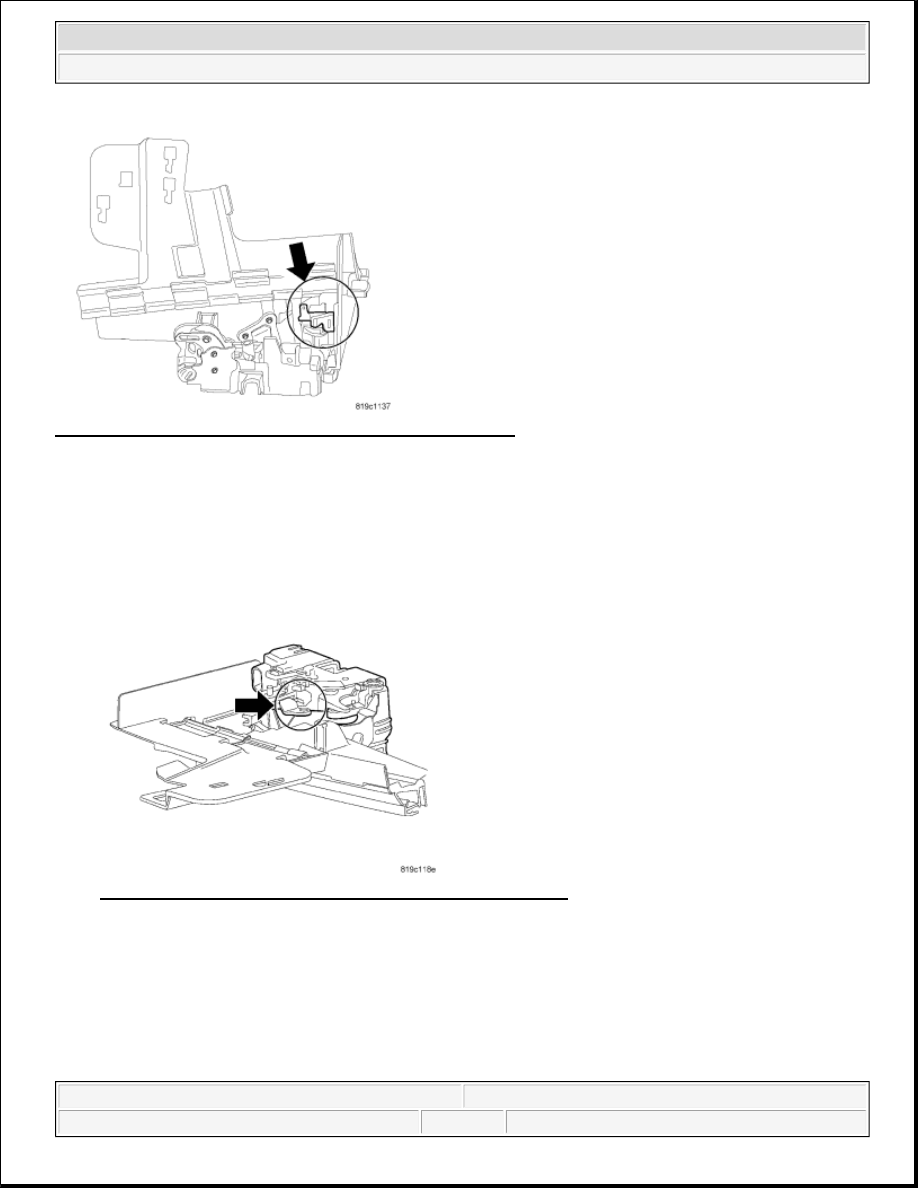

Fig. 101: Removing/Installing Second Latch Attachment Point
Courtesy of CHRYSLER LLC

7. Remove the second latch attachment point from the latch bracket.

Fig. 102: Removing/Installing Third Latch Attachment Point
Courtesy of CHRYSLER LLC

8. Remove the third latch attachment point from the latch bracket and remove the latch from the latch

bracket.

INSTALLATION

LATCH - FRONT DOOR



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro

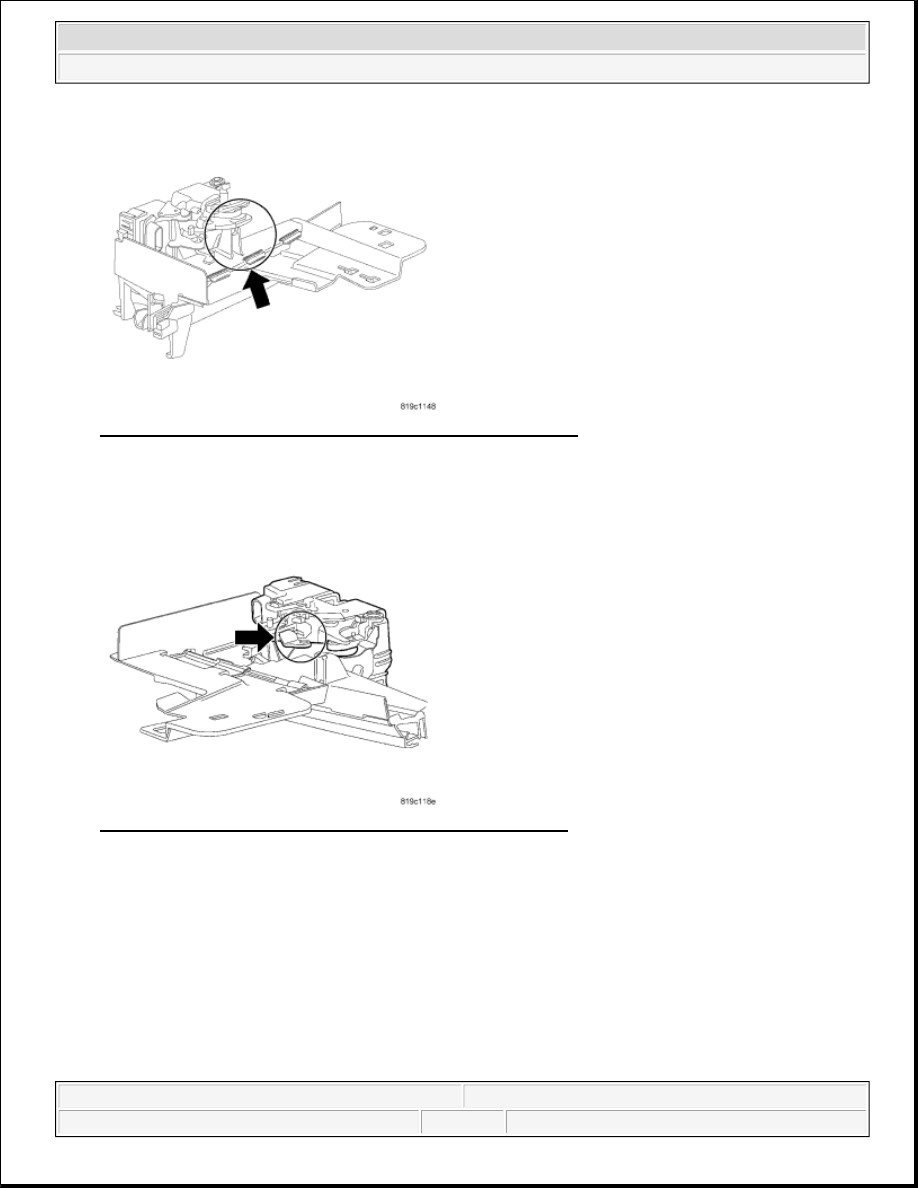

Fig. 103: Removing/Installing First Latch Attachment Point
Courtesy of CHRYSLER LLC

1. Install the first latch attachment point to the latch bracket.

Fig. 104: Removing/Installing Third Latch Attachment Point
Courtesy of CHRYSLER LLC

2. It is necessary to align the third attachment point prior to attaching the second point, but do not attach at

this time.

NOTE:

The latch has three attachment points to the latch bracket and need to be
attached in the following order:



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro



Fig. 105: Removing/Installing Second Latch Attachment Point
Courtesy of CHRYSLER LLC

3. Install the second latch attachment point to the latch bracket.

Fig. 106: Removing/Installing Third Latch Attachment Point
Courtesy of CHRYSLER LLC

4. Install the third latch attachment point to the latch bracket.



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro
