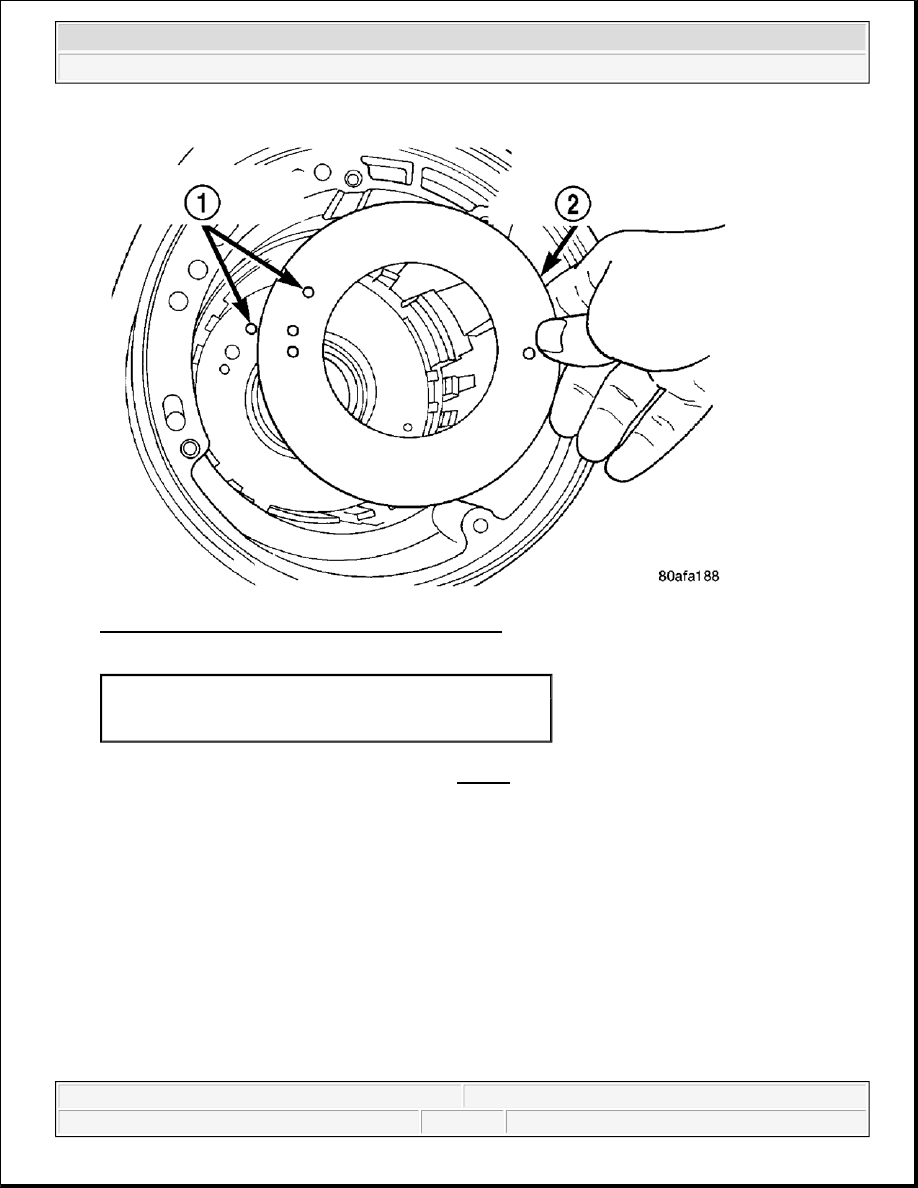

Fig. 20: Removing/Installing Piston Retainer Gasket
Courtesy of CHRYSLER LLC

2. Install low/reverse piston retainer gasket (2). See Fig. 20.

1 - GASKET HOLES MUST LINE UP
2 - LOW/REVERSE CLUTCH PISTON RETAINER
GASKET



2007 Dodge Nitro R/T

2007 AUTOMATIC TRANSMISSION 42RLE - Service Information - Nitro



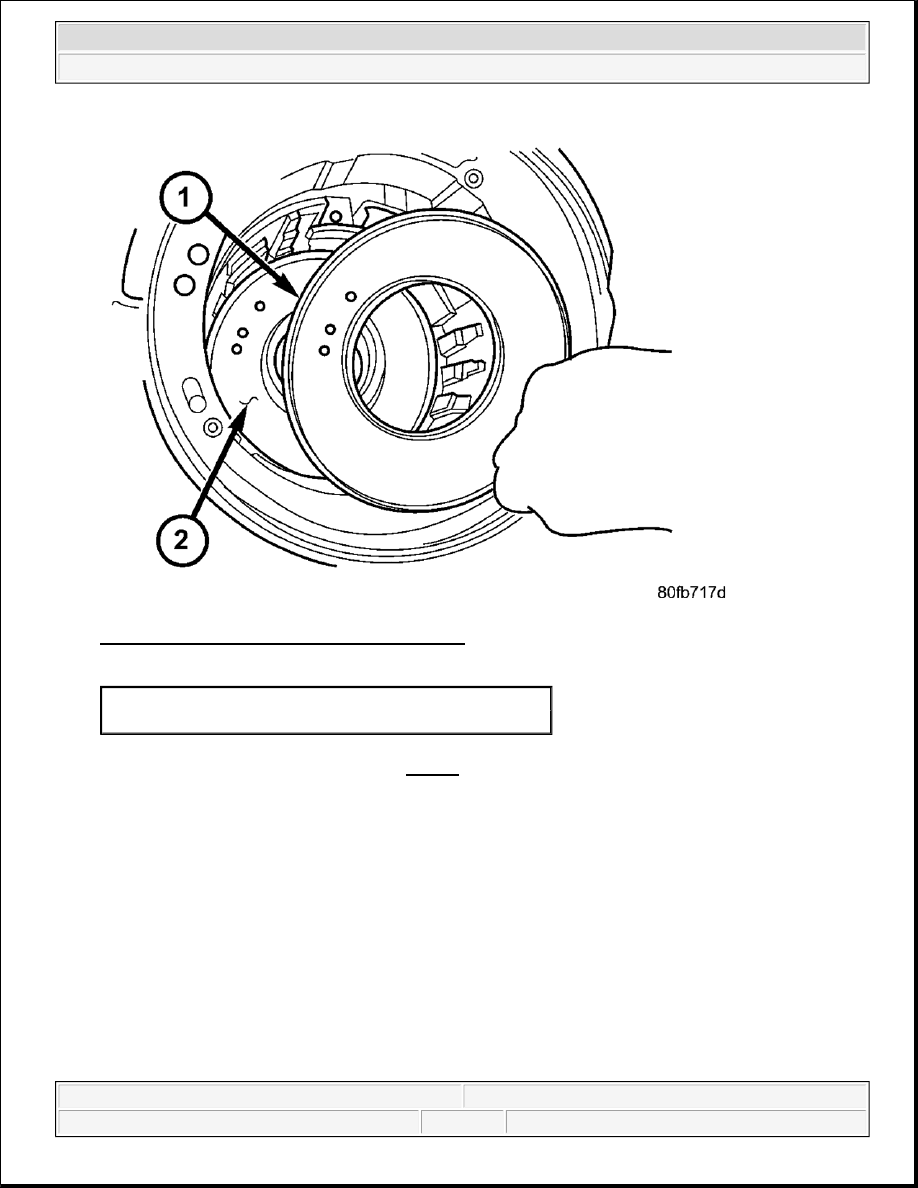

Fig. 21: Installing Low/Reverse Piston Retainer
Courtesy of CHRYSLER LLC

3. Install low/reverse piston retainer (1). See Fig. 21.

1 - LOW/REVERSE CLUTCH PISTON RETAINER
2 - GASKET



2007 Dodge Nitro R/T

2007 AUTOMATIC TRANSMISSION 42RLE - Service Information - Nitro



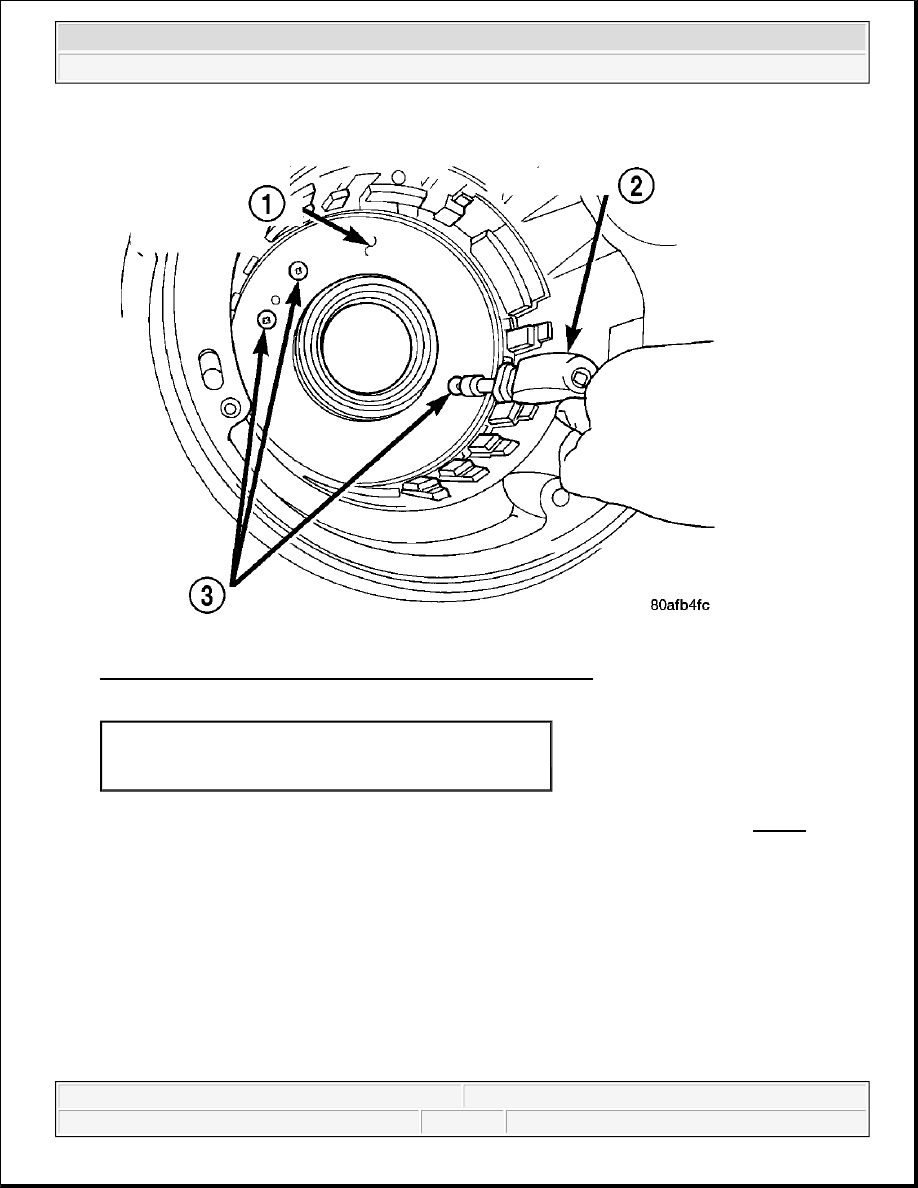

Fig. 22: Installing Low/Reverse Piston Retainer-To-Case Screws
Courtesy of CHRYSLER LLC

4. Install low/reverse piston retainer-to-case screws (3) and torque to 5 N.m (45 in. lbs.). See Fig. 22.

1 - LOW/REVERSE CLUTCH PISTON RETAINER
2 - SCREWDRIVER
3 - TORX-LOC SCREWS



2007 Dodge Nitro R/T

2007 AUTOMATIC TRANSMISSION 42RLE - Service Information - Nitro



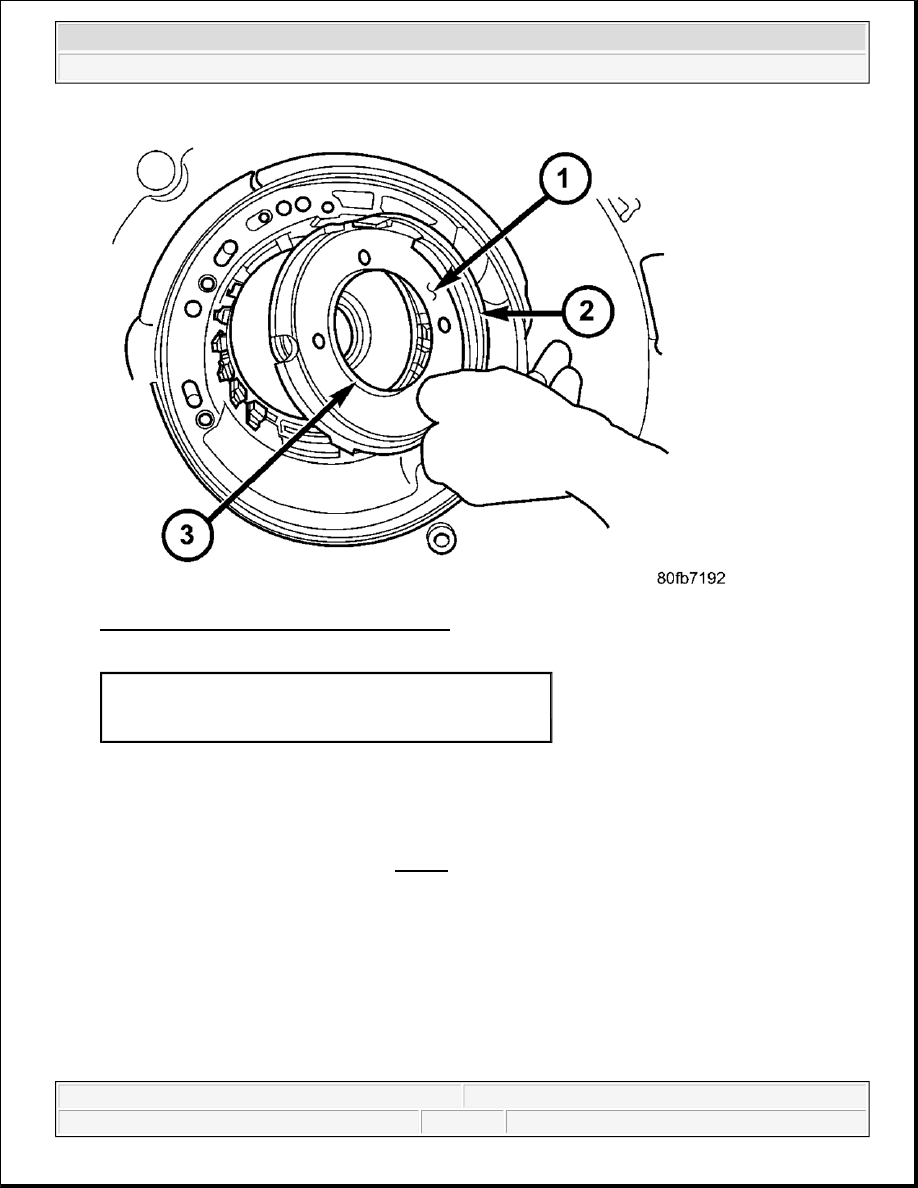

Fig. 23: Installing Low/Reverse Clutch Piston
Courtesy of CHRYSLER LLC

5. Install low/reverse clutch piston (1). See Fig. 23.

1 - LOW/REVERSE CLUTCH PISTON
2 - D-RING SEAL
3 - D-RING SEAL

NOTE:

The Low/Reverse Clutch Piston has bonded seals which are not
individually serviceable. Seal replacement requires replacement of the
piston assembly.
