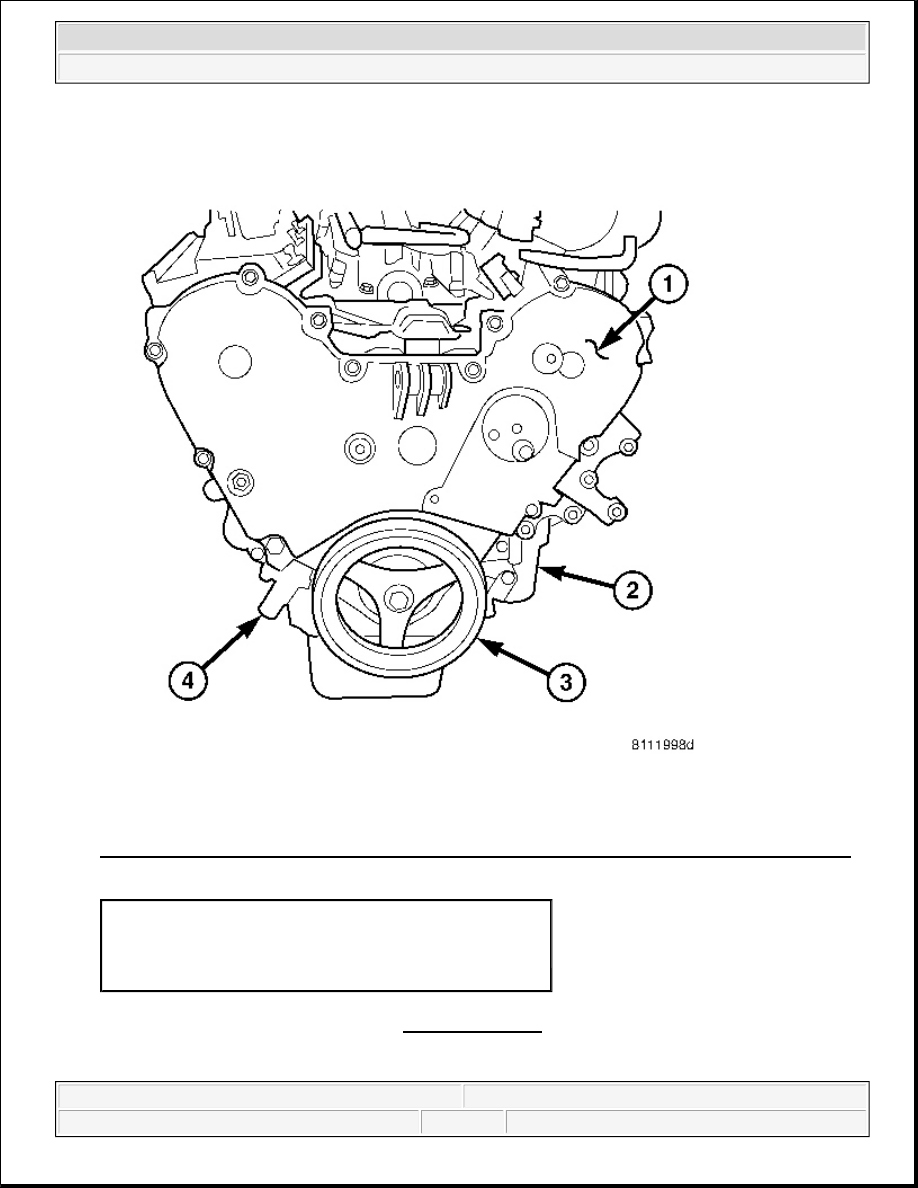

Fig. 111: Front Timing Belt Cover, Engine Oil Filter, Vibration Damper & Timing Belt Tensioner
Courtesy of CHRYSLER LLC

11. Install the timing belt front cover (1). See INSTALLATION).

1 - FRONT TIMING BELT COVER
2 - ENGINE OIL FILTER
3 - VIBRATION DAMPER
4 - TIMING BELT TENSIONER



2007 Dodge Nitro R/T

2007 ENGINE 4.0L - Service Information - Nitro



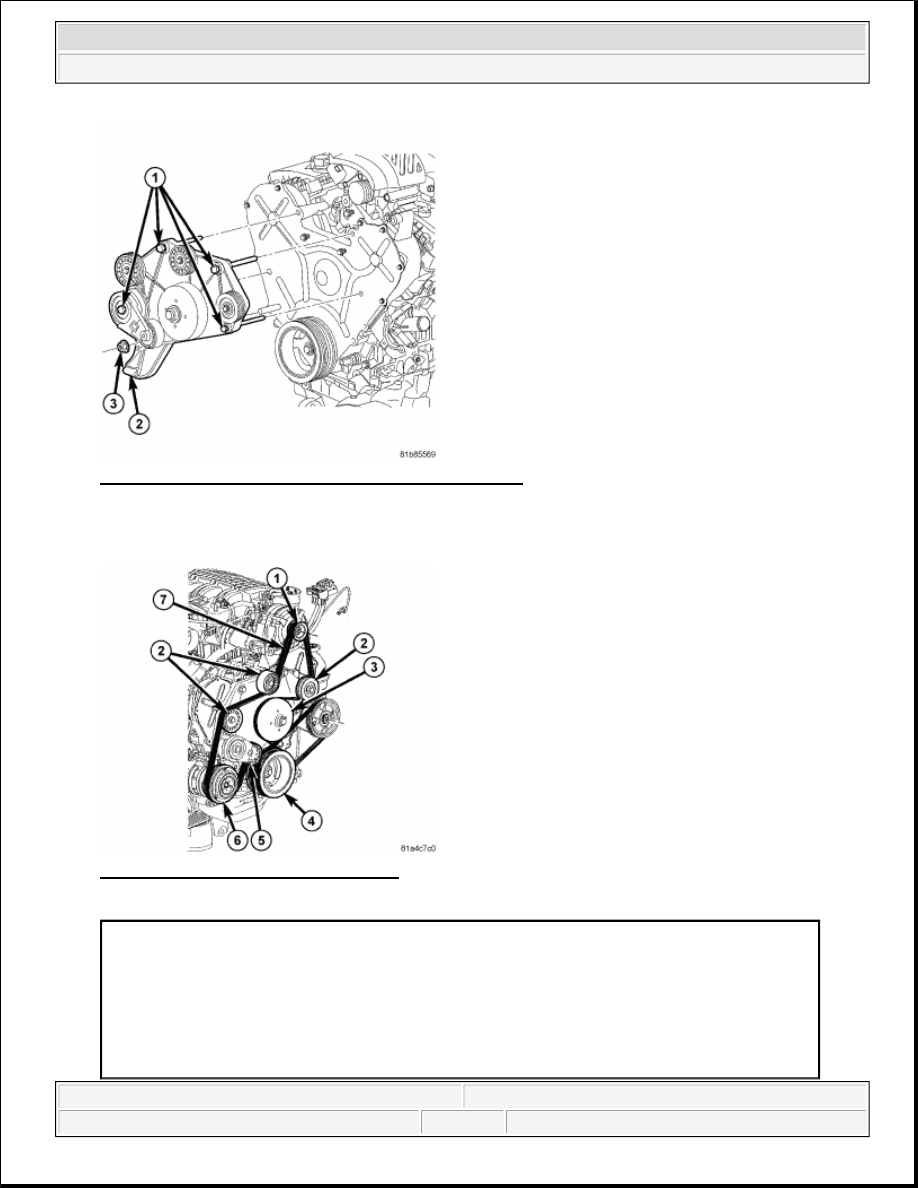

Fig. 112: Removing/Installing Accessory Drive Bracket
Courtesy of CHRYSLER LLC

12. Install the accessory drive bracket (2).

Fig. 113: Accessory Drive Belt Routing
Courtesy of CHRYSLER LLC

1 - GENERATOR
2 - IDLER PULLEY
3 - WATER PUMP PULLEY
4 - CRANKSHAFT PULLEY
5 - ACCESSORY DRIVE BELT TENSIONER
6 - A/C COMPRESSOR
7 - ACCESSORY DRIVE BELT



2007 Dodge Nitro R/T

2007 ENGINE 4.0L - Service Information - Nitro



13. Install the accessory drive belt tensioner (5).

14. Install the accessory drive belt idler pulley.

15. Install the accessory drive belt (7).

16. Install the vibration damper (4) (Refer to INSTALLATION ).

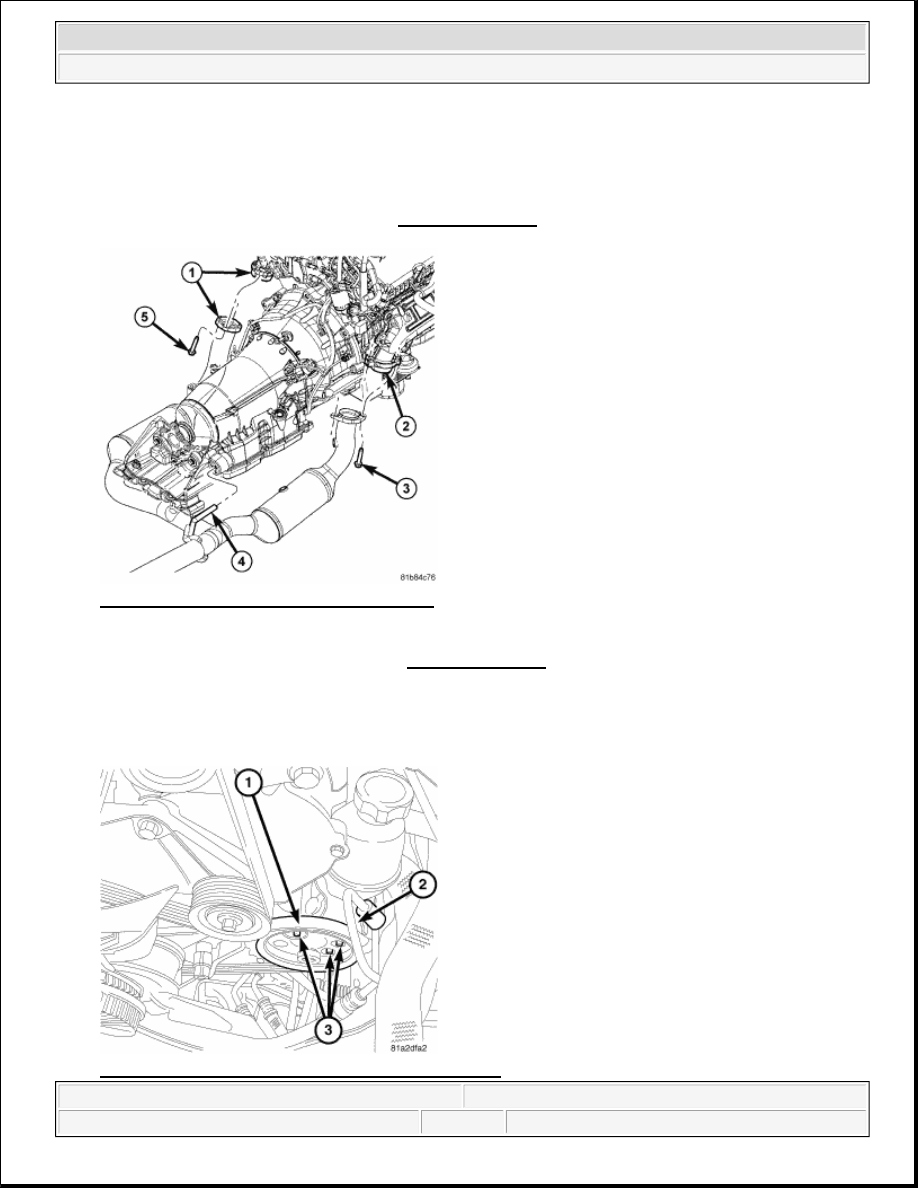

Fig. 114: Removing/Installing Exhaust Pipe
Courtesy of CHRYSLER LLC

17. Install the left exhaust manifold. (Refer to INSTALLATION ).

18. Connect the exhaust pipe (1) and connect the oxygen sensor.

19. Install the left rocker arm assembly.

20. Install the left cylinder head cover and ground strap.

Fig. 115: Removing/Installing Power Steering Pump



2007 Dodge Nitro R/T

2007 ENGINE 4.0L - Service Information - Nitro



Courtesy of CHRYSLER LLC

21. Install the power steering pump (2).

22. Install lower intake manifold (Refer to INSTALLATION ).

23. Install the fuel rail.

24. Install the upper intake manifold (Refer to INSTALLATION ).

25. Connect the air cleaner element housing (Refer to INSTALLATION ).

26. Fill the coolant system.

27. Connect the negative battery cable.

SEAL -CAMSHAFT OIL

REMOVAL

REMOVAL

RIGHT CYLINDER HEAD

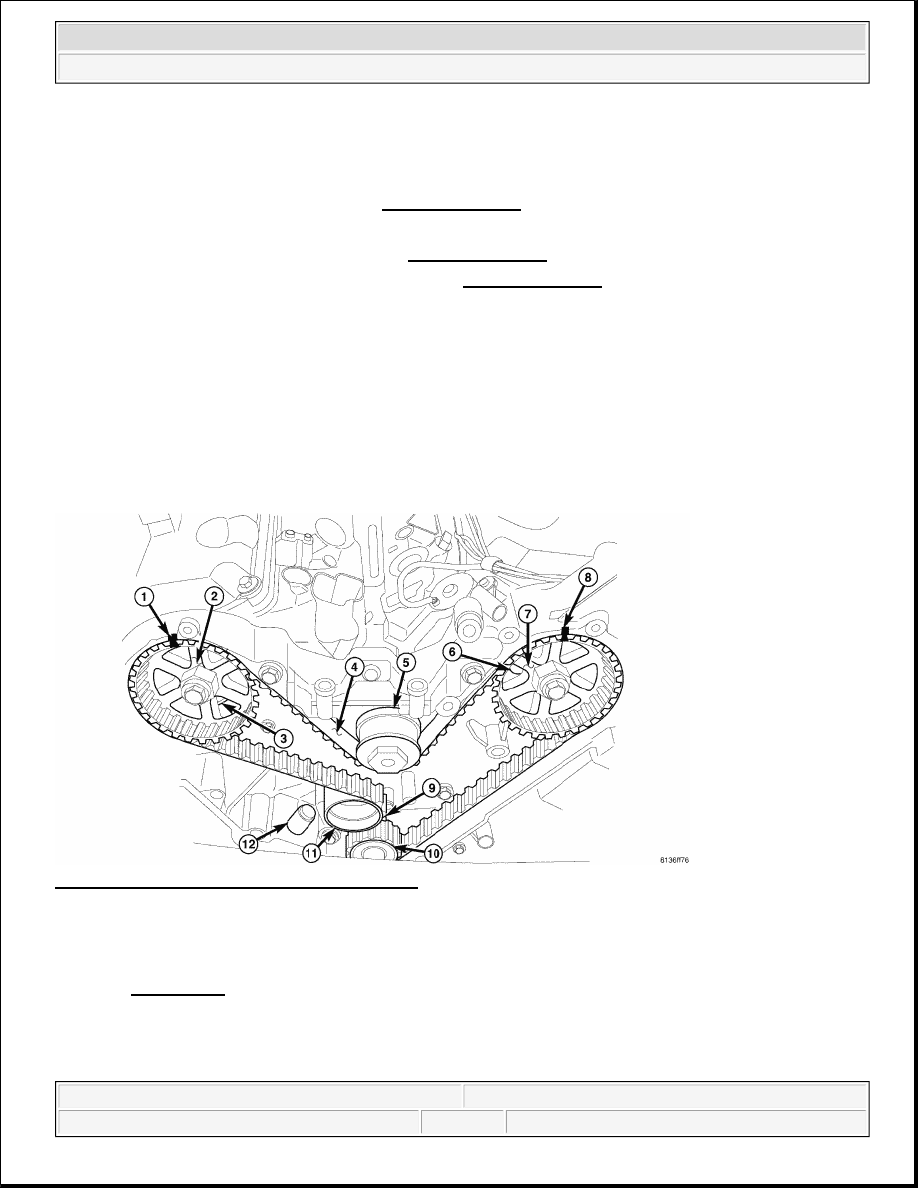

Fig. 116: Identifying Timing Gear Components
Courtesy of CHRYSLER LLC

1. Disconnect the negative battery cable.

2. Remove front timing cover and align the camshaft gear (1,8) and crankshaft gear timing mark (9) to TDC.

See REMOVAL).

3. Remove timing belt (4).
