Dodge Nitro. Manual - part 94





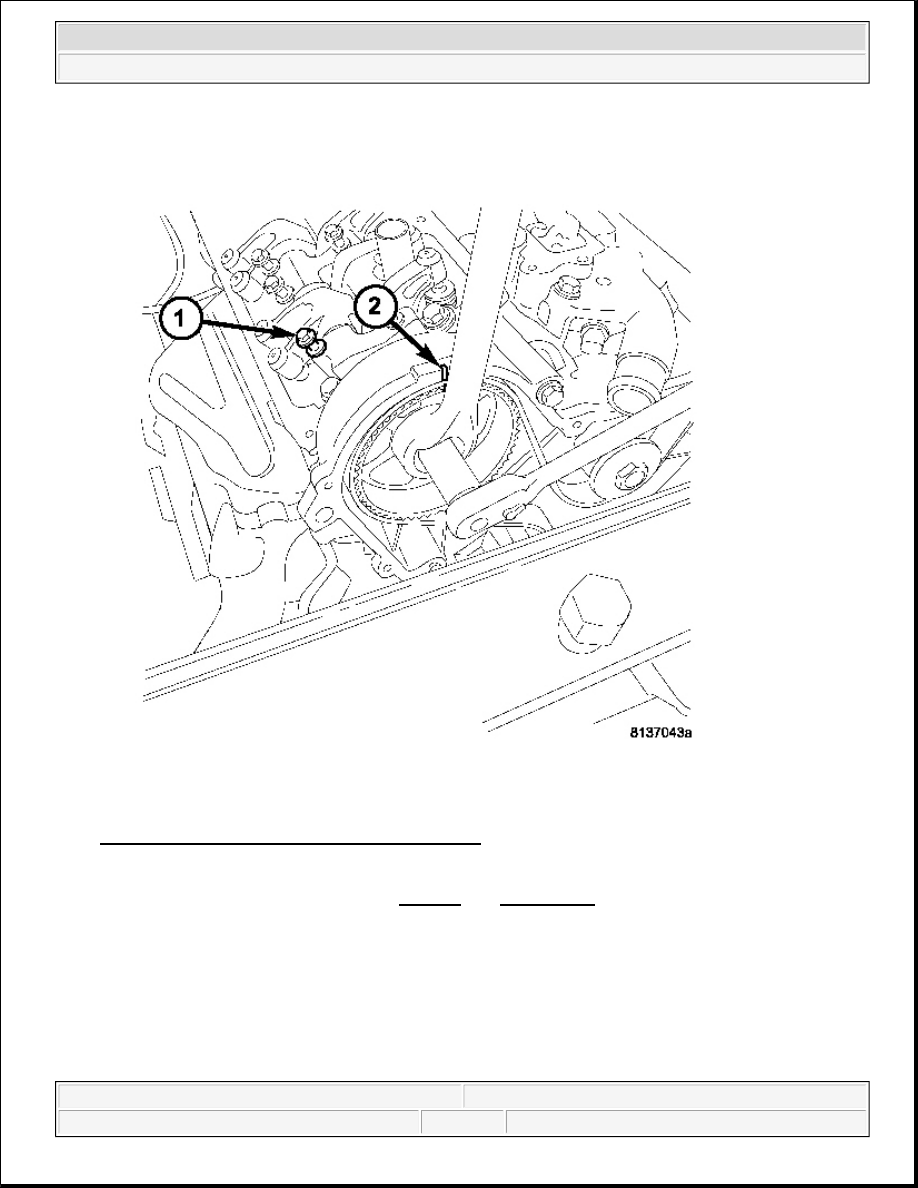

Fig. 117: Removing/Installing Camshaft Sprocket
Courtesy of CHRYSLER LLC

4. Remove the right camshaft sprocket. See Fig. 117. See REMOVAL



2007 Dodge Nitro R/T

2007 ENGINE 4.0L - Service Information - Nitro



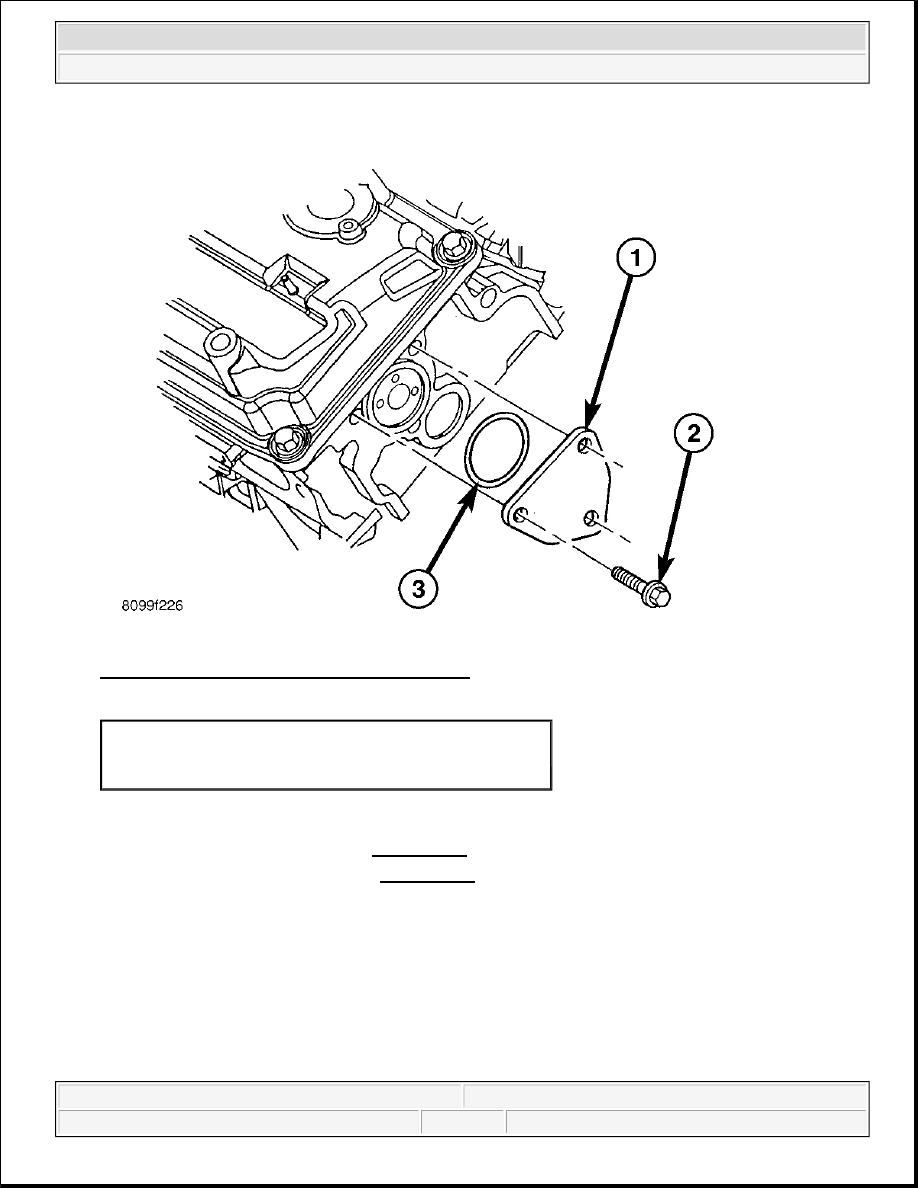

Fig. 118: Camshaft Thrust Plate, Bolt & O-Ring
Courtesy of CHRYSLER LLC

5. Remove the EGR valve and camshaft thrust plate (1) from the rear of the cylinder head.

6. Remove the cylinder head cover. See REMOVAL).

7. Remove the rocker arm assembly. See REMOVAL.

8. Maneuver the camshaft rearward and out of the cylinder head approximately 3.5 inches.

1 - CAMSHAFT THRUST PLATE
2 - BOLT
3 - O-RING

NOTE:

Care must be taken not to damage the cylinder head to seal or camshaft
journal surfaces when removing the camshaft seal.



2007 Dodge Nitro R/T

2007 ENGINE 4.0L - Service Information - Nitro



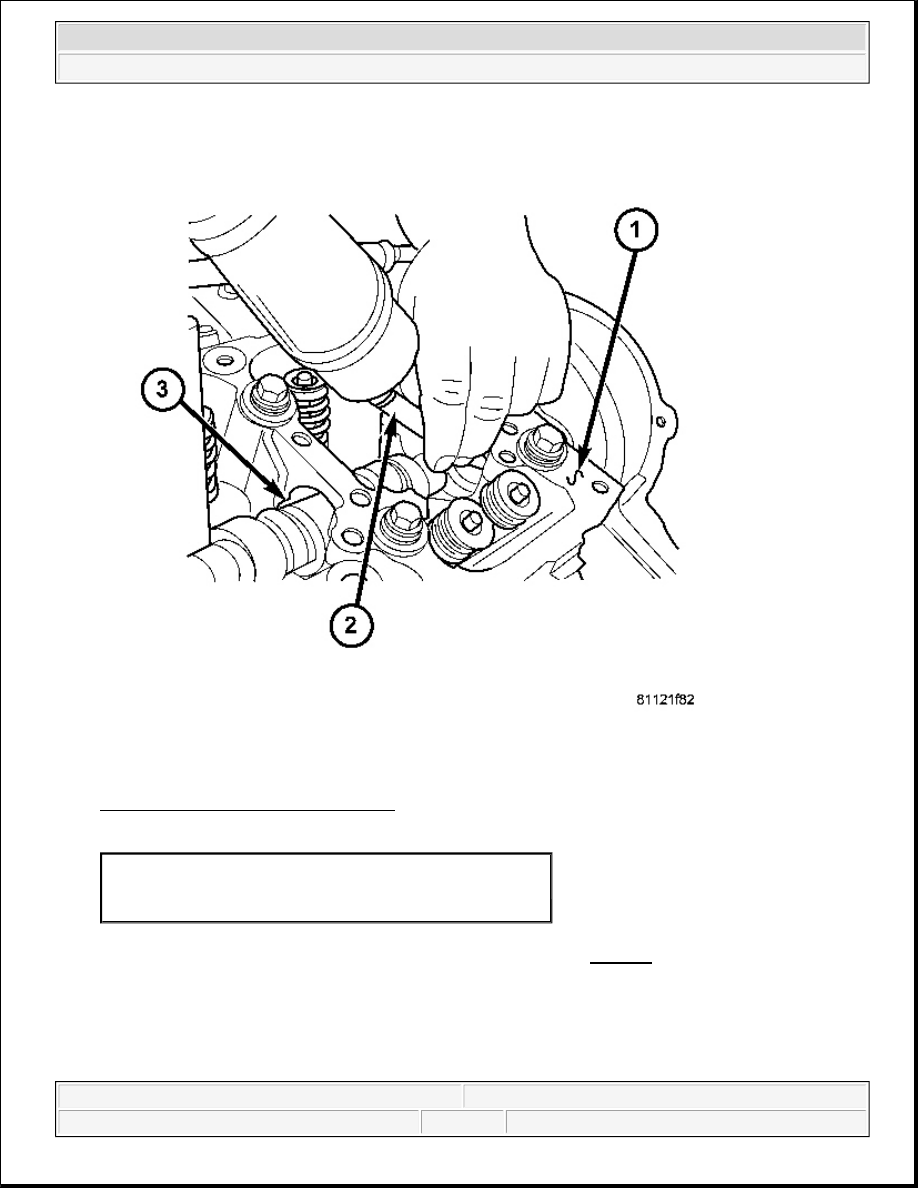

Fig. 119: Removing Camshaft Oil Seal
Courtesy of CHRYSLER LLC

9. Using an appropriate driver carefully remove camshaft oil seal. See Fig. 119

LEFT CYLINDER HEAD

1 - CYLINDER HEAD
2 - DRIFT
3 - CAMSHAFT



2007 Dodge Nitro R/T

2007 ENGINE 4.0L - Service Information - Nitro



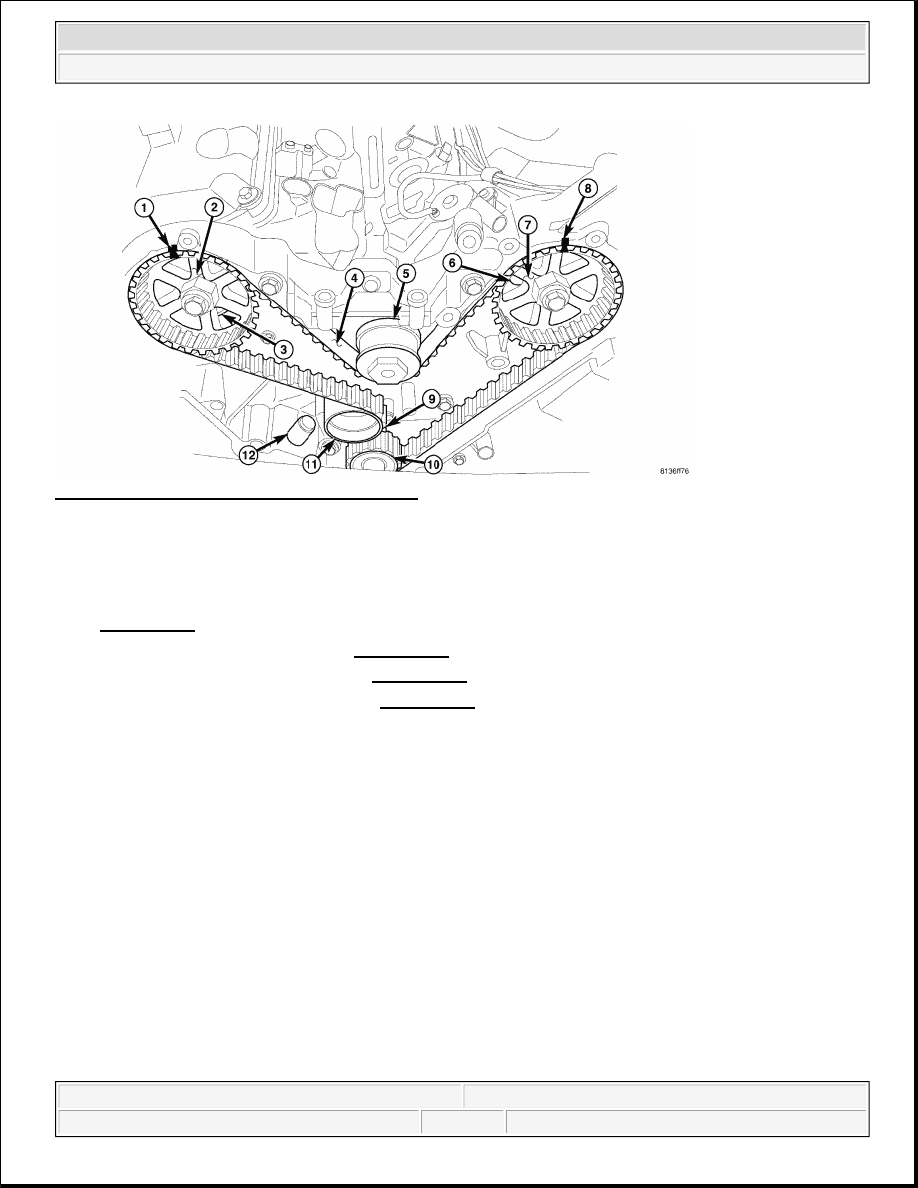

Fig. 120: Identifying Timing Gear Components
Courtesy of CHRYSLER LLC

1. Disconnect the negative battery cable.

2. Drain cooling system.

3. Remove front timing cover and align the camshaft gear and crankshaft gear timing marks to TDC. See

REMOVAL).

4. Remove the rear timing cover. See REMOVAL).

5. Remove the cylinder head cover. See REMOVAL).

6. Remove the rocker arm assembly. See REMOVAL



2007 Dodge Nitro R/T

2007 ENGINE 4.0L - Service Information - Nitro
