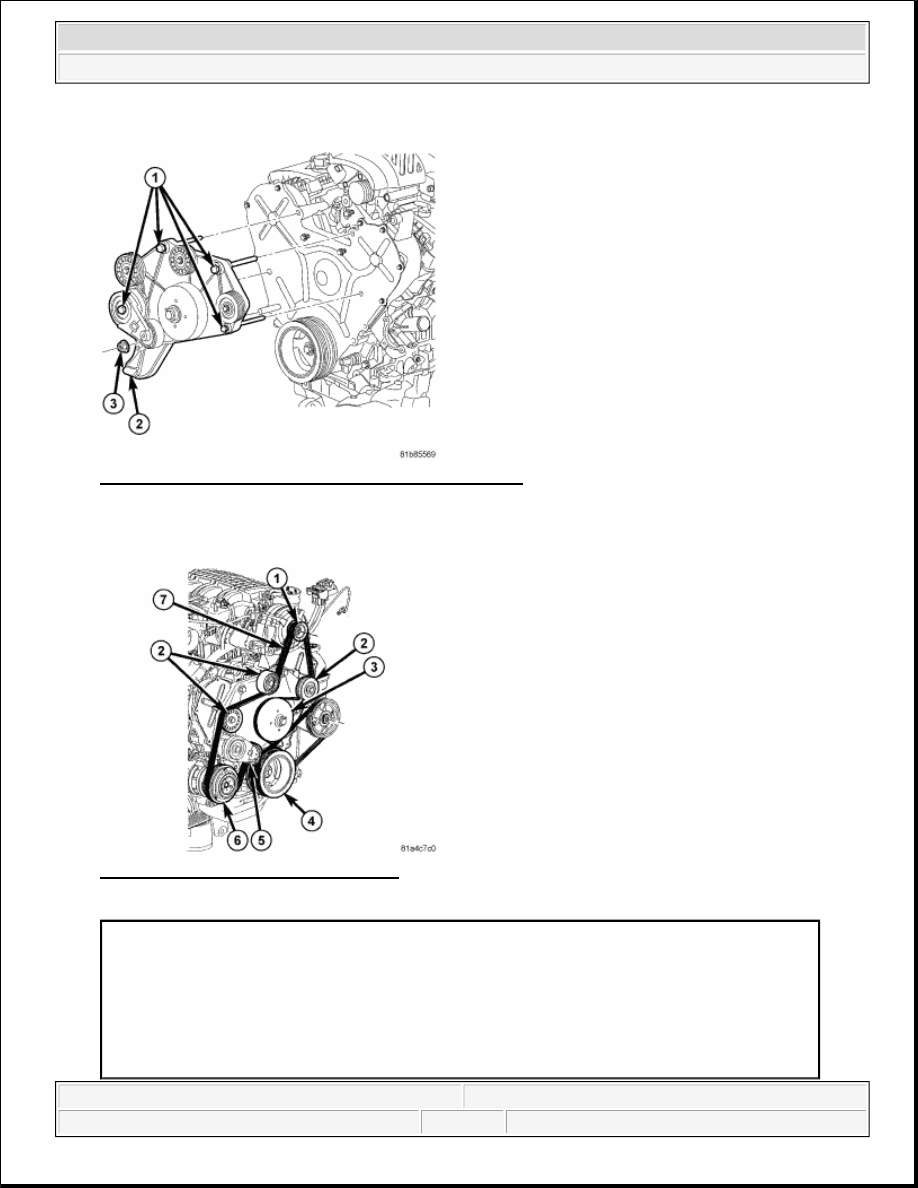

Fig. 102: Removing/Installing Accessory Drive Bracket
Courtesy of CHRYSLER LLC

11. Install the accessory drive bracket (2).

Fig. 103: Accessory Drive Belt Routing
Courtesy of CHRYSLER LLC

1 - GENERATOR
2 - IDLER PULLEY
3 - WATER PUMP PULLEY
4 - CRANKSHAFT PULLEY
5 - ACCESSORY DRIVE BELT TENSIONER
6 - A/C COMPRESSOR
7 - ACCESSORY DRIVE BELT



2007 Dodge Nitro R/T

2007 ENGINE 4.0L - Service Information - Nitro



12. Install the vibration damper (Refer to INSTALLATION ).

13. Install the accessory drive belt tensioner.

14. Install the accessory drive belt idler pulley.

15. Install the accessory drive belt (7).

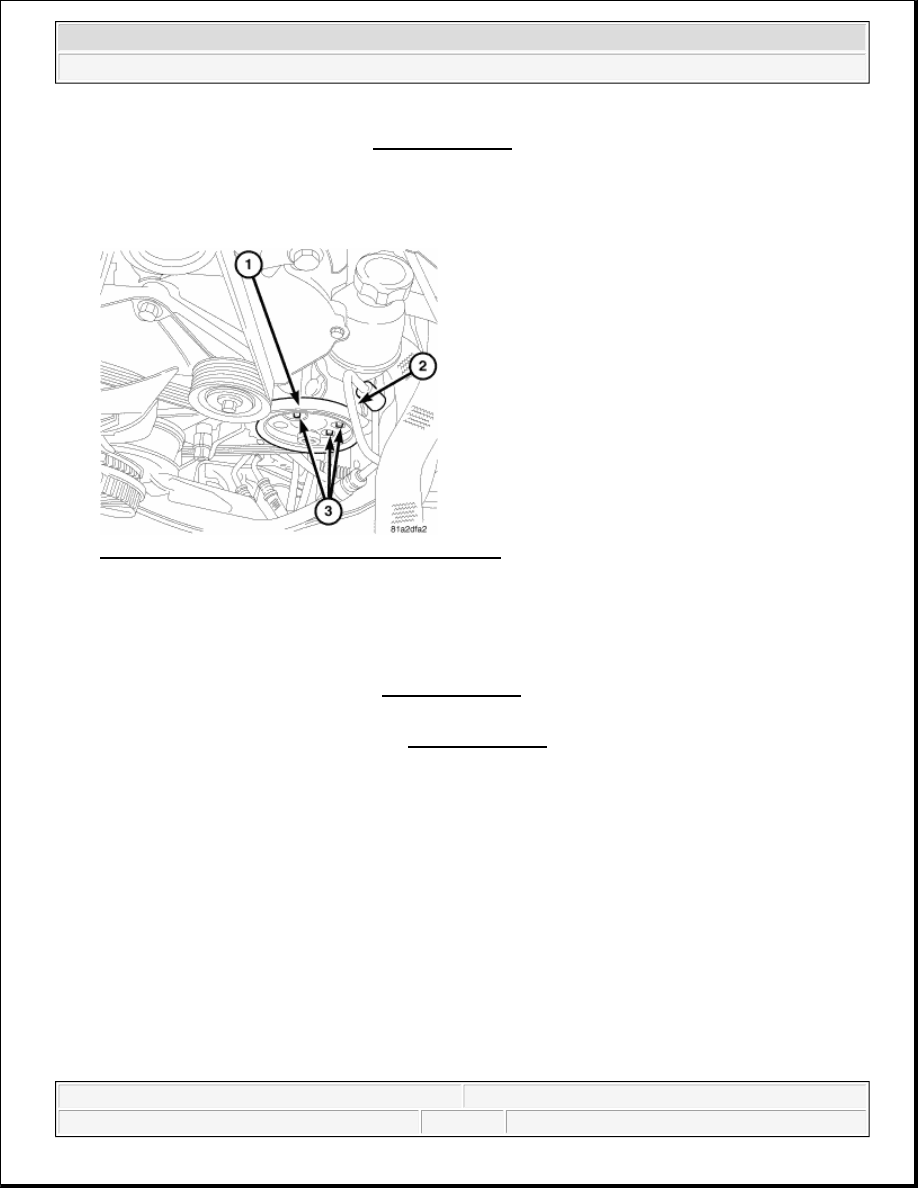

Fig. 104: Removing/Installing Power Steering Pump
Courtesy of CHRYSLER LLC

16. Install the power steering pump (2).

17. Install the right rocker arm assembly.

18. Install the right cylinder head cover, ground strap and insulator.

19. Install lower intake manifold (Refer to INSTALLATION ).

20. Install the fuel rail.

21. Install the upper intake manifold (Refer to INSTALLATION ).



2007 Dodge Nitro R/T

2007 ENGINE 4.0L - Service Information - Nitro



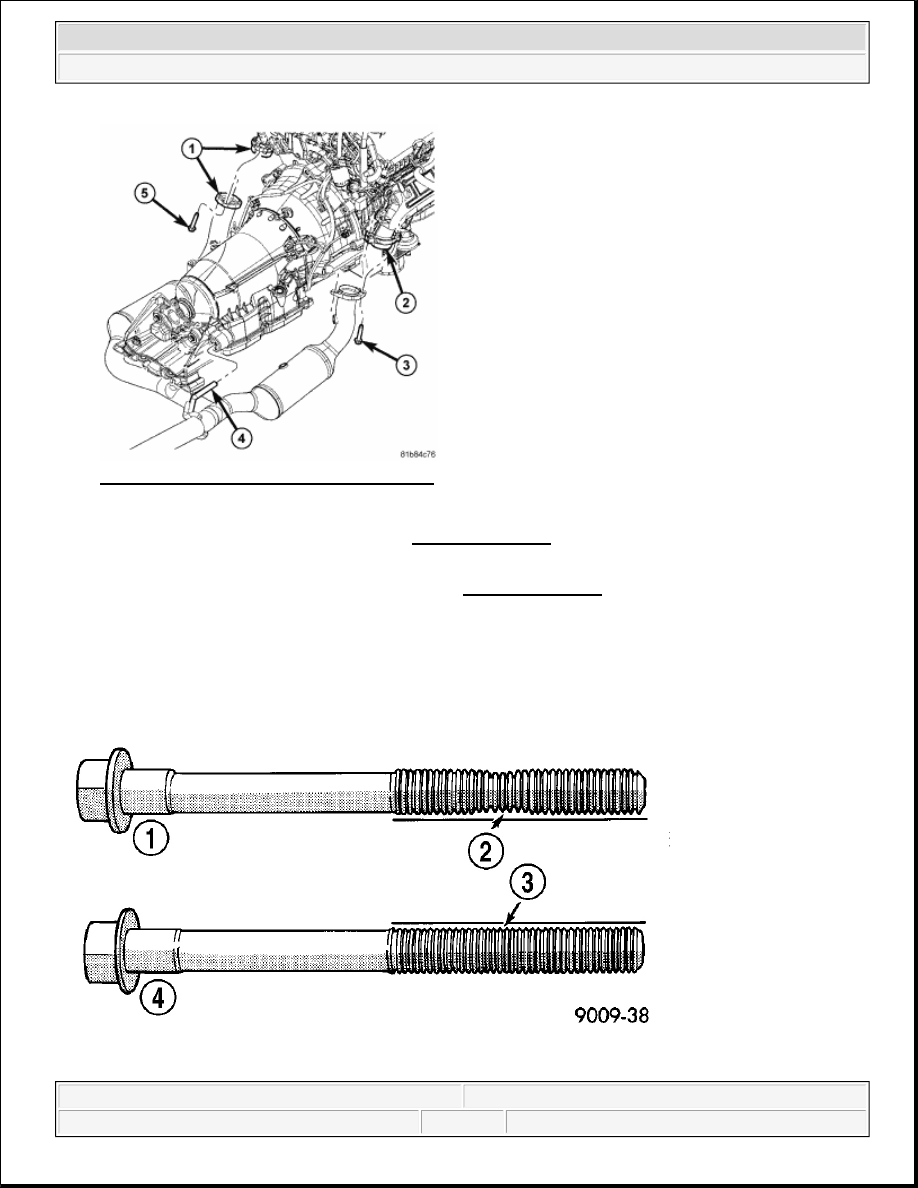

Fig. 105: Removing/Installing Exhaust Pipe
Courtesy of CHRYSLER LLC

22. Install the right exhaust manifold (Refer to INSTALLATION ).

23. Install the exhaust pipe (1) and connect the oxygen sensors.

24. Connect the air cleaner element housing (Refer to INSTALLATION ).

25. Fill the coolant system.

26. Connect the negative battery cable.

LEFT CYLINDER HEAD



2007 Dodge Nitro R/T

2007 ENGINE 4.0L - Service Information - Nitro



Fig. 106: Checking For Stretched Bolts
Courtesy of CHRYSLER LLC

The cylinder head bolts are tightened using a torque plus angle procedure. The bolts must be examined
BEFORE reuse. If the threads are necked down the bolts must be replaced.

Necking can be checked by holding a scale or straight edge against the threads. If all the threads do not contact
the scale the bolt must be replaced.

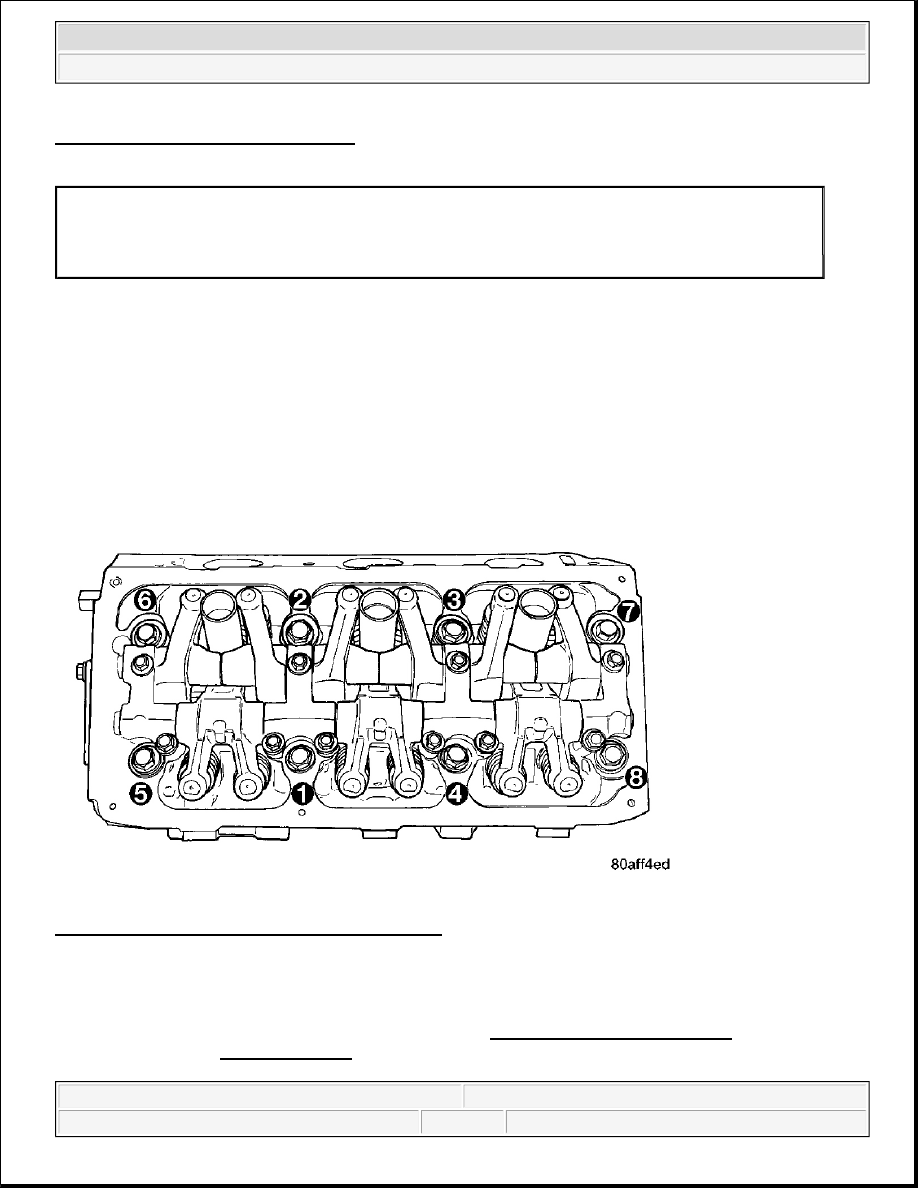

Fig. 107: Cylinder Head Bolt Tightening Sequence
Courtesy of CHRYSLER LLC

1 - STRETCHED BOLT
2 - THREADS ARE NOT STRAIGHT ON LINE
3 - THREADS ARE STRAIGHT ON LINE
4 - UNSTRETCHED BOLT

CAUTION: THE CYLINDER HEAD GASKETS ARE NOT INTERCHANGEABLE

BETWEEN CYLINDER HEADS AND ARE CLEARLY MARKED RIGHT OR
LEFT.

CAUTION: When cleaning cylinder head and cylinder block surfaces, DO NOT use a

metal scraper because the surfaces could be cut or ground. Use ONLY a
wooden or plastic scraper. See ENGINE GASKET SURFACE
PREPARATION.
