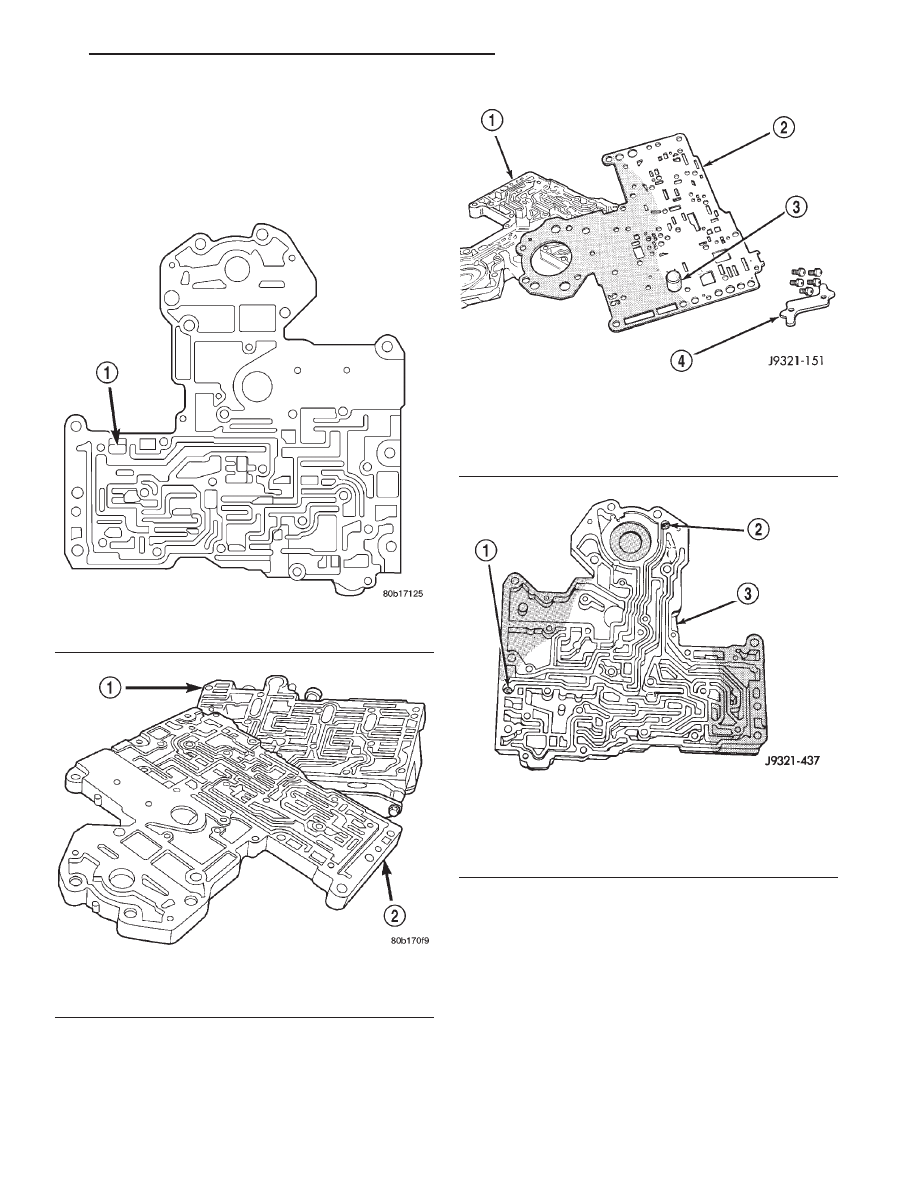

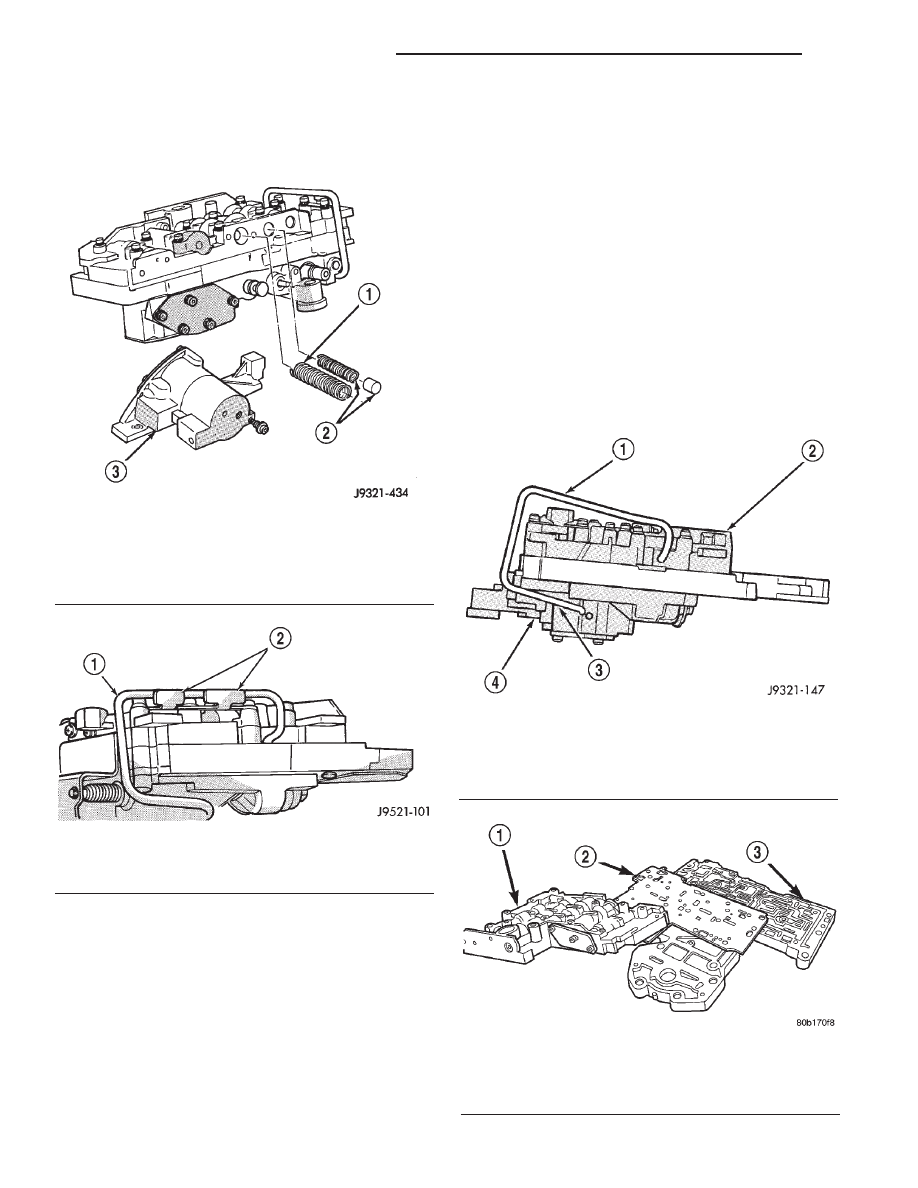

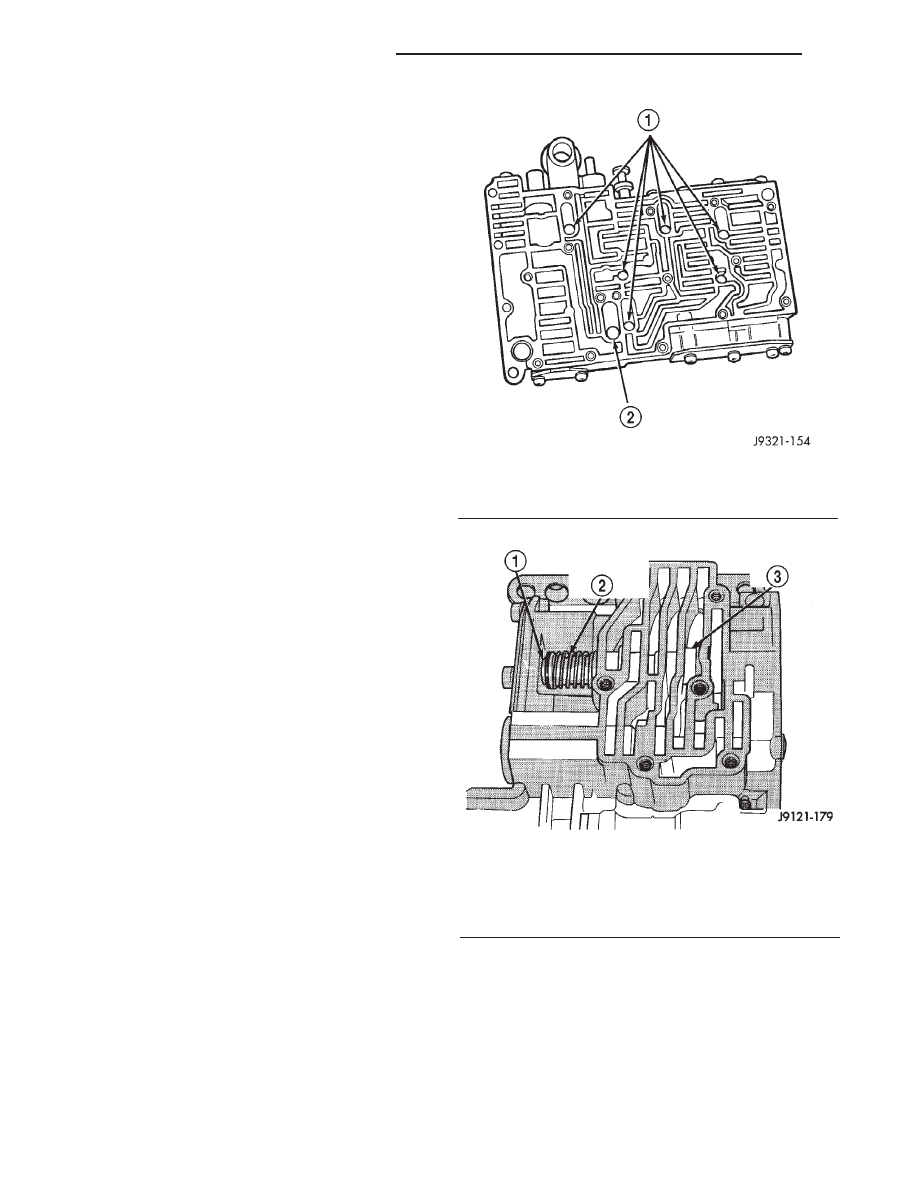

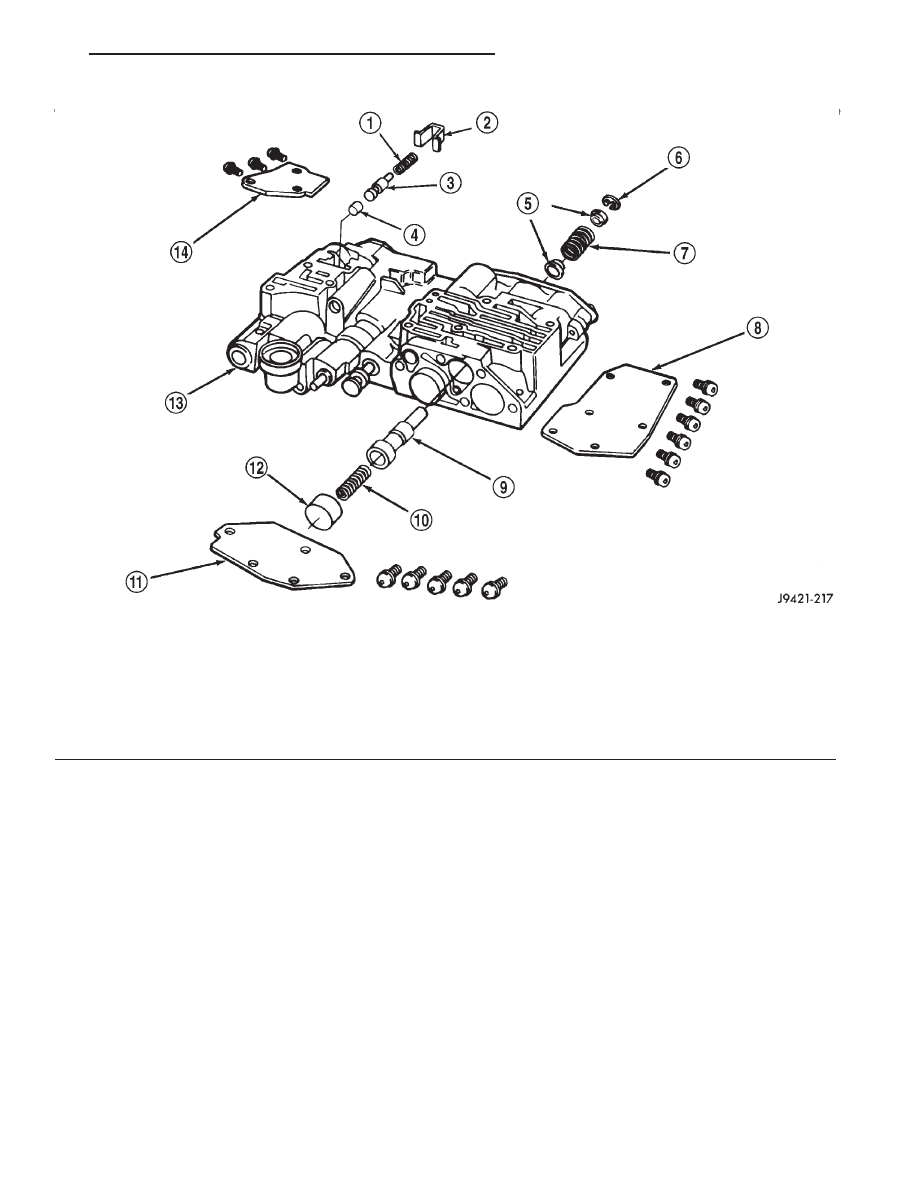

(24) Remove left-side screw and remove 3-4 accu- mulator housing from valve body (Fig. 115). (25) Bend back tabs on boost valve tube brace (Fig. 116). (26) Remove boost valve connecting tube (Fig. 117). Disengage tube from upper housing port first. Then CAUTION: Do not use tools to loosen or pry the (27) Turn valve body over so lower housing is fac- ing upward (Fig. 118). In this position, the two check fall out when lower housing and separator plate are (28) Remove screws attaching valve body lower housing to upper housing and transfer plate (Fig. (29) Remove lower housing and overdrive separa- tor plate from transfer plate (Fig. 118). (30) Remove the ECE check ball from the transfer plate (Fig. 119). The ECE check ball is approximately (31) Remove transfer plate from upper housing (Fig. 120). (32) Turn transfer plate over so upper housing sep- arator plate is facing upward. Fig. 117 Boost Valve Tube 1 – BOOST VALVE TUBE Fig. 118 Lower Housing 1 – LOWER HOUSING Fig. 115 Accumulator Housing, Valve Springs And Plug 1 – 3–4 SHIFT VALVE SPRING Fig. 116 Boost Valve Tube Brace 1 – BOOST VALVE TUBE 21 - 242 46RE AUTOMATIC TRANSMISSION DN DISASSEMBLY AND ASSEMBLY (Continued) |
