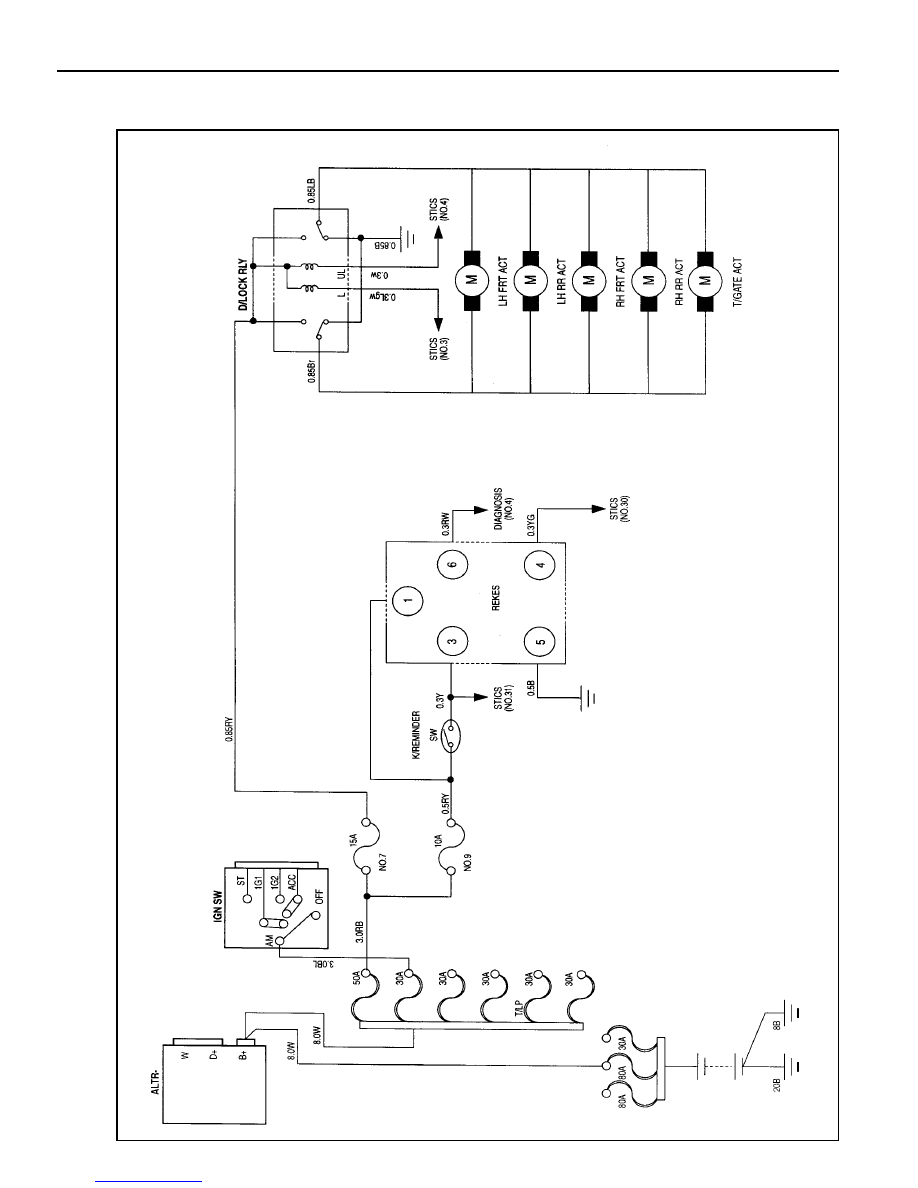

SECTION 9T REMOTE KEYLESS ENTRY AND ANTI-THEFT SYSTEM Caution: Disconnect the negative battery cable before removing or installing any electrical unit or when a TABLE OF CONTENTS Specifications . . . . . . . . . . . . . . . . . . . . . . . . 9T-1 REKES Specifications . . . . . . . . . . . . . . . . . . . 9T-1 Schematic and Routing Diagrams . . . . . . . . 9T-2 REKES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9T-2 Diagnosis . . . . . . . . . . . . . . . . . . . . . . . . . . . 9T-3 Diagnosis Test . . . . . . . . . . . . . . . . . . . . . . . . 9T-3 SPECIFICATIONS REKES SPECIFICATIONS Maintenance and Repair . . . . . . . . . . . . . . . 9T-5 On-Vehicle Service . . . . . . . . . . . . . . . . . . . . . . 9T-5 REKES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9T-5 Function Description . . . . . . . . . . . . . . . . . . 9T-8 Burglar Alarm . . . . . . . . . . . . . . . . . . . . . . . . . 9T-8 Transmitter Description DC 3V -10 ° C - 60 ° C Changeable Coin Type LITHIUM Battery (CR2032) Above 2 years (10 times/day) Application Rated Voltage Rated Range of Operating Temperature Model Durability Description DC 12V DC 8V - 16V -30 ° C - +80 ° C Above 5M W Maximum 3mA Application Rated Voltage Rated Range of Operating Voltage Rated Range of Operating Temperature Insulating Resistance Arm Current Receiver |
