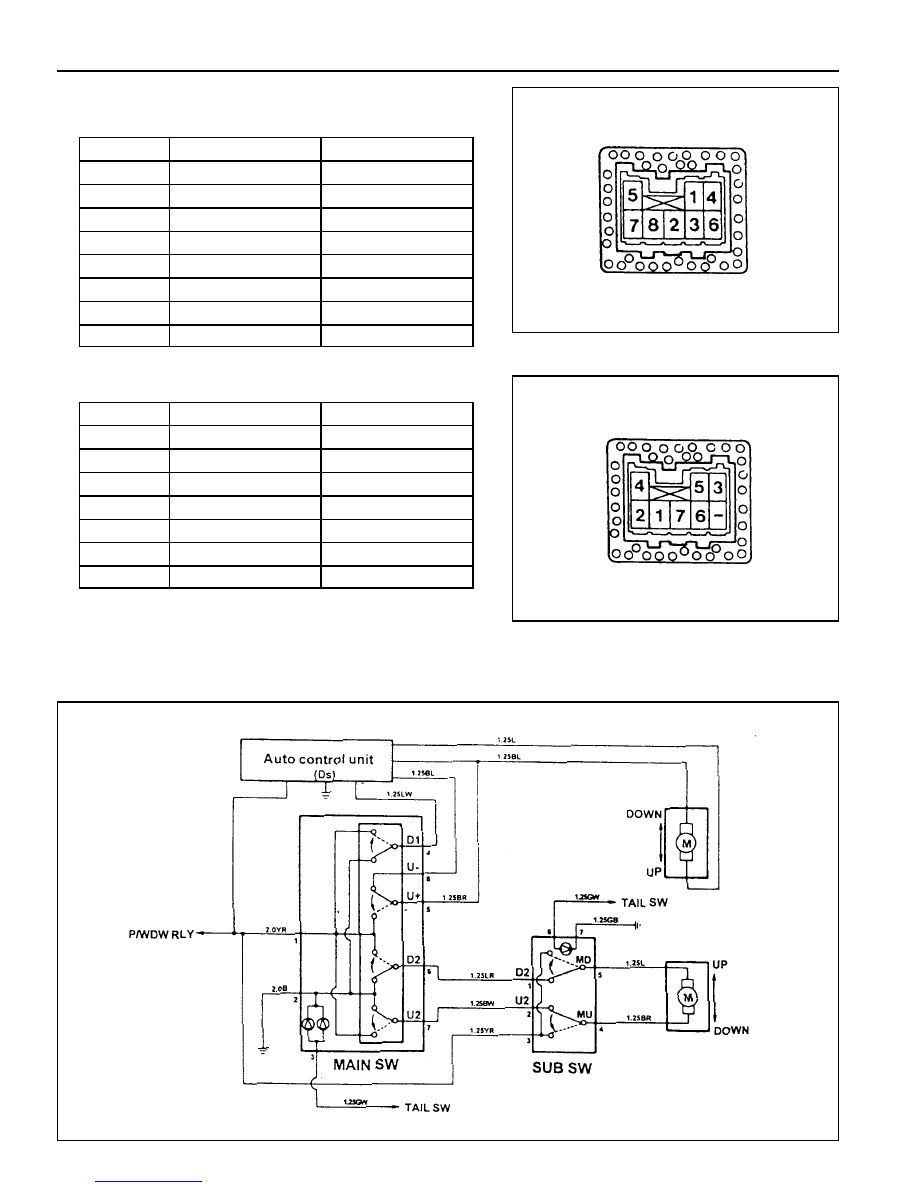

9P-10 DOORS Connector Appearance and Connecting Circuit 1. Power Window Main Switch (Driver's Door) 2. Power Window Sub-Switch (Passenger's Door). Terminal No. 1 2 3 4 5 6 7 8 Connecting Circuit B+ E- ILL (+) D 1 U+ D 2 U 2 U- Size and Color 2.0 YR 2.0 B 1.25 GW 1.25 LW 1.25 BR 1.25 LR 1.25 BW 1.25 BL Terminal No. 1 2 3 4 5 6 7 Connecting Circuit D 2 U 2 B+ MU MD ILL(+) ILL(-) Size and Color 2.0 LR 1.25 BW 1.25 YR 1.25 BR 1.25 L 1.25 GW 1.25 GB Diagram for Connecting Circuit |
