Daewoo Korando. Manual - part 349

9P-6 DOORS

Removal & Installation Procedure

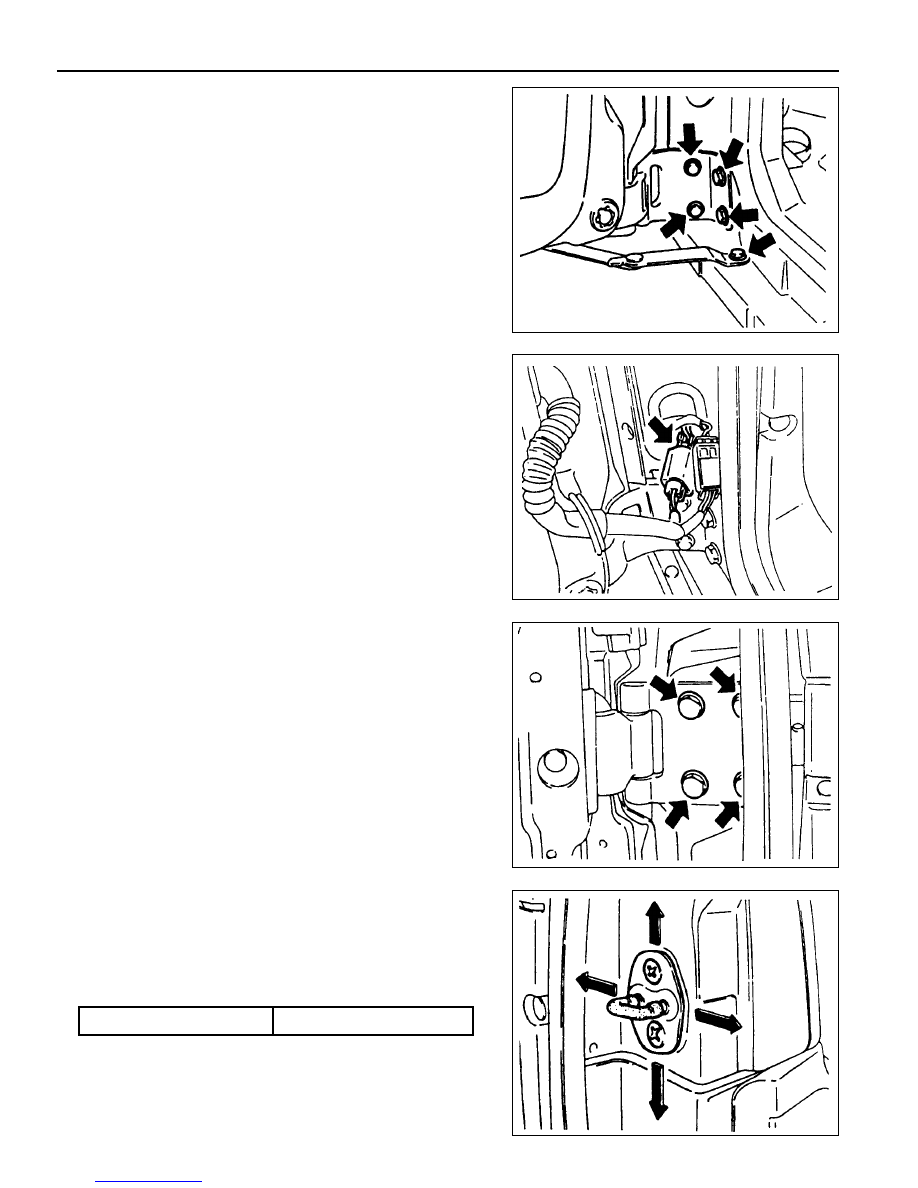

1. Remove the lower hinge bolt of tail gate and stopper

mounting bolt.

2. Disconnect the wiring connector.

3. Remove the mounting bolt and remove the tail gate.

Adjustment

Adjust the striker in horizontal/vertical directions and then adjust
the height of striker.

Clearance between tailgate and quarter outer rear panel.

Clearance

4.3 - 6.3 Nm

DOORS 9P-7

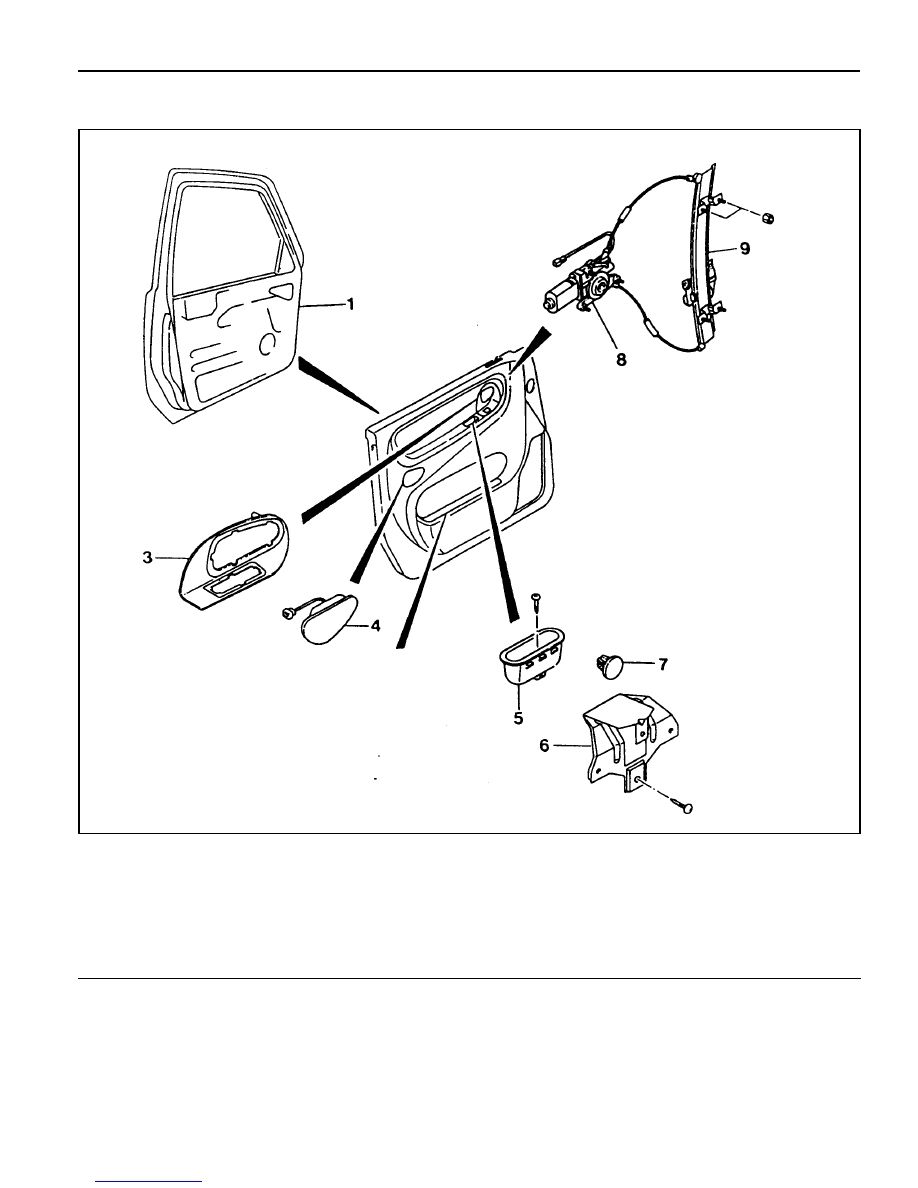

POWER WINDOW MOTOR

1 Door
2 Door Trim Panel
3 Inside Handle Mounting Plate
4 Door Opening Lamp
5 Door Pulling Handle

6 Door Trim Mounting Bracket
7 Door Defroster Grommet
8 Power Window Motor
9 Regulator

9P-8 DOORS

Removal & Installation Procedure

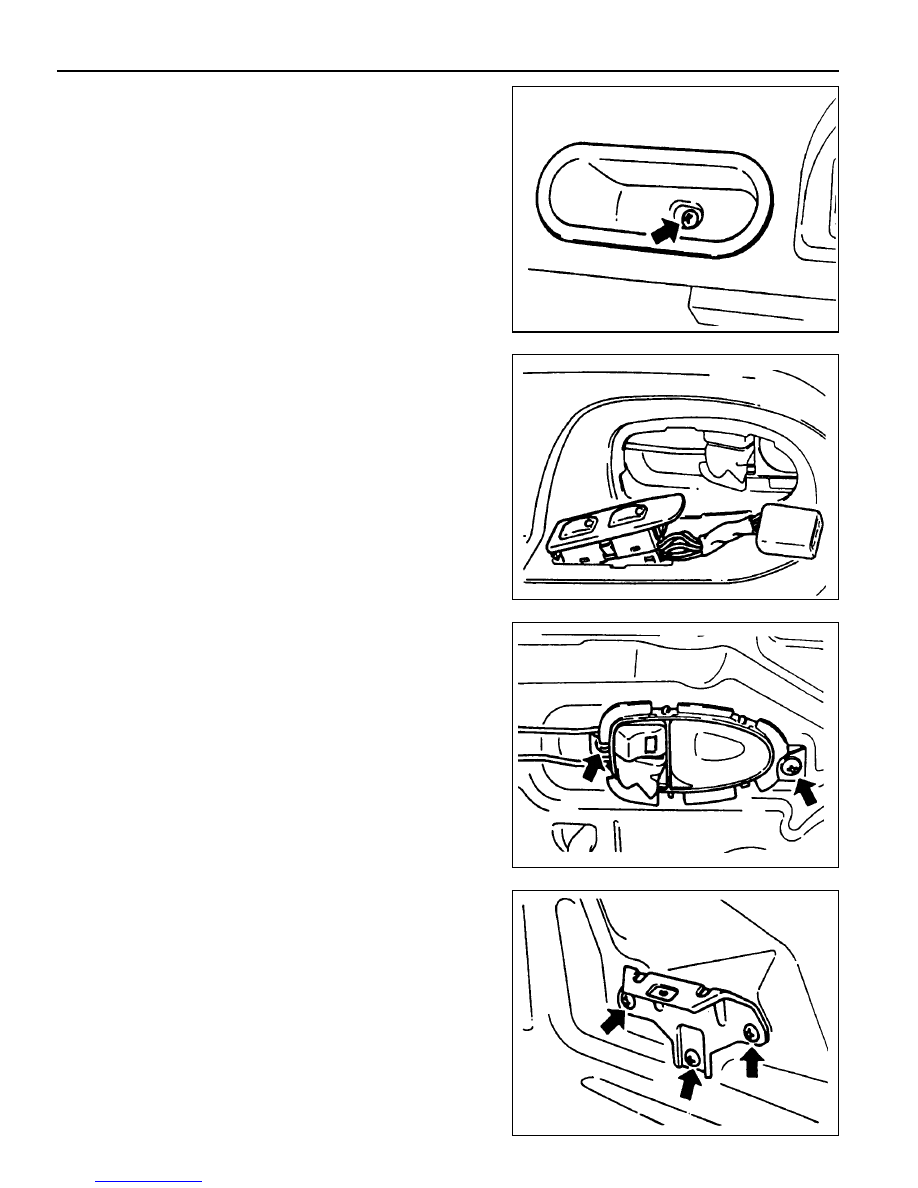

1. Unscrew the screw (arrow) and remove the door pulling

handle.

2. Disconnect the connector and remove the power window

switch assembly.

3. Remove the inside handle mounting plate.

4. Remove the door trim panel assembly.

5. Unscrew two screws (arrows) and remove the door lock

opening handle assembly and disconnect opening handle
ratch dar.

6. Unscrew three screw (arrow) and remove the door trim

mounting bracket.

7. Disconnect the opening lamp connector.

DOORS 9P-9

8. Remove the door vinyl.

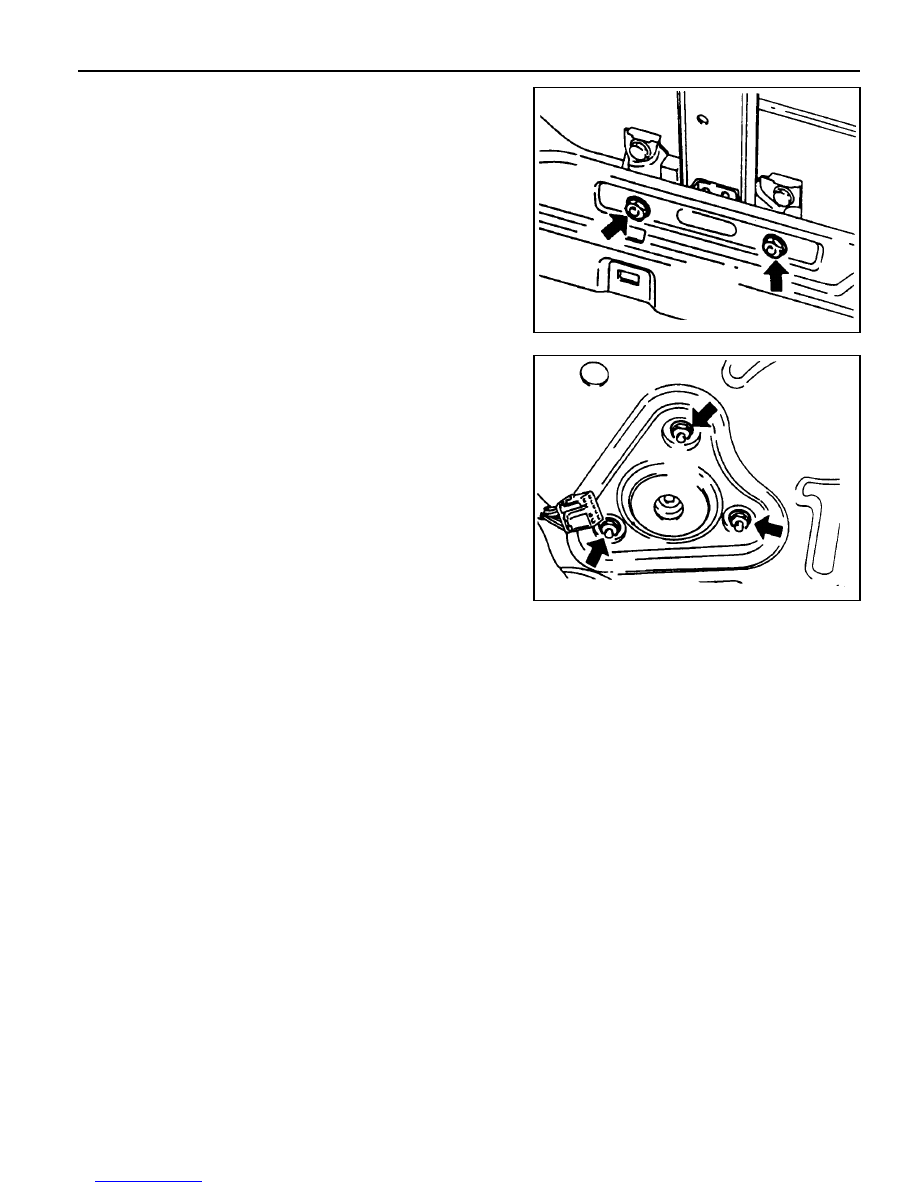

9. Unscrew the upper and lower nuts(4 piecess) and remove

the door regulator.

10. Unscrew three nuts(arrow) and remove the power window

motor.
