9A-2  BODY WIRING SYSTEM

SCHEMATIC AND ROUTING DIAGRAMS

POWER DISTRIBUTION

BODY WIRING SYSTEM  9A-3

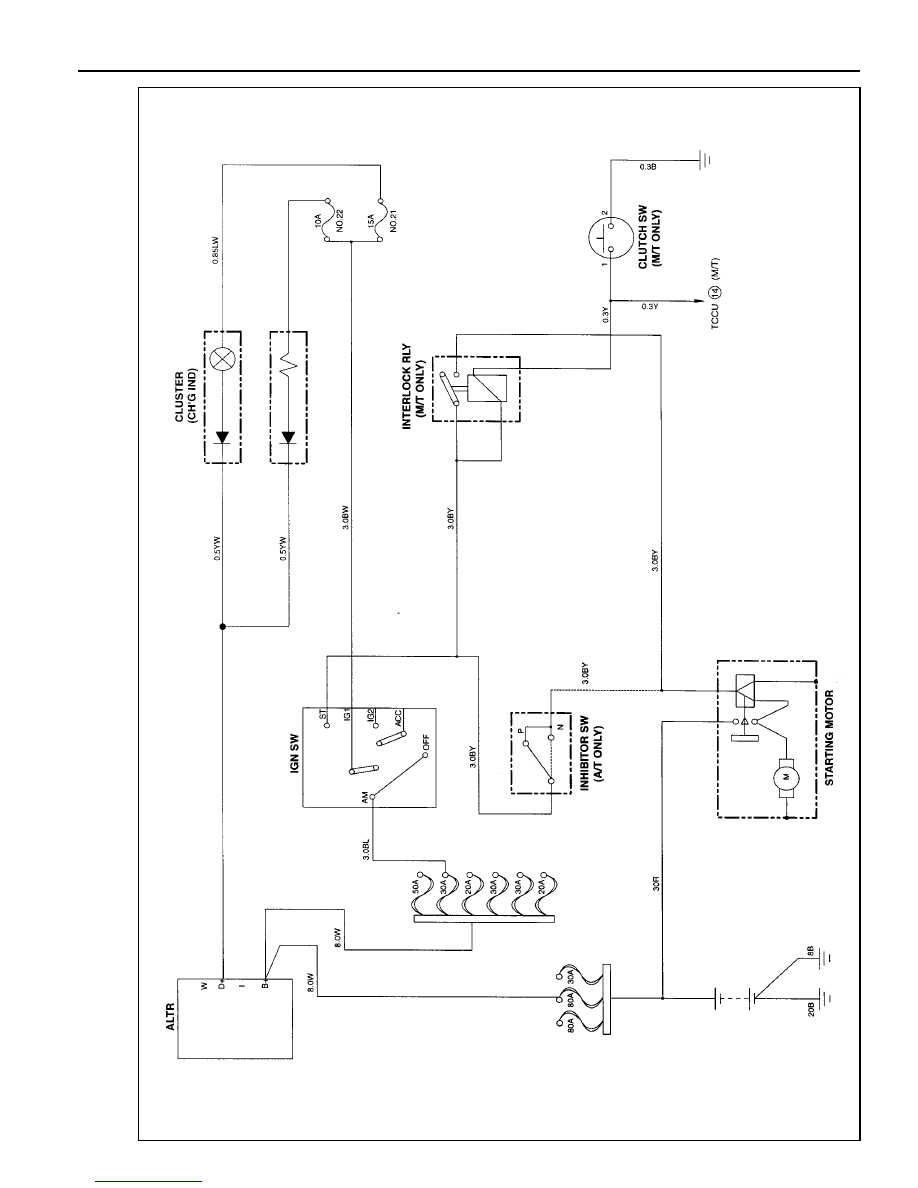

ST

ARTING AND CHARGING (GASOLINE)

9A-4  BODY WIRING SYSTEM

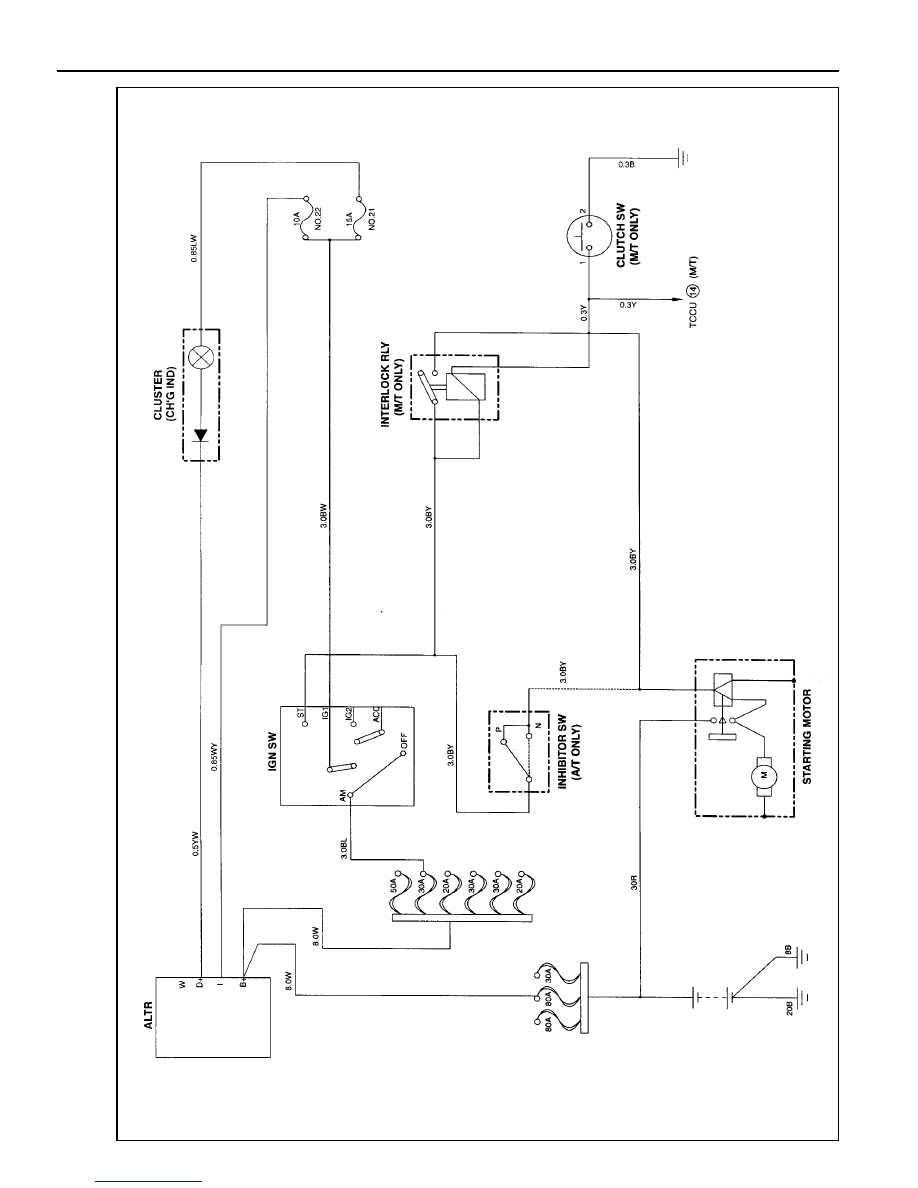

ST

ARTING AND CHARGING (DIESEL)

BODY WIRING SYSTEM  9A-5

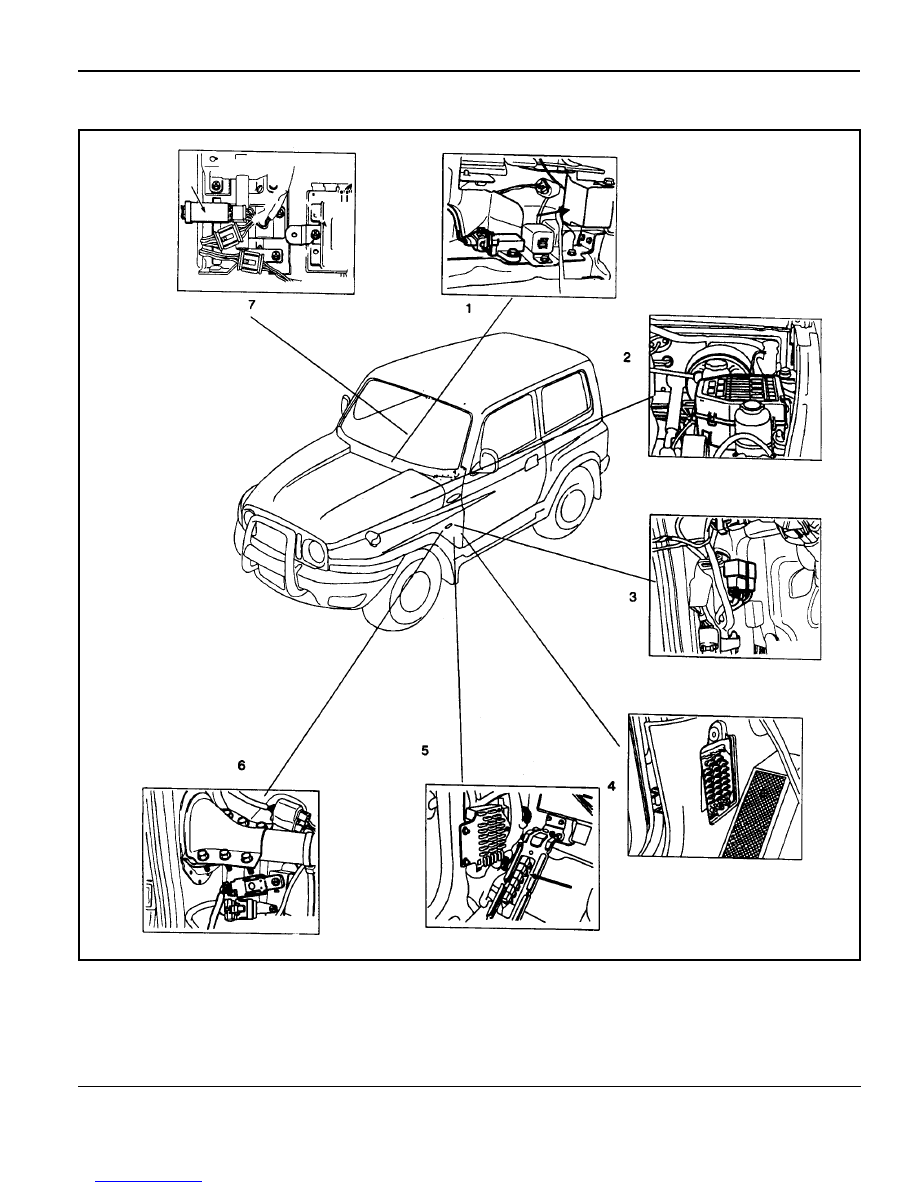

FUSE BOX AND RELAY

1 Automatic Door Lock Relay
2 Engine Room Fuse Box
3 ABD Motor and Valve Relay
4 Interior Fuse Box

5 Interior Relay
6 Window Auto Down Relay
7 Over Voltage Protection Relay : OVPR
