SUPPLEMENTAL RESTRAINT SYSTEM(SRS)  8B-15

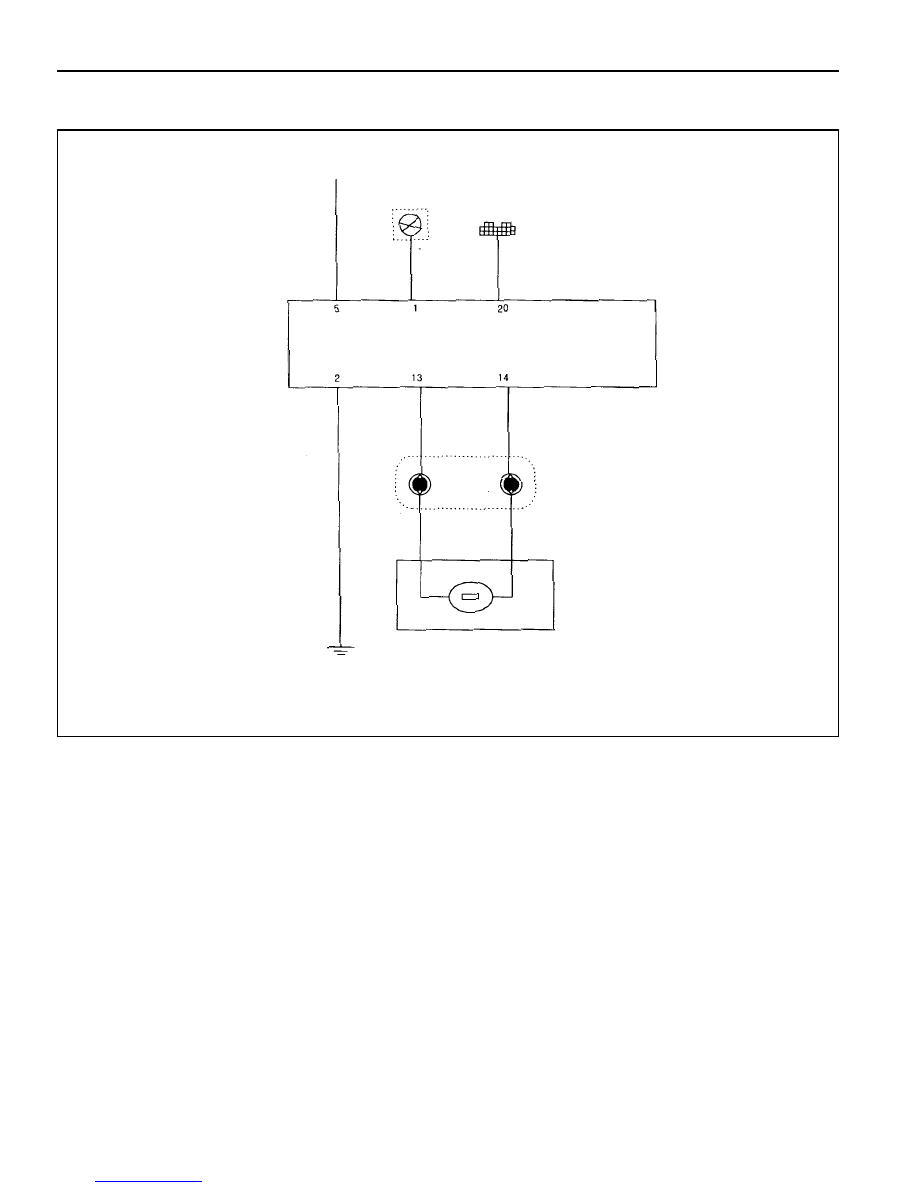

CIRCUIT DIAGRAM

8B-16  SUPPLEMENTAL RESTRAINT SYSTEM(SRS)

AIR BAG DIAGRAM

SUPPLEMENTAL RESTRAINT SYSTEM(SRS)  8B-17

MAINTENANCE AND REPAIR

ON-VEHICLE SERVICE

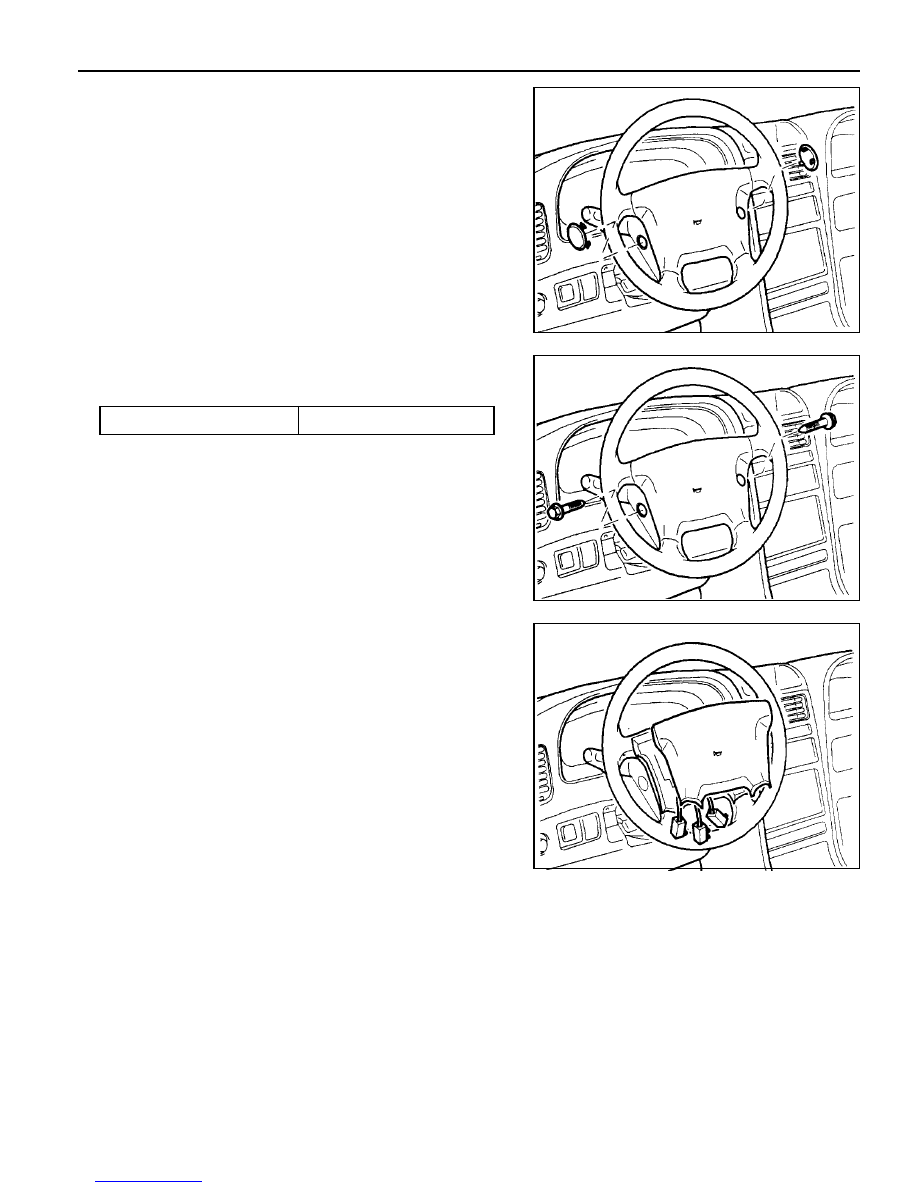

AIR BAG MODULE

Removal & Installation Procedure

1. Remove the steering wheel rid (LH,RH) with a screwdriver.

Installation Notice

Each position mark (LH,RH) is stamped on the inner surface
of the rids.

Tightening  Torque

7 - 11 Nm

3. Disconnect the connectors and remove the air bag module.

4. Installation should follow the removal procedure in the

reverse order.

2. Unscrew the bolts from both sides.

Installation Notice

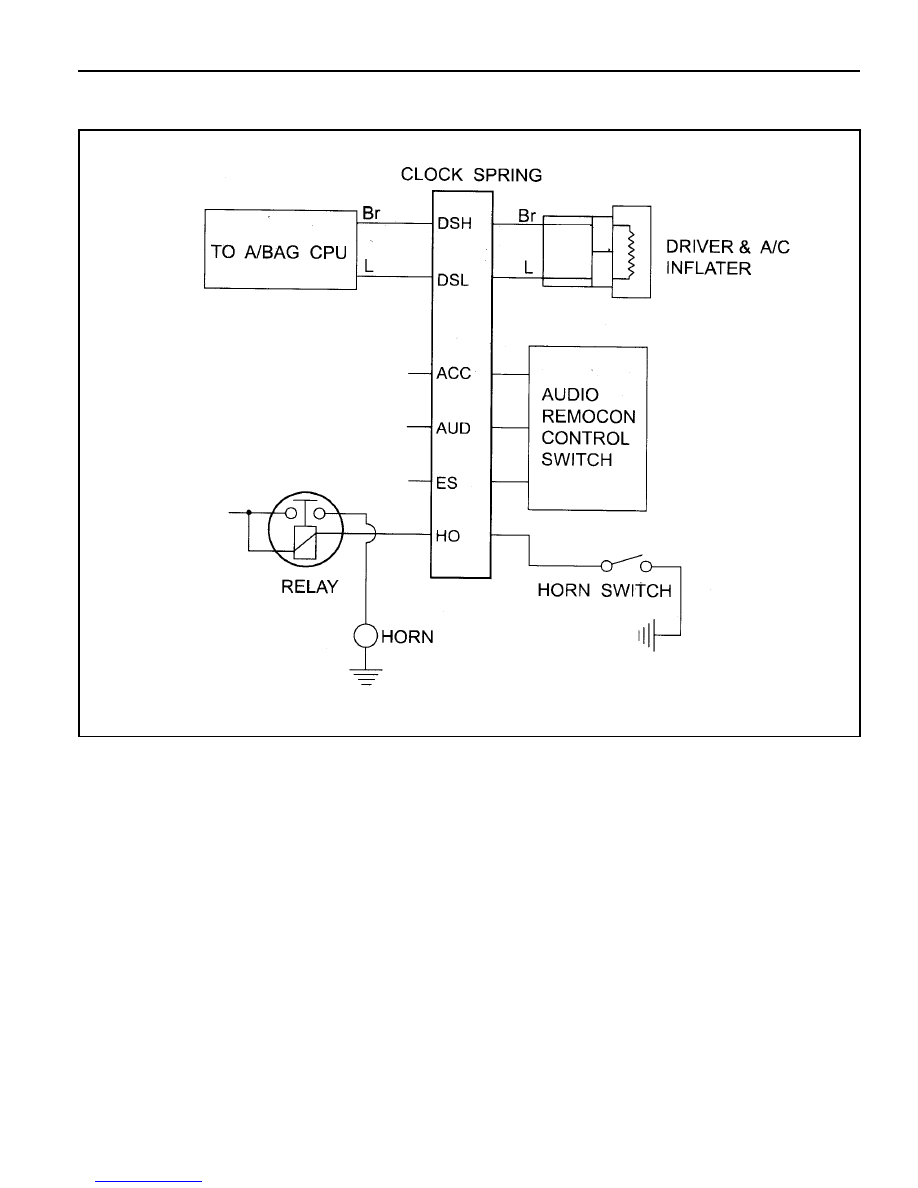

8B-18  SUPPLEMENTAL RESTRAINT SYSTEM(SRS)

Air Bag

Horn (Relay)

Remote Control (Electronic Circuit)

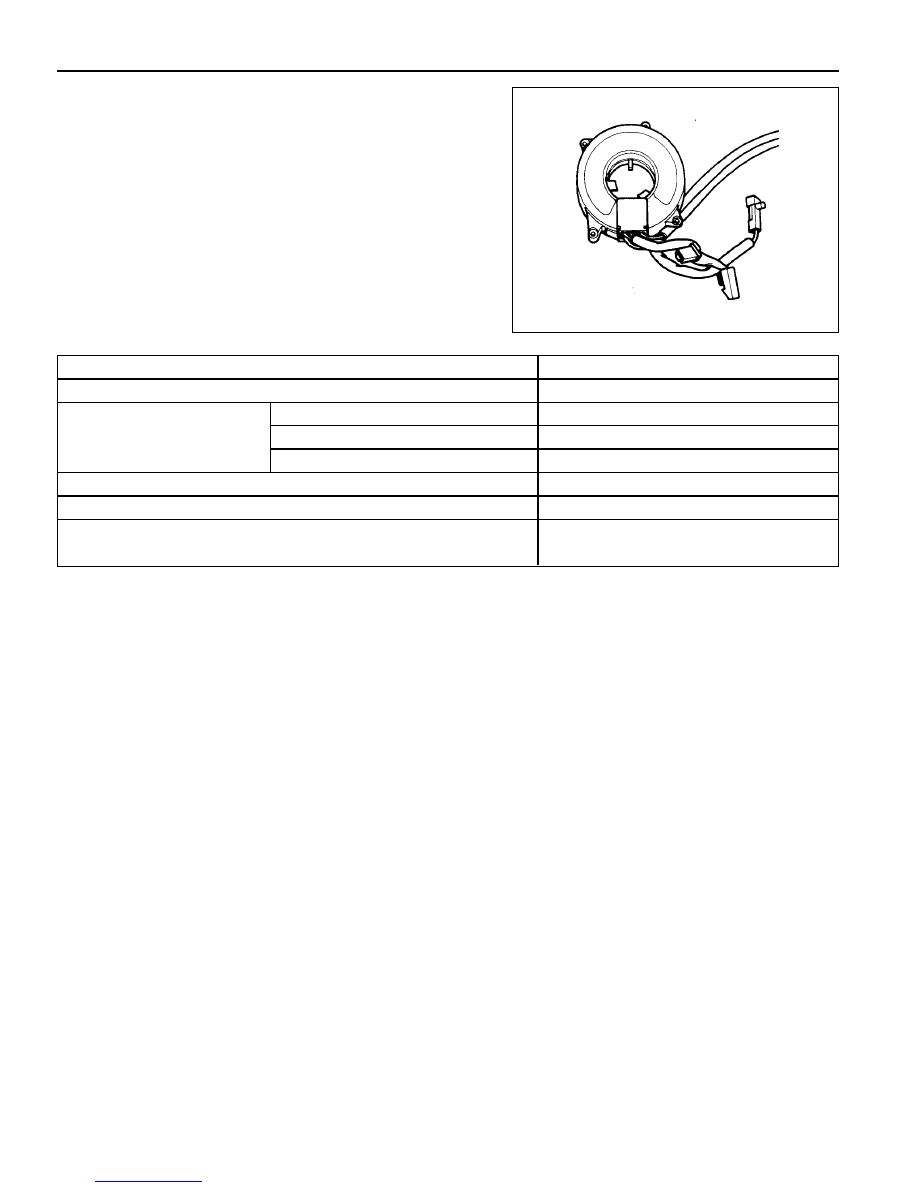

CLOCK SPRING

General Specification

Voltage

Rating Operating Voltage

Current Rating

Air Bag Circuit Resistance

Isolating Resistance

Rotating Range

DC 12V

 DC 6-18V

10-30mA(6A,0.1second)

200-220mA

15mA

0.16-0.38

W

(-40°C - 85°C)

5M

W

2.7-3.1 Rotation from neutral

Position to Both Sides

Notice

l

Clock spring can not be repaired.

l

Do not disassemble or modify.

l

To adjust to the center position, rotate clockwise until it
stops and then rotate it counterclockwise 2.3 ± 0.2
revolutions and align marks. If not, airbag system can
not work normally and driver can be injured seriously.
