9A-6  BODY WIRING SYSTEM

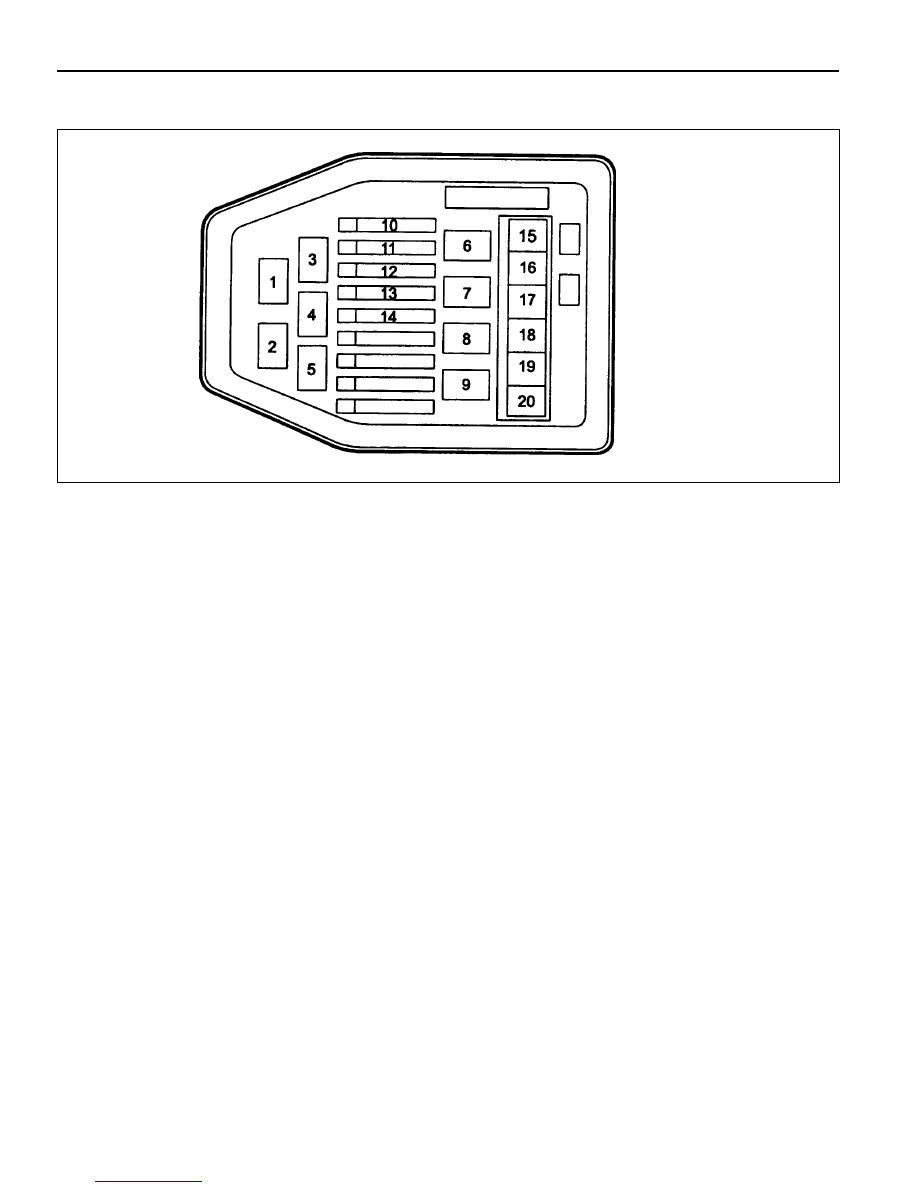

Engine Room Fuse (EF) and Relay Box

Fusible link
15. OVPR (Gasoline) - (20A)
16. Tail Lamp - (30A)
17. Head Lamp - (30A)
18. Engine - (30A)
19. Ignition Switch - (30A)
20. Battery - (50A)

Relay
1. Tail Lamp
2. Horn
3. Register(Gasoline)
4. Front Fog Lamp
5. Condenser Fan
6. Compressor (Diesel) &

Condenser Fan (Gasoline)

7. Condenser Fan
8. Head Lamp (HI)
9. Head Lamp (LOW)

Fuse
10. Horn - (10A)
11. Tail/Rear Fog Lamp  - (15A)
12. Head Lamp (HI) - (15A)
13. Head Lamp (LO) - (15A)
14. Front Fog Lamp (15A)

BODY WIRING SYSTEM  9A-7

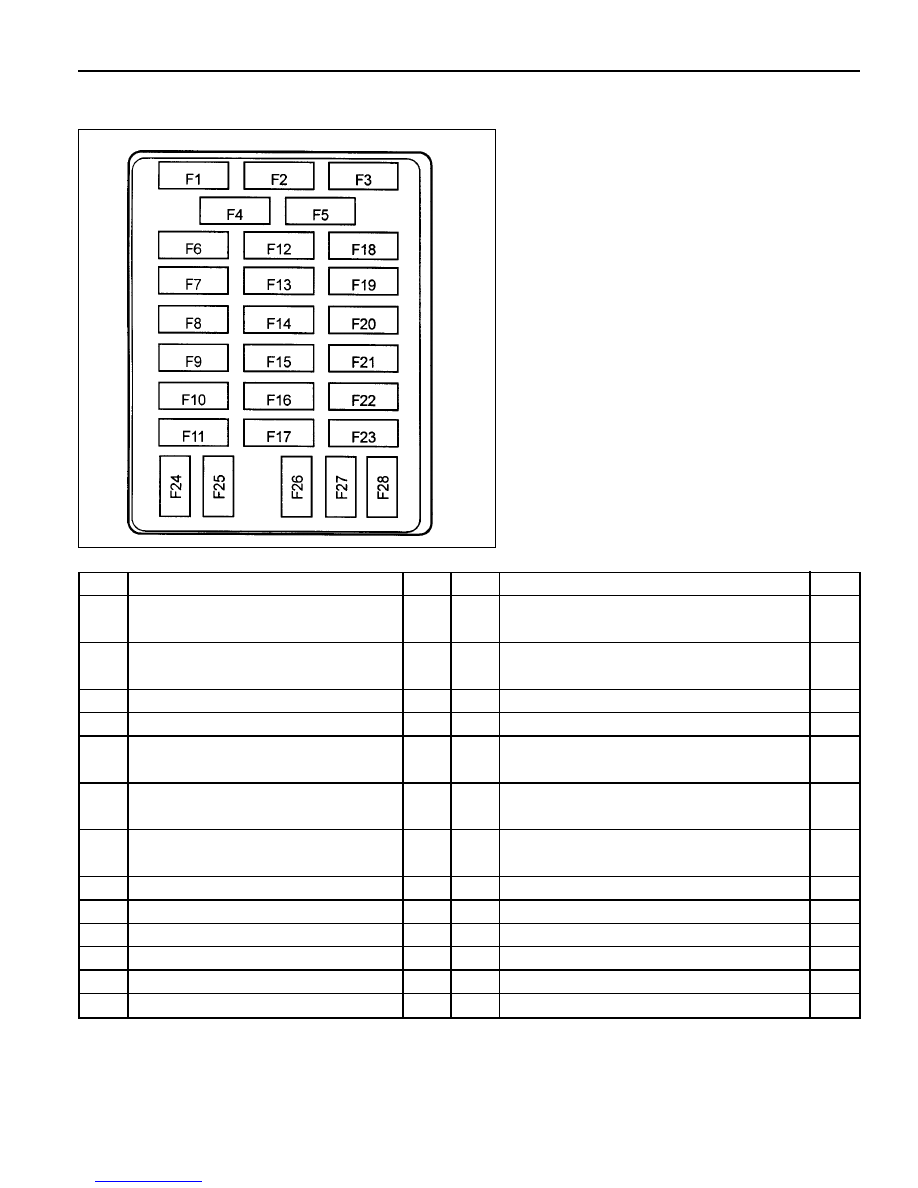

Fuse Box in the Interior

F1

F2

F3

F4

F5

F6

F7

F8

F9

F10

F11

F12

F13

F14

ABS, ABD ECU

TCU, ECS Relay, Seat Warmer Unit

Immobilizer(Diesel), Stop Switch

AUDIO Switch, AUDIO

O/S MIRR, C/LIGHTER

Room Lamp, Door Lamp,

Luggage Room Lamp

Hazard Switch

Defogger Relay

STICS Joint Conn. #1, Audio

Power Relay

ABD ECU

Sun Roof Relay

T.C.C.U, T.O.D unit

Blower Motor Relay

F15

F16

F17

F18

F19

F20

F21

F22

F23

F24

F25

F26

F27

F28

Stop Lamp Switch

Air Conditioner, Door Lock, Seat

Warmer Unit

Power Window Relay, Diagnosis

Connector

Engine Room Relay, Hazard Switch

Back up Lamp

T.O.D, T.C.C.U, Sun Roof, Auto Dimming

Room Mirror

Speed Sensor, Diagnosis Connector,

Joint Conn. #5

Diode, OVPR, Preheat Control Unit,

Shift Lock Relay

Air Bag Unit

ECS Relay

Antenna Motor

FRT Wiper Relay, Motor

RR Washer / Wiper Motor

A/C Relay, Joint Conn. #3

15A

10A

10A

10A

15A

10A

15A

20A

10A

30A

15A

20A

20A

30A

15A

15A

10A

15A

10A

10A

10A

10A

10A

15A

10A

15A

10A

10A

9A-8  BODY WIRING SYSTEM

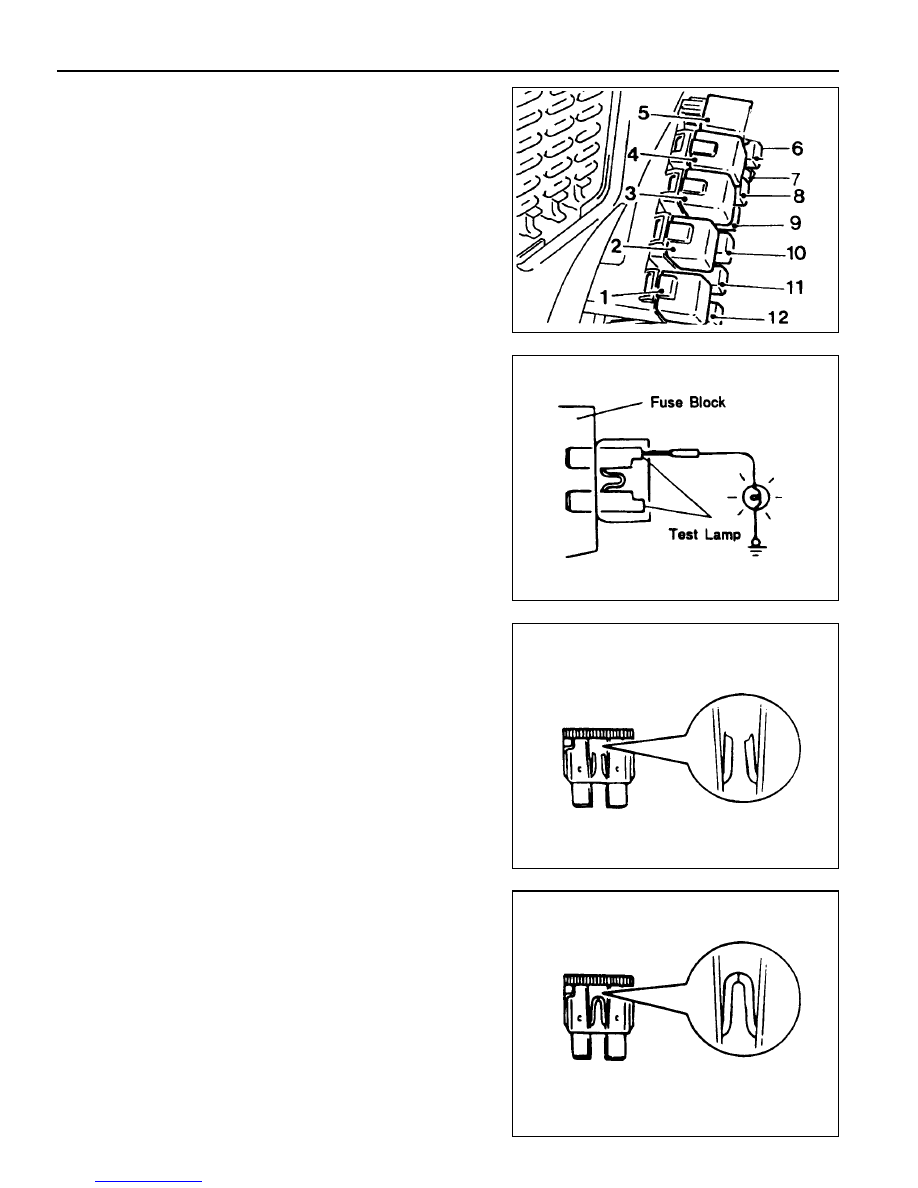

Relay Box in Vehicle

1. Front Wiper Relay 5P

2. ABD 5.0 Ground Relay 5P

3. Hazard Warning Flasher Relay 3P

4. Fuel Pump Relay 5P

5. Shift Lock Relay 4P

6. Defogger Relay 4P

7. ECS Relay 4P

8. Rear Fog Lamp Relay 4P

9. Power Window Relay 4P

10. Air Conditioner Relay 4P

11. Sun Roof Relay 4P(N/C Type)

12. Clutch lnterlock Relay 4P(Manual Transmission)

Neutral Relay 4P(Automatic Transmission)

Checking The Fuses

It is possible to check the condition of blade type fuses without
pulling out them from fuse block.

Lighting on the test lamp is normal when the one lead wire of
test lamp is contacted with fuse end and the other one is
grounded.

1. In case of melting out the fuse owing to the over-voltage

replace the damaged fuse to the rated one after removing
the causes of the failure or abnormal parts.

2. In case of melting out the fuse owing to the frequent 'ON','Off'

replace the damaged fuse to the rated one.

BODY WIRING SYSTEM  9A-9

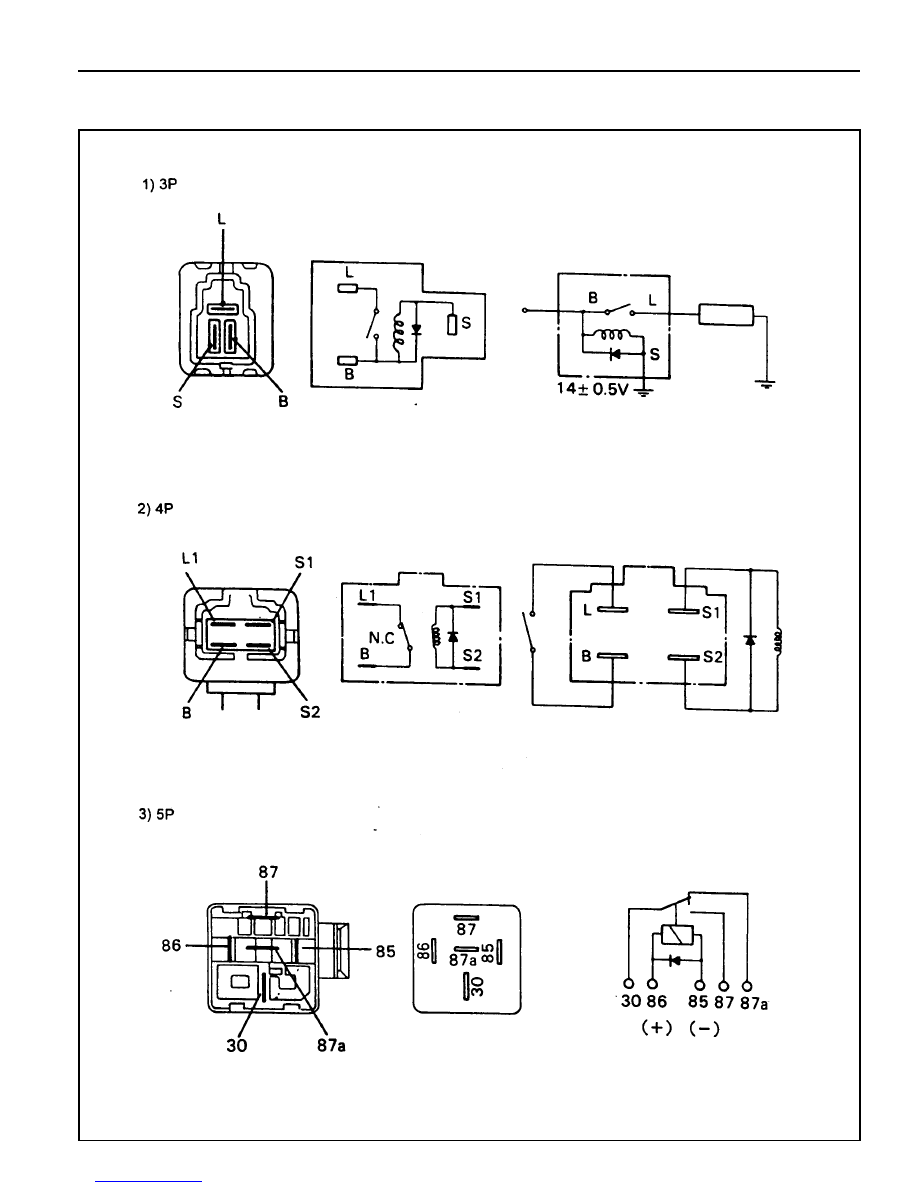

Relay
