M161 ENGINE COOLING  1D2-11

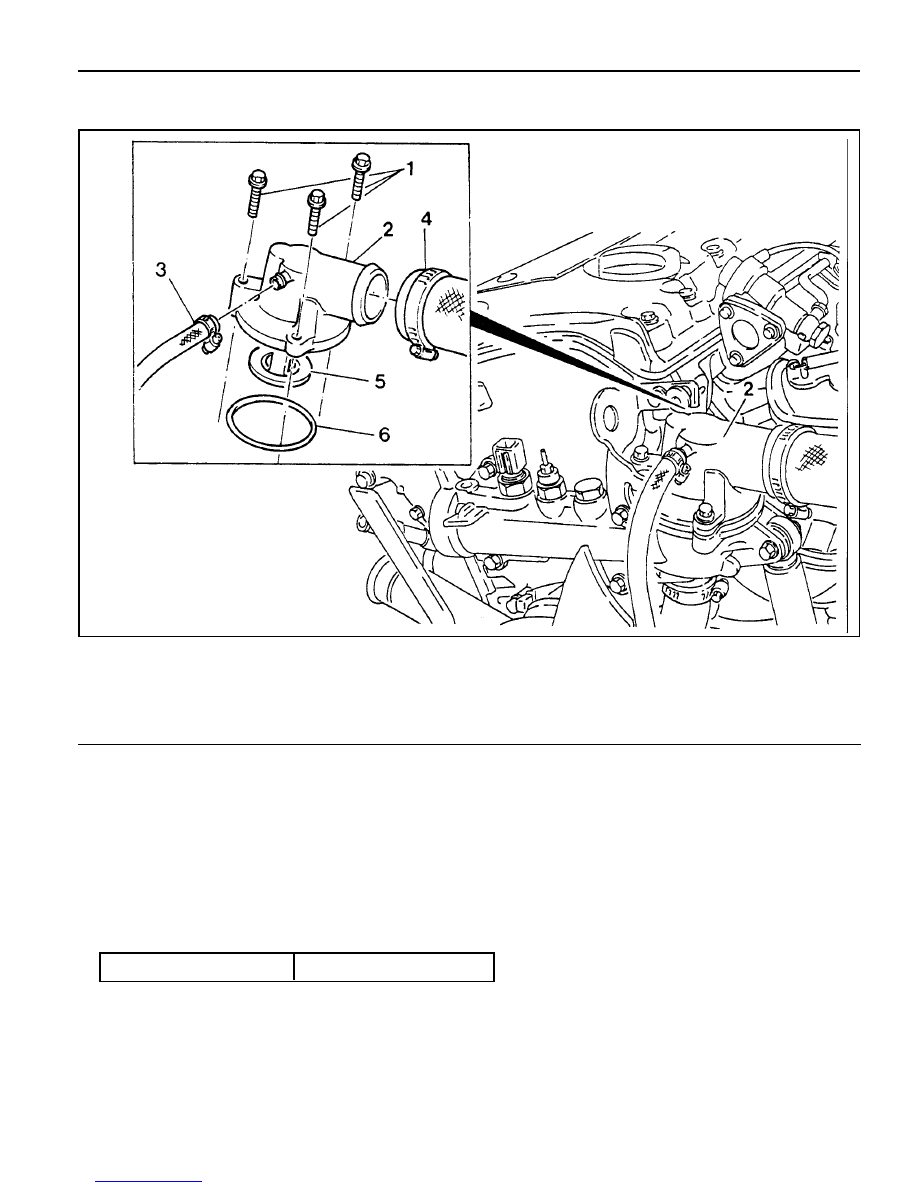

THERMOSTAT

Removal & Installation Procedure

1. Drain the coolant from the radiator.

2. Loosen the hose mounting clip and remove the coolant hose

(3, 4).

3. Unscrew the three bolts (1) and remove the thermostat cover

assembly from thermostat housing.

Installation Notice

Do not separate the thermostat cover and thermostat.

4. Replace the O-ring if necessary.

5. Check the leakage in the cooling system.

Tightening  Torque

9 - 11 Nm

1 Bolt (M6 X 25, 3 pieces) ........................ 9 -11 Nm
2 Thermostat Cover
3 De-aeration Hose

4 Coolant Outlet Hose
5 Thermostat
6 O-ring

1D2-12  M161 ENGINE COOLING

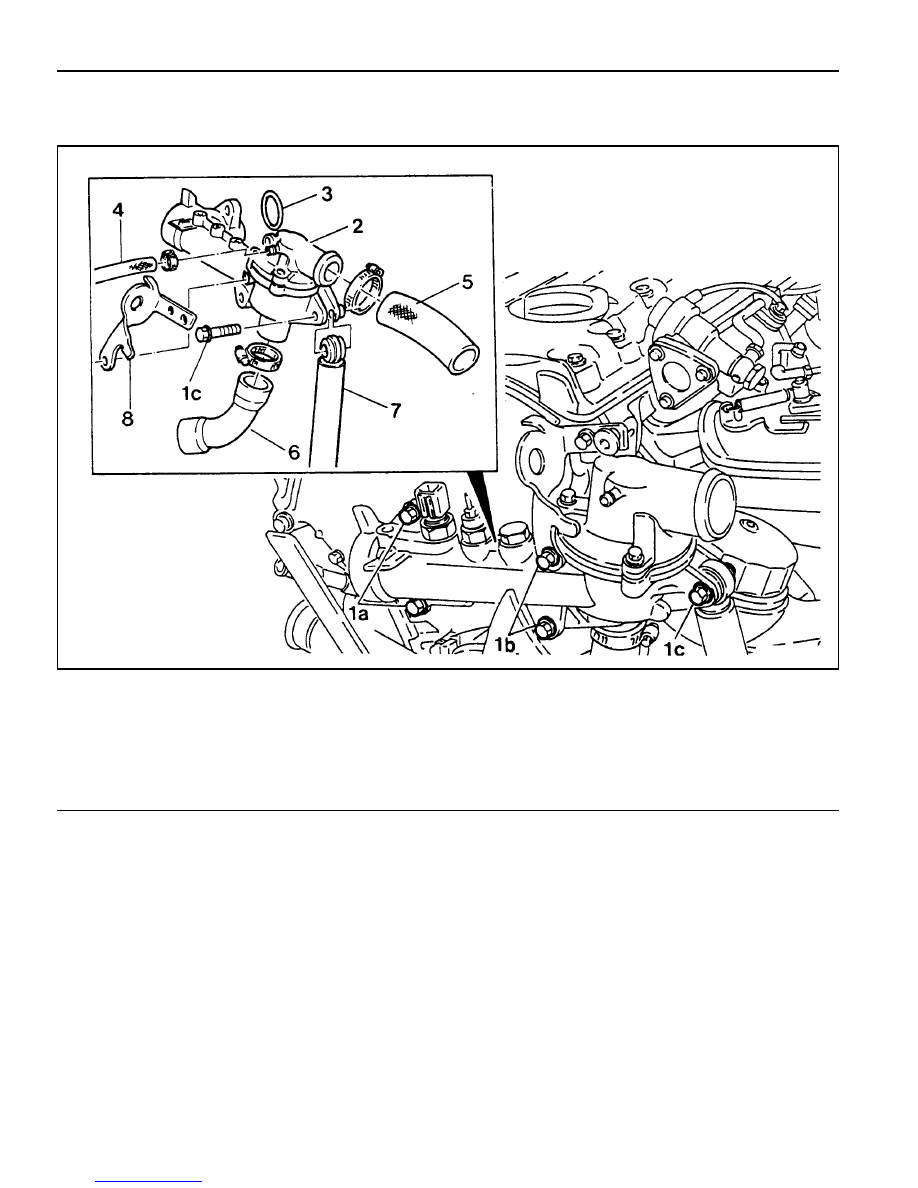

THERMOSTAT HOUSING ASSEMBLY

Preceding Work : Removal of viscous clutch

1a Bolt (M6 X 95, 2 pieces) ......................... 9-11 Nm
1b Bolt (M8 X 75, 2 pieces) ................. 22.5-27.5 Nm

1c Bolt (M8 X 35, 1 piece) ................... 22.5-27.5 Nm

2 Thermostat Housing Assembly
3 O-ring

4 De-aeration Hose
5 Coolant Outlet Hose
6 Coolant Bypass Hose
7 Tensioning Device Shock Absorber
8 Engine Hanger Brocket

M161 ENGINE COOLING  1D2-13

Removal & Installation Procedure

1. Drain the coolant.

2. Remove the de-aeration hose (4), coolant outlet hose (5)

and coolant bypass hose (6).

3. Disconnect the coolant temperature sensor connector.

4. Unscrew the bolt (1c) and pry off the tensioning device shock

absorber (7).

Installation Notice

6. Replace the O-ring with new one.

7. Installation should follow the removal procedure in the

reverse order.

8. Check for leaks in cooling system.

5. Unscrow the bolts (1a, 1b) and remove the engine hanger

bracket and thermostat housing.

Installation Notice

Tightening  Torque

22.5 - 27.5 Nm

Tightening Torque

9 - 11 Nm

22.5 - 27.5 Nm

(1a)

(1b)

1D2-14  M161 ENGINE COOLING

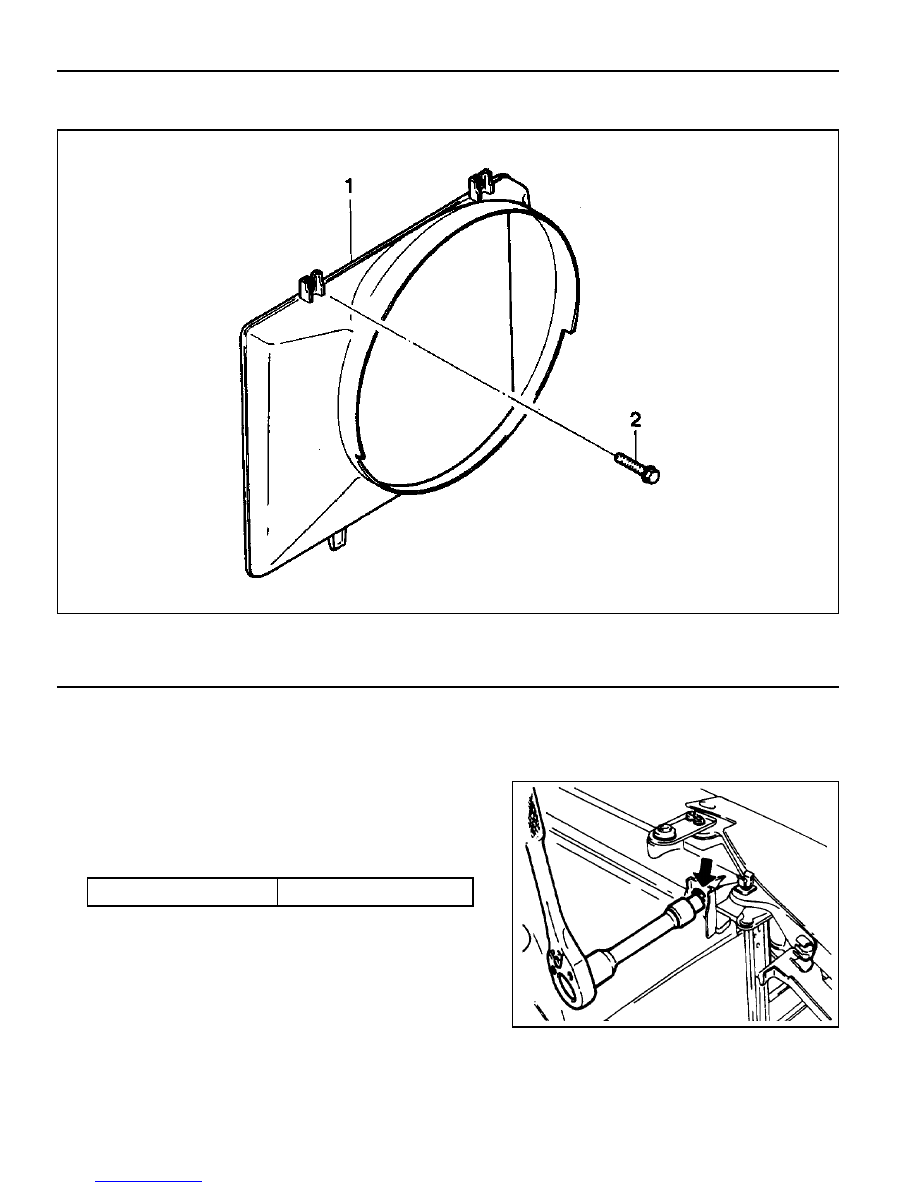

REMOVAL AND INSTALLATION OF COOLING FAN SHROUD

Removal & Installation Procedure

1. Unscrew two bolts from cooling fan shroud and remove

the shrud.

Installation notice

1 Fan Suroud Assembly

Tightening  Torque

3 - 7 Nm

2 Bolt (M6 X 16, 2 pieces) ........................... 3-7 Nm

2. Installation should follow the removal procedure in the

reverse order.
