1B2-6  M161 ENGINE MECHANICAL

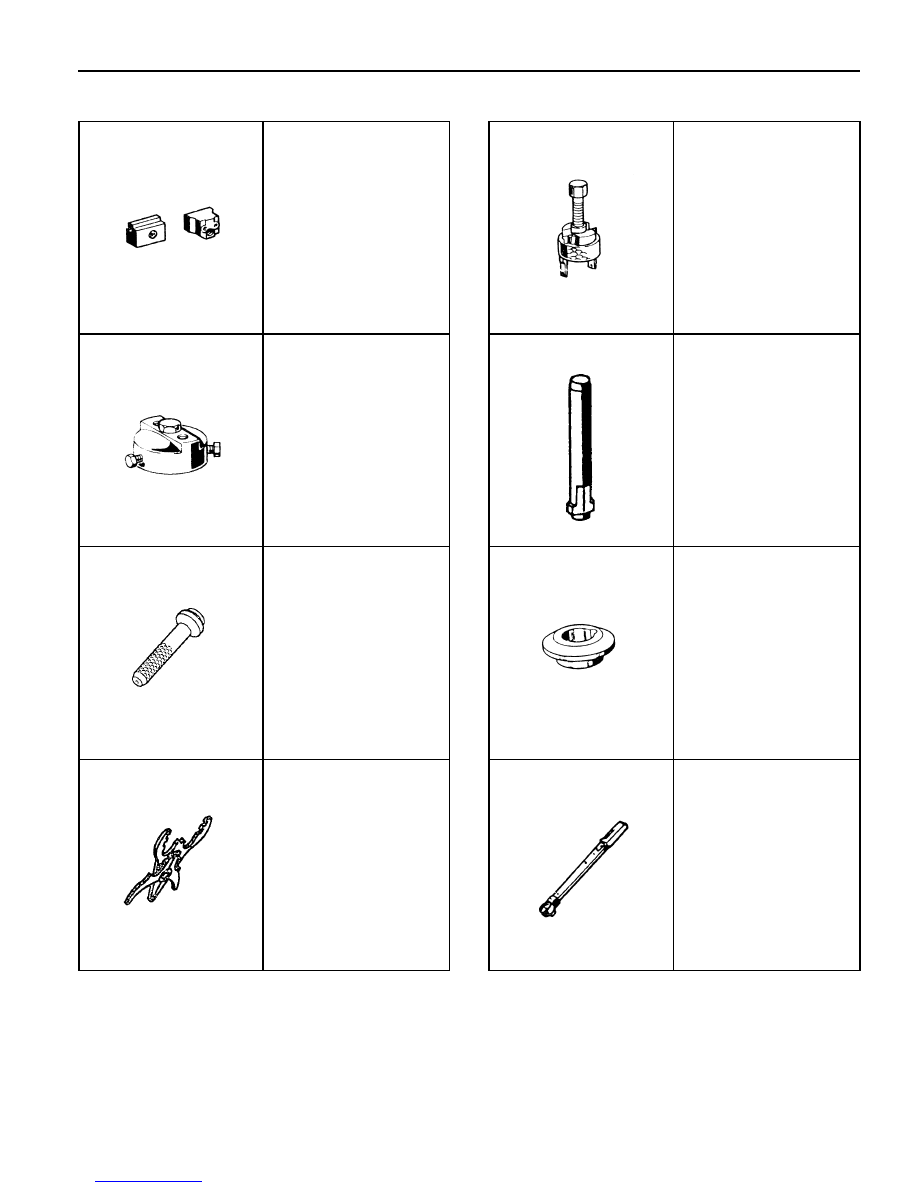

SPECIAL TOOLS TABLE (Cont’d)

116 589 20 33 00

Sliding Hammer

602 589 00 40 00

Engine Lock

103 589 00 33 00

Puller

601 589 03 43 00

Sleeve

001 589 65 09 00

Socket Wrench Insert

001 589 74 21 00

Torque Wrench

000 589 04 14 00

Clamping Strap

000 589 88 33 00

Puller

M161 ENGINE MECHANICAL  1B2-7

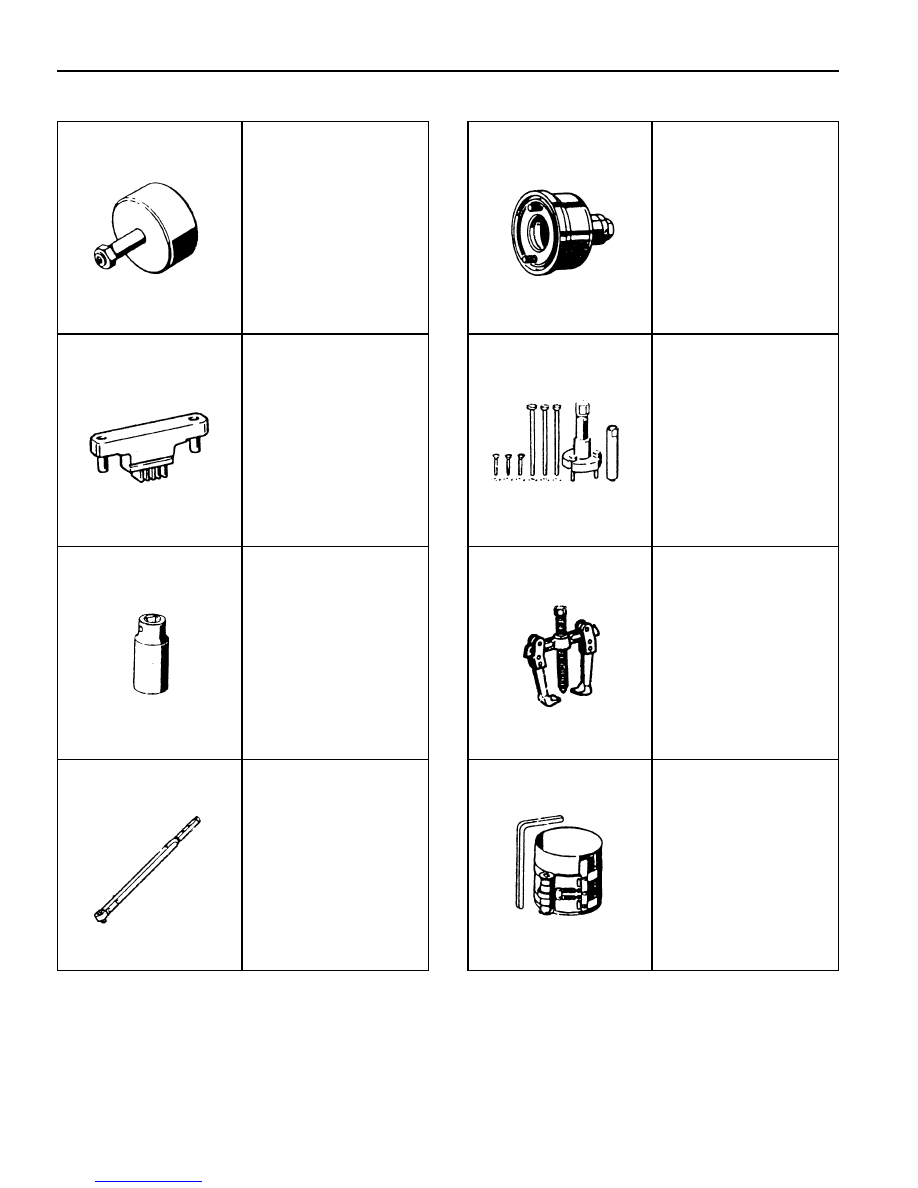

SPECIAL TOOLS TABLE (Cont’d)

103 589 01 63 00

Rivet Set

103 589 02 09 00

Oil Filter

Socket Wrench

102 589 12 15 00

Drift

615 589 01 33 00

Caulking Bolt

102 589 00 15 00

Drift

000 589 51 37 00

Clamping Strap

001 589 72 21 00

Torque Wrench

601 589 03 14 00

Sleeve

1B2-8  M161 ENGINE MECHANICAL

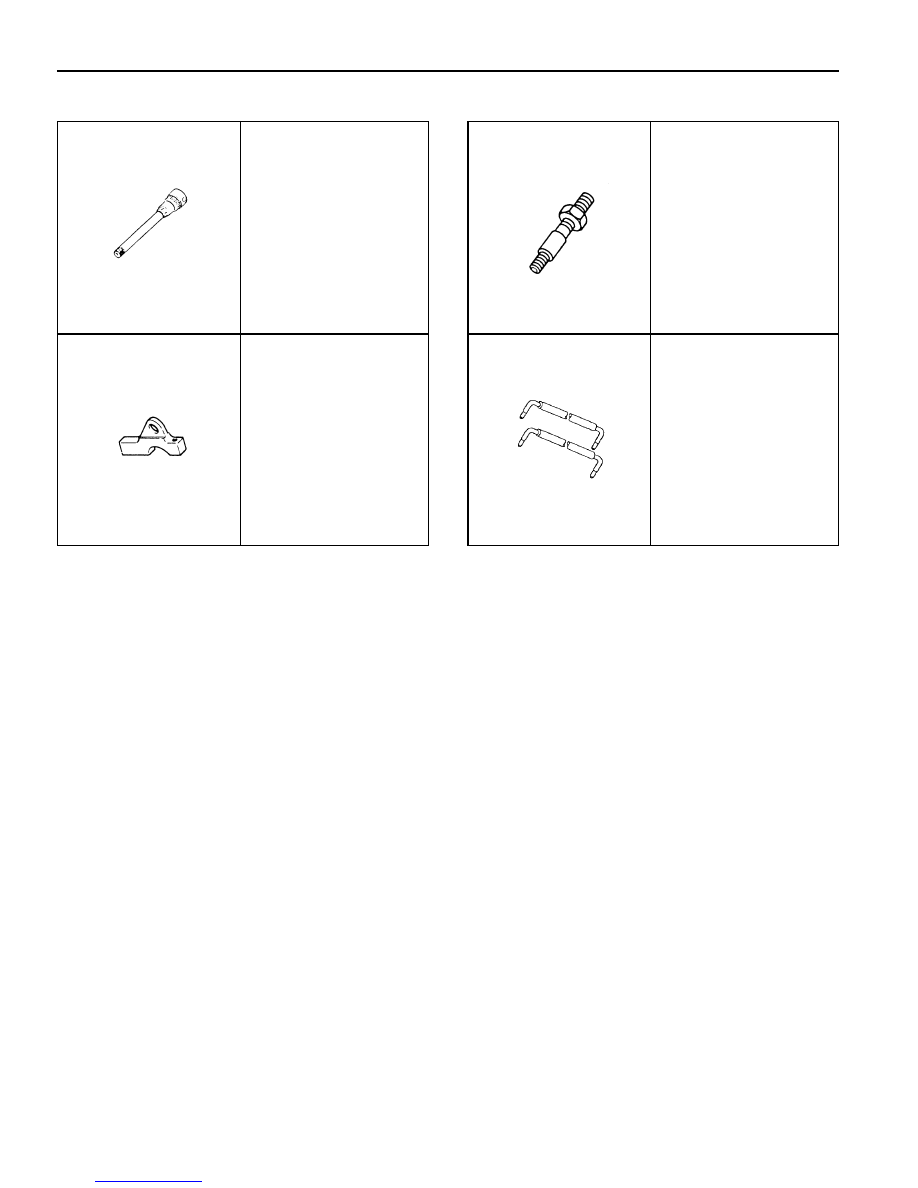

SPECIAL TOOLS TABLE (Cont’d)

617 589 00 10 00

Wrench Socket

104 589 00 40 00

Holder

111 589 03 15 00

Insert Pin

116 589 01 34 00

Threaded Bolt

M161 ENGINE MECHANICAL  1B2-9

MAINTENANCE AND REPAIR

ON-VEHICLE SERVICE

ENGINE ASSEMBLY

Tools Required

000 589 10 99 01 Torque Wrench

000 589 40 37 00 Hose Clamp

112 589 00 72 00 Oil Extractor

000 589 72 21 00 Torque Wrench

001 589 66 21 00 Torque Wrench

124 589 15 21 00 Radiator Cap Testing Unit

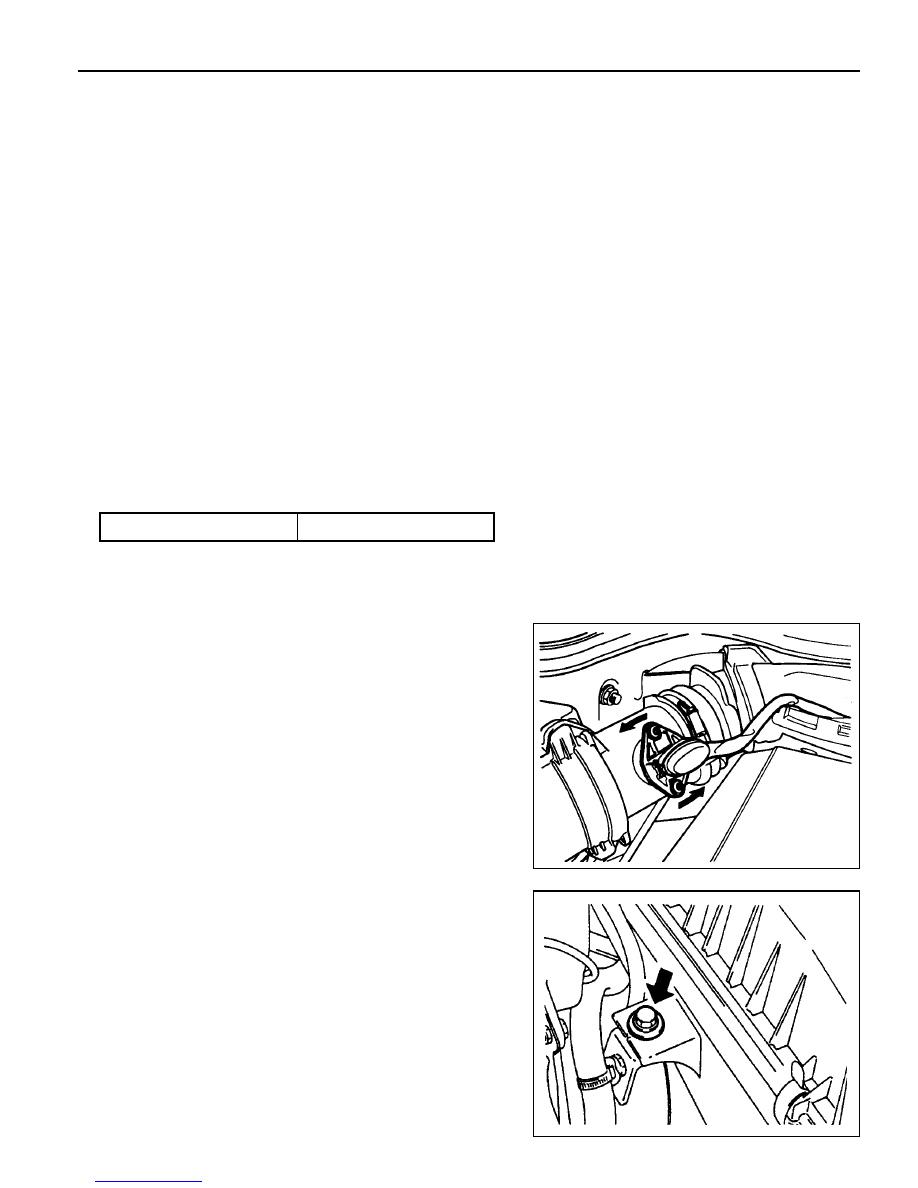

4. Disconnect the coupling of HFM sensor and remove the air

cleaner cross pipe.

5. Remove the air cleaner cover. Remove the mounting bolts

and air cleaner housing and element assembly.

Removal & Installation Procedure

1. Disconnect the negative terminal of battery.

2. Remove the hood.

3. Remove the under cover.

Installation Notice

Tightening  Torque

28 - 47 Nm
