DAF CF65, CF75, CF85 Series . Manual - part 977

©

 200423

1-1

General

FRONT AXLE/LEADING REAR AXLE

ΧΦ65/75/85 series

7

6

1. GENERAL

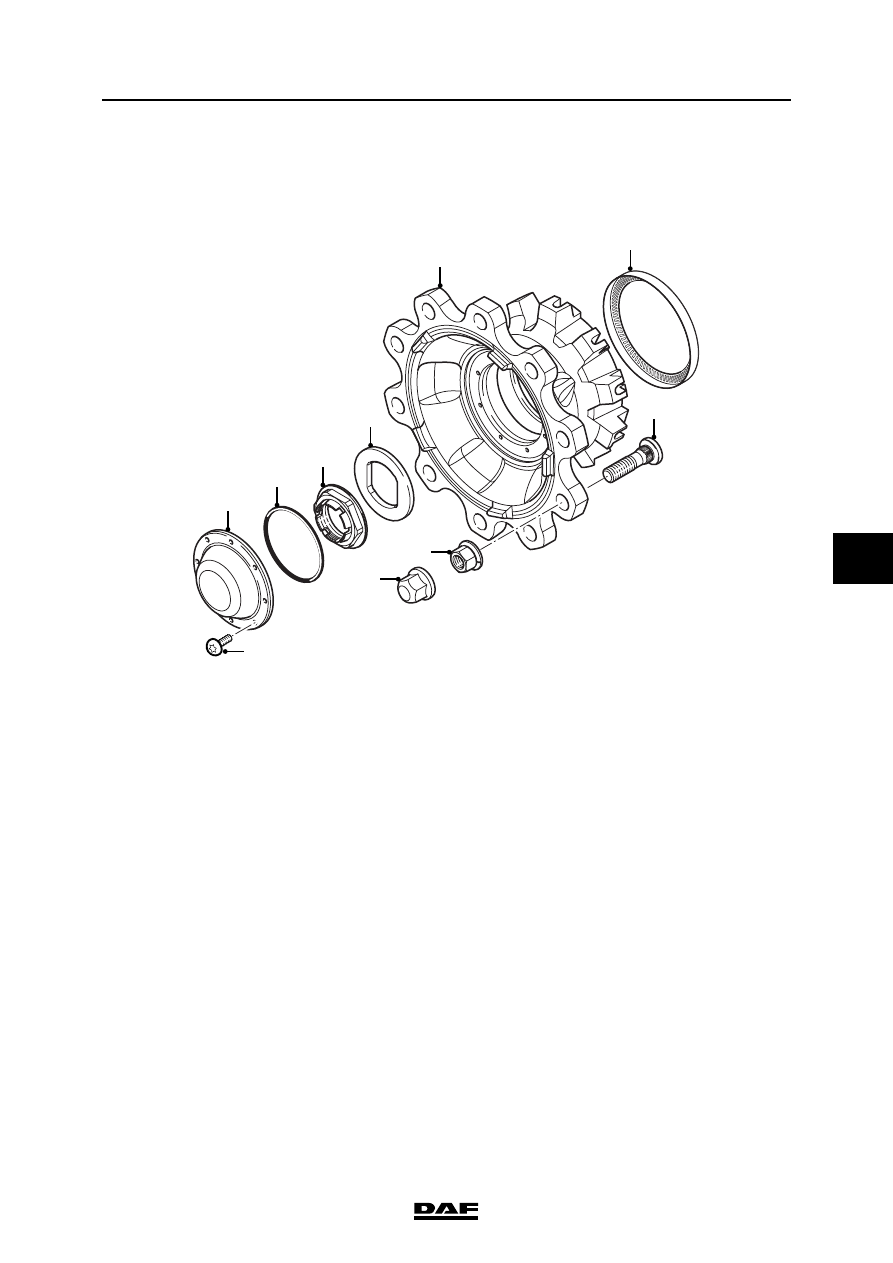

1.1 OVERVIEW DRAWING, WHEEL HUB

6

5

2

1

4

3

8

10

9

7

S7 00 544

1.

Attachment bolt

2.

Hub cap

3.

O-ring

4.

Hub nut

5.

Locking plate

6.

Wheel hub unit

7.

Wheel speed sensor ring

8.

Wheel stud

9.

Wheel nut

10.

Wheel nut cap

FRONT AXLE/LEADING REAR AXLE

1-2

©

 200423

General

6

ΧΦ65/75/85 series

7

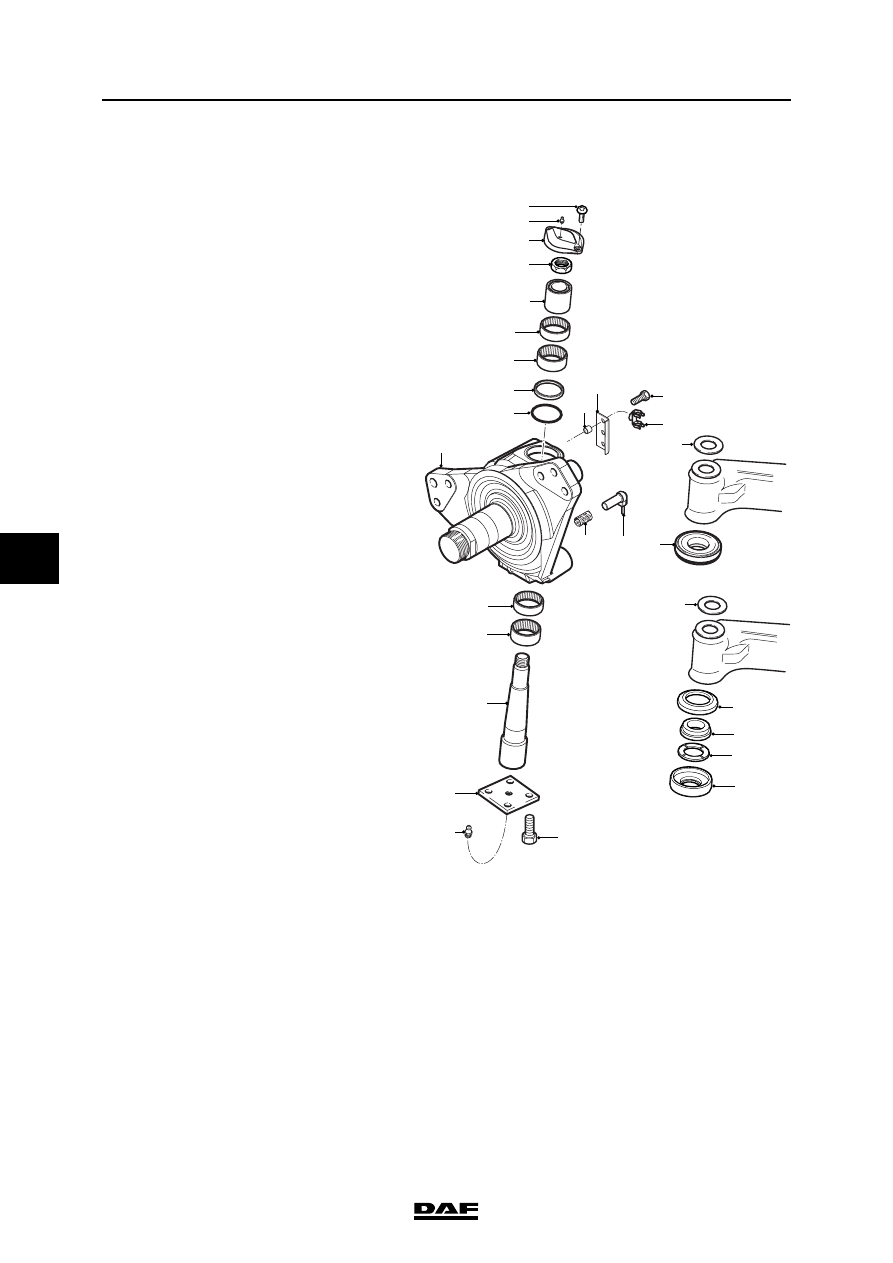

1.2 OVERVIEW DRAWING, FRONT AXLE SWIVEL AXLE

1
2
3

4

5

6

7

19

20

21

22

23

24

8

9

15

16

17

18

10

11

12

14

13

S7 00 894

15

25

26
27

28

1.

Bolt

2.

Lubricating nipple

3.

Cover

4.

Nut

5.

Bearing bush

6.

Needle bearing

7.

Needle bearing

8.

Oil seal

9.

O-ring

10.

Swivel axle

11.

Bush

12.

Bracket

13.

Bolt

14.

Bracket

15.

Shim

16.

Thrust bearing, assembled version

17.

Wheel speed sensor

18.

Wheel speed sensor holder

19.

Needle bearing

20.

Needle bearing

21.

King pin

22.

Sealing plate

23.

Lubricating nipple

24.

Bolt

25.

Sealing ring

26.

Thrust washer

27.

Bearing ring

28.

Shoulder ring

©

 200423

1-3

General

FRONT AXLE/LEADING REAR AXLE

ΧΦ65/75/85 series

7

6

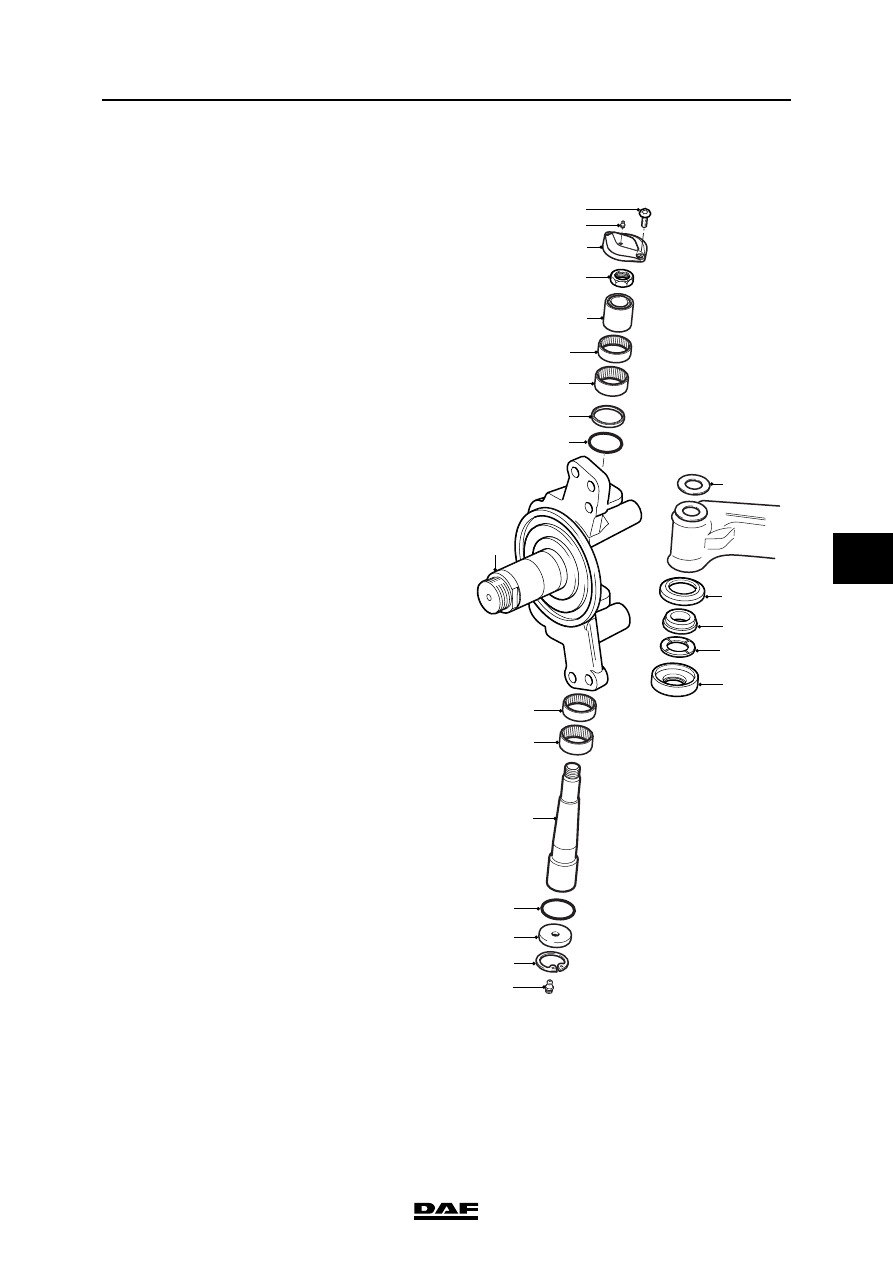

1.3 OVERVIEW DRAWING, LEADING REAR AXLE SWIVEL AXLE

4

5

6

7

16

17

18

19

20

21

22

8

9

11

10

S7 00 789

1
2
3

12

13
14

15

1.

Bolt

2.

Lubricating nipple

3.

Cover

4.

Nut

5.

Bearing bush

6.

Needle bearing

7.

Needle bearing

8.

Oil seal

9.

O-ring

10.

Swivel axle

11.

Shim

12.

Sealing ring

13.

Thrust washer

14.

Bearing ring

15.

Shoulder ring

16.

Needle bearing

17.

Needle bearing

18.

King pin

19.

O-ring

20.

Cover

21.

Circlip

22.

Lubricating nipple

FRONT AXLE/LEADING REAR AXLE

1-4

©

 200423

General

6

ΧΦ65/75/85 series

7

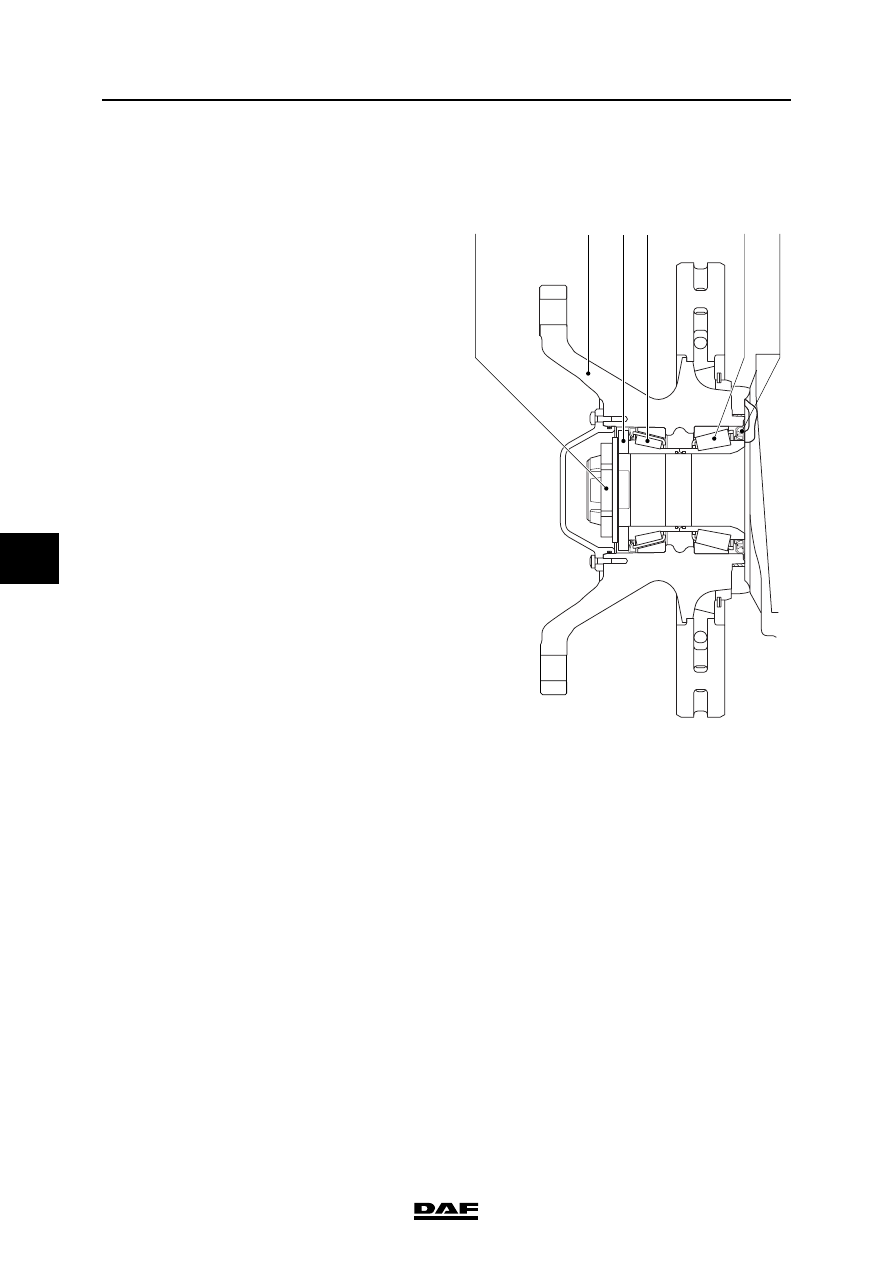

1.4 DESCRIPTION OF WHEEL HUB UNIT

Wheel hub unit
The wheel hub (2), wheel bearings (4) and (5)

and oil seal (6) form a whole that is called the

wheel hub unit.

The thrust washer (3), on the inner side of two

straight surfaces, prevents the hub nut (1) from

coming loose if there are any problems with the

bearings. The hub nut (1) is of the self-locking

type. The nut is locked by bending the lips on the

hub nut (1) outward.

The bearings (4) and (5) of the wheel hub unit are

greased and are maintenance free.

The correct wheel bearing pre-load is achieved

by installing the hub nut (1) as specified.

It is not possible to replace wheel bearings (4)

and (5) and/or hub oil seal (6).

;;;;;;

;;;;;;

;;;;;;

;;;;;;

;;

;;;

;;;

;;

;;

;;

;;

;

;

;

;

;

;;

;;

;

;

;

;

;

;;;;;;

;;;

;;;

;;

;

;;

;;

;

;

;

;

;

;

;;;;;;

;;;;;;

;;;;;;

;;;;;;

;;

;;;

;;

;;

;;

;;

;

;

;

;

;

;;

;;

;

;

;

;;;

;;;

;;;

;;;

;;;;;;

;;;;;;

;;;

;;;

;;

;

;;

;;

;

;

;

;

;

;

;

;

1

S7 00 578

5

6

2

4

3
