Removal and installation

PIPES/RESERVOIR AND SLAVE CYLINDER

ΧΦ65/75/85 series

7

5

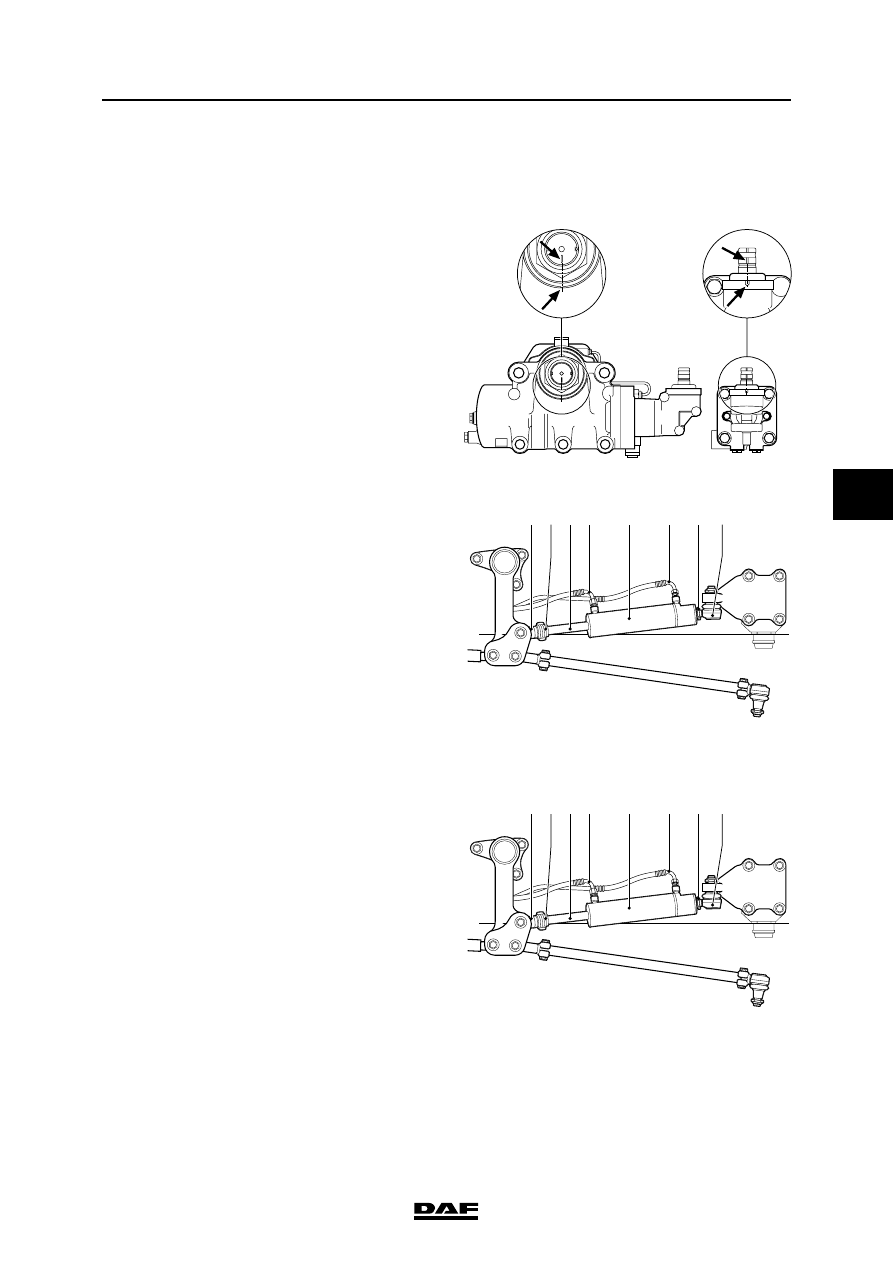

3.5 REMOVAL AND INSTALLATION, SLAVE CYLINDER

Removing the slave cylinder
1.

Clean the pipe connections and the

surrounding area.

2.

Place the steering gear in the central

position. This can be checked using the

markings on the steering box.

3.

Place a receptacle under the pipe

connections.

4.

Remove the pipes. Plug the openings.

5.

Remove the piston rod (3) from the ball

end (1). To do so, slacken the bolt of

clamping bracket (2) and screw the piston

rod (3) from the ball end (1).

6.

Unscrew the lock nut (7) and remove the

cylinder (5) from the ball end (8).

7.

Remove the cylinder (5) from the vehicle

and push the piston rod (3) fully into the

cylinder (5), to avoid damaging the piston

rod.

Installing the slave cylinder
1.

Thoroughly clean and check the clamping

bracket bolt (2). If corroded or damaged,

replace the bolt.

Replace the self-locking nut.

Check the ball ends (1) and (8) for damage

and play, and replace if necessary.

2.

Screw the cylinder (5) as far as possible onto

the ball end (8), making sure that the pipe

connections (4) and (6) are at the top of the

cylinder (5).

3.

Tighten the lock nut (7) to the specified

tightening torque. See 'Technical data'.

4.

Slide the piston rod (3) out of the cylinder (5).

Turn the piston rod (3) into the ball end (1) as

far as possible.

S7 00 024

S7 00 717

1 2

8

3 4

5

7

6

S7 00 717

1 2

8

3 4

5

7

6

PIPES/RESERVOIR AND SLAVE CYLINDER

3-6

©

 200423

Removal and installation

5

ΧΦ65/75/85 series

7

5.

Replace the nut of the clamping bracket (2)

and tighten the nut to the specified tightening

torque, see 'Technical data'.

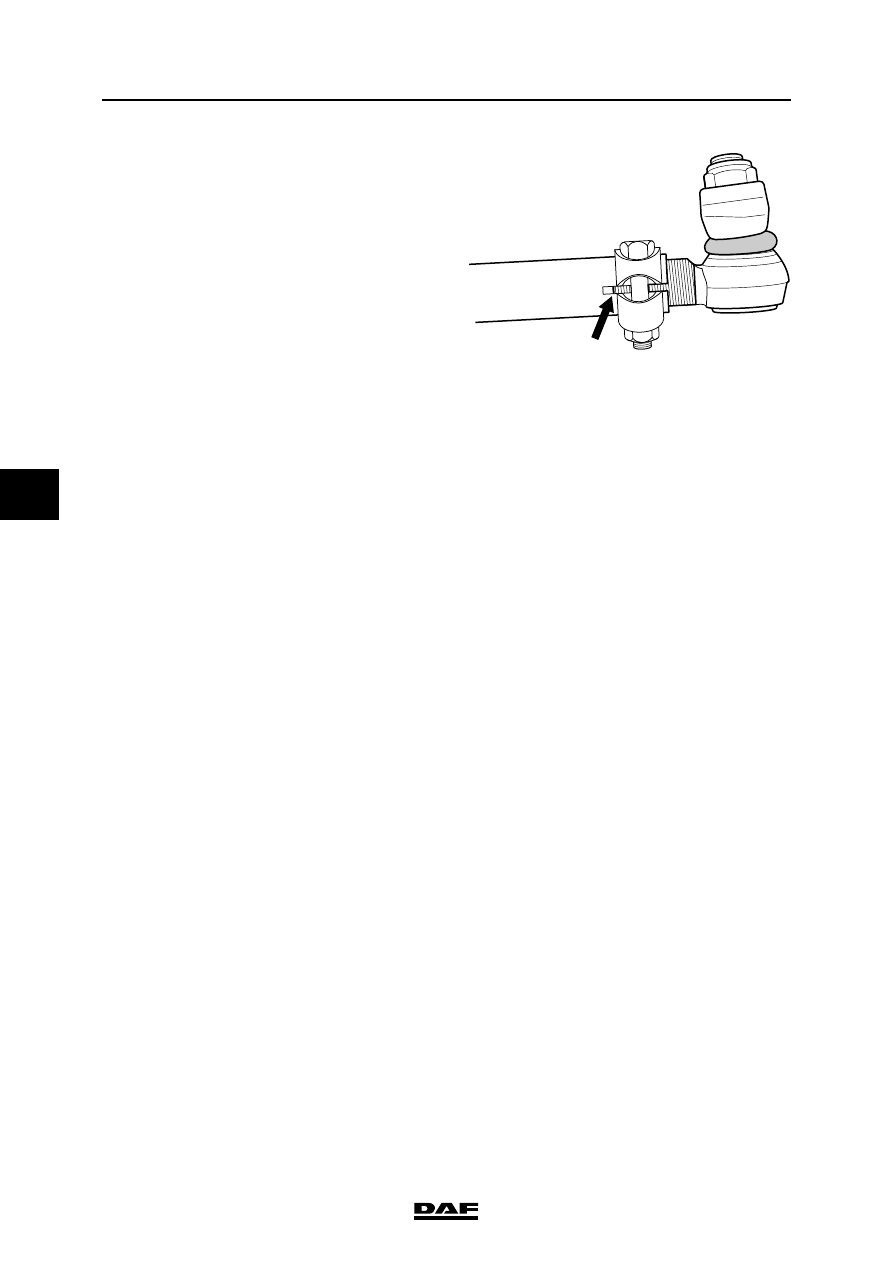

Note:

-

Position the clamping bracket on the slot

so that the open side is above the slot.

-

The clamping bracket always fully

engages the screw thread, see the

drawing.

6.

Fit the pipes.

7.

Fill and bleed the system.

8.

Inspect the pipe connections for leaks.

S7 00 539

©
