DAF CF65, CF75, CF85 Series . Manual - part 927





©

 200423

3-57

Removal and installation

BRAKE SYSTEM AND COMPONENTS

ΧΦ65/75/85 series

6

5

2.

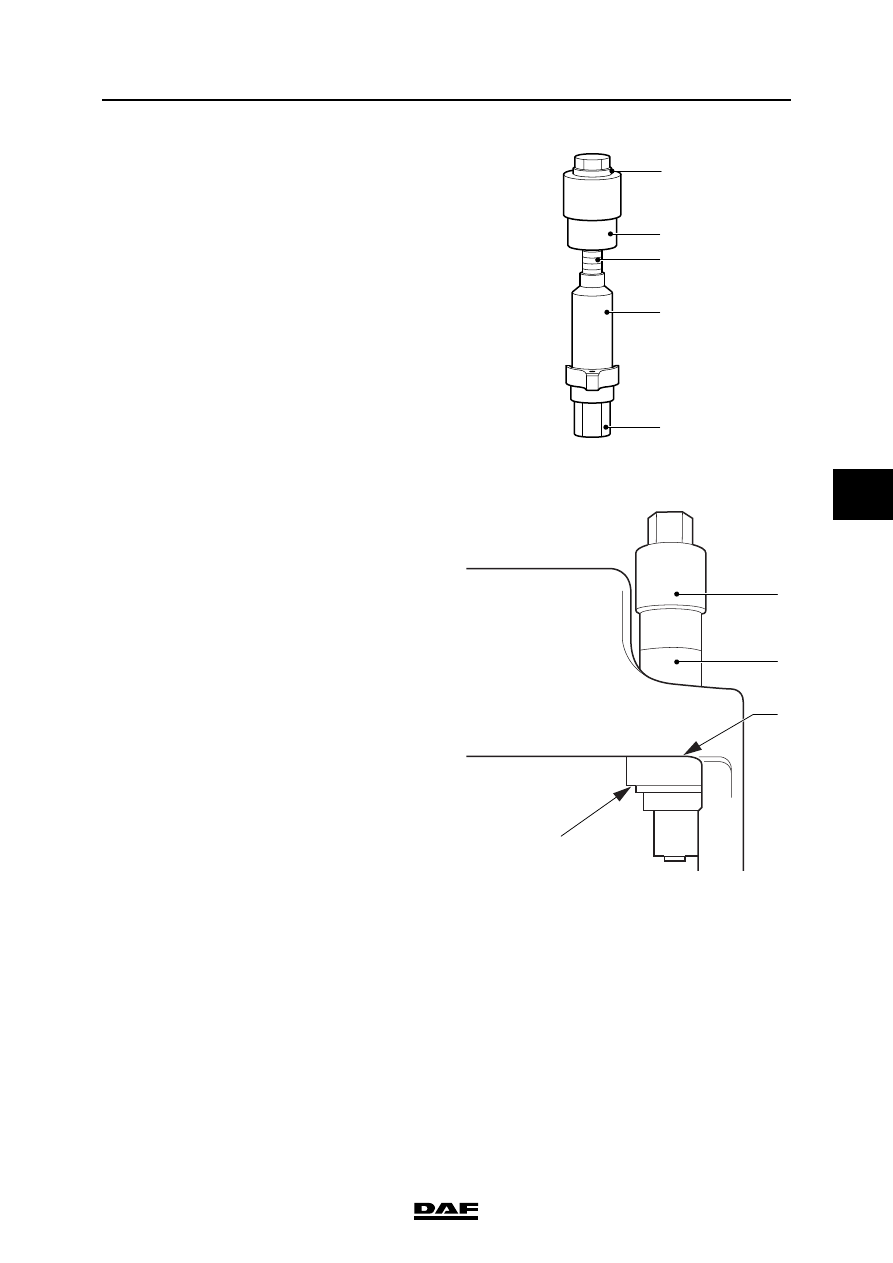

Assemble the press-in tool from the special
tool set (DAF no. 1329495) by means of
parts T22, T19, T20, T18 and a washer (1).

3.

Fit the rubber bearing bush (2) on the press-
in tool (1) and push the bearing bush into the
brake calliper. Hand-tighten T22. Make sure
that the press-in tool is vertical on the contact
surface (A) of the brake calliper by adjusting
the small socket head screw (3).

4.

Push the rubber bearing bush in using T20
and retain T22 with a spanner. Tighten T20
to the specified torque. See "Technical data".
If the required tightening torque is higher or
lower than the specified value, the brake
calliper must be replaced.

5.

Check that the metal outer ring of the bearing
bush is secure in the brake calliper.

6.

Apply lubricating grease in the bearing bush.
See "Technical data".

7.

Fit the guide bush.

8.

Fit the brake calliper.

R600762

1

T18

T20

T19

T22

R600764

A

3

1

2

BRAKE SYSTEM AND COMPONENTS

3-58

©

 200423

Removal and installation

5

ΧΦ65/75/85 series

6

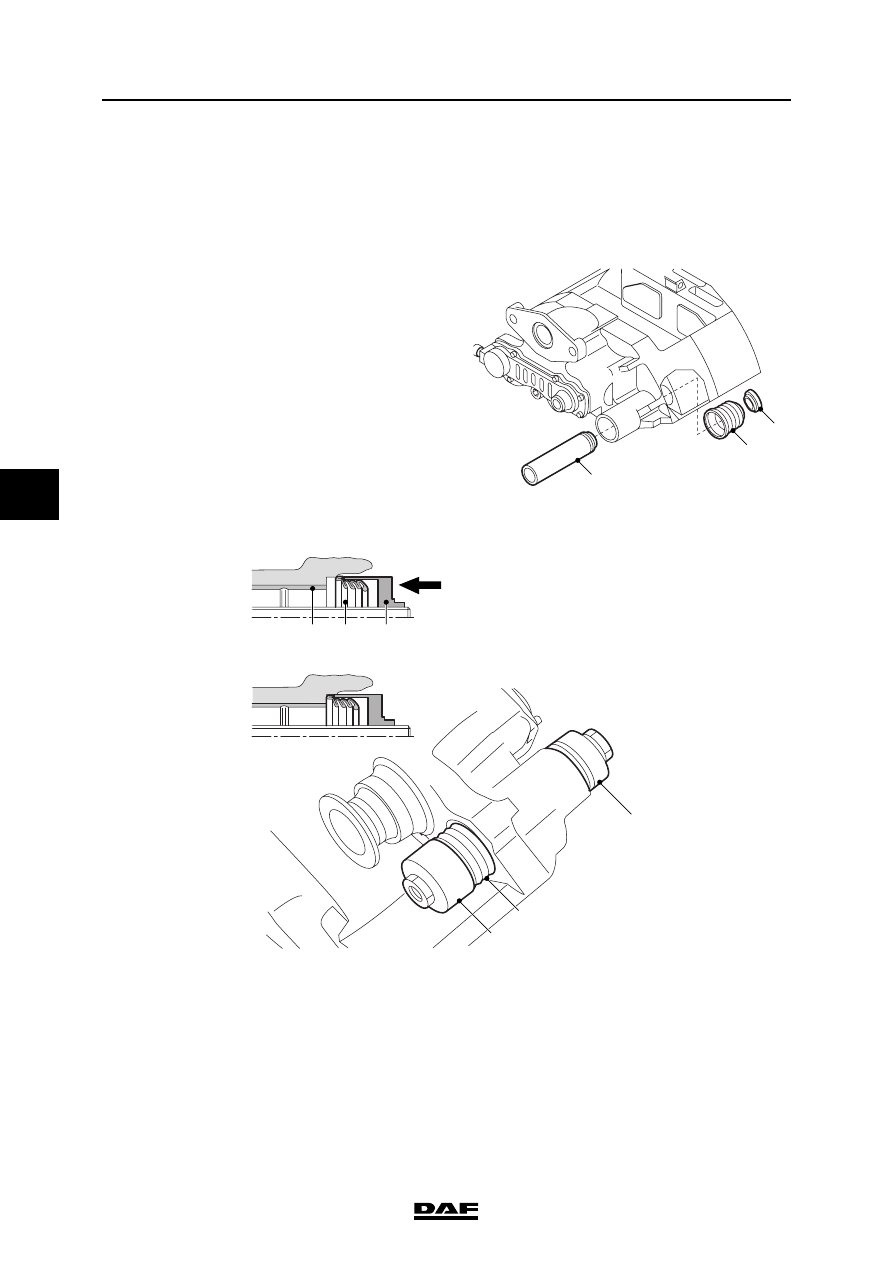

3.29 REMOVING AND INSTALLING BELLOWS OF BRONZE BEARING BUSH OF

KNORR SB7000 BRAKE CALLIPER

Removing bellows of bronze bearing bush
1.

Remove the brake calliper.

2.

Remove washer (1).

3.

Remove the guide bush (2).

4.

Remove the bellows (3).

Fitting the bellows of the guide bush

1.

Clean the bronze bearing bush (4) in the
brake calliper.

2.

Check the bronze bearing bush for damage
and dirt.

3.

Place a new bellows (3) in the sleeve (5)
of the special tool set (DAF no. 1329494).

2

3

1

R600723

5

3

4

5

3

6

R600724

©

 200423

3-59

Removal and installation

BRAKE SYSTEM AND COMPONENTS

ΧΦ65/75/85 series

6

5

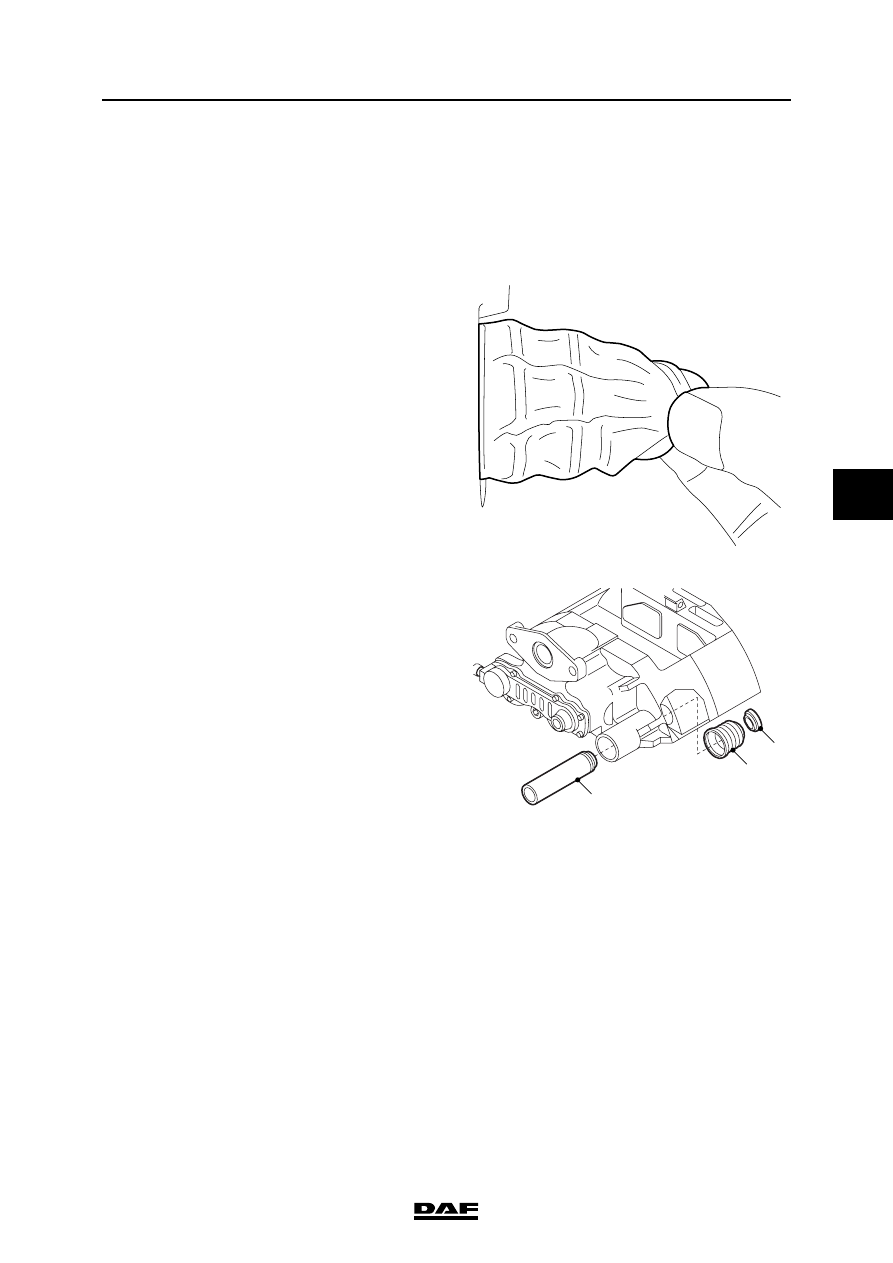

4.

Place the special tool and bellows in
the bore of the brake calliper. Hand-tighten
the press (6).

5.

Push the bellows into the brake calliper by
turning the press bolt clockwise. Remove the
press.

6.

Check the bellows fastening by pulling it
outwards by hand. Damage is not permitted.

7.

Apply lubricating grease to the
bronze bearing bush and guide bush.
See "Technical data".

8.

Install the guide bush (2).

9.

Install the washer (1).

10. Check that the guide bush moves freely in

the brake calliper.

11. Fit the brake calliper.

R600725

2

3

1

R600723

BRAKE SYSTEM AND COMPONENTS

3-60

©

 200423

Removal and installation

5

ΧΦ65/75/85 series

6

3.30 REMOVING AND INSTALLING BELLOWS OF BRONZE BEARING BUSH OF

KNORR SN7000 BRAKE CALLIPER

Fitting the bellows of the guide bush
1.

Remove the brake calliper.

2.

Remove washer (1).

3.

Remove the guide bush (2).

4.

Remove the bellows (3).

Fitting the bellows of the guide bush

1.

Clean the bronze bearing bush (4) in the
brake calliper.

2.

Check the bronze bearing bush for damage
and dirt.

2

3

1

R600723

5

3

4

5

3

6

R600724
