DAF CF65, CF75, CF85 Series . Manual - part 926

©

 200423

3-53

Removal and installation

BRAKE SYSTEM AND COMPONENTS

ΧΦ65/75/85 series

6

5

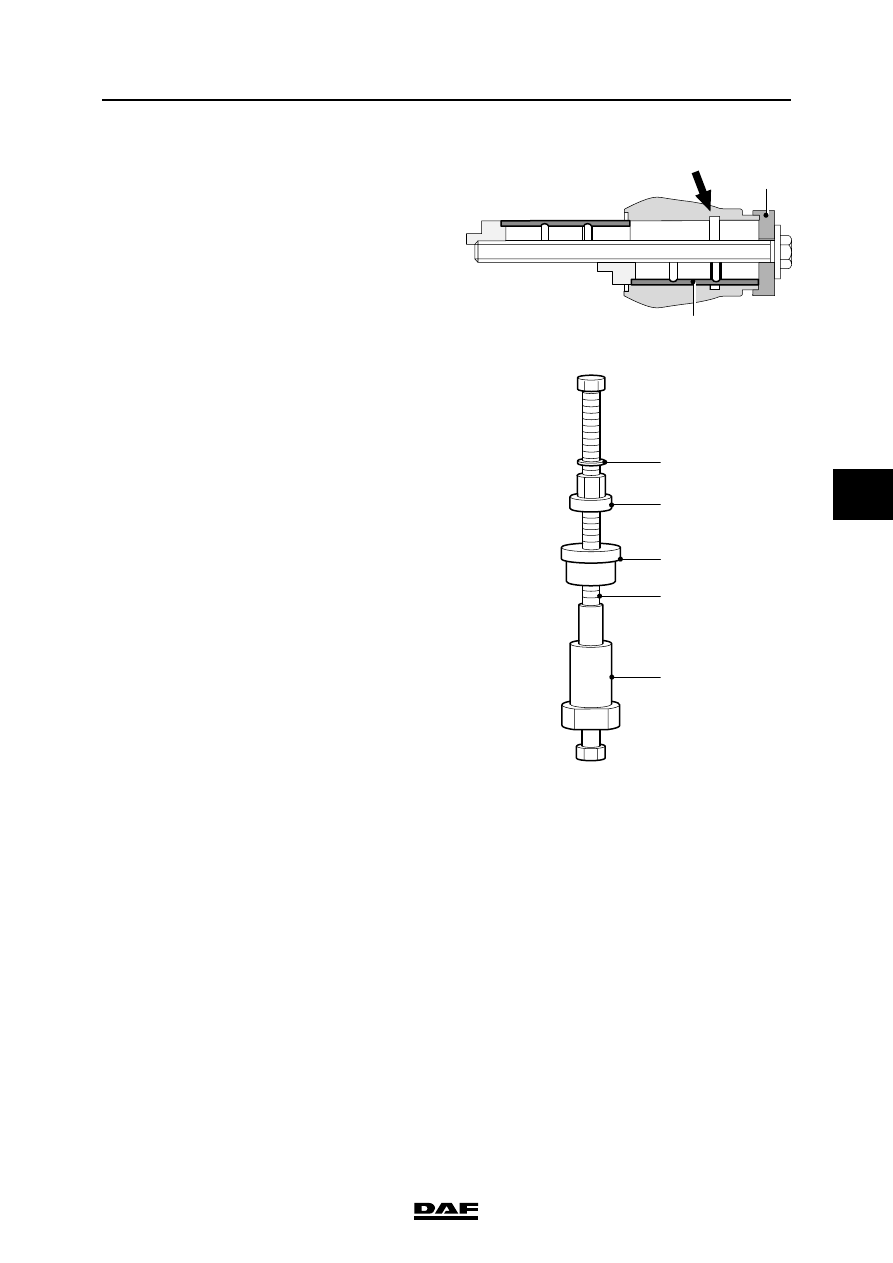

Fitting bronze bearing bush
1.

Fit the new bronze bearing bush (4) using
bearing bush extractor (5), special tool set
(DAF no. 1329495).

2.

To do this, use the assembly of T16, T13, T8,
T14 and a washer (1).

R600728

4

5

1

T14

T8

T13

T16

R600760

BRAKE SYSTEM AND COMPONENTS

3-54

©

 200423

Removal and installation

5

ΧΦ65/75/85 series

6

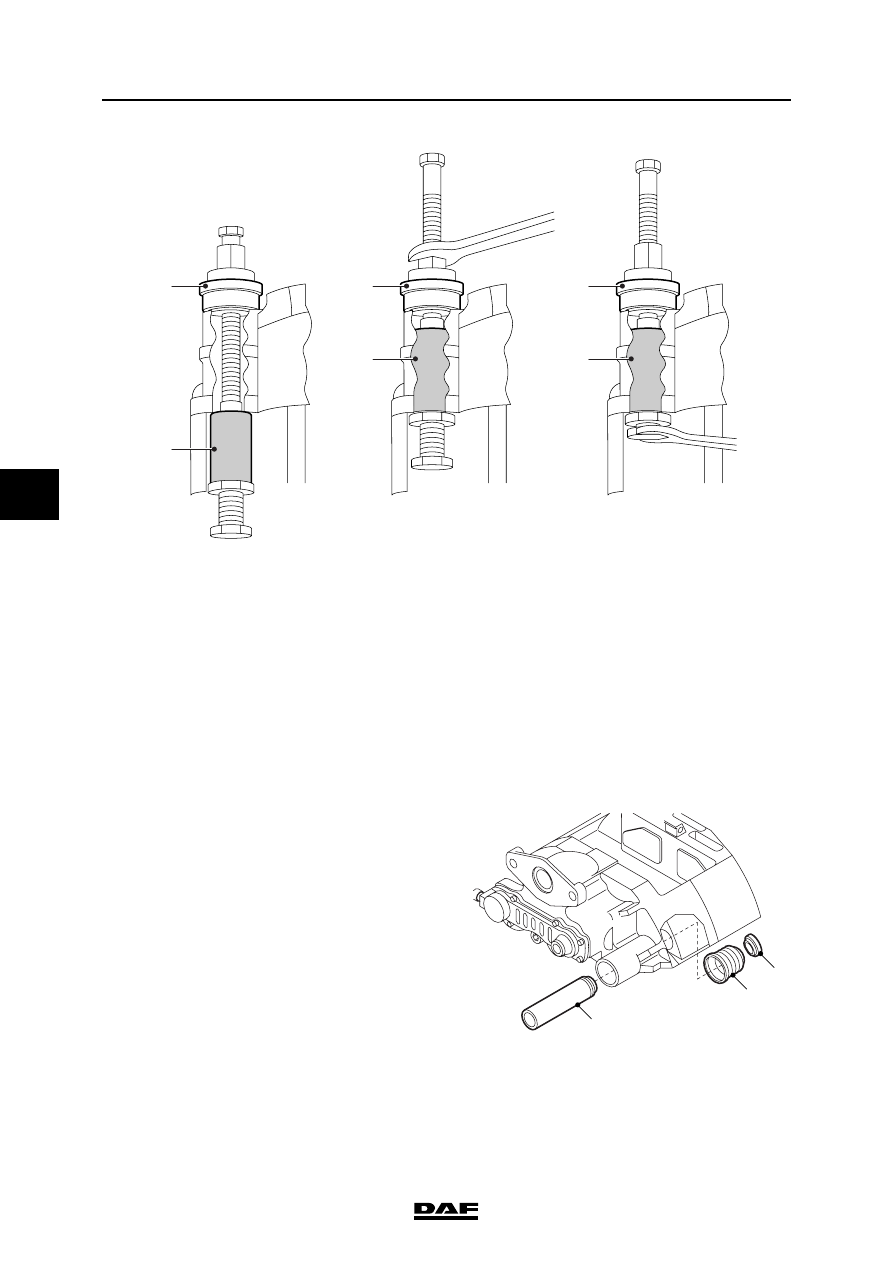

3.

Tighten the brass nut (T14) of the bearing
bush extractor (D) as far as the stop so as to
push in the bronze bush (7) (a, b). Then
tighten the steel bolt of T16 as far as the stop
so as to lock the bronze bush (c). Loosen the
steel bolt of T16 by 20 mm axially, rotate the
tool T16 by 60

 and tighten the steel bolt of

T16 as far as the stop (c). Remove the
bearing bush extractor (D).

4.

Check the bearing bush for burrs.

5.

Apply lubricant to the bearing bush.
See "Technical data".

6.

Fit the bellows (3).

7.

Install the guide bush (2).

8.

Install the washer (1).

R600758

D

b

a

c

7

D

7

D

7

2

3

1

R600723

©

 200423

3-55

Removal and installation

BRAKE SYSTEM AND COMPONENTS

ΧΦ65/75/85 series

6

5

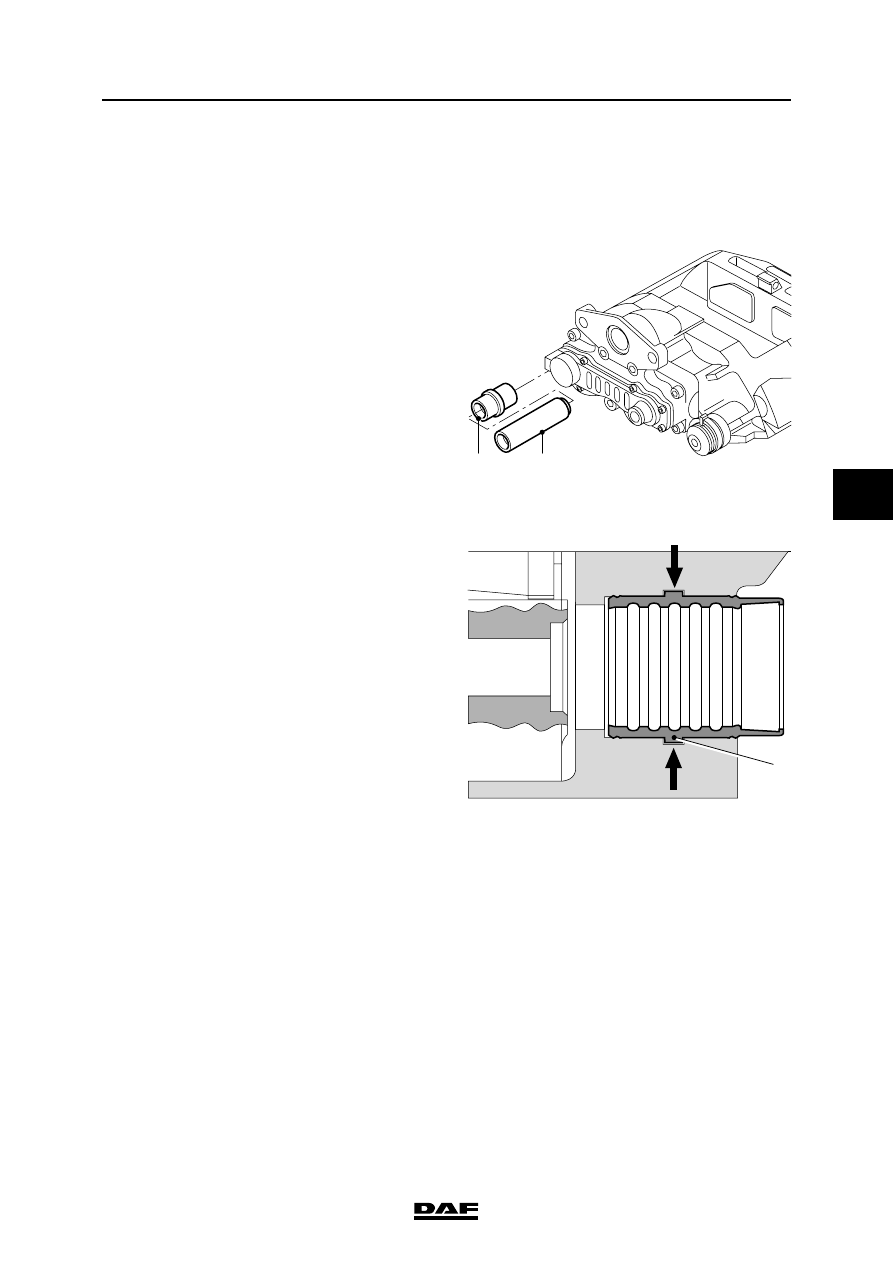

3.27 REMOVING AND INSTALLING RUBBER BEARING BUSH OF

KNORR SB7000 BRAKE CALLIPER

Removing Knorr SB7000 rubber bearing bush
1.

Remove the brake calliper.

2.

Remove the guide bush (G).

3.

Remove the rubber bearing bush (F).

4.

Clean the bearing bush bore.

Fitting Knorr SB7000 rubber bearing bush
1.

Apply lubricating grease to the inside
and outside of the rubber bearing bush.
See "Technical data".

2.

Fit the rubber bearing bush to the brake
calliper.

3.

Slide the bearing bush into the brake calliper
so far that the collar (F) of the bearing bush
is flush in the groove.

4.

Fit the guide bush.

5.

Fit the brake calliper.

G

R600599

F

R600600

F

BRAKE SYSTEM AND COMPONENTS

3-56

©

 200423

Removal and installation

5

ΧΦ65/75/85 series

6

3.28 REMOVING AND INSTALLING RUBBER BEARING BUSH OF

KNORR SN7000 BRAKE CALLIPER

Removing Knorr SN7000 rubber bearing bush
1.

Remove the brake calliper.

2.

Remove the guide bush.

3.

Clean the bearing bush and the bearing bush
bore.

4.

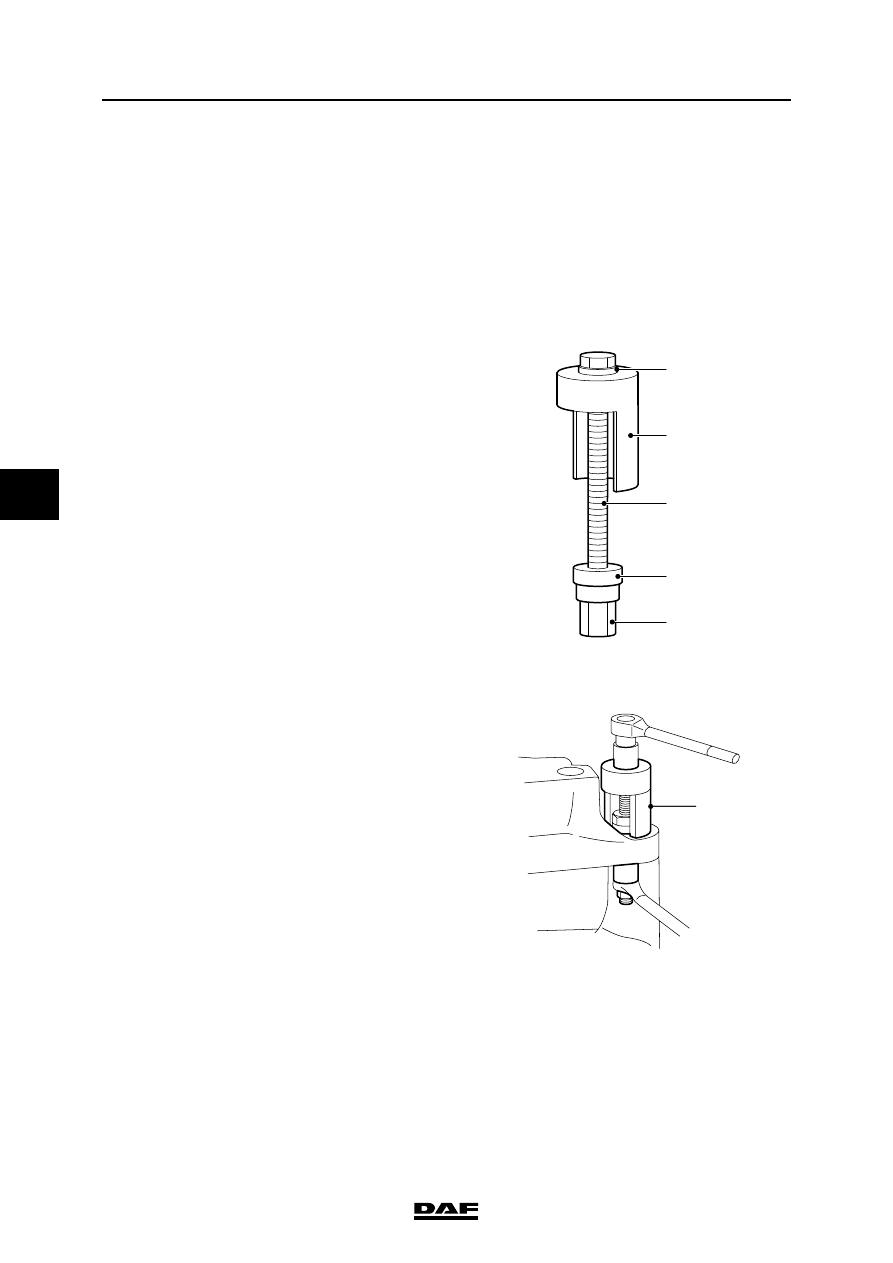

Assemble the press-out tool from the special
tool set (DAF no. 1329495) by means of
parts T22, T6, T20, T21 and a washer (1).

5.

Using the press-out tool (1), push the
bearing bush out of the brake calliper by
retaining T22 and screwing T20 in.

Fitting Knorr SN7000 rubber bearing bush
1.

Clean the bearing bore in the brake calliper
and, if necessary, protect the surface against
corrosion by means of zinc spray.

R600763

1

T21

T20

T6

T22

1

R600729
