CF65/75/85 series

Connection of accessories

CONNECTION OF ACCESSORIES

1-9

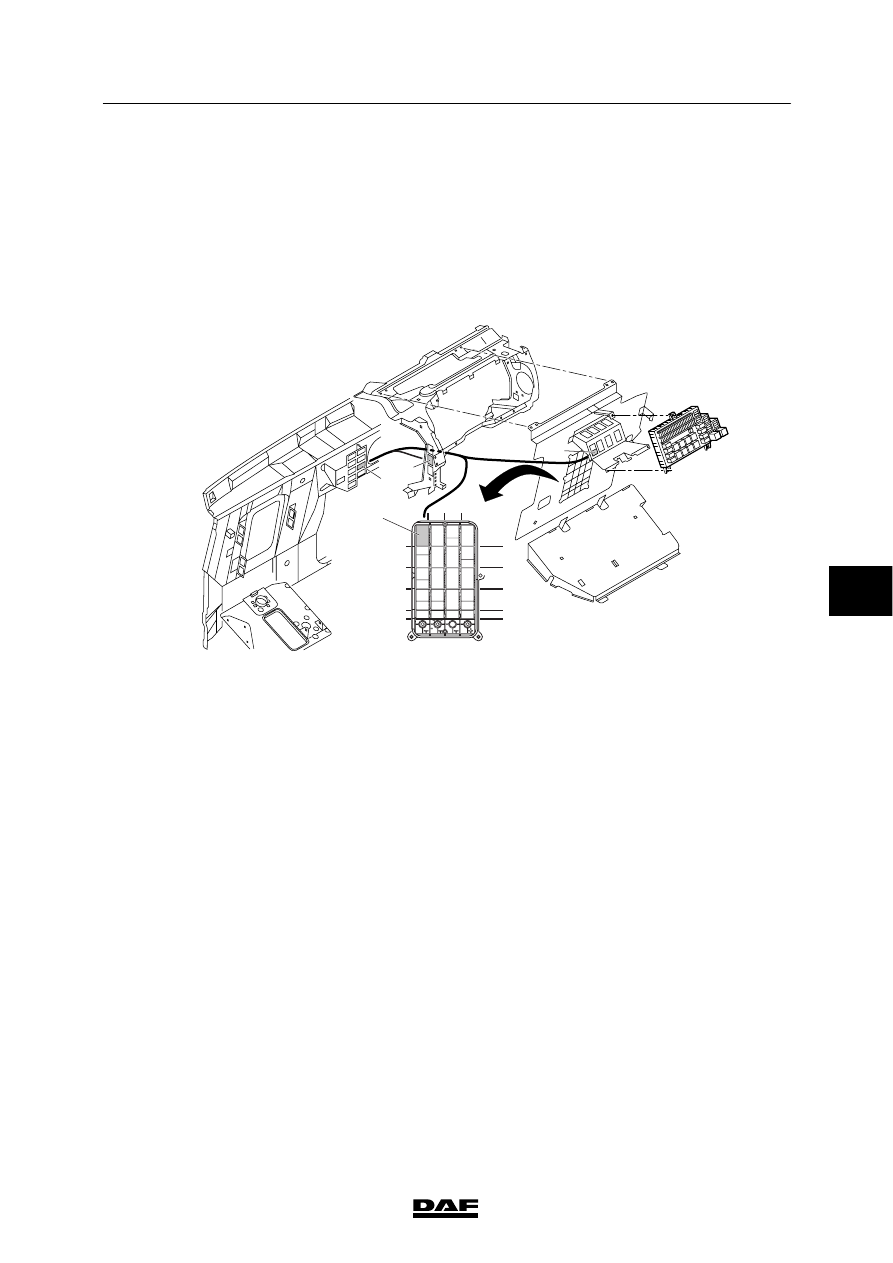

Application connector 656 for superstructure
functions (with 12 spare wires) is optional. Only
if this option is selected is a wiring harness fitted
from the connector under the PCB (connector
no. 580) to the connector lead-through
(connector no. 656) and to the connector behind
the cover of the radio panel (connector no. 654)
and the connector behind the heater panel cover
(connector no. 655).

A

B

C

D

656

654

655

580

2

3

4

5

7

8

9

1

2

3

4

5

6

7

8

9

10

E501029

6

 200332

5

CONNECTION OF ACCESSORIES

Connection of accessories

CF65/75/85 series

1-10

Pin pattern for wiring harness connector 656:

Pin no.

Wire no.

Description

1

M

Earth

2

M

Earth

3

4

3412

Cab locking signal

5

spare 1

Spare 1

6

spare 2

Spare 2

7

spare 3

Spare 3

8

spare 4

Spare 4

9

spare 5

Spare 5

10

spare 6

Spare 6

11

spare 7

Spare 7

12

spare 8

Spare 8

13

spare 9

Spare 9

14

spare 10

Spare 10

15

spare 11

Spare 11

16

spare 12

Spare 12

17

18

19

3157

Engine running signal

20

1154

Power supply before contact

21

1258

Power supply after contact

NOTE:

The power supply before contact is
fuse-protected via fuse E142. The
power supply after contact is
fuse-protected via fuse E163. Both
25 A. The power supply to the cooler
box and connector 597 (if present) is
also via fuse E142. The power supply
to connector 597 is also via fuse
E163.

6

 200332

5

CF65/75/85 series

Connection of accessories

CONNECTION OF ACCESSORIES

1-11

Pin pattern for wiring harness connector 654:

Pin no.

Wire no.

Description

1

spare 1

Spare 1

2

spare 2

Spare 2

3

spare 3

Spare 3

4

spare 4

Spare 4

5

spare 5

Spare 5

6

spare 6

Spare 6

7

8

9

Pin pattern for wiring harness connector 655:

Pin no.

Wire no.

Description

1

spare 7

Spare 7

2

spare 8

Spare 8

3

spare 9

Spare 9

4

spare 10

Spare 10

5

spare 11

Spare 11

6

spare 12

Spare 12

6

 200332

5

CONNECTION OF ACCESSORIES

Connection of accessories

CF65/75/85 series

1-12

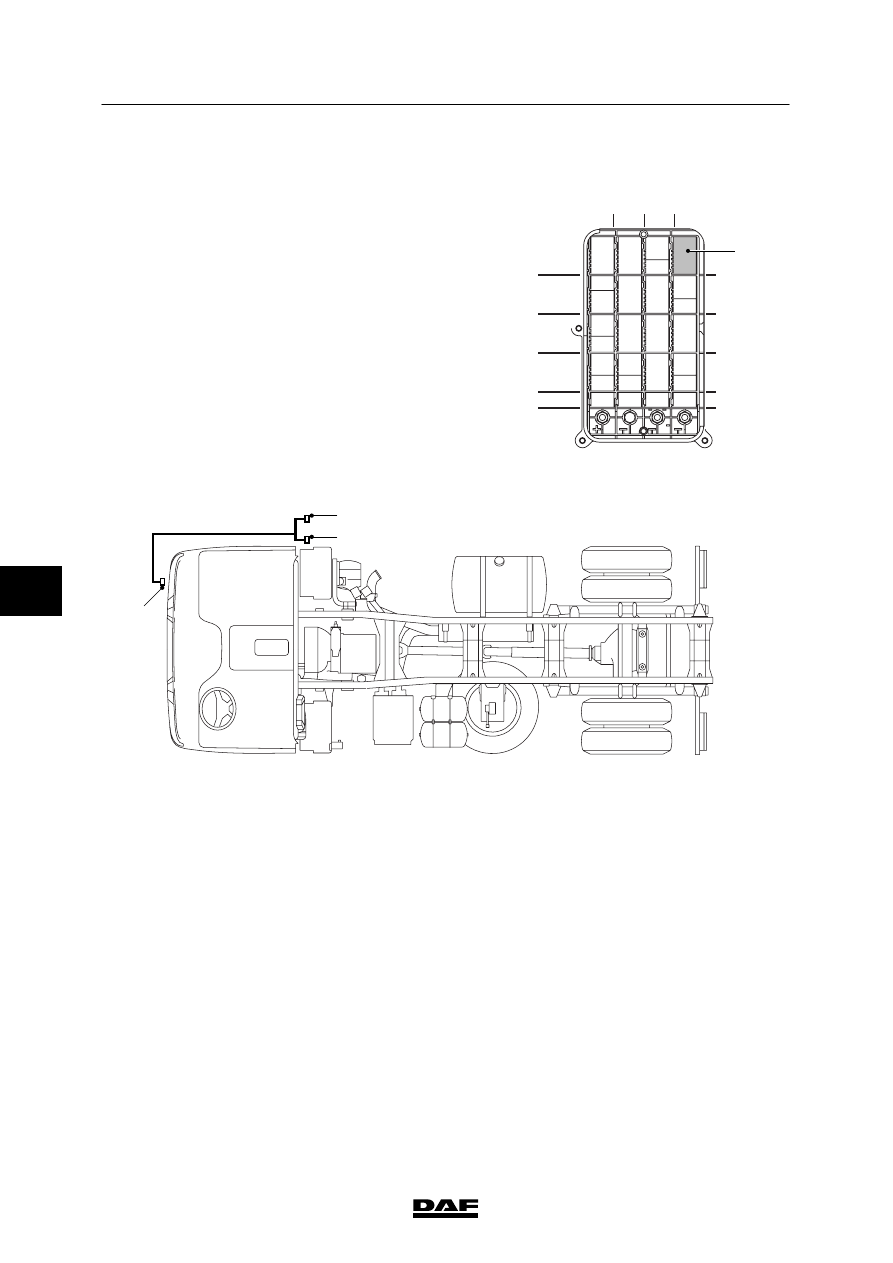

1.5 DASHBOARD LEAD-THROUGH CONNECTOR FOR SUPERSTRUCTURE

FUNCTIONS APPLICATION CONNECTOR

Application connectors for superstructure
functions are optional. Dashboard lead-through
connector 656 is present only if this option has
been selected.

Dashboard lead-through connector 656 is
connected to a wiring harness outside the cab
for application connectors 657 and 658.

E501063

656

1

A

B

C

D

2

3

4

5

6

7

8

9

2

3

4
5

7

8

9

10

657

656

658

E501030

6

 200332
