DAF CF65, CF75, CF85 Series . Manual - part 506





5

CF65/75/85 series ≥0E621376

Removal and installation

REPAIRING WIRING

2-19

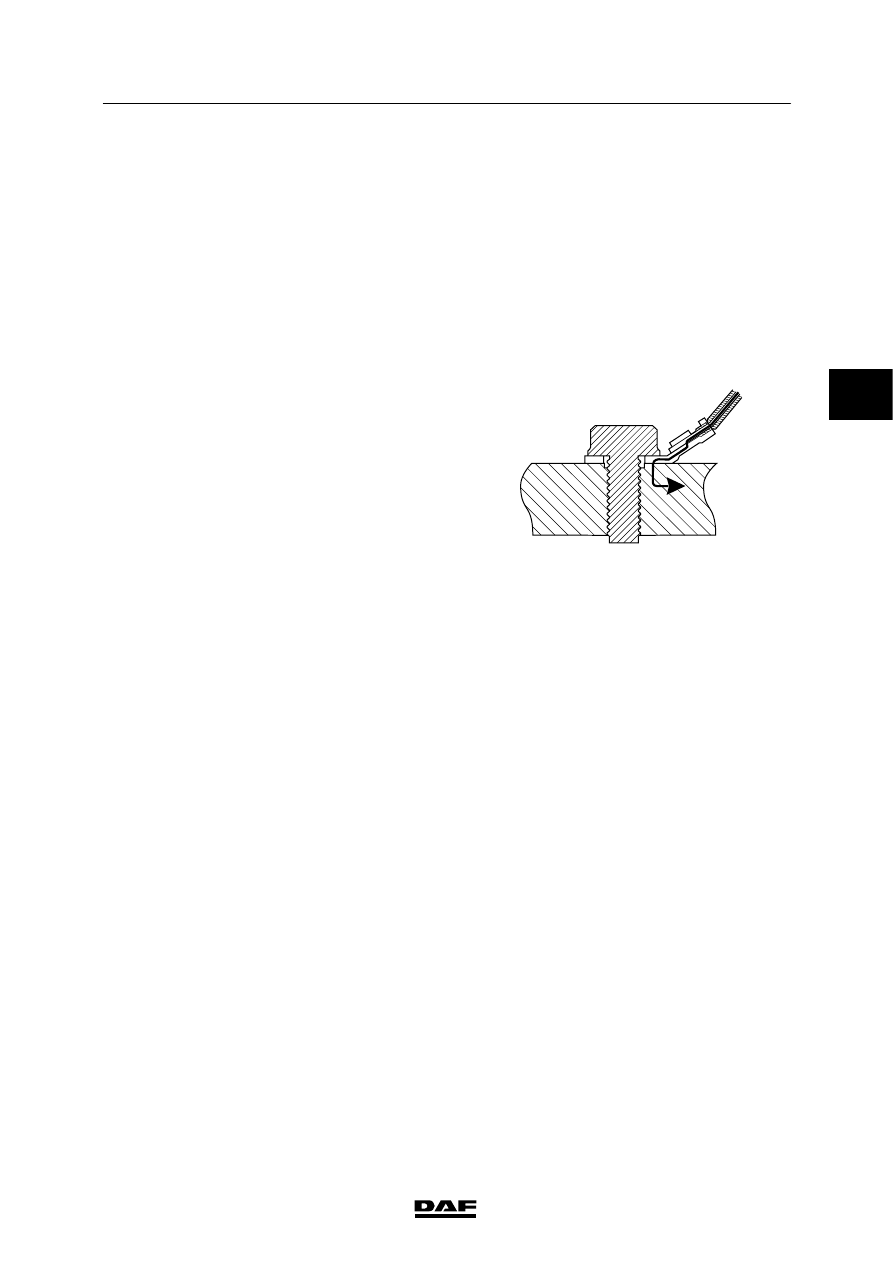

2.6 REMOVAL AND INSTALLATION, EARTH WIRE

When a failure occurs in an electrical system,

one of the first things to be checked is the earth

connection, with particular attention being paid

to earth connections on the chassis.

Points for special attention when checking

earth connection on chassis

If an earth connection has been removed and is

being re-installed, pay attention to the following:

-

The bolt, nut, earth strip and washers must

be cleaned (e.g. using a steel brush or sand

paper). If a component is corroded, it must

be replaced by a new one.

-

Clean all dirt and paint from the area around

the engine/chassis earth connection on both

sides of the chassis member so that the

bare metal is visible.

-

Clean all dirt and paint from the area around

the battery/chassis earth connection on the

inside of the chassis member so that the

bare metal is visible.

-

On the earth strip side, the cleaned area

must be larger than the contact area of the

earth strip.

-

On the nut side, the cleaned area must be

larger than the contact surface of the nut.

-

After fitting the earth connection, a

protective zinc primer should be applied to

both sides of it and it should be painted.

E501495

3

 200404

5

REPAIRING WIRING

Removal and installation

CF65/75/85 series ≥0E621376

2-20

2.7 REPAIRING CAN NETWORK WIRING

When repairing or replacing the CAN wiring, the

original twisted lengths and diameters of the

wiring must be taken into consideration. A 10%

tolerance in the twisted length of the wiring is

permitted. Winding density 40-50 turns/m.

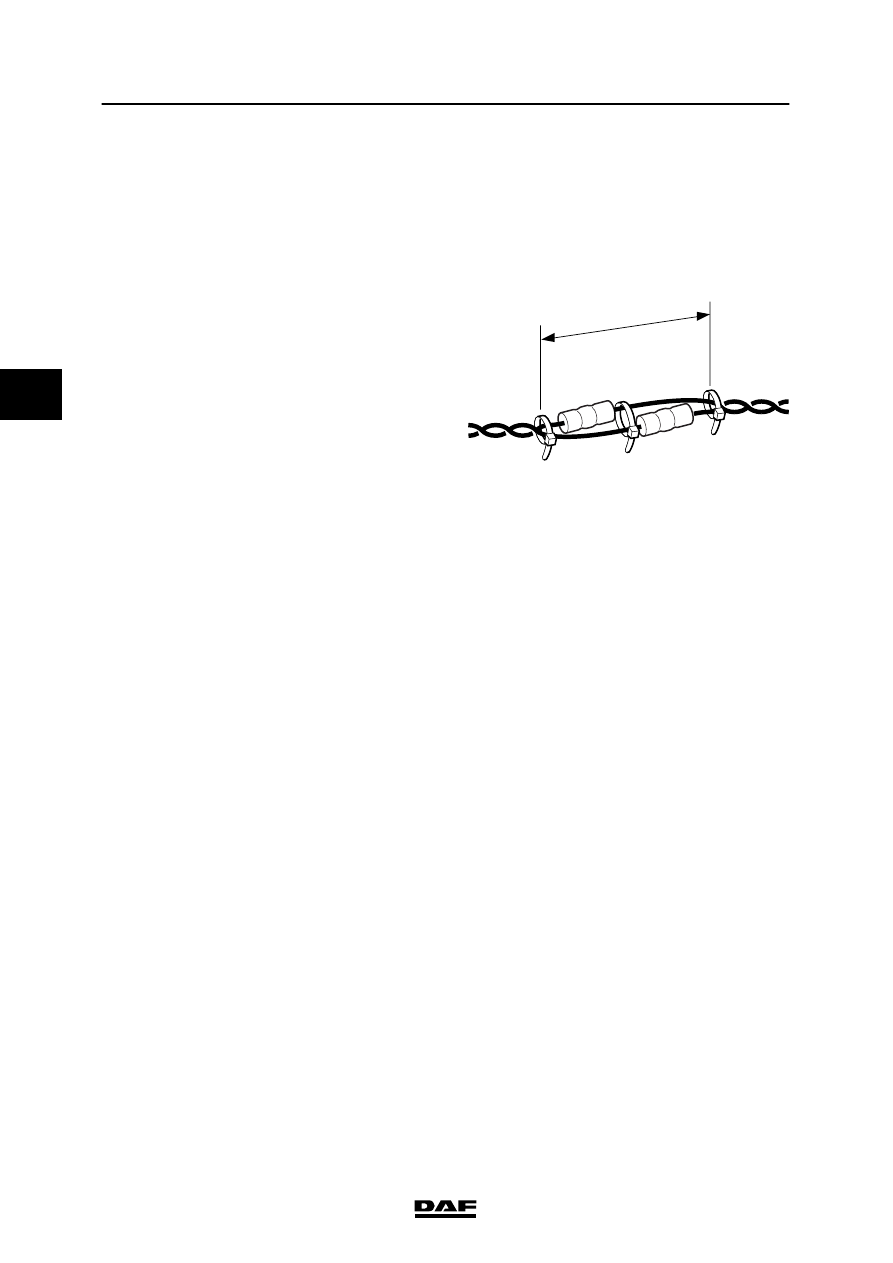

When repairing the wiring, the winding density

must be maintained, with the provision that it is

permissible for the wiring at the point of repair to

have no twists over a maximum length of 60

mm. When the wiring is being repaired, it must

be secured in a wire tie at the end and in the

middle.

Replacing CAN wire

1. Measure the length of the original wire

when untwisted.

2. Measure the diameter of the original wire.

Always take a wire of the same diameter or,

if this is not available, of the next size.

3. Preferably choose a wire of the same colour

as the original wire.

4. Follow the routing of the original wire and

install the wire in the original way.

Max. 60mm

E500977

3

 200404

5

CF65/75/85 series ≥0E621376

Contents

BATTERIES

1

CONTENTS

Page

Date

1. SAFETY INSTRUCTIONS

1-1

200404

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . .

1.1

Batteries

1-1

200404

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . .

1.2

Battery charging

1-2

200404

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . .

2. CHARGING BATTERIES

2-1

200404

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . .

2.1

General

2-1

200404

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . .

2.2

Methods of charging

2-3

200404

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . .

3. STORAGE OF BATTERIES

3-1

200404

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . .

3.1

General

3-1

200404

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . .

3.2

Storage up to four weeks.

3-1

200404

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . .

3.3

Storage for more than four weeks

3-2

200404

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . .

4. CHECKING BATTERIES

4-1

200404

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . .

4.1

Visual inspection

4-1

200404

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . .

4.2

Checking the charging condition

4-1

200404

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . .

4.3

Checking using a battery tester

4-3

200404

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . .

4

 200404

5

BATTERIES

Contents

CF65/75/85 series ≥0E621376

2

4

 200404
