General

CE ENGINE FUEL SYSTEM

ΧΦ65/75/85 series

4

2

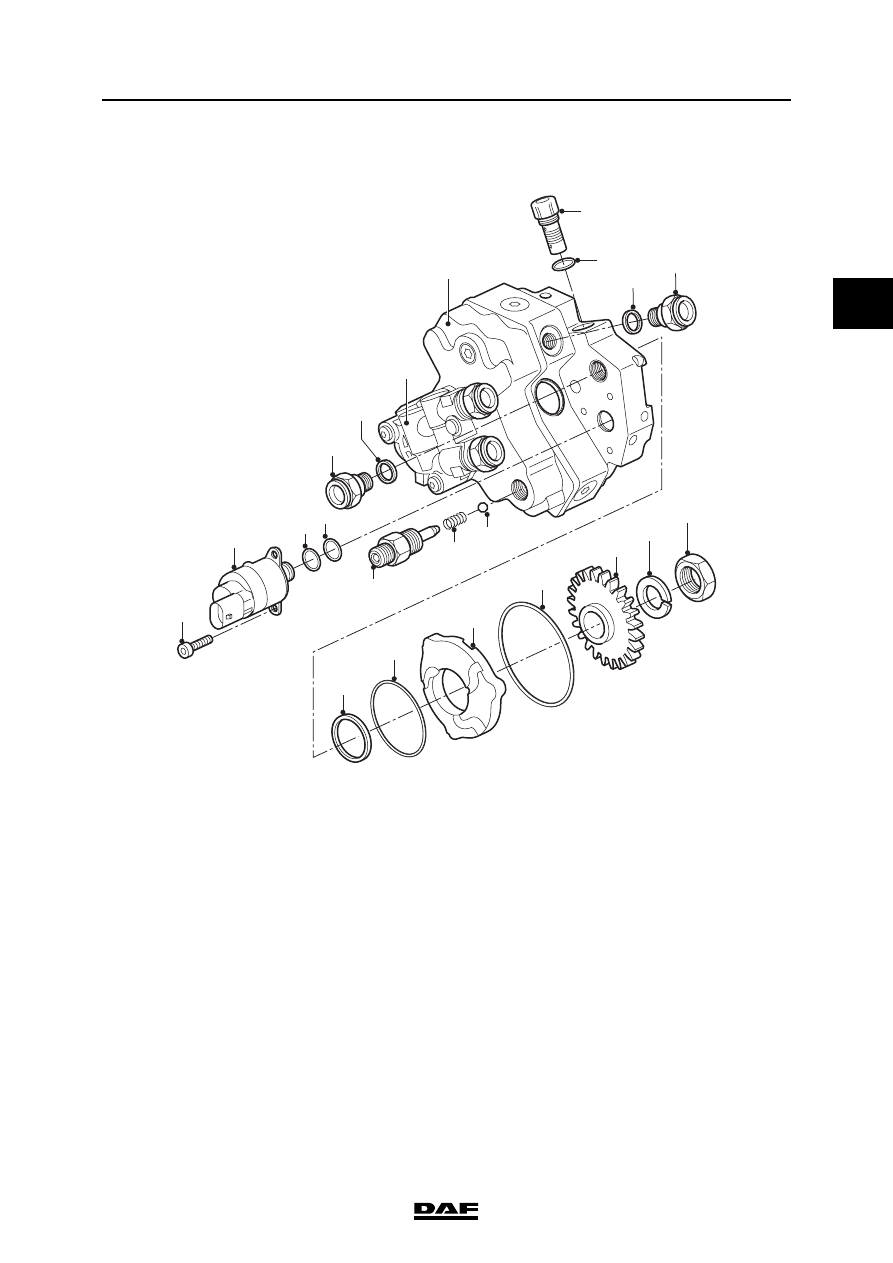

2.3 OVERVIEW DRAWING, FUEL PUMP

1.

Attachment bolt

2.

Fuel pump control solenoid valve

3.

O-ring

4.

O-ring

5.

Fuel pipe connection

6.

Copper ring

7.

Lift pump

8.

High-pressure pump

9.

Circulation valve

10. O-ring
11. Copper ring
12. Fuel pipe connection
13. High-pressure pipe connection
14. Spring
15. Ball
16. Oil seal
17. O-ring
18. Adapter ring
19. O-ring
20. Gear wheel
21. Sealing ring
22. Nut

17

16

18

19

20

13

14

15

2

3

4

1

5

7

8

6

21

9

10

11

12

22

i400766

CE ENGINE FUEL SYSTEM

2-10

©

 200416

General

2

ΧΦ65/75/85 series

4

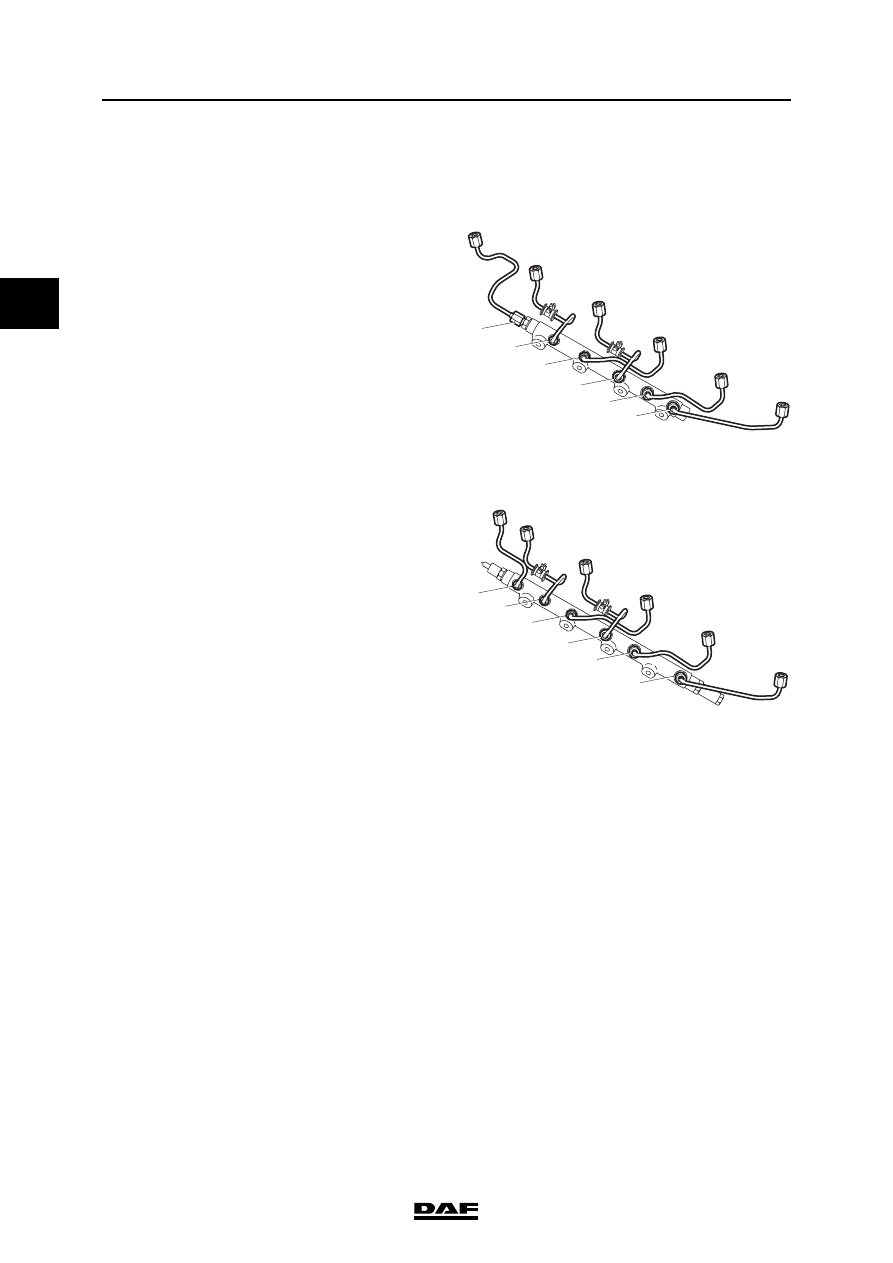

2.4 OVERVIEW DRAWING, FUEL RAIL

Overview drawing, fuel rail, production date <
2003-21 (chassis number < 0E613993)
The figure shows the connections to the injector
pipes. The numbers indicate the cylinder number
of the connection.

Overview drawing, fuel rail,

 production date

2003-21 (chassis number

 0E613993)

The figure shows the connections to the injector
pipes. The numbers indicate the cylinder number
of the connection.

1

2

4

3

5

6

i400765

1

2

4

3

5

6

i400874

©

 200416

2-11

General

CE ENGINE FUEL SYSTEM

ΧΦ65/75/85 series

4

2

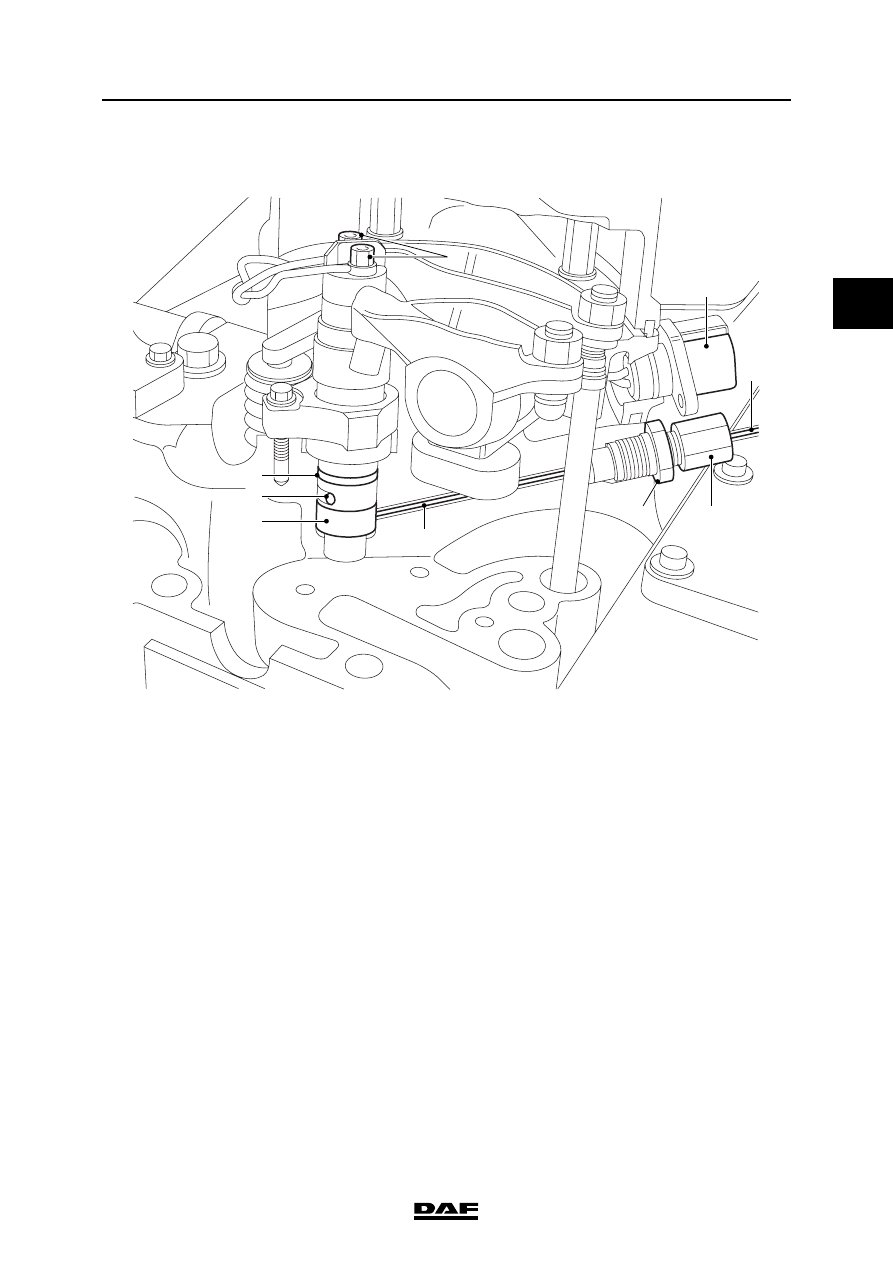

2.5 OVERVIEW DRAWING, FUEL SYSTEM, CYLINDER HEAD

i400653

5

1

1

2

4

8

7

6

9

3

1.

Injector pipe

2.

Union

3.

Nut

4.

Fuel supply pipe

5.

Connector to injectors

6.

O-ring

7.

Return opening

8.

Injector

9.

Electrical connection
