DAF CF65, CF75, CF85 Series . Manual - part 397





3

CF65/75/85 series

Removal and installation

AS TRONIC GEARBOX

4-7

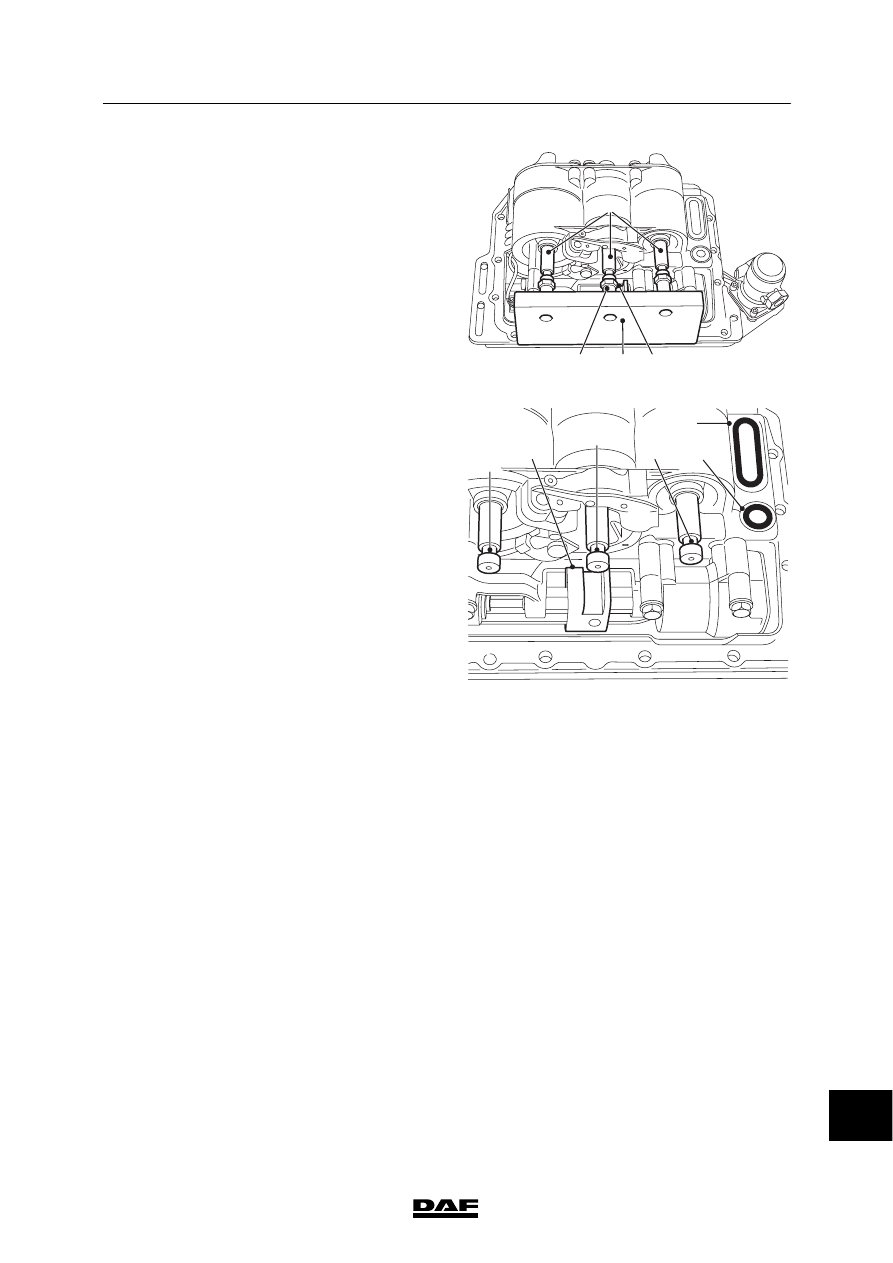

5.

Check that the control rods (4) are properly
adjusted, using the tool (1) if necessary.

V300696

4

2

1

3

6.

Put the recess of the pad (6) on the
selection cylinder exactly in the centre of
the control rod (4).

Note:
Ensure that the rubber seals (1 and 2) are
fitted on the modulator and are not
damaged.

V300692

4

5

6

2

3

1

14

ᓻ 200337

3

AS TRONIC GEARBOX

Removal and installation

CF65/75/85 series

4-8

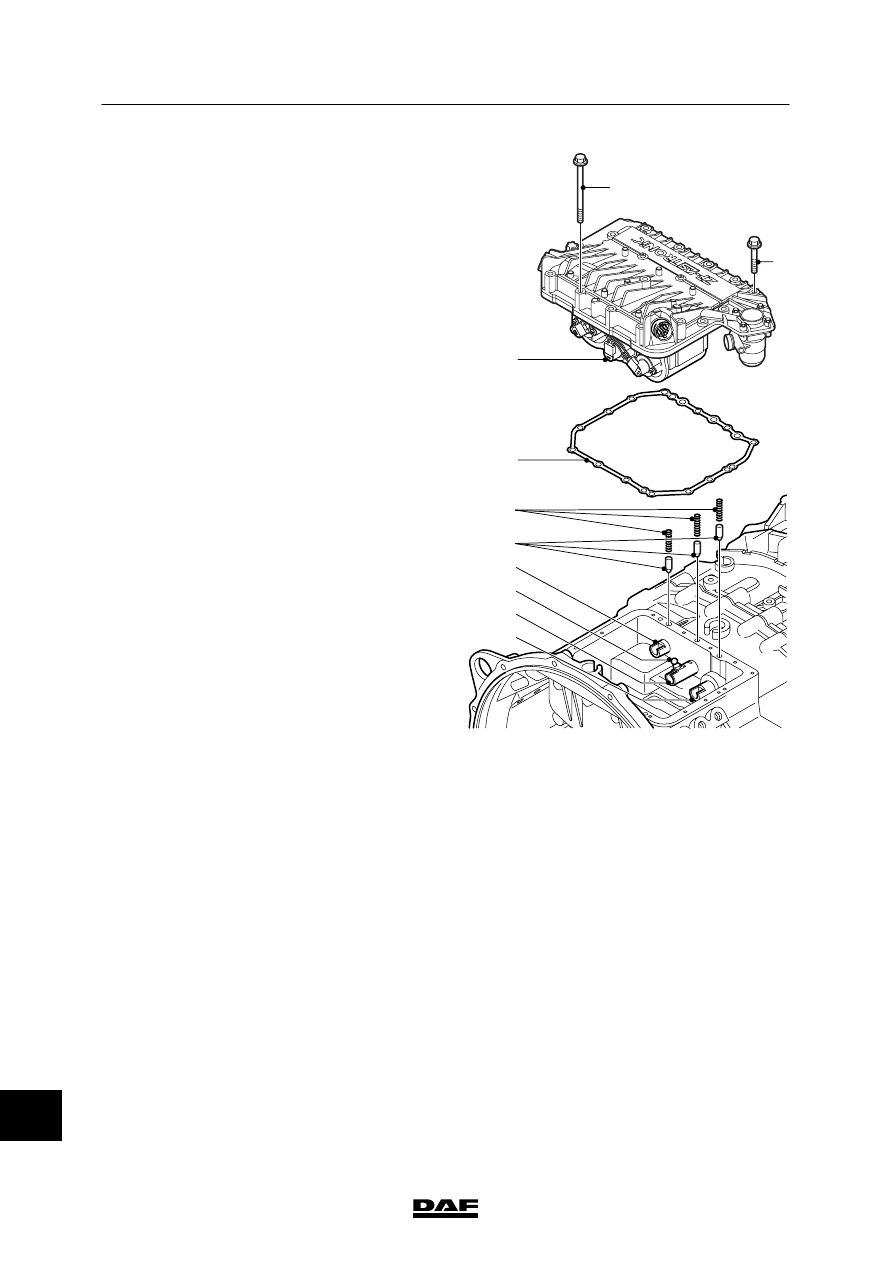

7.

Put the round bolt (9) in upright position; it
has to fall into the recess of the pad on the
selection cylinder.

8.

Install the gearbox modulator (1) with a new
seal (3); see that the control rods fall into
the recesses in the selector shafts (7, 8 and
9). Tighten the bolts (2) to the specified
torque. See “Technical data”.

9.

Fit the gearbox.

10. Connect the battery terminal.

11. The new gearbox modulator must always

be reprogrammed using DAVIE XD and the
correct vehicle data.

V300832

4

9
7
8

6

5

3

2

2

1

14

ᓻ 200337

3

CF65/75/85 series

Removal and installation

AS TRONIC GEARBOX

4-9

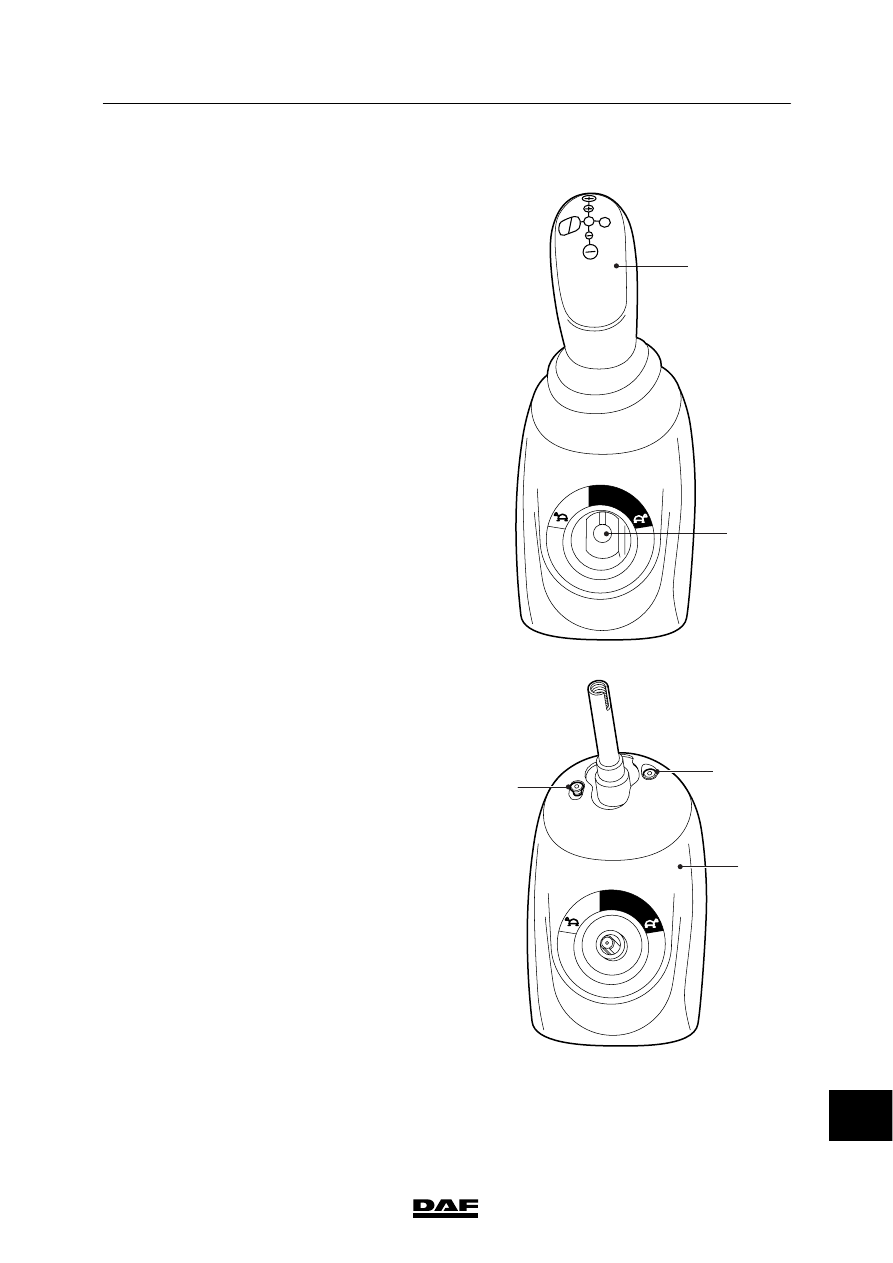

4.3 REMOVAL AND INSTALLATION, OPERATING UNIT

Removing the operating unit
1.

Remove the gear lever cover (1) and the
cap (2) from the selector switch button.

2.

Remove the attachment bolt from the gear
lever knob and the knob from the selector
switch. Remove the gear lever knob and
bottom plate and the knob from the selector
switch.

V300683

1

2

R

N

D

S

M A

3.

Remove the bolts (3) from the cover (5) and
lift the cover (5).

V300684

3

3

5

R

N

D

14

ᓻ 200337

3

AS TRONIC GEARBOX

Removal and installation

CF65/75/85 series

4-10

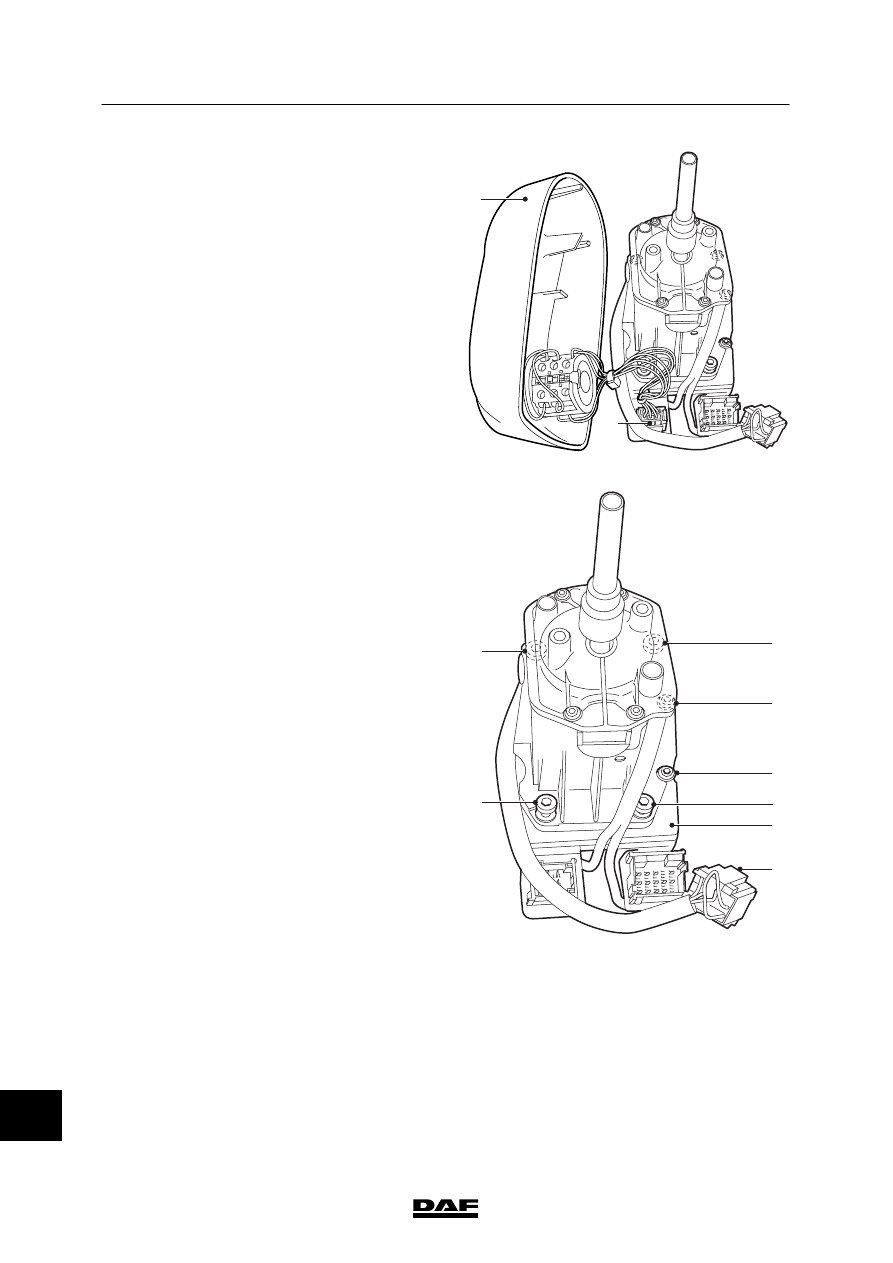

4.

Disconnect connector 4 from the selector
switch. Remove the cover (5) with the
selector switch.

V300685

4

5

5.

Disconnect connector 6 and remove the
attachment bolts (7) from the gear lever
unit; lift the gear lever unit and remove the
bolts (8) from the bottom plate (9). Remove
the gear lever unit with the bottom plate (9).

V300686

6

9

8

7

8

7

7

7

14

ᓻ 200337
