DAF CF65, CF75, CF85 Series . Manual - part 380

3

CF65/75/85 series

General

PTO

2-15

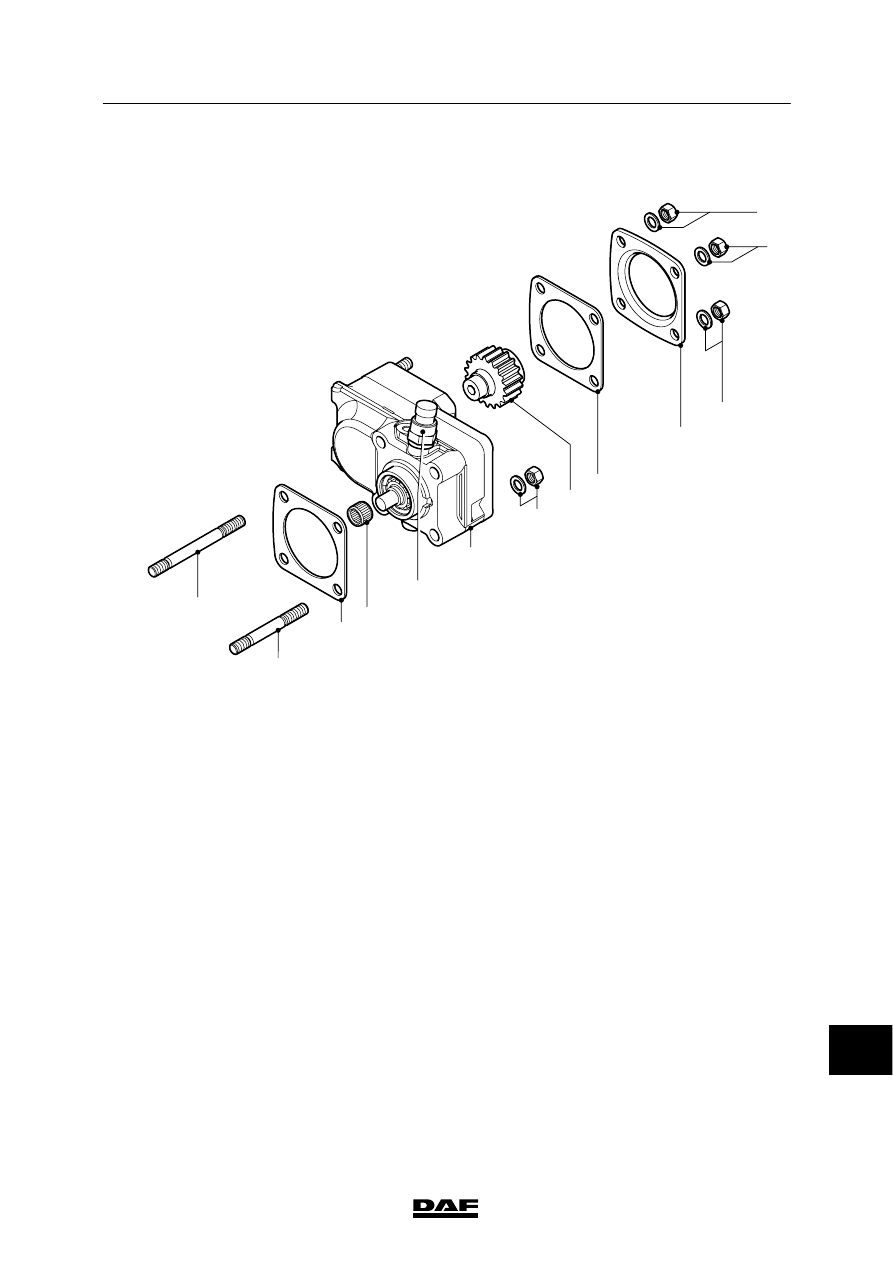

2.11 OVERVIEW DRAWING, NL/4 AND NH/4 PTO, C VERSION

V300875

4

2

1

1

3

6

7

8

9

10

5

9

11

1.

Studs

2.

Gasket

3.

NH/4 needle bearing width 16 mm
NL/4 needle bearing width 12 mm

4.

PTO housing

5.

Lock washer and nut

6.

Gear

7.

Gasket

8.

Transport cover

9.

Lock washer and nut

10. Lock washer and nut
11. PTO control switch (depending on version,

this may be of the reed switch type)

13

ᓻ 200337

3

PTO

General

CF65/75/85 series

2-16

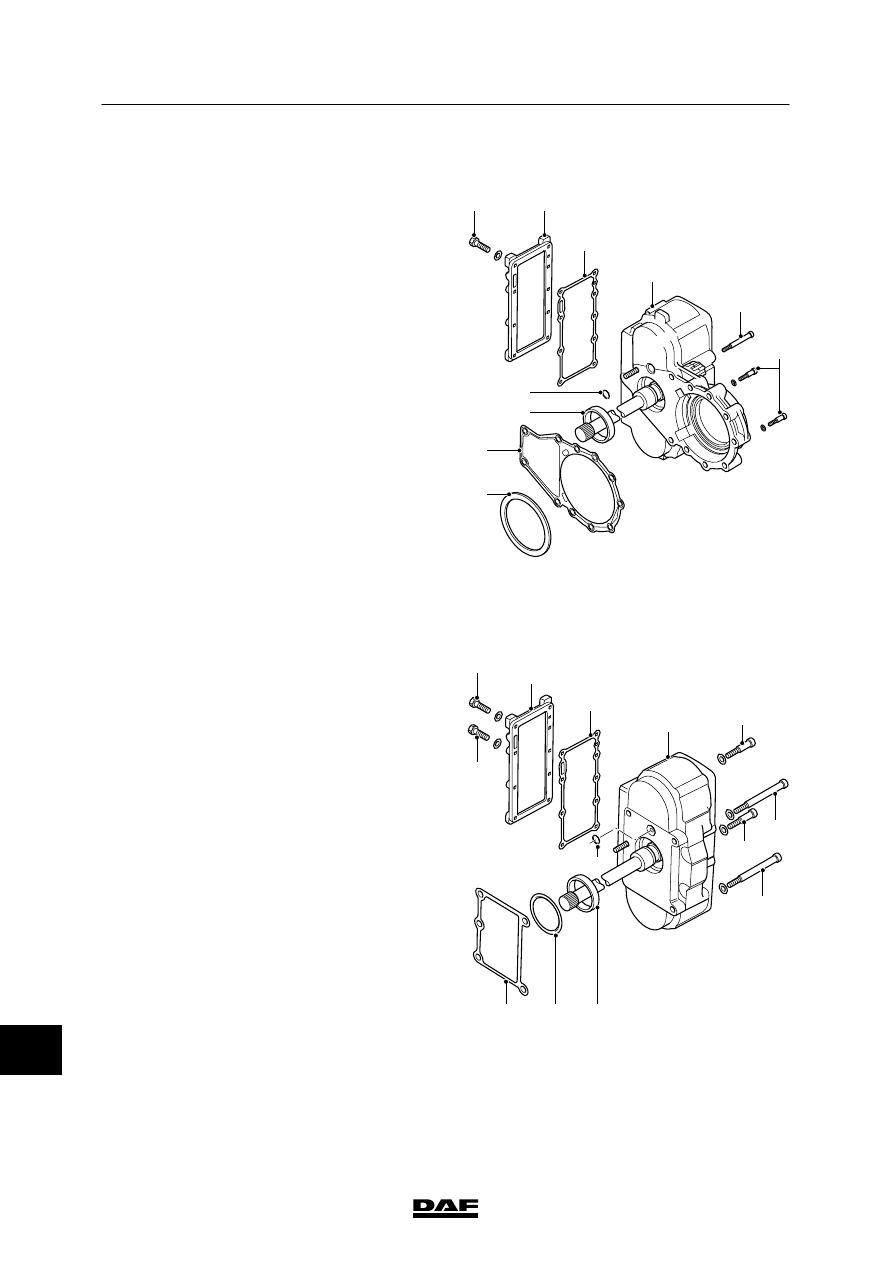

2.12 OVERVIEW DRAWING, N221/10 PTO ON GEARBOX WITHOUT INTARDER

1.

Side cover attachment bolts

2.

Side cover

3.

Gasket

4.

PTO housing

5.

Long attachment bolts

6.

Short attachment bolts

7.

O-ring

8.

Centring ring

9.

Gasket

10. Adjusting ring

1

10

9

2

3

4

5

7
8

6

V300221

2.13 OVERVIEW DRAWING, N221/10 PTO ON GEARBOX WITH INTARDER

1.

Side cover attachment bolts

2.

Side cover

3.

Gasket

4.

PTO housing

5.

Short attachment bolts

6.

Long attachment bolts

7.

O-ring

8.

Gasket

9.

O-ring

10. Centring ring

1

1

2

3

4

7

8

9

10

6

6

5

5

V300222

13

ᓻ 200337

3

CF65/75/85 series

General

PTO

2-17

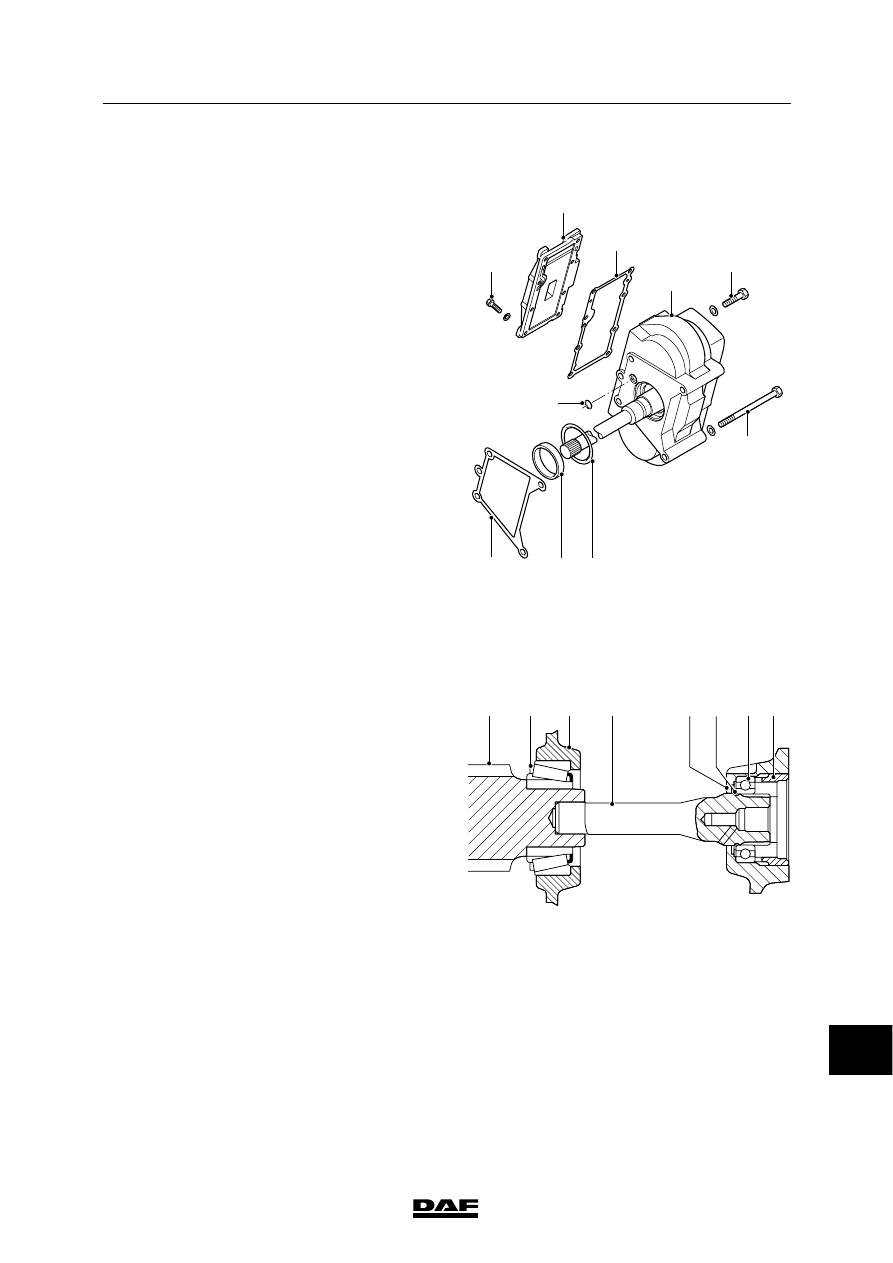

2.14 OVERVIEW DRAWING, N AS/10 PTO

1.

Side cover attachment bolts

2.

Side cover

3.

Gasket

4.

PTO housing

5.

Short attachment bolts

6.

Long attachment bolts

7.

O-ring

8.

O-ring

9.

Centring ring

10. Gasket

V300877

1

7

2

3

4

5

8

6

9

10

2.15 OVERVIEW DRAWING, PTO INTERMEDIATE SHAFT FOR GEARBOX

WITHOUT INTARDER

1.

Auxiliary shaft

2.

Taper roller bearing

3.

Gearbox housing

4.

Intermediate shaft

5.

Rear gearbox cover

6.

Circlip

7.

Ball bearing

8.

Centring sleeve

1

2

3

4

7

8

5

6

V300223

13

ᓻ 200337

3

PTO

General

CF65/75/85 series

2-18

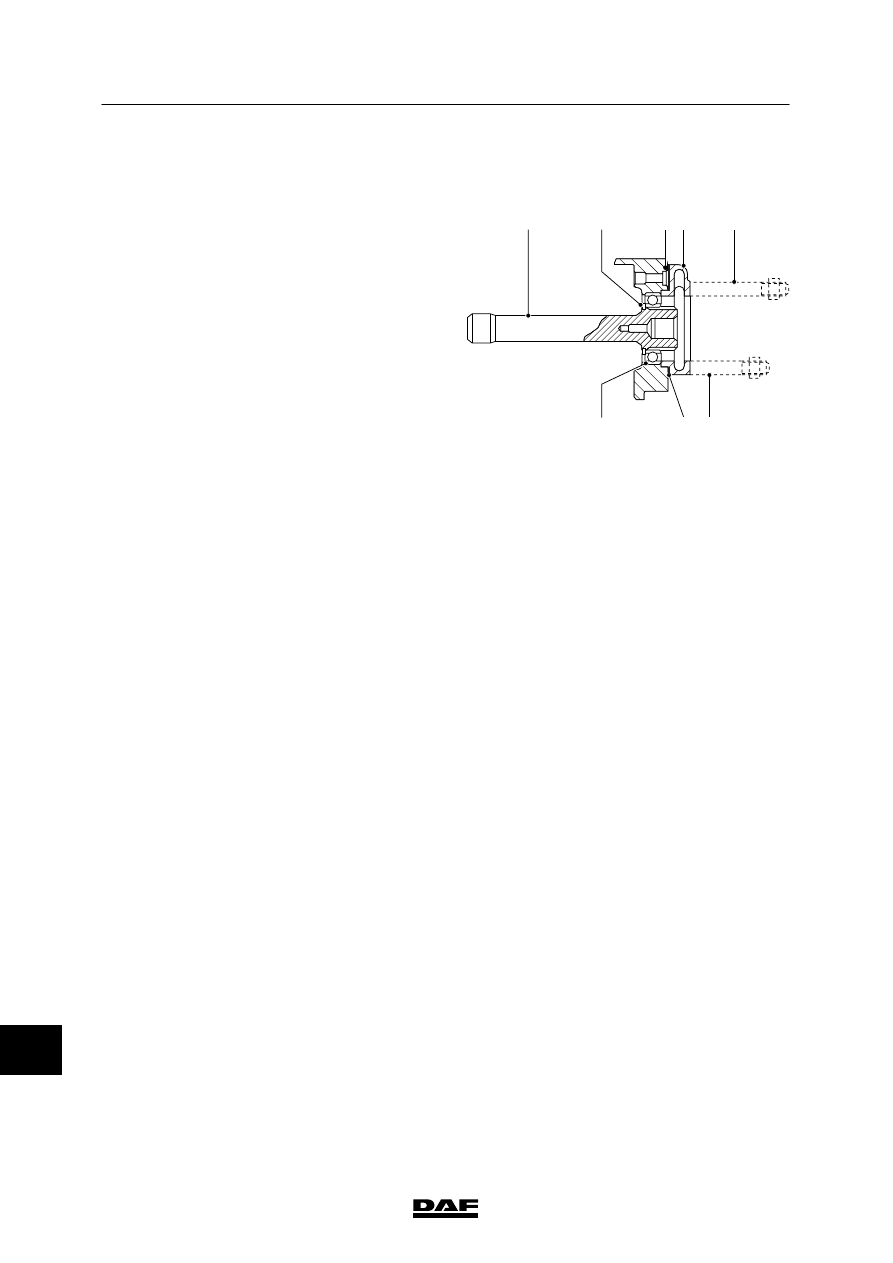

2.16 OVERVIEW DRAWING, PTO INTERMEDIATE SHAFT FOR GEARBOX WITH

INTARDER

1.

Intermediate shaft

2.

Ball bearing

3.

Circlip

4.

O-ring

5.

Intermediate housing

6.

Long attachment bolt

7.

Short attachment bolt

8.

Gasket

6

7

8

2

4 5

1

3

V300224

13

ᓻ 200337
