3

CF65/75/85 series

Safety instructions

ZF INTARDER

1-1

1. SAFETY INSTRUCTIONS

Be careful when changing the oil.
Hot oil may cause serious injuries.

Avoid unnecessary contact with
drained oil. Frequent contact
damages the skin.

Various kinds of oil and other
lubricants used on the vehicle may
constitute a health hazard.
This also applies to coolants.
It is therefore important to avoid
inhaling and direct contact.

ᓻ 200337

12

3

ZF INTARDER

Safety instructions

CF65/75/85 series

1-2

ᓻ 200337

12

3

CF65/75/85 series

General

ZF INTARDER

2-1

2. GENERAL

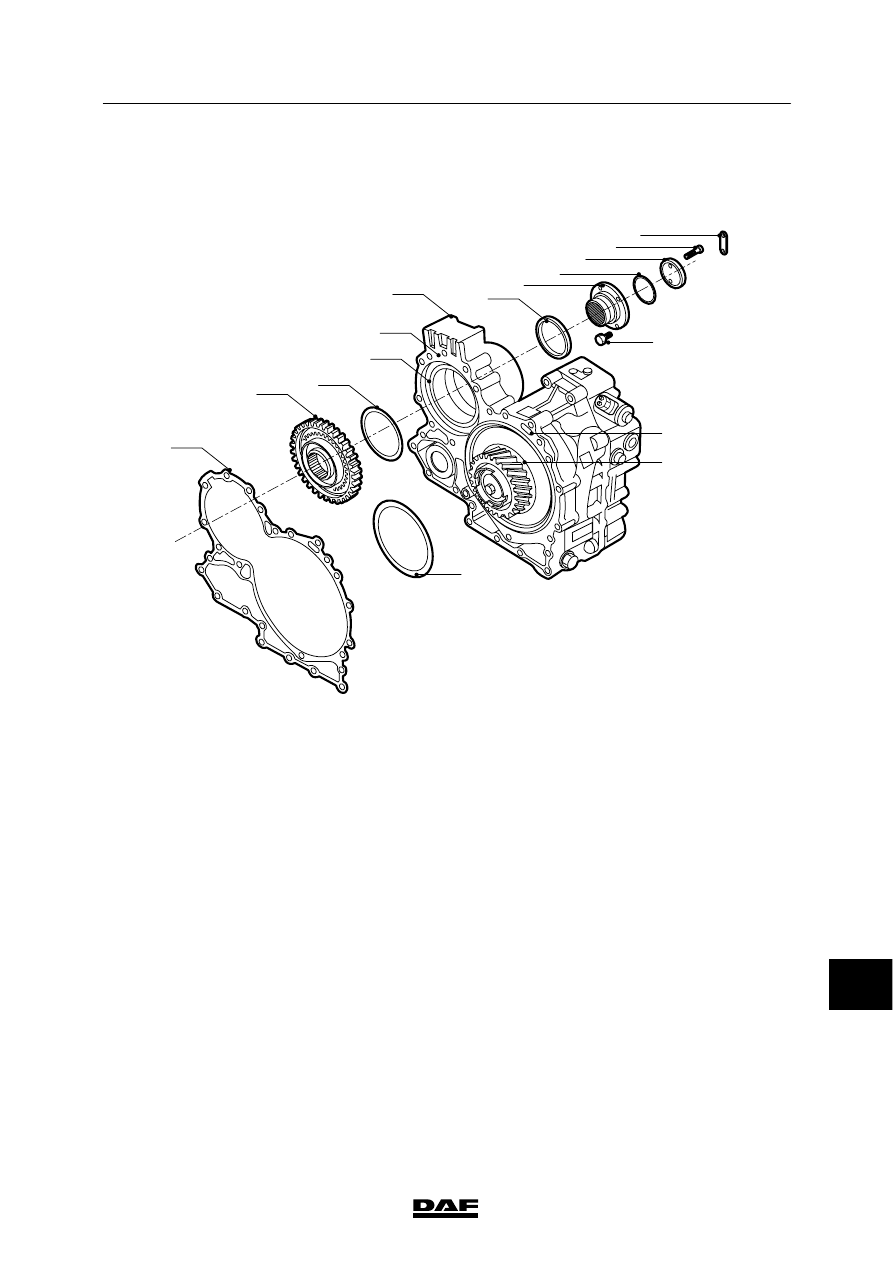

2.1 OVERVIEW DRAWING, INTARDER

1

2

3

4

5

6

12

A

B

8

9

11

10

7

A

C

V300074

1.

Locking plate

2.

Bolt

3.

Plate

4.

O-ring

5.

Prop shaft flange

6.

Oil seal

7.

Flange bolt

8.

Output shaft shim

9.

Drive sprocket

10. Stator shim
11. Gasket
12. Intarder housing

A

Intarder housing sealing surface

B

Ball bearing sealing surface

C

Stator contact surface

ᓻ 200337

12

3

ZF INTARDER

General

CF65/75/85 series

2-2

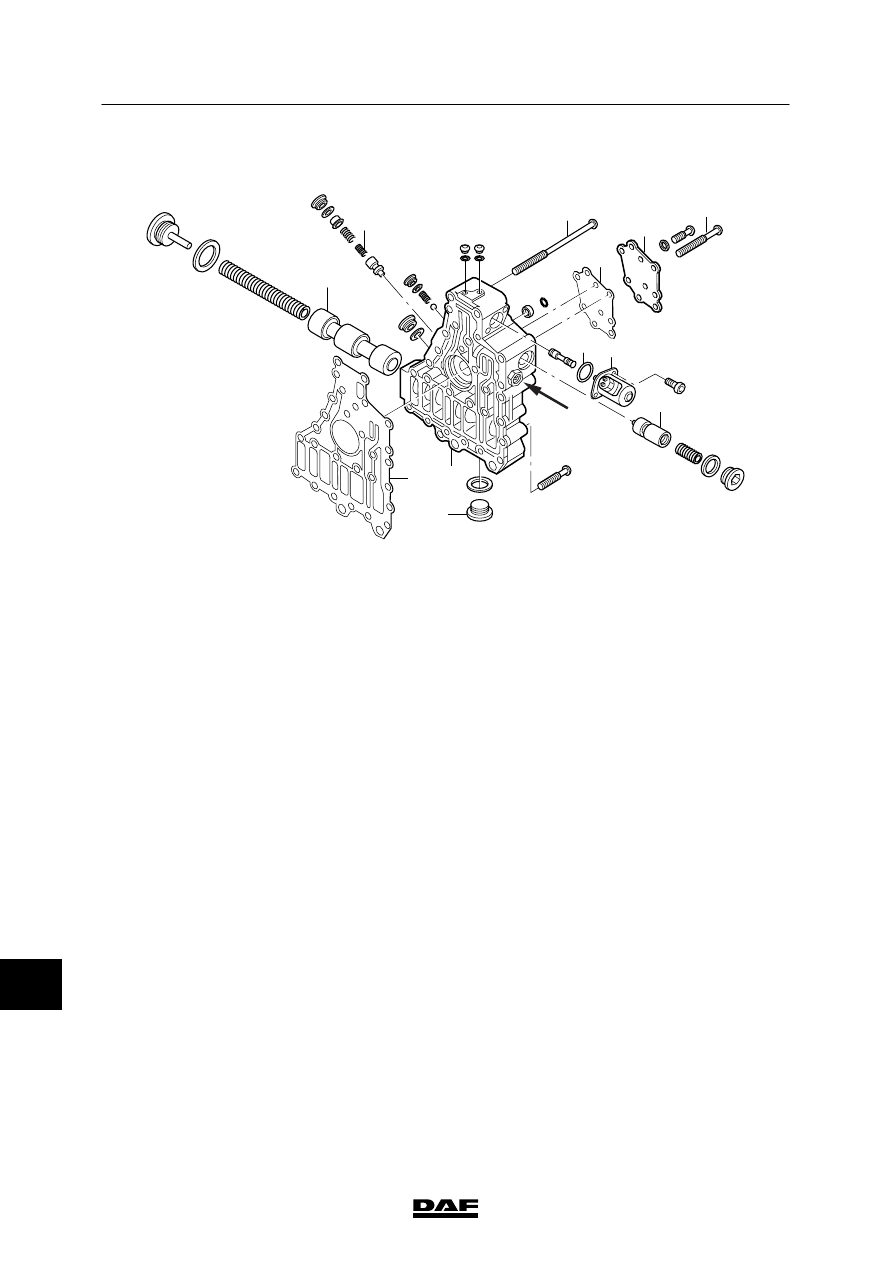

2.2 OVERVIEW DRAWING, HYDRAULIC CONTROL UNIT

V300075

5

8

7

6

5

4

2

3

1

9

10

5

1.

Attachment bolt

2.

Attachment plate

3.

Gasket

4.

Attachment bolt

5.

Plungers and springs

6.

Drain plug

7.

Control unit housing

8.

Gasket

9.

Proportional valve

10. O-ring

12
