3

CF65/75/85 series

Draining and filling

EATON FS/6309A GEARBOX

4-1

4. DRAINING AND FILLING

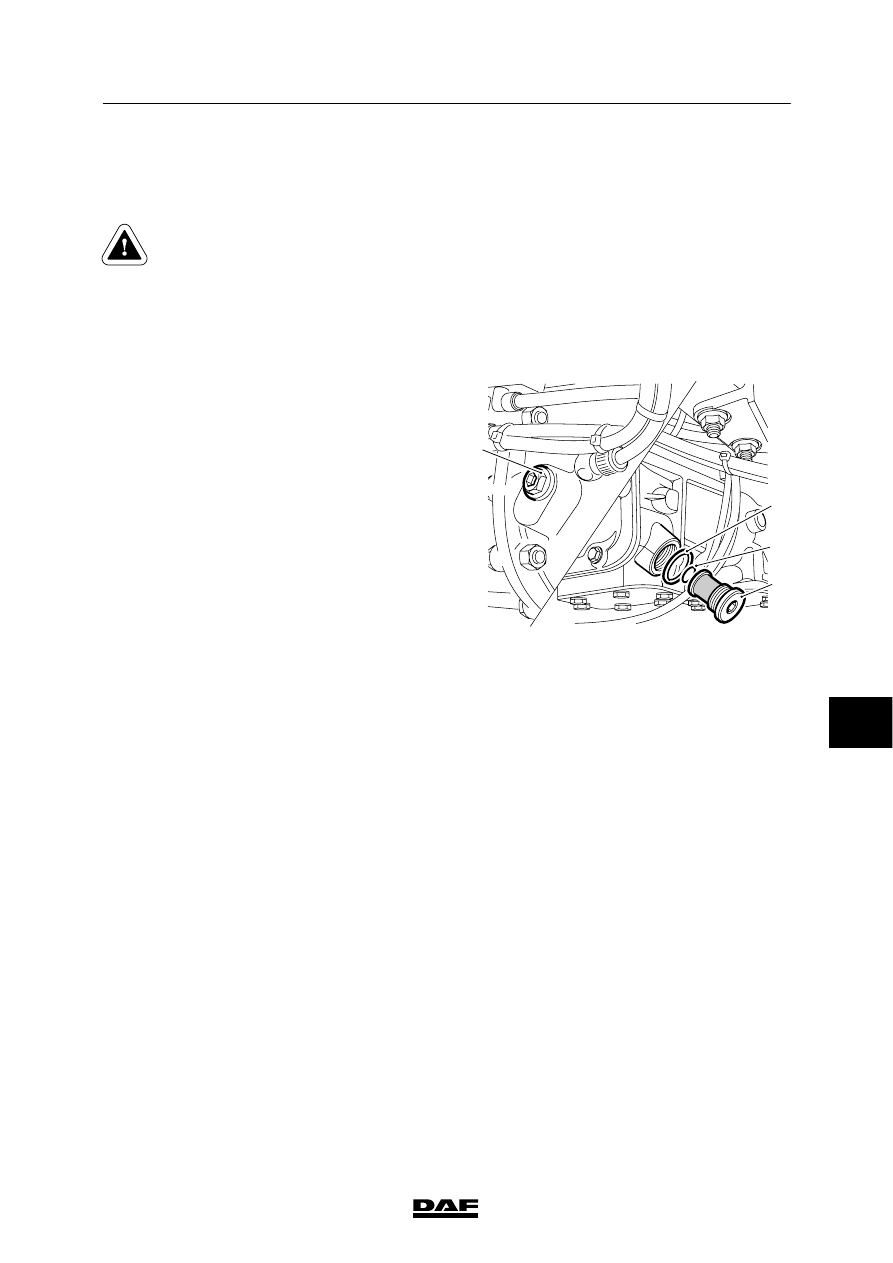

4.1 DRAINING AND FILLING, GEARBOX

To prevent skin injury, avoid
unnecessary contact with the
drained oil.

Draining, gearbox
1.

Place the vehicle on a level surface.

Note:
Drain the gearbox at operating temperature.

2.

Remove the combined drain plug/oil strainer
(4) and level check/filler plug (1) and drain
the oil.

3.

Clean the oil strainer (4) in a suitable
solvent and dry the oil strainer thoroughly.

Filling, gearbox
1.

Check and replace the O-ring (3) and the
sealing ring (2), if necessary.

2.

Tighten the combined drain plug/oil strainer
to the specified torque. See “Technical
data”.

3.

Fill the oil through level check/filler opening
(1) until the oil reaches the rim of the level
check/filler opening.

4.

Fit the level check/filler plug, tightening it to
the specified torque. See “Technical data”.

1

2

3

4

V3 00 376

8

ᓻ 0111

3

EATON FS/6309A GEARBOX

Draining and filling

CF65/75/85 series

4-2

ᓻ 0111

8

3

CF65/75/85 series

Contents

AUTOMATIC GEARBOXES

1

CONTENTS

Page

Date

1.

GENERAL

1-1

200337

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . .

1.1

System description

1-2

200337

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . .

2.

DESCRIPTION OF COMPONENTS

2-1

200337

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . .

2.1

Automatic gearbox selector keypad

2-1

200337

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . .

3.

INSPECTION AND ADJUSTMENT

3-1

200337

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . .

3.1

Inspection, oil level

3-1

200337

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . .

4.

REMOVAL AND INSTALLATION

4-1

200337

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . .

4.1

Removal and installation, gearbox assembly

4-1

200337

. . . . . . . . . . . . . . . . . . . . . . . . . .

. . . .

4.2

Removal and installation, output shaft oil seal

4-2

200337

. . . . . . . . . . . . . . . . . . . . . . . . .

. . . .

4.3

Removal and installation, oil filters

4-5

200337

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . .

5.

DRAINING AND FILLING

5-1

200337

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . .

5.1

Draining and filling, gearbox

5-1

200337

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . .

9

ᓻ 200337

3

AUTOMATIC GEARBOXES

Contents

CF65/75/85 series

2

9

ᓻ 200337
