DAF CF65, CF75, CF85 Series . Manual - part 336





3

CF65/75/85 series

Removal and installation of gearbox

ZF 8/16S-151/181 AND 16S-221 GEARBOXES

4-11

Installing the Servoshift selector shaft oil
seal
1.

Apply a little grease to the inside of the oil
seal.

2.

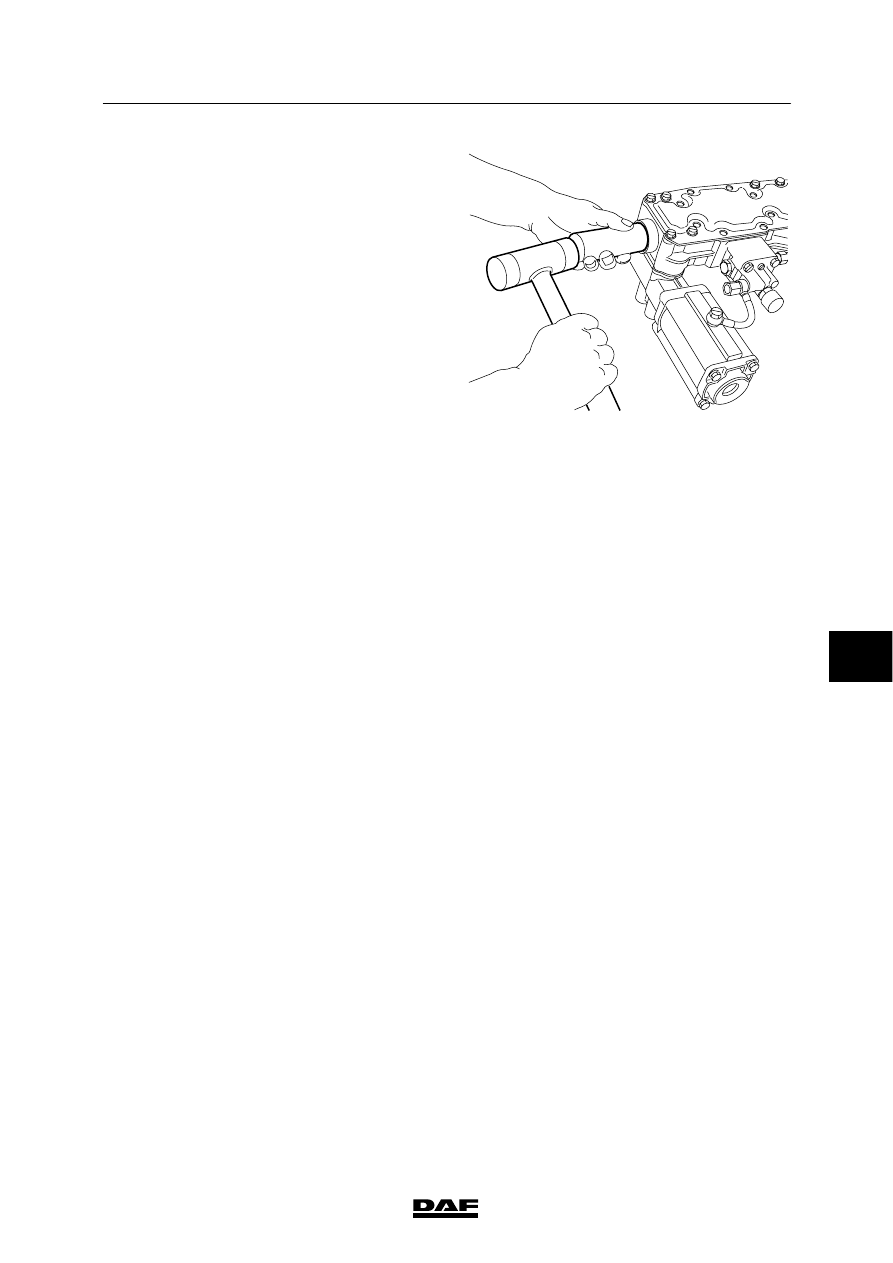

Fit the oil seal into the selector housing
using the special tool (DAF No. 1329450).

3.

Install the selector housing with a new
gasket on the gearbox and tighten the
attachment bolts to the specified torque.
See “Technical data”.

4.

Fit the dust cap and the selector shaft lever
on the selector shaft. Ensure that the dust
cap is placed without play relative to the
shifting arm.

5.

Tighten the selector shaft lever locking bolt.

6.

Install the torque rod nut.

7.

Fasten the air pipes of the Servoshift unit
and the locking cylinder of the gate
protection with new sealing rings.
Pressurise the air circuit and check the
operation.

V300344

7

ᓻ 200337

3

ZF 8/16S-151/181 AND 16S-221 GEARBOXES

Removal and installation of gearbox

CF65/75/85 series

4-12

7

ᓻ 200337

3

CF65/75/85 series

Draining and filling

ZF 8/16S-151/181 AND 16S-221 GEARBOXES

5-1

5. DRAINING AND FILLING

5.1 DRAINING AND FILLING, GEARBOX

To prevent skin injury, avoid
unnecessary contact with the
drained oil.

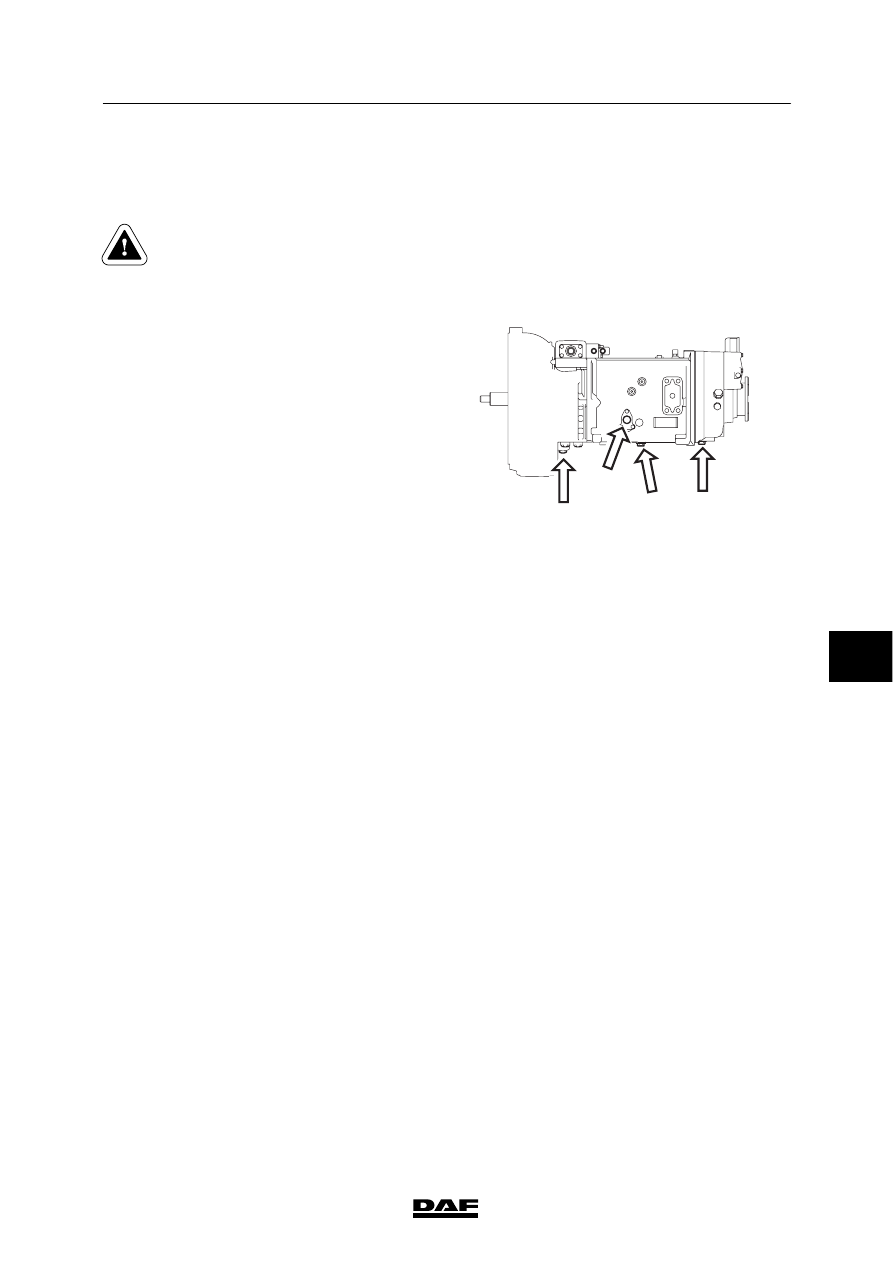

ZF 8S/16S-151/181 and 16S-221 gearboxes

Draining the gearbox
1.

Position the vehicle on a level surface.

2.

Drain the gearbox at operating temperature.

3.

Remove drain plugs B, C and D and the
level check/filler plug (A) and drain the oil.

Filling the gearbox
1.

Clean drain plugs B, C and D and tighten
them to the specified torque. See “Technical
data”.

2.

Fill the oil through the level check/filler
opening (A) until the oil reaches the rim of
the filling opening.

3.

Fit the level check/filler plug (A), tightening it
to the specified torque. See “Technical
data”.

M3023

D

A

B

C

7

ᓻ 200337

3

ZF 8/16S-151/181 AND 16S-221 GEARBOXES

Draining and filling

CF65/75/85 series

5-2

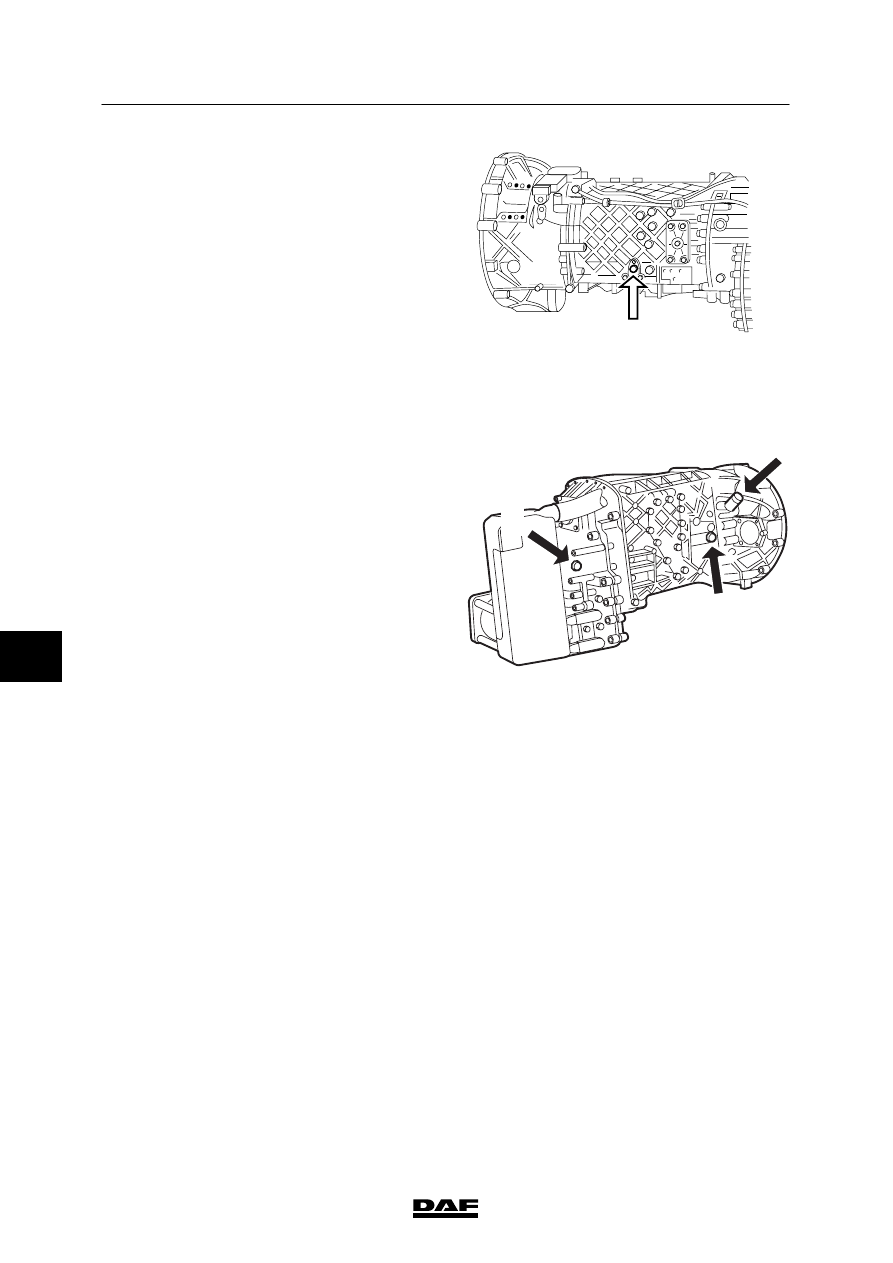

ZF 8/16S-151/181 and 16S-221 gearboxes
with integrated retarder

Draining the gearbox
1.

Before draining take a short test drive.
Do not activate the retarder during the test
drive.

2.

Position the vehicle on a level surface.

3.

Drain the gearbox at operating temperature.

4.

Remove the drain plugs (B, C and D) and
the level check/filler plug (A) and drain the
oil.

5.

Replace the intarder oil filter.

M3051

A

Filling the gearbox
1.

Clean the drain plugs and tighten them to
the specified torque. See “Technical data”.

2.

Top up oil through level check/filler opening
(A) until the oil reaches the rim of the filler
opening (A).

3.

Fit the level check/filler plug (A), tightening it
to the specified torque. See “Technical
data”.

4.

After filling take a short test drive. Do not
activate the intarder during the test drive.

5.

Check the oil level after taking the test
drive. The oil level must reach the rim of the
level check/filler opening (A).

6.

Fit the level check/filler plug (A), tightening it
to the specified torque. See “Technical
data”.

B

C

V300186

D

7

ᓻ 200337
