DAF CF65, CF75, CF85 Series . Manual - part 334





3

CF65/75/85 series

Removal and installation of gearbox

ZF 8/16S-151/181 AND 16S-221 GEARBOXES

4-3

Removing gearbox with integrated retarder
1.

Disconnect the earth lead from the battery
terminal.

2.

Drain the engine coolant.

3.

Remove the coolant pipes from the retarder.

4.

Remove the coolant pipes between the
retarder and the engine.

5.

Disconnect the electrical connectors and
remove the air pipes from the retarder.

6.

Remove the gearbox assembly with
retarder.

Installing the gearbox with integrated
retarder
1.

Fit the gearbox.

2.

Install the coolant pipes between the
retarder and the engine.

3.

Connect the coolant pipes to the retarder.

4.

Connect the electrical connectors and the
air pipes of the retarder.

5.

Check/fill the gearbox and integrated
retarder with oil.

6.

Fill the engine cooling system.

7

ᓻ 200337

3

ZF 8/16S-151/181 AND 16S-221 GEARBOXES

Removal and installation of gearbox

CF65/75/85 series

4-4

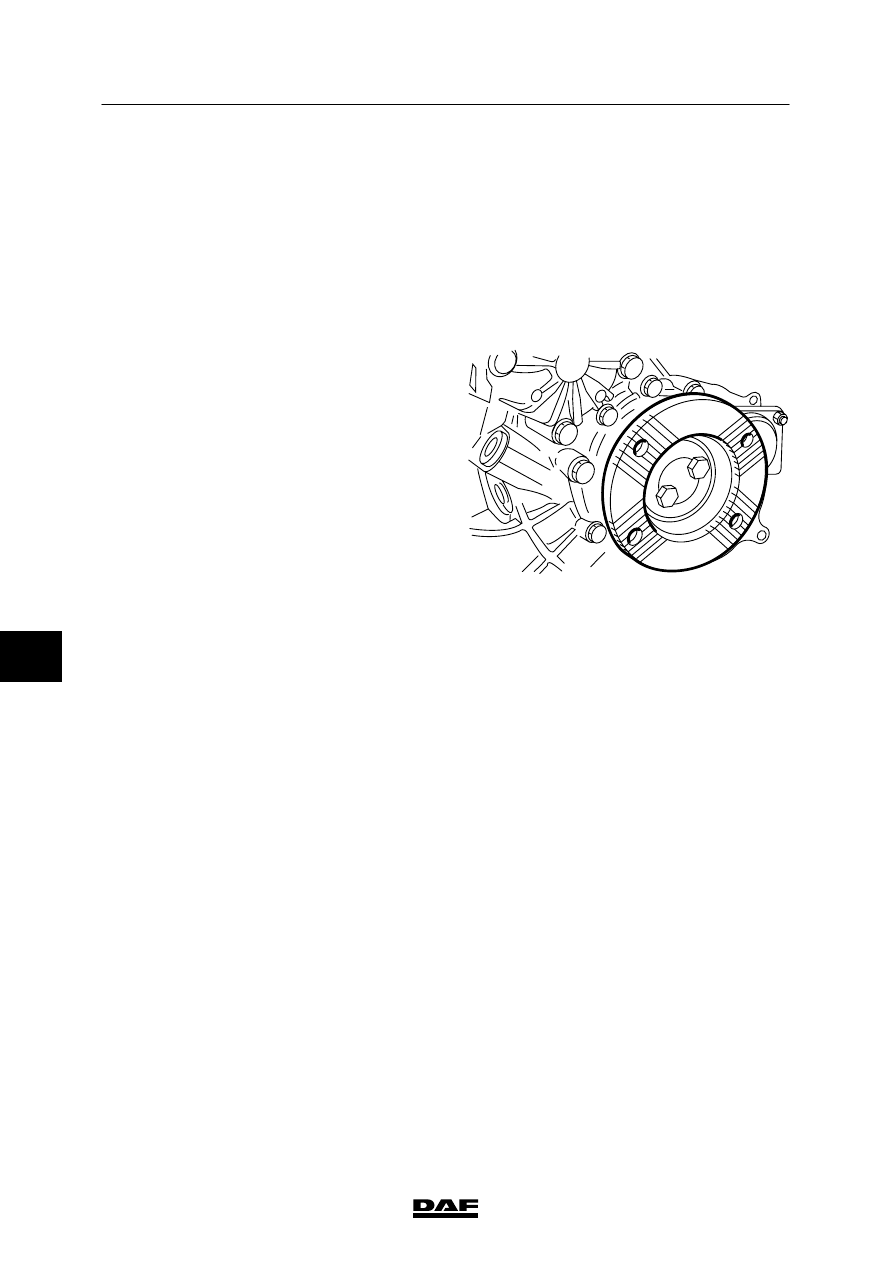

4.2 REMOVAL AND INSTALLATION, PROP SHAFT FLANGE

Removing prop shaft flange
1.

Remove the prop shaft from the gearbox
flange and hang it on the chassis.

2.

Hold the prop shaft flange in place with the
special tool (DAF No. 0484977).

3.

Remove the attachment bolts from the prop
shaft flange.

4.

Remove the bolts and locking plate from the
prop shaft flange.

5.

Note:
Measure and make a note of the distance
from the prop shaft flange to the shaft. The
same distance must be observed when the
prop shaft flange is reinstalled.

Remove the prop shaft flange and O-ring
using a commercially available puller.

Fitting prop shaft flange
1.

Lightly oil the oil seal in the bearing cover.

2.

Heat the prop shaft flange to 70

_C. Slide it

as far as possible onto the output shaft. Use
the locking plate and two standard bolts
(M12x75) to pull the prop shaft flange
further onto the shaft.

3.

Remove the standard bolts and measure
whether the prop shaft flange has reached
the correct position on the output shaft.

4.

Fit a new O-ring into the recess between
the output shaft and the prop shaft flange.

V300449

7

ᓻ 200337

3

CF65/75/85 series

Removal and installation of gearbox

ZF 8/16S-151/181 AND 16S-221 GEARBOXES

4-5

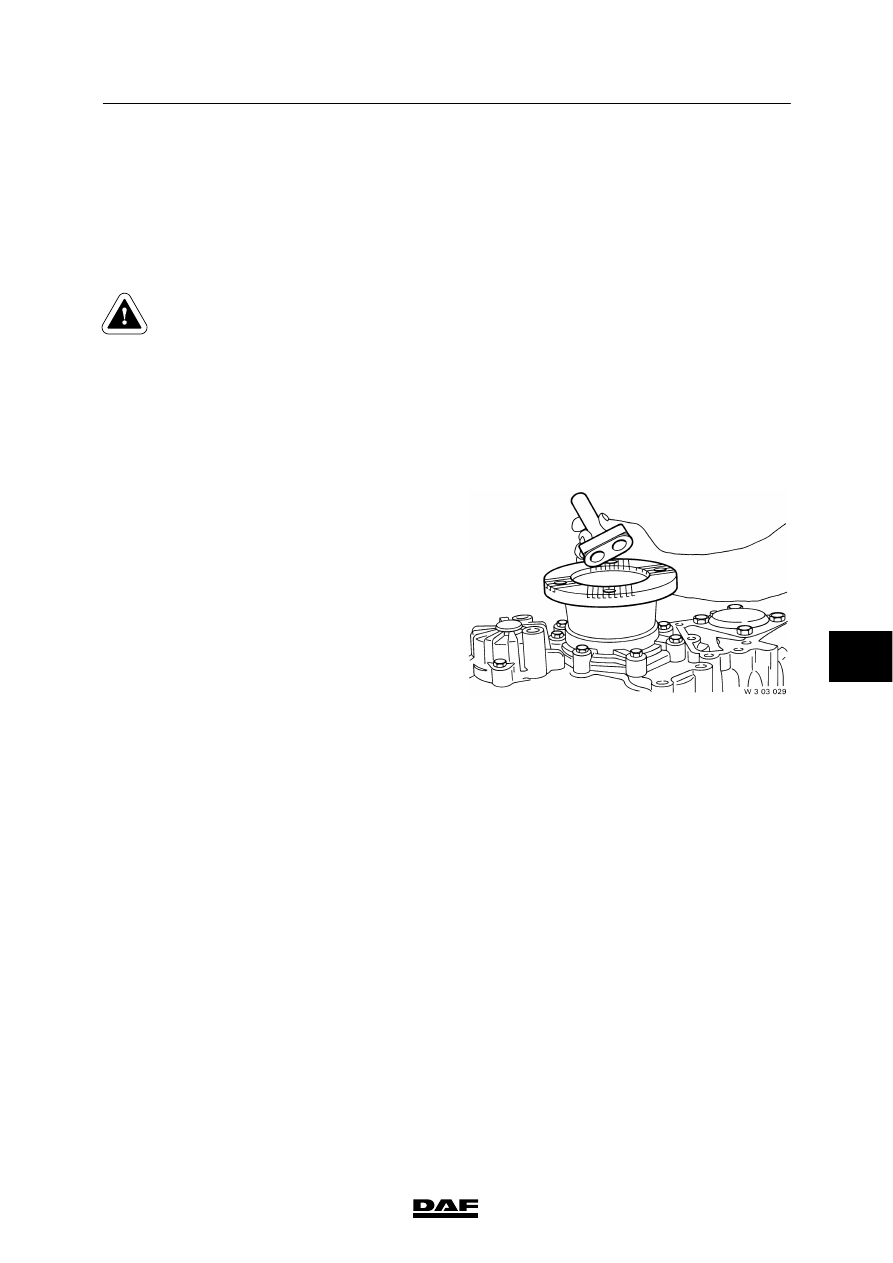

5.

Hold the prop shaft flange in place with the
special tool (DAF No. 0484977).

Note:
For the new gearboxes the attachment bolts
are no longer locked with a locking plate,
but with self-locking screw thread in the
output shaft.

When the prop shaft flange is
removed during overhaul, the bolts
must always be locked afterwards
with a locking plate.

6.

Note:
Bolts that will be re-used must be cleaned
and lightly oiled.

Tighten the attachment bolts to the
specified torque. See “Technical data”.

7.

Fit a new locking plate with stamp over the
bolt heads.

Note:
The following locking plates can be used to
lock the prop shaft flange:

Gearbox

DAF No. Locking plate

8/16S-151

0696098

8/16S-181

1227599

16S-221

1227599

8.

Attach the prop shaft.

7

ᓻ 200337

3

ZF 8/16S-151/181 AND 16S-221 GEARBOXES

Removal and installation of gearbox

CF65/75/85 series

4-6

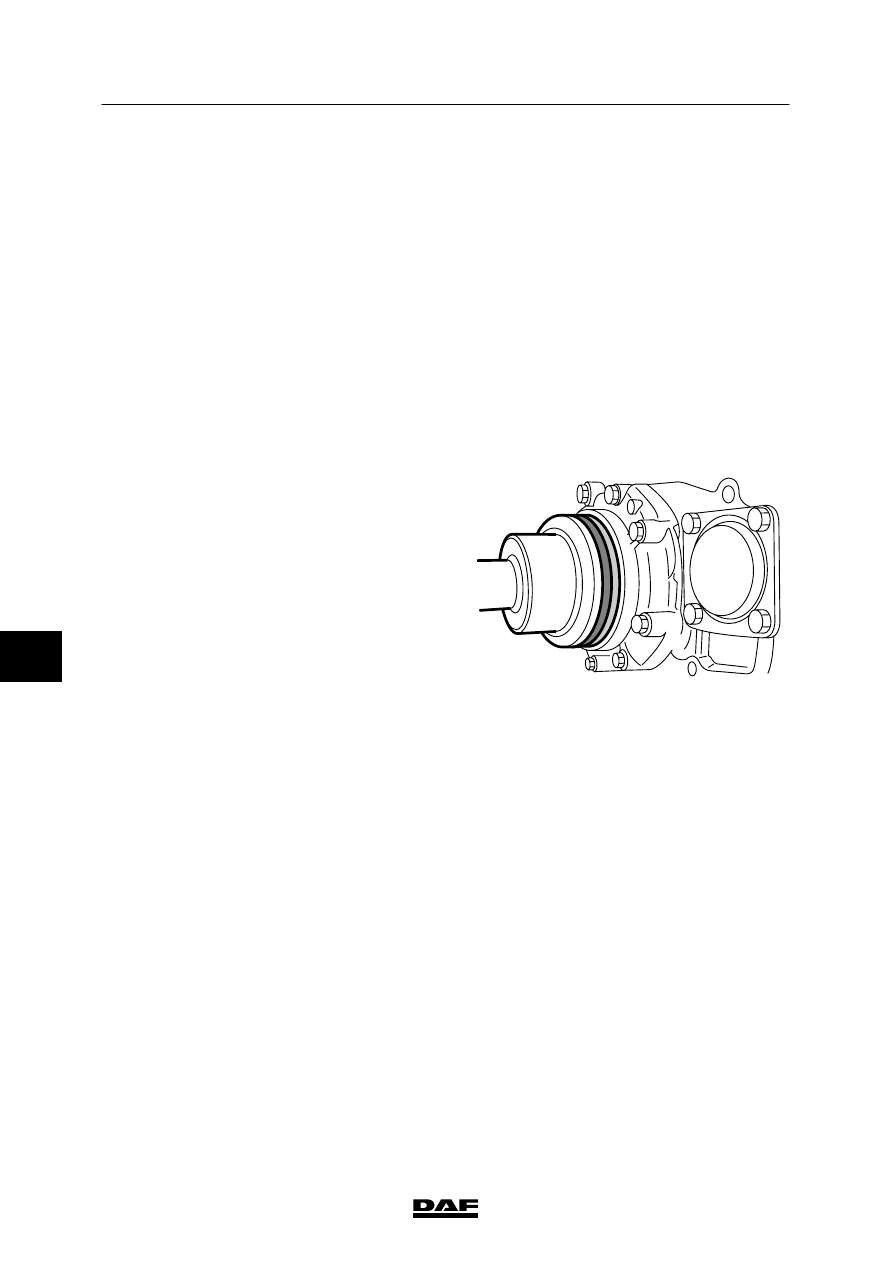

4.3 REMOVAL AND INSTALLATION, OUTPUT SHAFT OIL SEAL

Removing the output shaft oil seal
1.

Remove the prop shaft from the gearbox
flange and hang it on the chassis.

2.

Remove the prop shaft flange.

3.

Drill two holes into the external cover of the
oil seal and turn the special tool
(DAF No. 0484899) into the oil seal. Then
pull the oil seal out of the bearing cover
using the special tool (DAF No. 0694928).

Installing the output shaft oil seal
1.

Apply a small amount of liquid gasket to the
outside of oil seals fitted with a steel cover.
Apply green soap sparingly to the outside of
oil seals fitted with a rubber cover.

2.

Pull the oil seal into the bearing cover using
the special tool (DAF No. 0694780).

3.

Fit the prop shaft flange.

4.

Attach the prop shaft.

W 3 03 085

7

ᓻ 200337
