GEARBOX - PNEUMATIC SECTION

1-7

9.

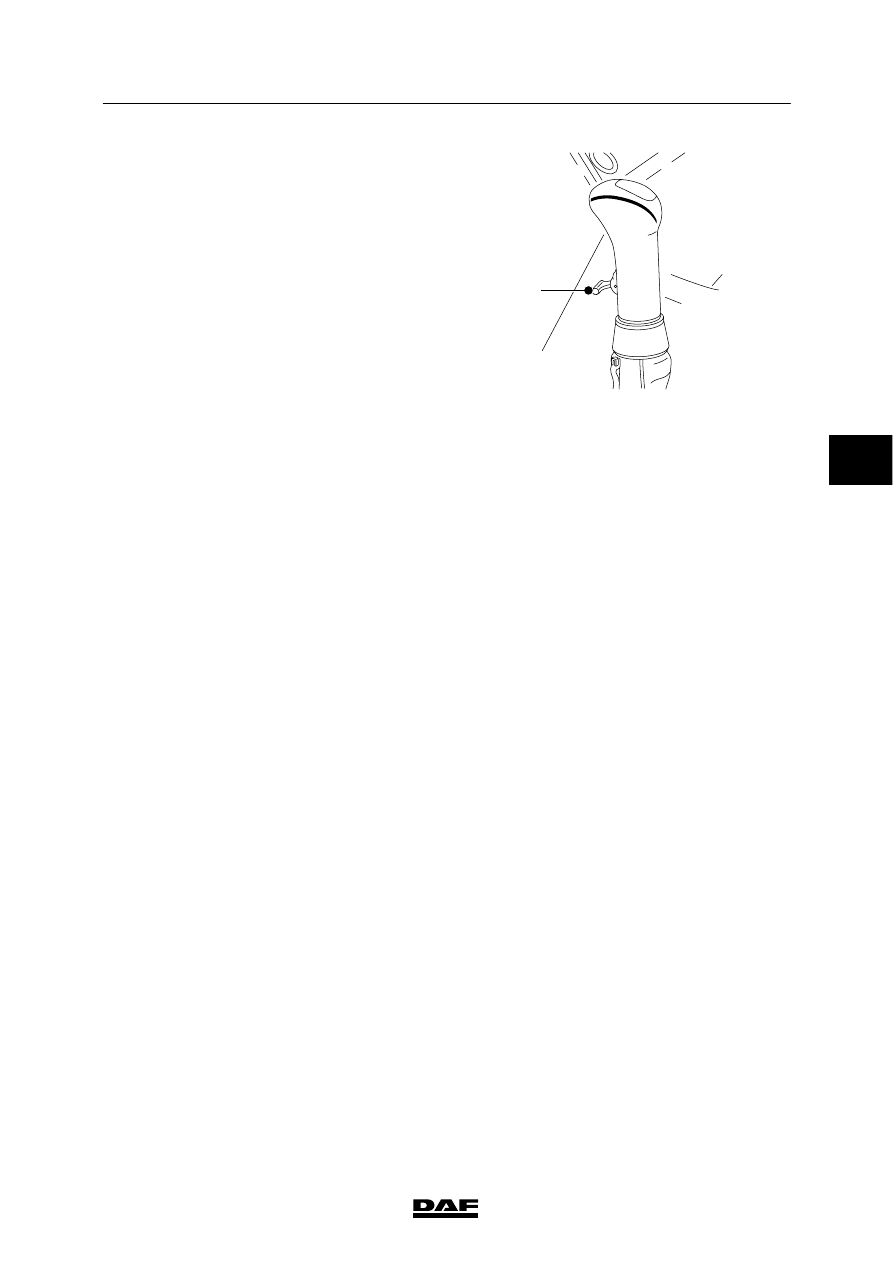

Gear lever range-change switch
Rocker switch (A) at the front of the gear
lever.

A

V3 00 562

1.2 SYSTEM DESCRIPTION, DOWNSHIFT PROTECTION

The downshift protection prevents shifting down
from the gearbox high range to the low range
when the vehicle speed is too high.
Shifting down from the high to the low range
when the vehicle speed is too high could cause
serious damage to the clutch plate, gearbox and
engine because of the reduction in the
range-change gear.

The protection is enabled automatically when
the vehicle speed exceeds a certain
pre-programmed value. This vehicle speed
(speed signal) is programmed in the VIC.

4

ᓻ 200337

3

GEARBOX - PNEUMATIC SECTION

General

CF65/75/85 series

1-8

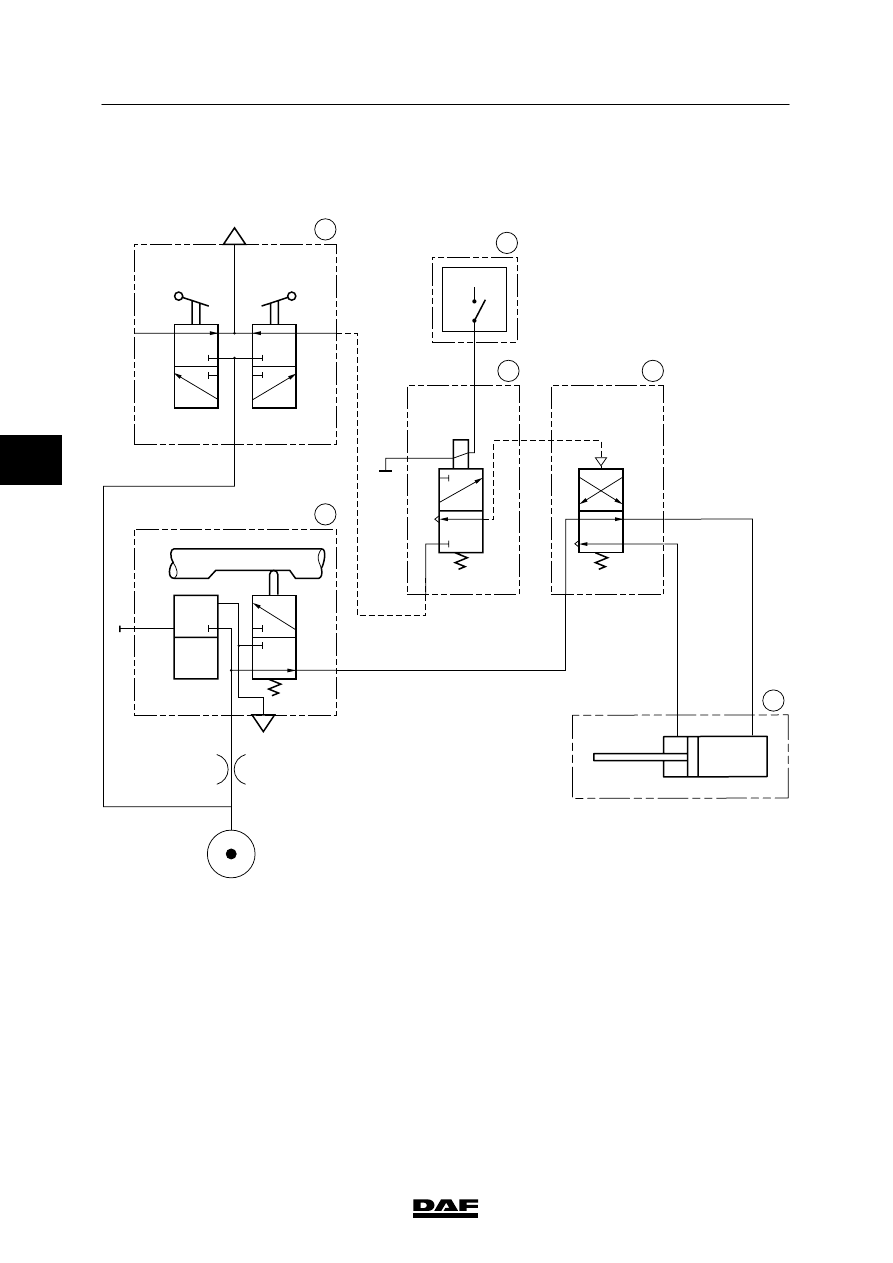

Function, downshift protection of
ZF gearboxes

Version

CF75/85, production date < 2003-21

N

V

1

21

22

1

22

21

GV

GP

H

L

H

L

H

L

4

1

21

22

V300369

1

5

4

3

6

26

H

L

25

2

+

If the range-change switch (5) on the gear lever
is shifted to the low-range preference, the “GP”
air-pressure valve will switch through to
connection point 21. This air pressure is now
applied to connection point 4 of the
electropneumatic valve (3).
If the vehicle speed exceeds a particular value,
the electronic unit (4) will interrupt the
connection between the electropneumatic valve
(3) and the power supply.

4

ᓻ 200337

3

CF65/75/85 series

General

GEARBOX - PNEUMATIC SECTION

1-9

Regardless of any pneumatic command from
the gear lever range-change switch (5), it is now
no longer possible to switch an air pressure to
connection point 26 of the engaging cylinder (2)
and hence to shift to the low range.

Note:
The air supply to the electropneumatic valve (6)
is only available when the gear lever, and hence
also the neutral position valve (1), is in the
neutral position (N).

4

ᓻ 200337

3

GEARBOX - PNEUMATIC SECTION

General

CF65/75/85 series

1-10

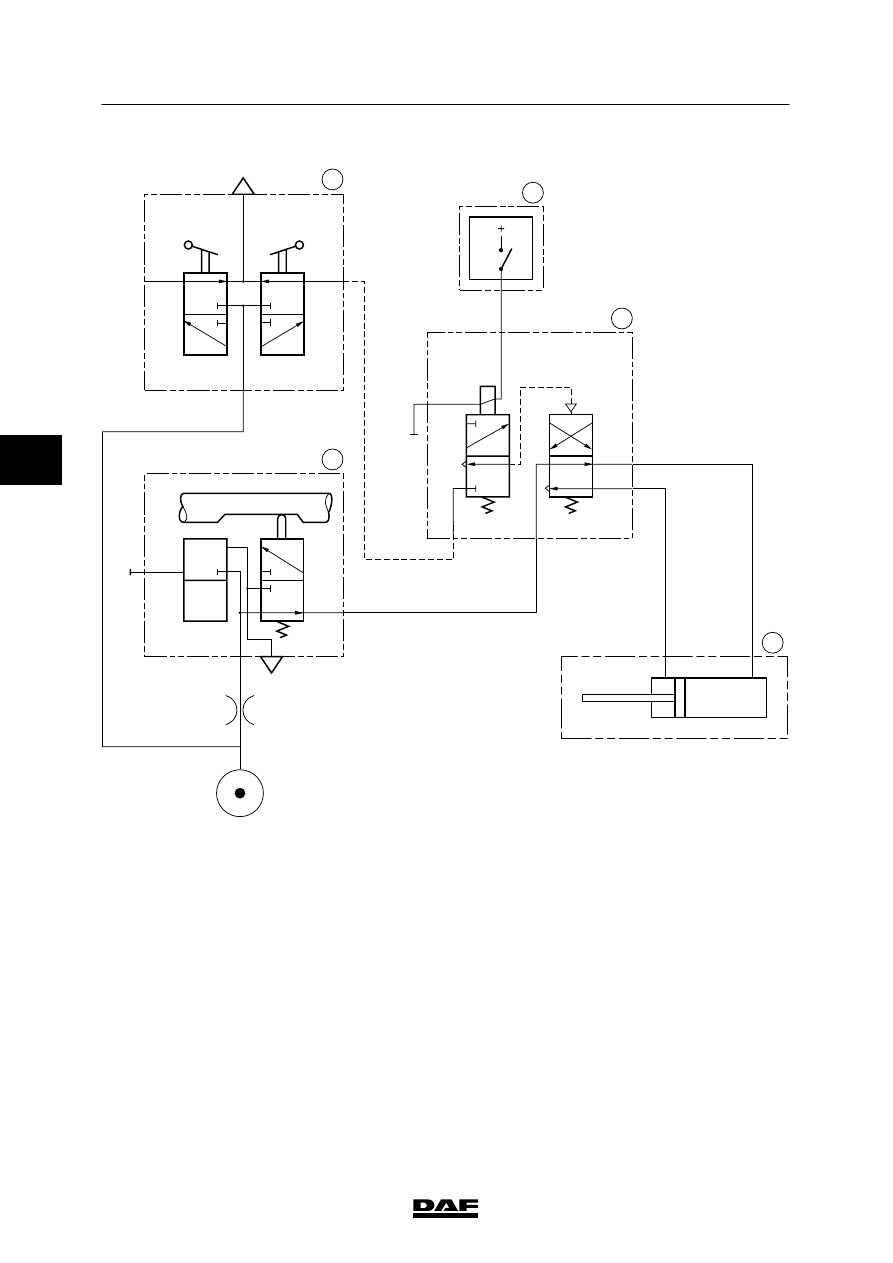

Version

CF75, production date ≥ 2003-21

N

V

1

21

22

1

22

21

GV

GP

H

L

H

L

H

L

4

1

21

22

V300711

1

5

4

3

26

H

L

25

2

If the range-change switch (5) on the gear lever
is shifted to the low-range preference, the “GP”
air-pressure valve will switch through to
connection point 21. This air pressure is now
applied to connection point 4 of the
electropneumatic valve (3).
If the vehicle speed exceeds a particular value,
the electronic unit (4) will interrupt the
connection between the electropneumatic valve
(3) and the power supply.

4

ᓻ 200337
