DAF CF65, CF75, CF85 Series . Manual - part 283





0

3

CF65/75/85 series

Clutch

TECHNICAL DATA

9-5

9.2 TIGHTENING TORQUES

The tightening torques stated in this section are
different from the standard tightening torques
included in the overview of standard tightening
torques.
Any other threaded connections that are
not specified must therefore be tightened to the
torque stated in the overview of
standard tightening torques.

When attachment bolts and nuts are to be
replaced, it is important that they are of exactly
the same length and property class as the ones
removed unless stated otherwise.

Main cylinder
Pressure pin attachment nut

55 Nm

Bleeder

8 Nm

Steel pipe coupling

40 Nm

Clutch release assembly
ZF gearboxes
Attachment bolts, clutch release assembly to
flywheel

54 Nm

Attachment bolt, automatically adjusting clutch
release assembly stop plate

39 Nm

(1)

(1)

Loctite 648

ZF 6S-850
Attachment bolts, clutch release assembly to
flywheel

54 Nm

Attachment bolts, clutch lever to gearbox

27 Nm

8/9/16S-109
M16 round bolt, clutch lever to clutch housing

90 Nm

8/16S-151/181/221
M8 attachment bolts, clutch lever to gearbox

30 Nm

EATON FS/6309A gearbox
Attachment bolts, clutch release assembly to
flywheel

54 Nm

Attachment bolts, clutch lever to gearbox

27 Nm

ᓻ 200337

3

TECHNICAL DATA

Clutch

CF65/75/85 series

9-6

AS TRONIC gearbox
M12 attachment bolts, clutch lever to gearbox

79 Nm

AS TRONIC clutch unit
Clutch unit attachment nut

23 Nm

Clutch unit stud

10 Nm

Bleed screw, clutch unit

22 Nm

Compressed air connection

50 Nm

9.3 FILLING CAPACITIES

Clutch operating unit
First filling

 0.4 litres

0

ᓻ 200337

0

3

CF65/75/85 series

Prop shafts

TECHNICAL DATA

10-1

10. PROP SHAFTS

10.1 GENERAL

For the

CF 65/75/85 vehicle series, DAF has

one manufacturer of prop shafts, Klein.
Klein shafts can be identified by their highly
bevelled flanges.

Inspection
There must be no clearly noticeable play on
universal joints, centre bearing or sliding clutch.

Universal joint radial play

0.01 - 0.05 mm

Maximum permissible axial play of universal
joints

0.3 mm

CF65
Balancing speed (

∅ 85 x 5 mm)

retracted length

≤ 1750 mm

max. n = 3000 n/

min

Length of idler shaft

≤ 1950 mm

CF75
Balancing speed (

∅ 120 x 3 mm)

retracted length

≤ 2120 mm

max. n = 3000 n/

min

Length of idler shaft

≤ 2340 mm

CF85
Balancing speed (

∅ 120 x 5 mm)

retracted length

≤ 2120 mm

max. n = 3000 n/

min

Length of idler shaft

≤ 2340 mm

Balanceertoerental (

∅ 140 x 5 mm)

retracted length

≤ 2320 mm

max. n = 3000 n/

min

Length of idler shaft

≤ 2500 mm

Centre bearings
If a lubricating nipple is fitted to the

CF65/75/85,

it must be lubricated.

ᓻ 200337

3

TECHNICAL DATA

Prop shafts

CF65/75/85 series

10-2

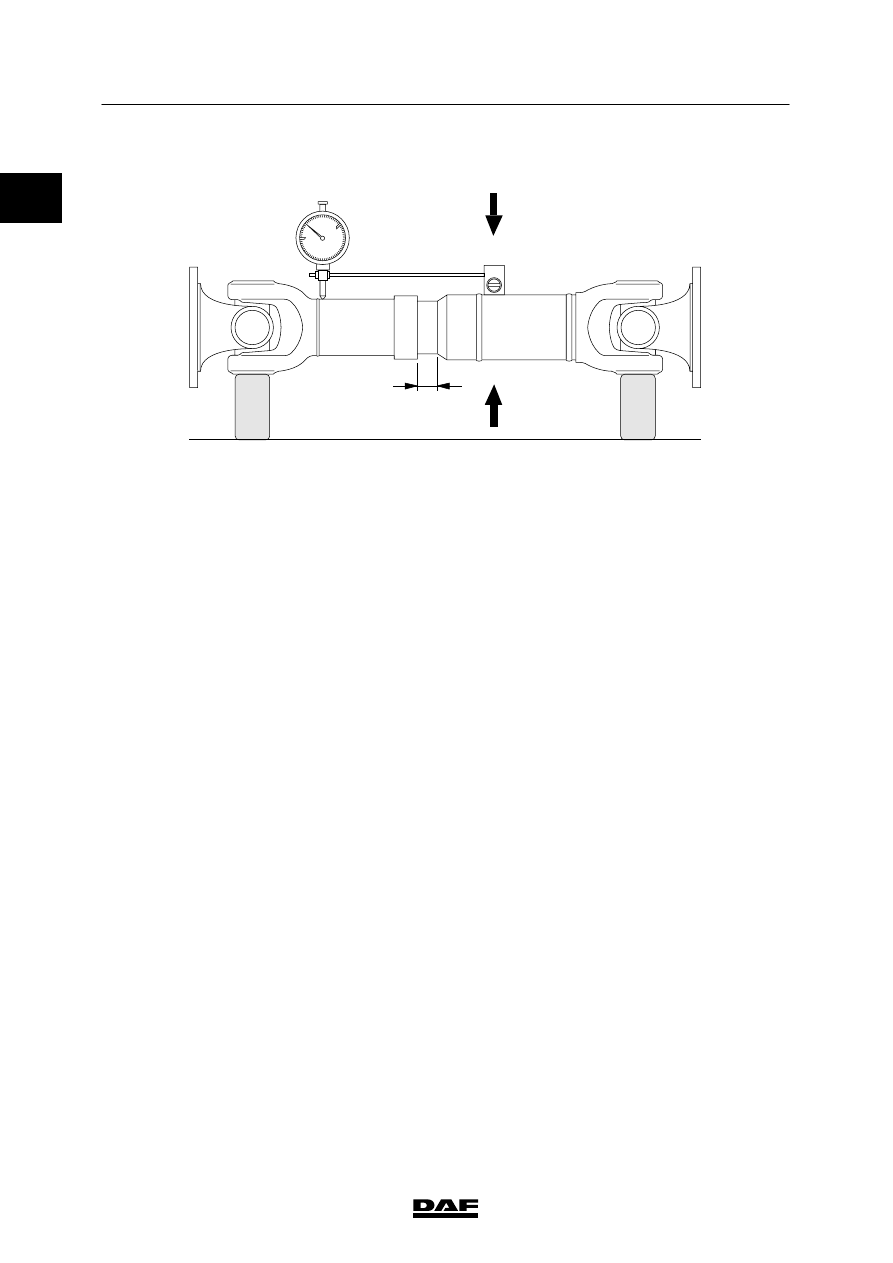

Maximum permissible axial play of slide joint

0.25 mm

45

A

B

C

D

V300444

10.2 TIGHTENING TORQUES

The tightening torques stated in this section are
different from the standard tightening torques
included in the overview of standard tightening
torques.
Any other threaded connections that are
not specified must therefore be tightened to the
torque stated in the overview of
standard tightening torques.

When attachment bolts and nuts are to be
replaced, it is important that they are of exactly
the same length and property class as the ones
removed unless stated otherwise.

Attachment bolts, drive flanges
M12 - 10.9

110 Nm

M14 - 10.9

170 Nm

Centre bearing central nut
M24 x 1.5

250 Nm

M40 x 1.5

350 Nm

M55 x 1.5

380 Nm

Centre bearing attachment bolts

170 Nm

(1)

(1)

Loctite 243

0

ᓻ 200337
