DAF CF65, CF75, CF85 Series . Manual - part 275





0

3

CF65/75/85 series

Mechanical gearbox control

TECHNICAL DATA

1-1

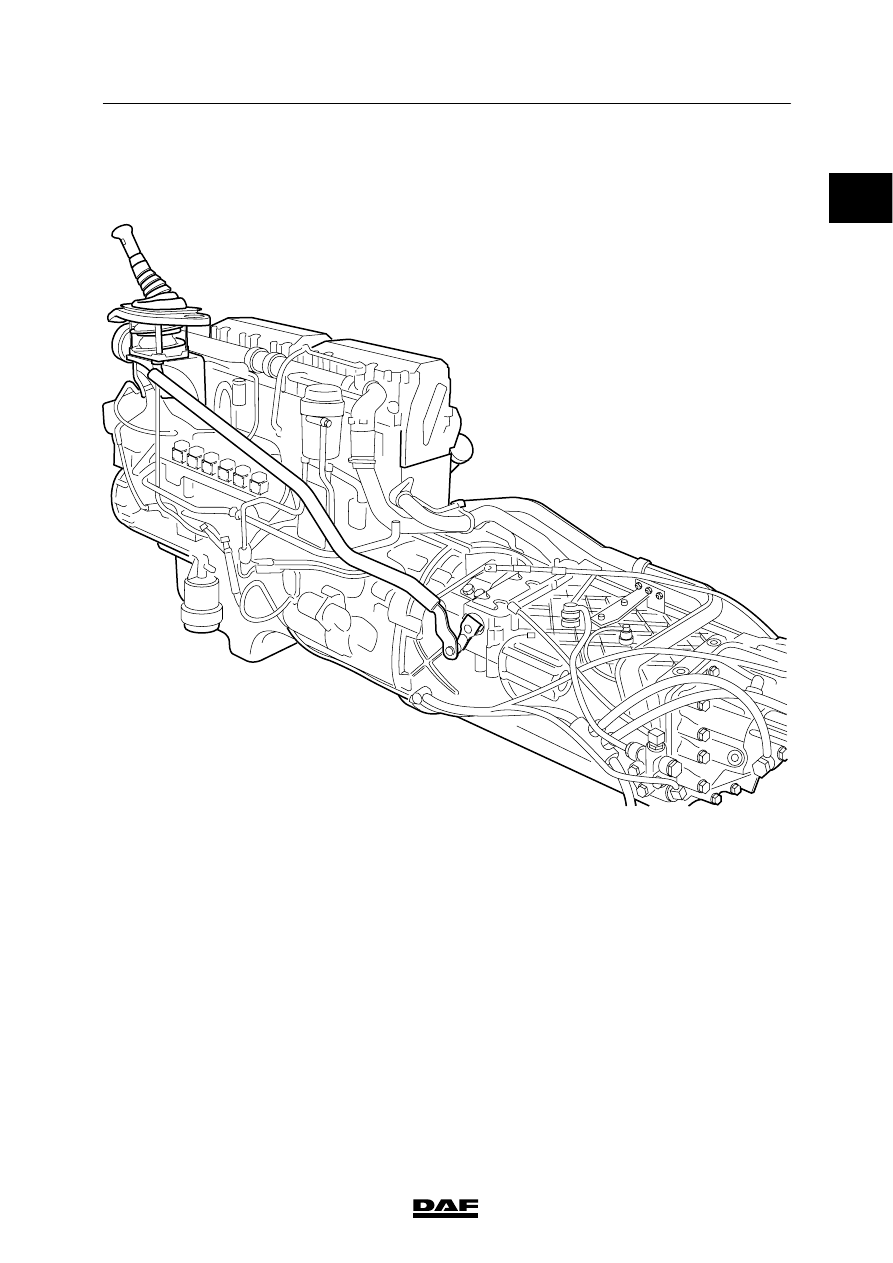

1. MECHANICAL GEARBOX CONTROL

1.1 GENERAL

V300382

-

Within the entire

CF65/75/85 vehicle series

many gearbox variations as well as the
accompanying controls are possible, both
mechanical and pneumatic.

-

A gearbox with a splitter and range-change
switch will be equipped with several
pneumatic valves.

ᓻ 200337

3

TECHNICAL DATA

Mechanical gearbox control

CF65/75/85 series

1-2

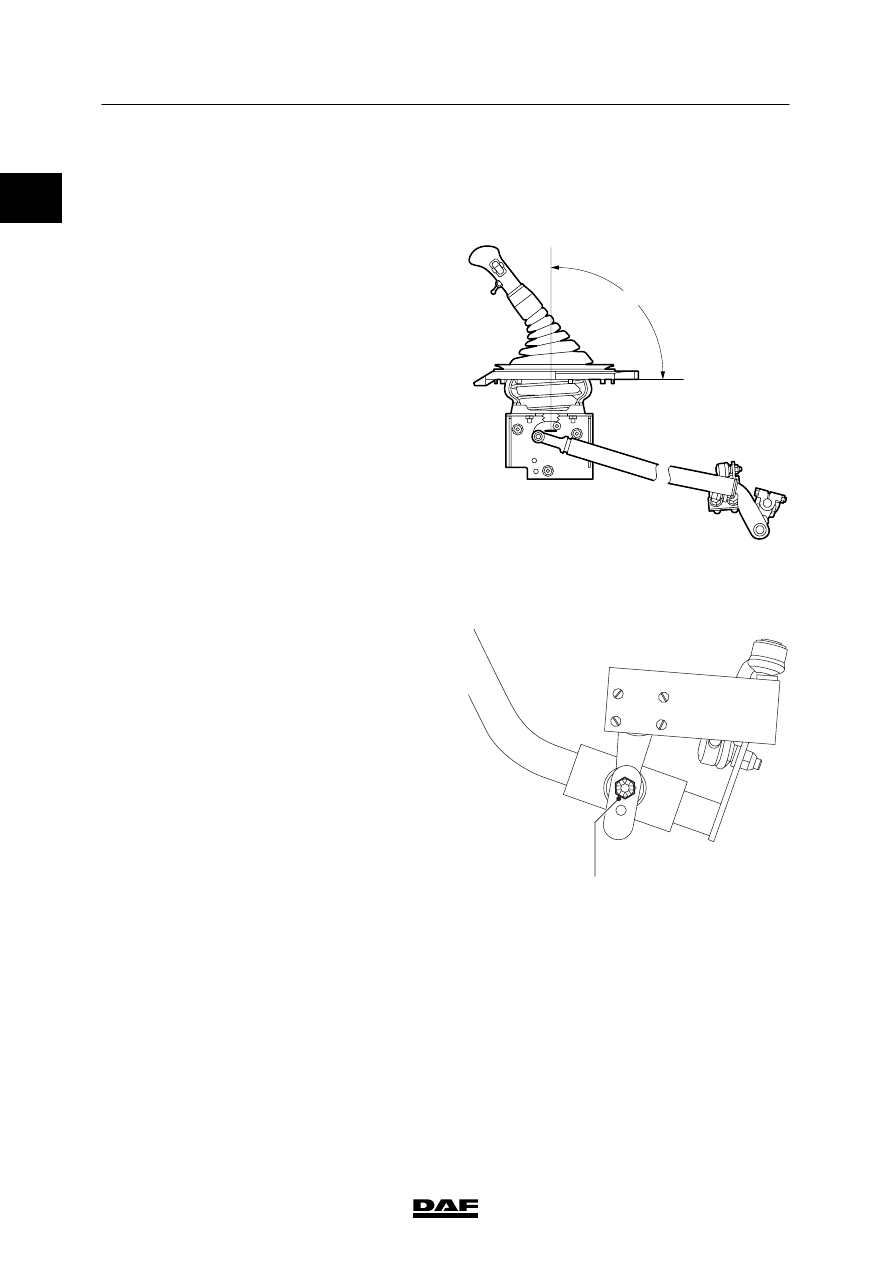

ADJUSTING THE LINKAGE MECHANISM

Vehicle series

CF65/75/85 LHD/RHD with

ZF 6S-850, 8/9/16S-109, 8/16S-151/181/221
and Eaton FS/6309A gearboxes.

Angle A: 90

_

Note:
After the gear lever has been manually
positioned at an angle of 90

_, the linkage

mechanism should be fitted together with the
selector shaft lever.

V300383

A

Vehicle series

CF65 / RHD with gearbox type

ZF 6S-850

If the selector shaft lever has two attachment
holes, the attachment hole (A) in the selector
shaft lever should be used to attach the shaft
lever properly to the control rod.

A

V300833

Bonding the gear lever into the ball
De-greaser

DAF No. 1322827

Glue

DAF No. 1340646

Bonding the ball joint to the control rod
De-greaser

DAF No. 1322827

Glue

DAF No. 1340646

0

ᓻ 200337

0

3

CF65/75/85 series

Mechanical gearbox control

TECHNICAL DATA

1-3

1.2 TIGHTENING TORQUES

The tightening torques stated in this section are
different from the standard tightening torques
included in the overview of standard tightening
torques.
Any other threaded connections that are
not specified must therefore be tightened to the
torque stated in the overview of
standard tightening torques.

When attachment bolts and nuts are to be
replaced, it is important that they are of exactly
the same length and property class as the ones
removed unless stated otherwise.

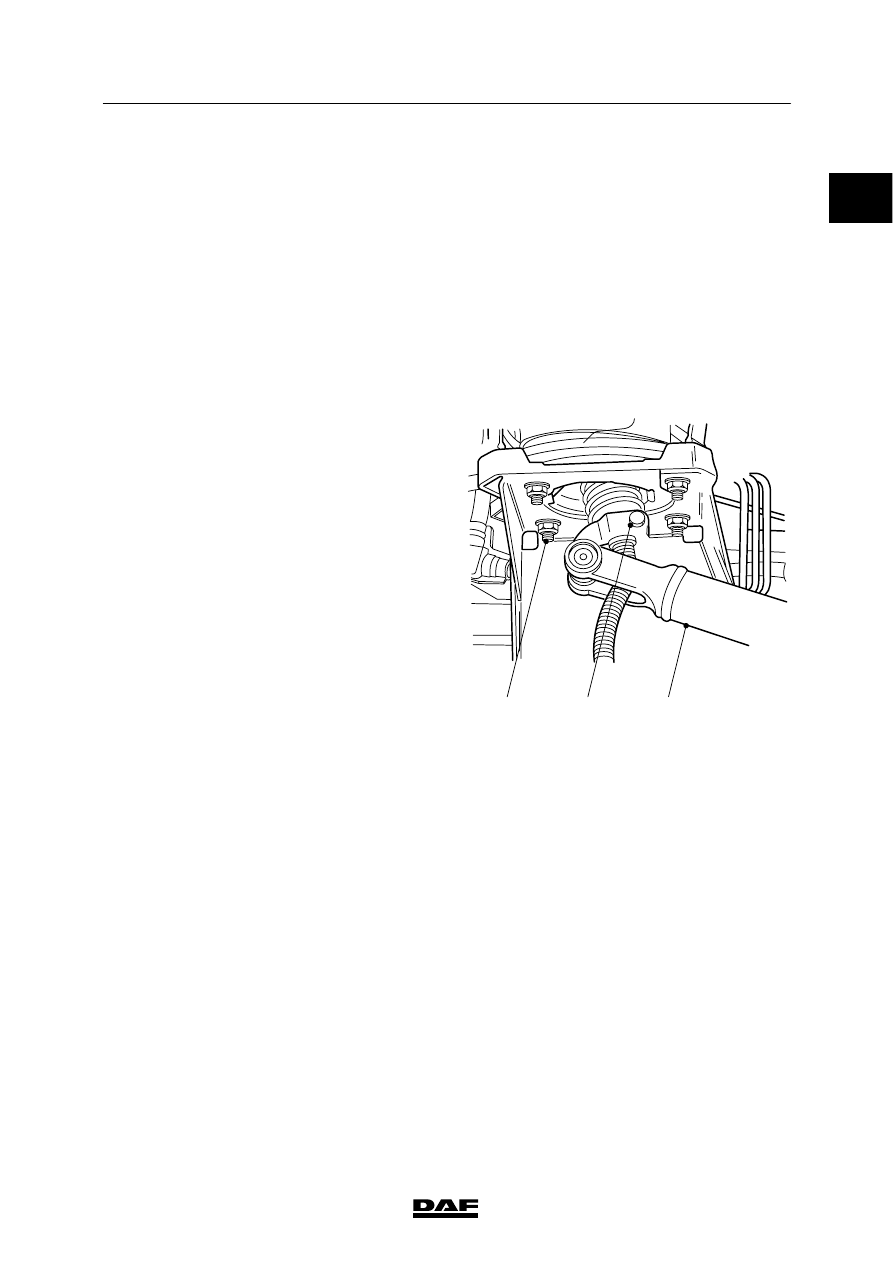

Control rod
Fastening bolt (1) of control rod
on gear lever unit

40 Nm

Attachment nuts (3), gear
lever unit

27 Nm

Attachment bolt, selector shaft
lever to gearbox selector
housing

40 Nm

3

1

2

V300275

ᓻ 200337

3

TECHNICAL DATA

Mechanical gearbox control

CF65/75/85 series

1-4

0

ᓻ 200337
