Disassembly and assembly

XE ENGINE LUBRICATION SYSTEM

CF65/75/85 series

2

10

5. DISASSEMBLY AND ASSEMBLY

5.1 DISASSEMBLY AND ASSEMBLY, OIL PUMP

Disassembling the oil pump
1.

Remove the idler gear and hub from the front

plate.

2.

Remove all attachment bolts from the two

sections of the oil-pump housing.

3.

Remove the rear section of the oil pump

housing.

4.

Remove the gear wheels from the oil pump

housing.

Assembling the oil pump
1.

Clean the gears and check them for damage.

Note:

Gears must be replaced as a set.

Note:

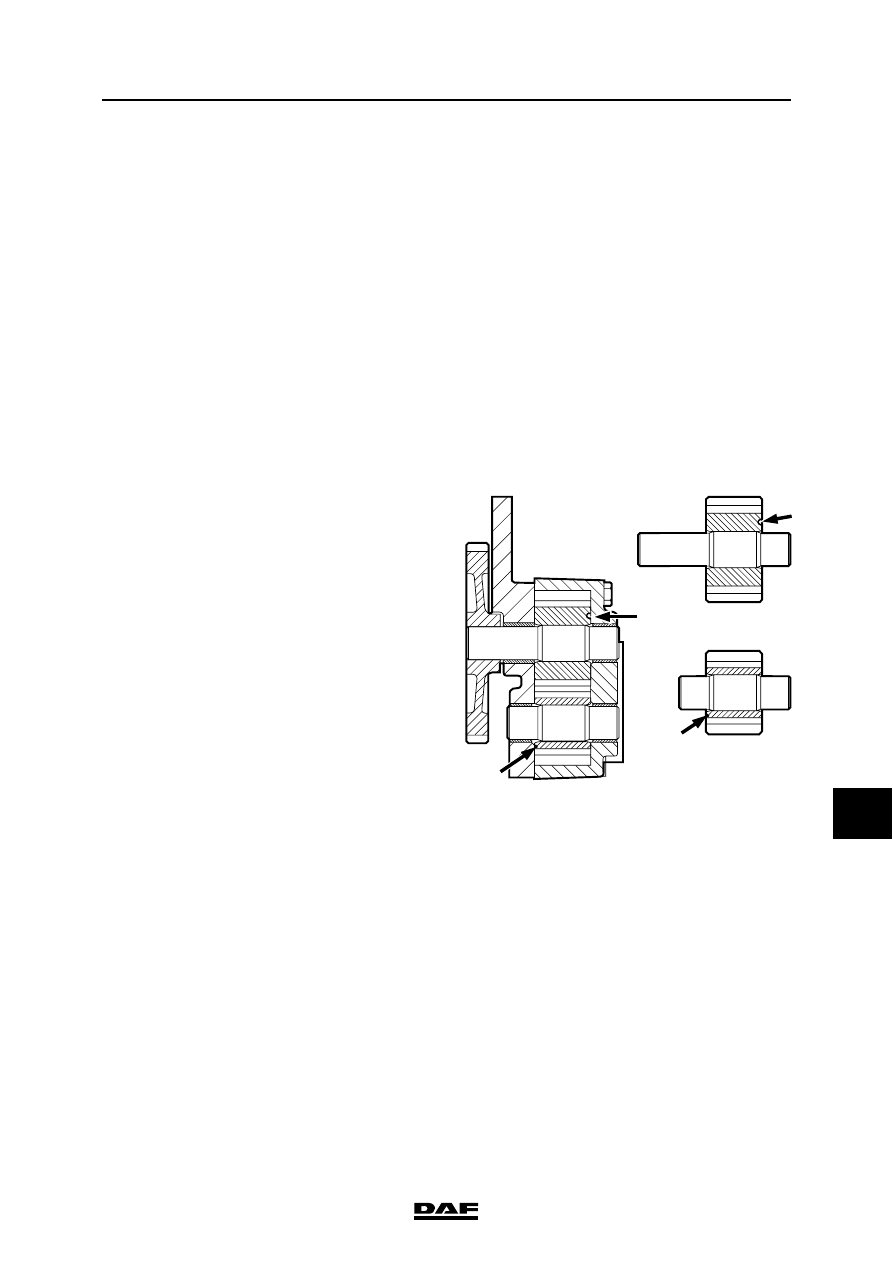

The gears are marked. The gears with the marks

must be fitted as shown in the drawings.

2.

Fit the gear wheels in the oil pump housing.

3.

Fit the rear section of the oil pump housing.

4.

Fit the attachment bolts of the oil pump

sections. Tighten the attachment bolts to the

specified torque. See "Technical data".

5.

Check that the oil pump operates smoothly

and has no heavy point.

6.

Fit the idler gear and hub to the front plate.

Tighten the bolt to the specified torque. See

"Technical data".

M200344

XE ENGINE LUBRICATION SYSTEM

5-2

©

 200324

Disassembly and assembly

10

CF65/75/85 series

2

©

 200324

6-1

Draining and filling

XE ENGINE LUBRICATION SYSTEM

CF65/75/85 series

2

10

6. DRAINING AND FILLING

6.1 DRAINING AND FILLING THE ENGINE OIL

}

To prevent skin injury, avoid

unnecessary contact with the

drained oil

Draining the engine oil
1.

Ensure that the vehicle is standing on a flat

and level surface.

2.

Drain the engine oil at operating temperature

using the drain plug in the oil sump.

3.

Replace the drain plug sealing ring and

tighten the drain plug to the specified torque,

see "Technical data".

Filling the engine oil
1.

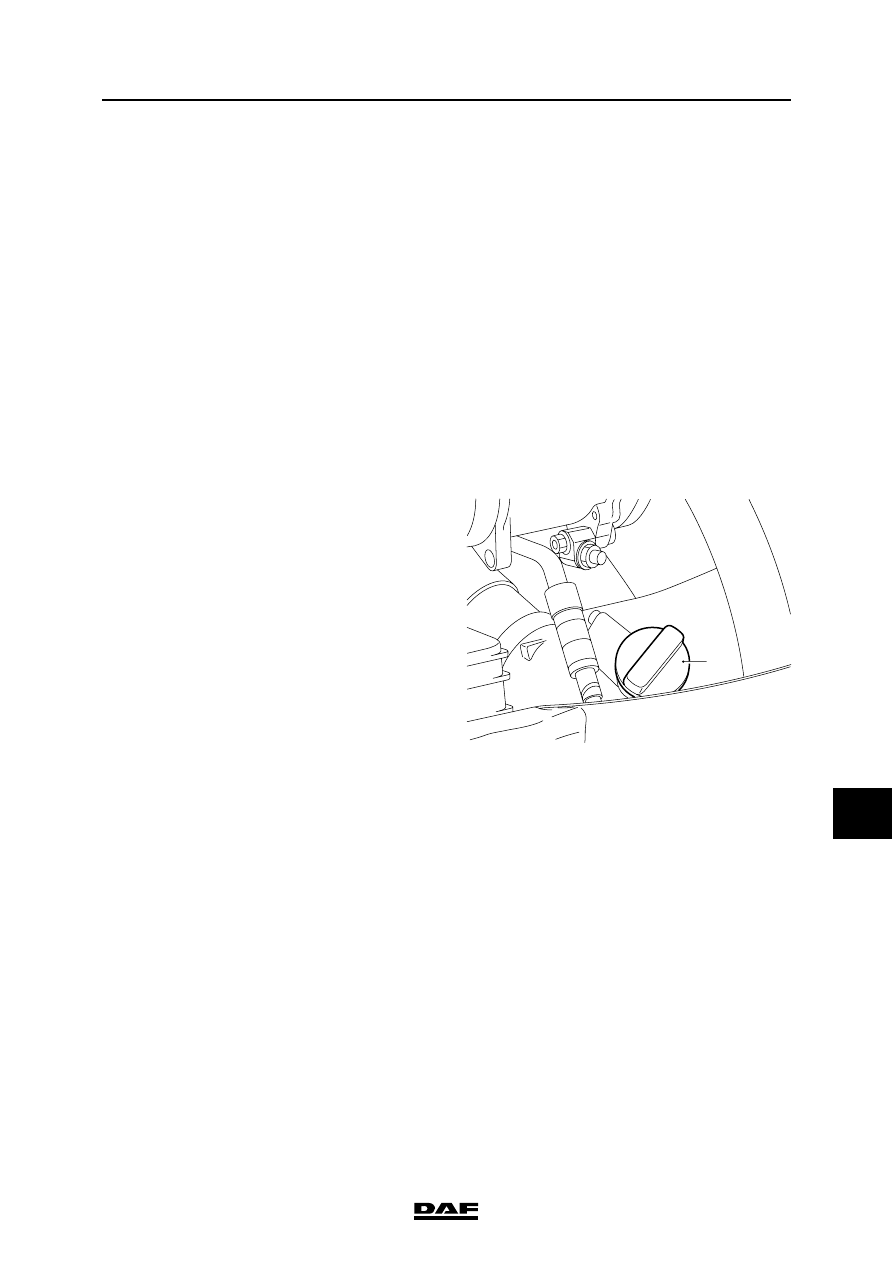

Through the oil filler pipe (D), fill the engine

with the specified amount of engine oil , see

"Technical data".

2.

Check the engine oil level, see "Inspection

and adjustment".

V300389

D

XE ENGINE LUBRICATION SYSTEM

6-2

©

 200324

Draining and filling

10

CF65/75/85 series
