Inspection and adjustment

XE ENGINE LUBRICATION SYSTEM

CF65/75/85 series

2

10

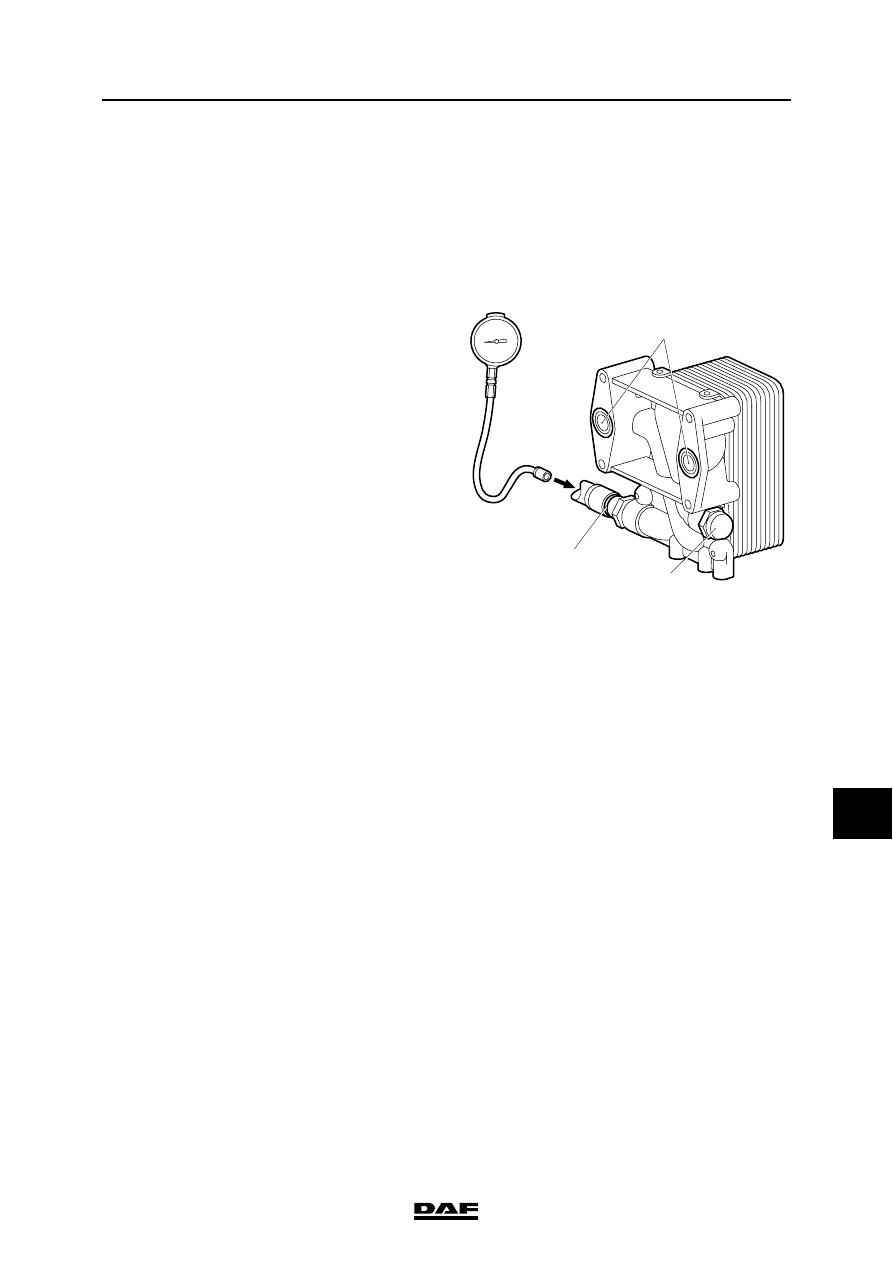

3.3 PRESSURE TESTING THE OIL COOLER

1.

Remove the oil cooler including the oil cooler

bracket from the cylinder block. See

"Removal and installation".

2.

Remove any protective cover from the oil

cooler.

3.

Fit a plug in the opening (B) and to the other

end (A) connect a nipple with a compressed

air connection.

4.

Supply compressed air with a pressure of at

most 2.5 bar.

5.

Immerse the cooling element in warm water

(approx. 50

°C) and check it for external and

internal leakage (air bubbles coming from

opening (C)).

Note:

If the cooling element leaks, it must be

replaced.

6.

Fit the oil cooler. See "Removal and

installation".

Note:

Do not refit the protective cap (if present).

M201092

A

B

C

1

2

3

4

5

6

7

8

XE ENGINE LUBRICATION SYSTEM

3-4

©

 200324

Inspection and adjustment

10

CF65/75/85 series

2

©

 200324

4-1

Removal and installation

XE ENGINE LUBRICATION SYSTEM

CF65/75/85 series

2

10

4. REMOVAL AND INSTALLATION

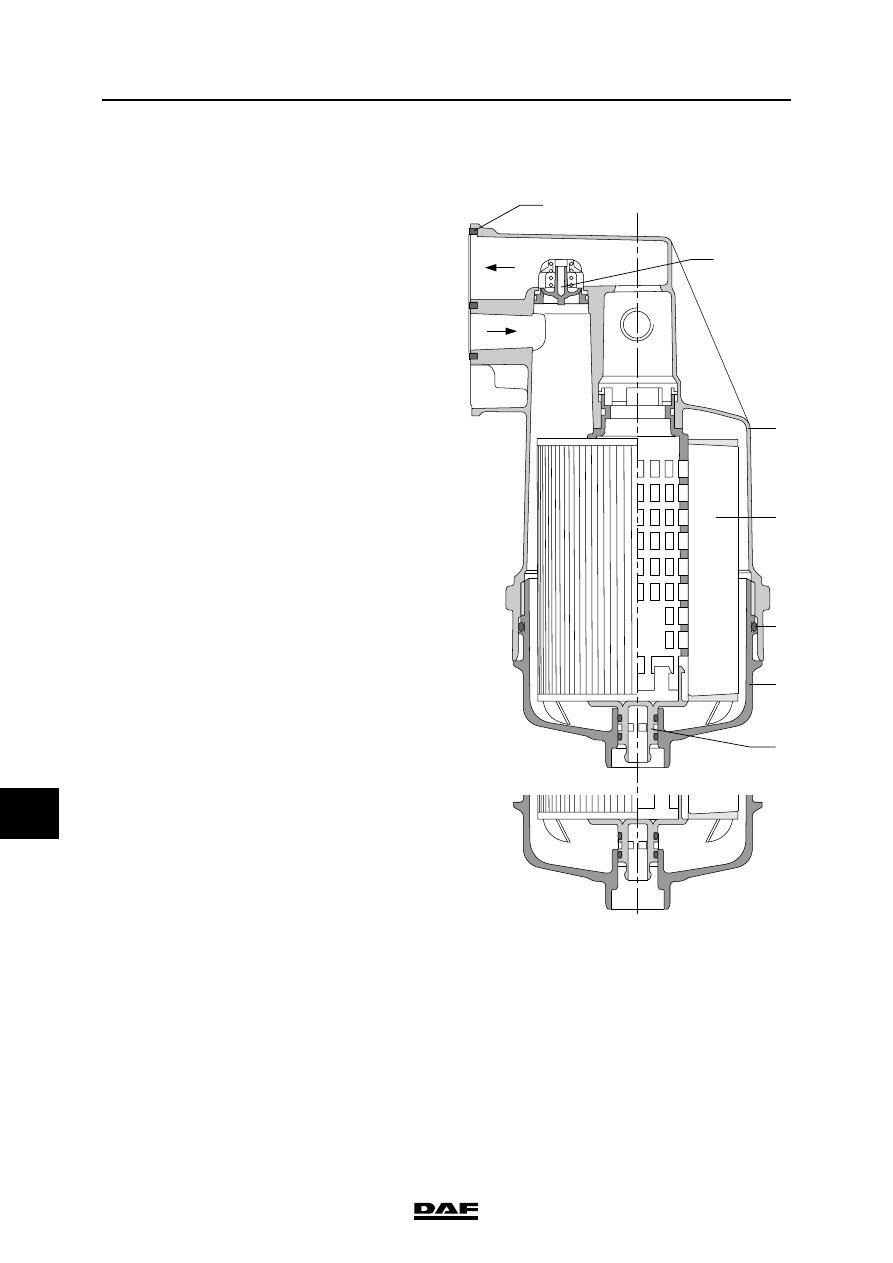

4.1 REMOVAL AND INSTALLATION, OIL FILTER ELEMENT

}

To prevent skin injury, avoid

unnecessary contact with the

drained lubricating oil.

Discard the oil filter element.

Removing the oil filter element
1.

Unscrew the cap (2) a few turns and drain

the filter housing. Collect the oil.

2.

Remove the cap (2) with the oil filter element

(3) from the filter housing (1) and then

remove the element from the cap.

Fitting oil filter element
1.

Fit a new O-ring to the cap (2).

2.

Fit the oil filter element with the cap in the

filter housing and tighten the cap to the

specified torque. See "Technical data".

4

1

3

2

5

M201049

XE ENGINE LUBRICATION SYSTEM

4-2

©

 200324

Removal and installation

10

CF65/75/85 series

2

4.2 REMOVAL AND INSTALLATION, OIL-FILTER HOUSING

Removing the oil-filter housing
1.

Drain the oil from the filter housing by

loosening the cap (2) a few turns.

2.

Disconnect the electrical connections from

the lubricating oil pressure sensor.

3.

Remove the oil-filter housing (1).

Installing the oil-filter housing
1.

Replace the O-rings (7) on the rear of the

filter housing (1).

2.

Fit the filter housing (1) and tighten the

attachment bolts to the specified torque. See

"Technical data".

3.

Hand-tighten the cap (2) and then tighten to

the specified torque. See "Technical data".

4.

Run the engine for a short time and check for

oil leaks.

5.

Check the lubricating oil level.

4

7

1

3

2

5

M201170

6
