DAF CF65, CF75, CF85 Series . Manual - part 270

©

 200324

2-3

General

XE ENGINE LUBRICATION SYSTEM

CF65/75/85 series

2

10

Pressure limiting valve
A pressure limiting valve (P) is installed in the

lubricating system after the lubricating oil cooler.

When the pressure set for the pressure limiting

valve has been reached, the valve opens and any

excess cooled lubricating oil will be discharged to

the sump.

Oil filter cartridge
The lubricating oil is cleaned in the oil filter (3). A

pressure relief valve (S2), fitted in this filter

housing, opens if the pressure in the oil filter

becomes too high as a result of fouling or cold

lubricating oil. The lubricating oil then passes

through the oil filter cartridge unfiltered.

Main lubricating oil channel
From the main lubricating oil channel (4)

lubricating oil is supplied to the crankshaft main

bearings (7) and via an oil channel in the

crankshaft to the big-end bearings (10).

From the main lubricating oil channel, lubricating

oil is pumped through the first camshaft bearing

(9) into the bored camshaft. At the end of the

camshaft there is a sealing plug.

From the lubricating oil channel in the camshaft,

lubricating oil is supplied to the other camshaft

bearings.

Cylinder head
From the second and fifth camshaft bearings, a

lubricating oil channel runs through the cylinder

heads to the second and fifth rocker seats (15).

Depending on the model, the other rocker shafts,

rockers, and bridge pieces are supplied with

lubricating oil by the DEB or a lubricating oil strip

(16).

Timing gear
From the lubricating oil channel leading to the first

crankshaft main bearing (7), another lubricating

oil channel goes to the bored hub of the idler gear

(8). From the bored hub, the lubricating oil

reaches the idler gear. From the idler gear, the

lubricating oil is supplied to the other gears.

The fan drive (5) is lubricated through a bore in

the cylinder block and a lubricating oil channel in

the timing case.

XE ENGINE LUBRICATION SYSTEM

2-4

©

 200324

General

10

CF65/75/85 series

2

Piston and big-end bearings
The pistons (12) and the upper big-end bearings

(11) are lubricated by means of lubricating oil

nozzles connected to the main lubricating oil

channel (4). In addition to its lubricating function,

the lubricating oil has an important cooling

function. Depending on the engine type, the

pistons may be equipped with extra lubricating oil

channels to achieve better cooling.

A bore at the top of the connecting rod ensures

that the lubricating oil sprayed against the piston

head by the lubricating oil nozzles can reach the

upper big-end bearing.

Turbocharger and air compressor
A lubricating oil channel running from the main

lubricating oil channel is connected to the

lubricating oil pipes leading to the turbocharger

(14) and air compressor (13).

The lubricating oil discharge pipe from the

turbocharger is connected to a channel in the

cylinder block, from where the oil returns to the

sump.

The lubricating oil returning from the air

compressor flows from the front of the air

compressor back to the timing gear, and from

there to the sump.

Pump housing
The pump housing (6) is lubricated from the

cylinder block and it discharges the oil through a

channel in the cylinder block, from where the

lubricating oil returns to the sump. The pump

units are supplied with lubricating oil via a

channel in the pump housing.

©

 200324

3-1

Inspection and adjustment

XE ENGINE LUBRICATION SYSTEM

CF65/75/85 series

2

10

3. INSPECTION AND ADJUSTMENT

3.1 CHECKING ENGINE OIL CONSUMPTION

Engine oil consumption relates to the engine oil

used during combustion in the engine. Since

engine oil consumption is affected by driving style

and the use to which the vehicle is put, it is also

related to average fuel consumption. See

"Technical data" for the maximum permissible

engine oil consumption.

Test conditions
1.

An engine oil consumption test is only

meaningful after the engine has been run in

(approx. 25,000 km).

2.

Check the engine carefully for engine oil

leakage before carrying out an engine oil

consumption test. First repair any leaks.

3.

Check the average fuel consumption and

engine oil consumption as accurately as

possible.

4.

Only check the engine oil level when the

engine is at operating temperature and only

when the engine has been turned off for five

minutes.

5.

Make sure the vehicle is horizontal before

checking the engine oil level.

XE ENGINE LUBRICATION SYSTEM

3-2

©

 200324

Inspection and adjustment

10

CF65/75/85 series

2

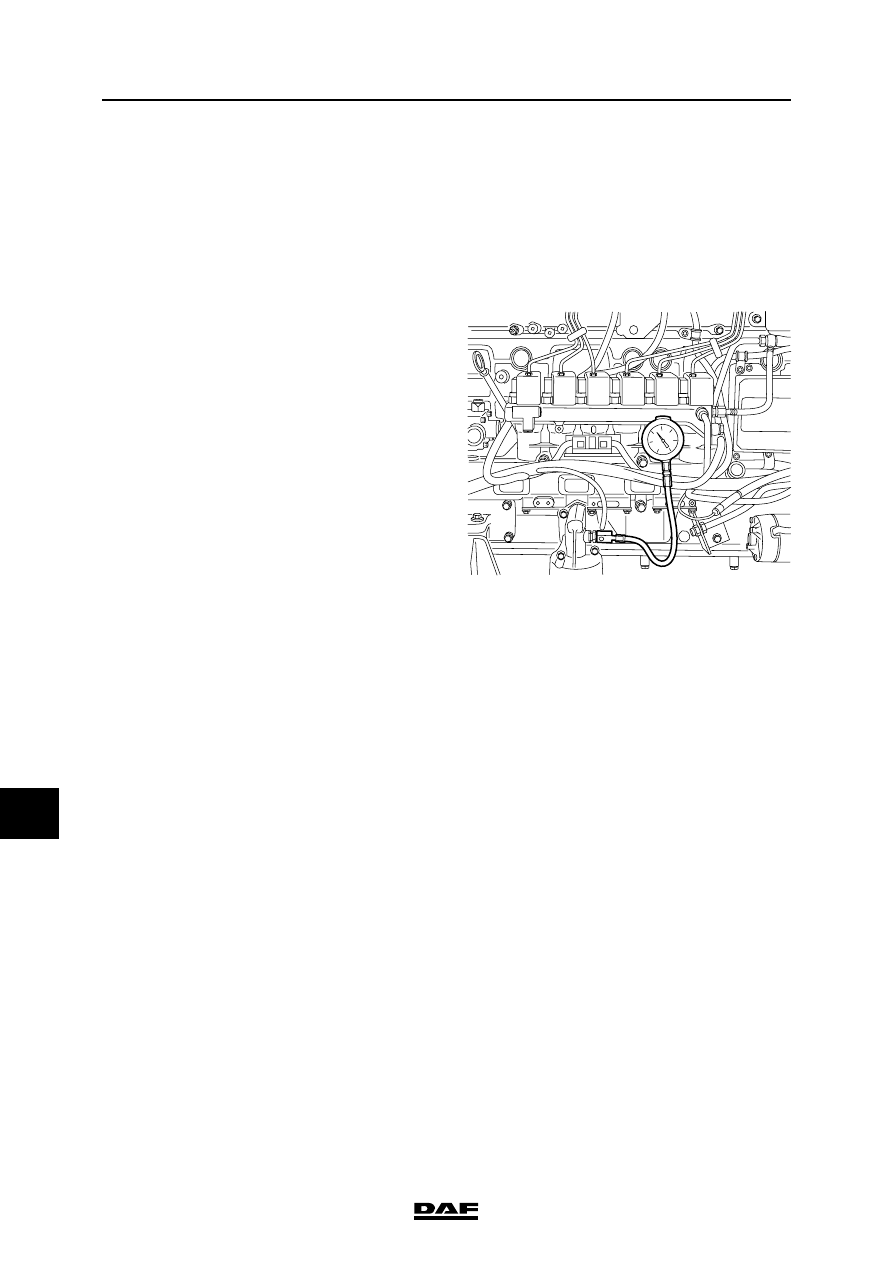

3.2 INSPECTION, LUBRICATING OIL PRESSURE

1.

Bring the engine up to operating

temperature.

2.

Remove the lubricating oil pressure sensor.

This sensor is mounted on the oil filter

housing.

3.

In the oil pressure sensor connection, fit a

lubricating oil pressure gauge and the

special tool (DAF no. 0535551).

4.

Start the engine and measure the lubricating

oil pressure at idling speed and at full-load

engine speed. Compare the pressure

readings with the technical data. See

"Technical data".

Note:

The pressure limiting valve mounted in the

oil sump cannot be adjusted.

5.

Switch off the engine and remove the

lubricating oil pressure gauge. Fit a new

sealing ring to the oil pressure sensor and fit

the sensor.

M201089
