4.11 REMOVAL AND INSTALLATION, STARTER MOTOR

Removing the starter motor
1.

Disconnect the earth lead from the battery

terminal.

2.

Disconnect the contacts of the starter motor.

3.

Remove the noise insulation cover if fitted.

4.

Remove the starter motor. Check the starter

pinion for damage.

Installing the starter motor
1.

Clean the contact surfaces of the starter

motor and the flywheel housing.

2.

Fit the starter motor and tighten the

attachment nuts to the specified torque. See

"Technical data".

3.

Connect the starter motor.

4.

Check the operation of the starter motor.

5.

Fit the noise insulation cover.

6.

Fit the earth cable.

PE ENGINE

4-16

©

 200324

Removal and installation

5

CF65/75/85 series

2

4.12 REMOVAL AND INSTALLATION, AIR-CONDITIONING COMPRESSOR

V-BELT

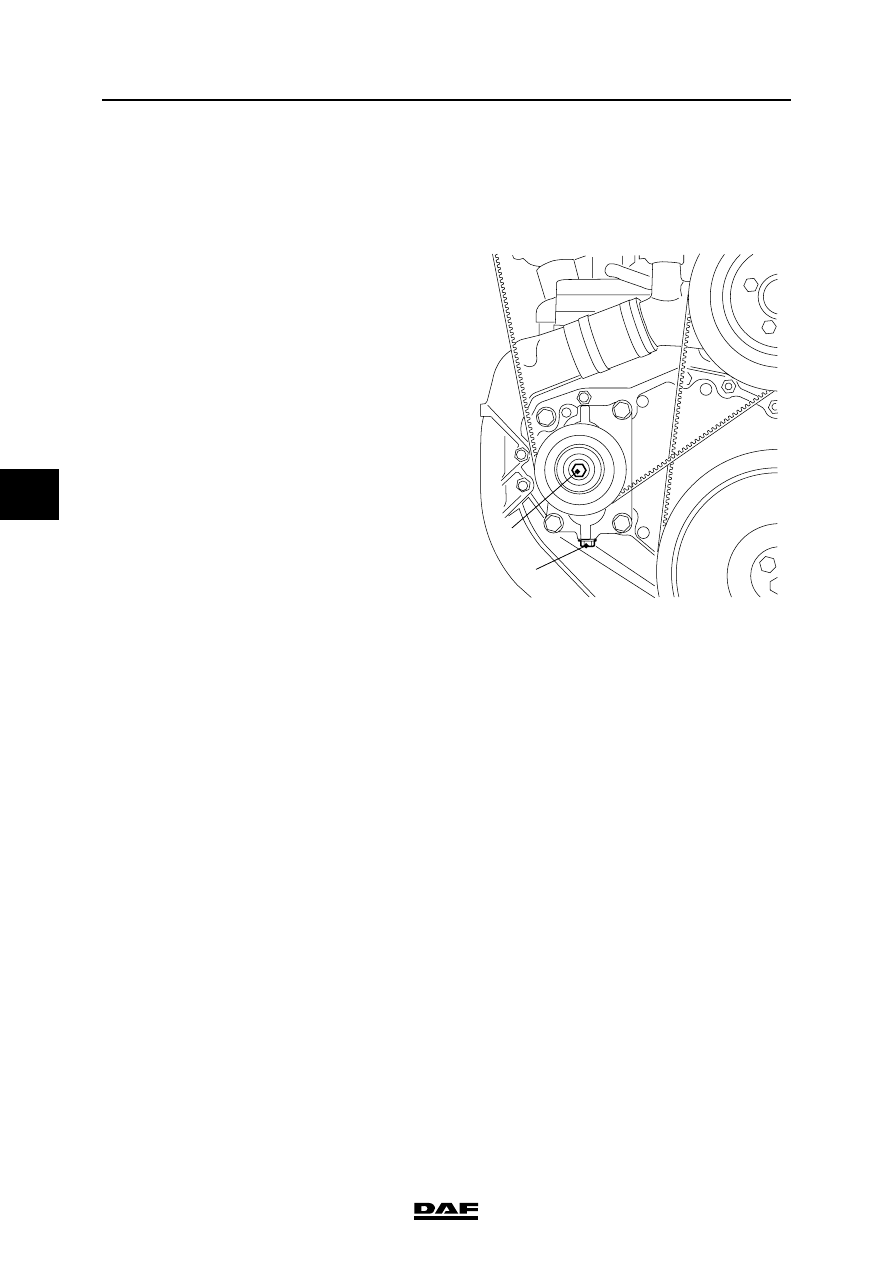

Removing the air-conditioning compressor
V-belt
1.

Slacken the central bolt (1) of the tensioner.

2.

Unscrew the adjusting bolt (2) until the V-belt

can be removed from the pulley.

Fitting the air-conditioning compressor V-belt
1.

Inspect the pulley discs for damage, rust and

greasy deposits.

2.

Fit the new air-conditioning compressor

V-belt and adjust the V-belt tension. See

"Inspection and adjustment".

1

2

M200885

©

 200324

4-17

Removal and installation

PE ENGINE

CF65/75/85 series

2

5

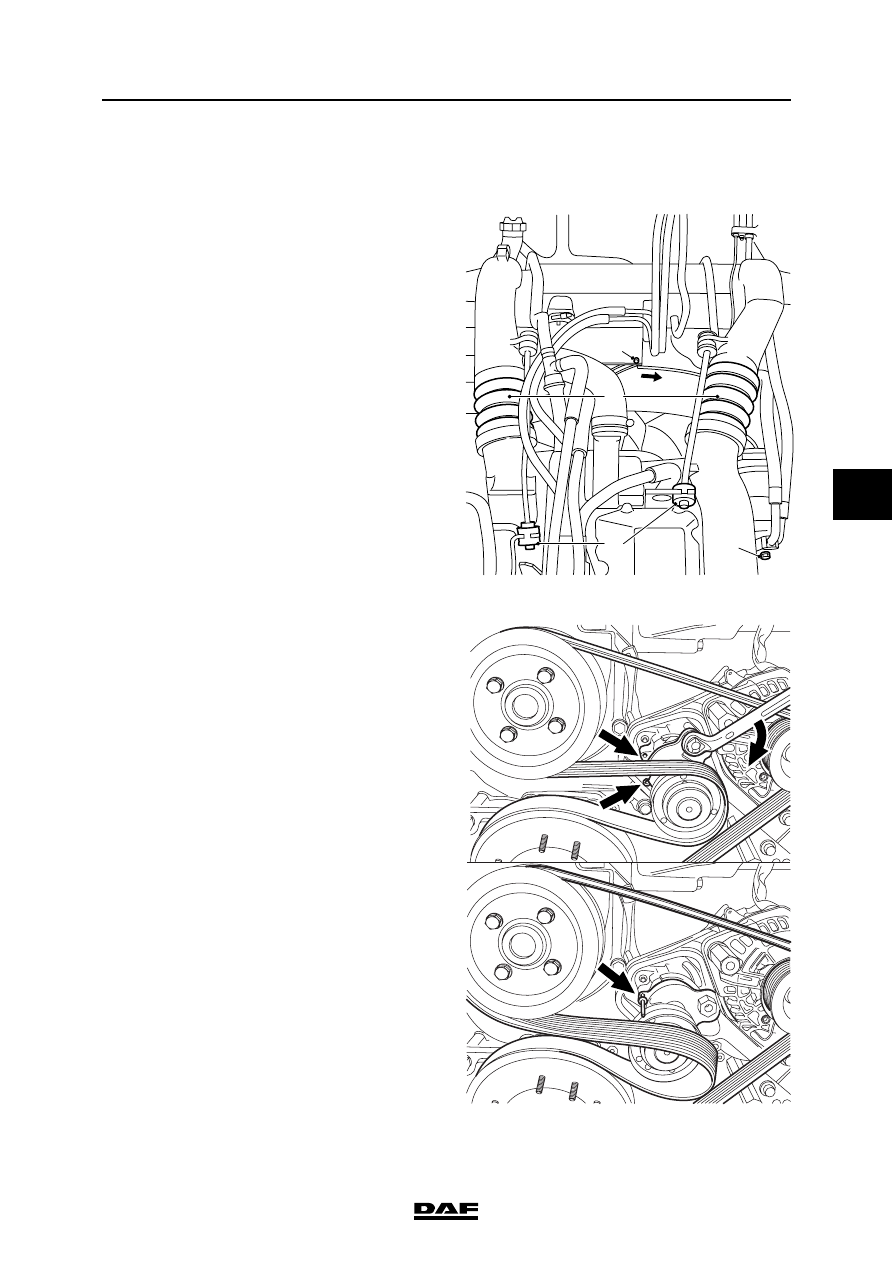

4.13 REMOVAL AND INSTALLATION, POLY-V-BELT

Removing the poly-V-belt
1.

Remove the locking screw from the wind

tunnel collar (G) and turn the latter towards

the radiator.

2.

If fitted, remove the air-conditioning

compressor V-belt.

3.

Move the tensioner against the spring force

and lock it with a 4 to 5 mm thick pin (bore).

4.

Take the poly-V-belt off over the fan.

5.

Inspect the automatic tensioner. See

"Inspection and adjustment".

Installing the poly-V-belt
1.

Inspect the belt pulleys for damage, rust and

grease deposits.

2.

Pull the poly-V-belt over the fan.

3.

Move the tensioner against the spring

tension so that the locking pin can be

removed. Tension the tensioner against the

belt.

4.

Fit the new air-conditioning compressor V-

belt and adjust the V-belt tension. See

"Inspection and adjustment".

M201032

H

J

G

F

M201275

PE ENGINE

4-18

©

 200324

Removal and installation

5

CF65/75/85 series

2

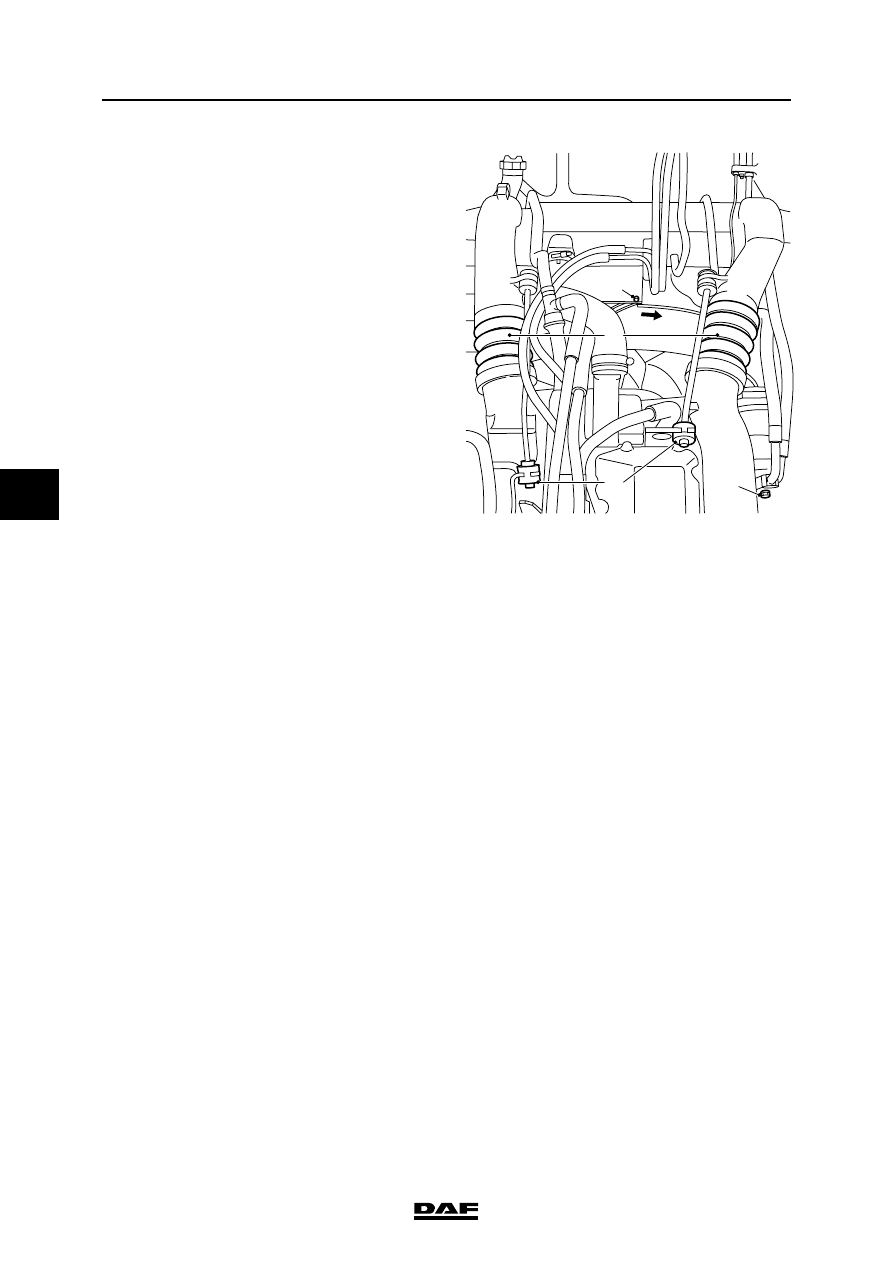

5.

Turn the wind tunnel collar towards the

engine and fit the locking screw.

M201032

H

J

G

F
