DAF CF65, CF75, CF85 Series . Manual - part 224

©

 200324

4-11

Removal and installation

PE ENGINE

CF65/75/85 series

2

5

19. If applicable, fit the coolant filter to the

coolant pipe.

20. Fit the heat shields of the exhaust manifold

and tighten the attachment bolts to the

specified torque. See "Technical data".

21. If applicable, fit the air-conditioning bracket.

22. Adjust the V-belt tension of the air-

conditioning compressor.

23. Connect the compressor pipe from the

charge pipe to the compressor.

24. Connect the inlet pipe between the

turbocharger and air cooler.

PE ENGINE

4-12

©

 200324

Removal and installation

5

CF65/75/85 series

2

4.9 REMOVAL AND INSTALLATION, AIR COMPRESSOR

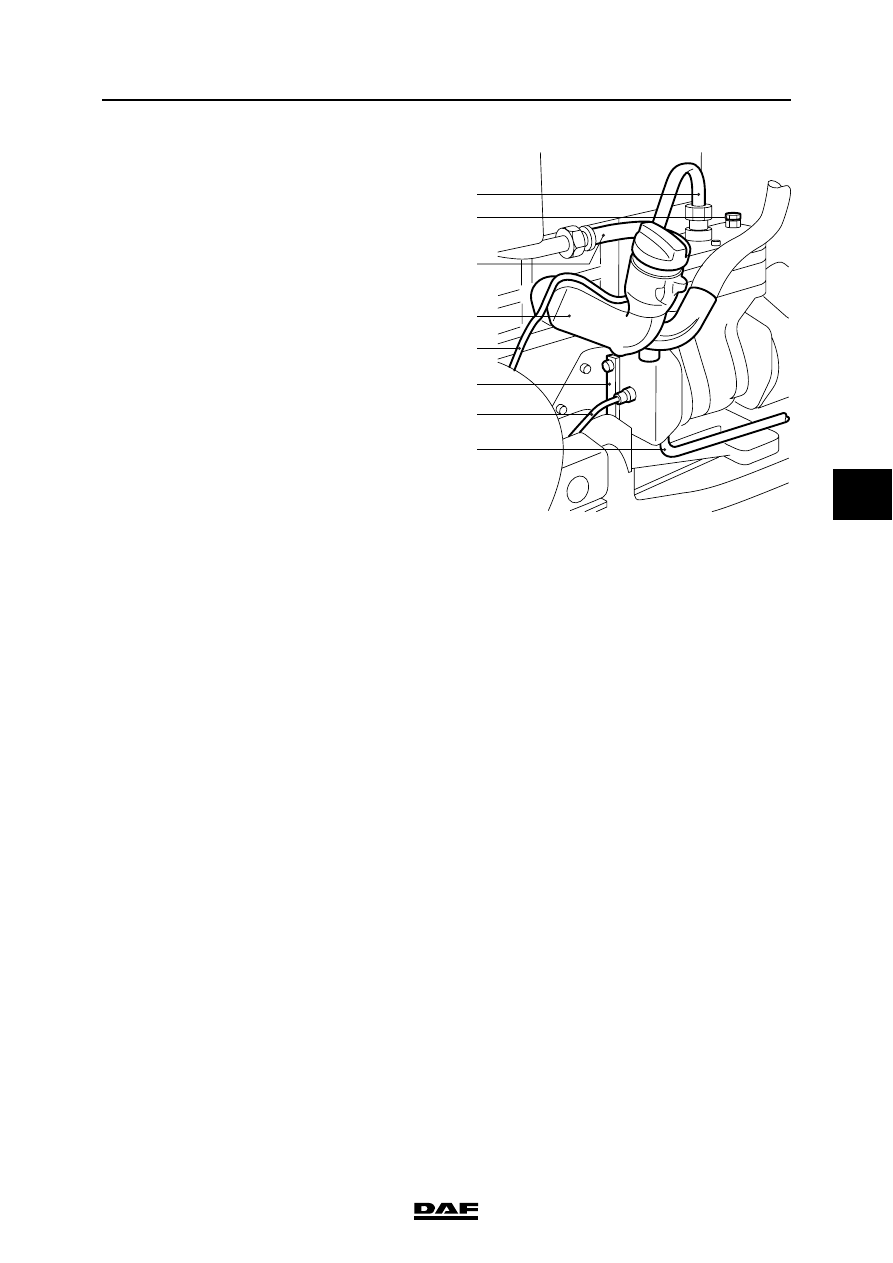

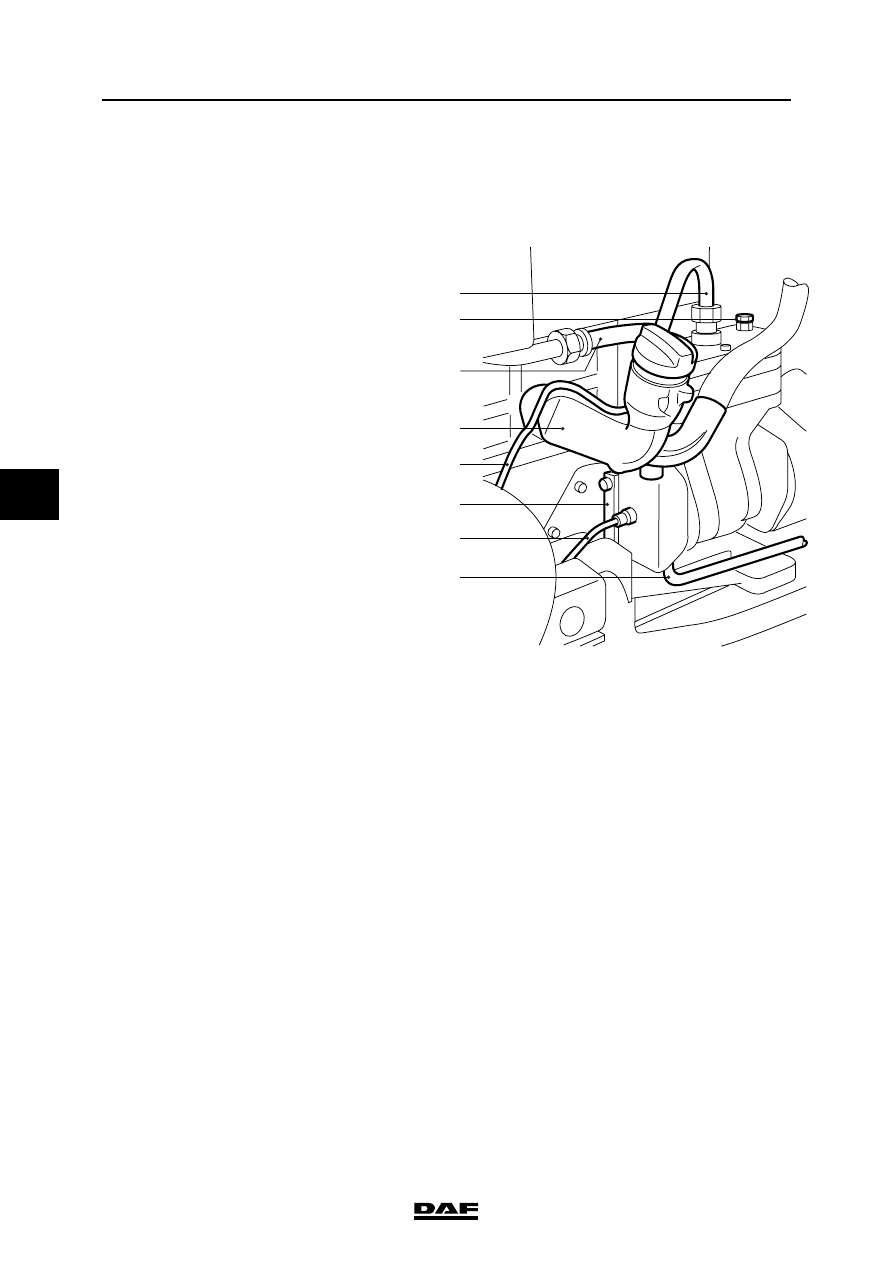

Removing the air compressor
1.

Drain the coolant.

2.

Remove the oil filler pipe (5).

3.

Disconnect the service pipe from the air

dryer (8).

4.

Remove the coolant connections (1).

5.

Disconnect the air pipes (2 and 3).

6.

Disconnect the lubricating oil pipe (4).

7.

Remove the mounting bracket at the back of

the compressor (7).

8.

Remove the attachment bolts from the timing

cover.

Note:

If the vehicle is equipped with air-

conditioning, the air-conditioning

compressor V-belt must be disconnected to

enable removal of the tensioner.

9.

Remove the compressor from the timing

case. Remove the O-ring from the

compressor housing.

Installing the air compressor
1.

Fit a new O-ring to the compressor housing

and fit the compressor to the timing case.

2.

Fit the air compressor attachment bolts.

Tighten the attachment bolts to the specified

torque. See "Technical data".

Note:

If the vehicle is equipped with air-

conditioning, the tensioner of the air-

conditioning compressor must be fitted and

the V-belt tension adjusted.

M200763

4

7

4

8

5

2

1

3

©

 200324

4-13

Removal and installation

PE ENGINE

CF65/75/85 series

2

5

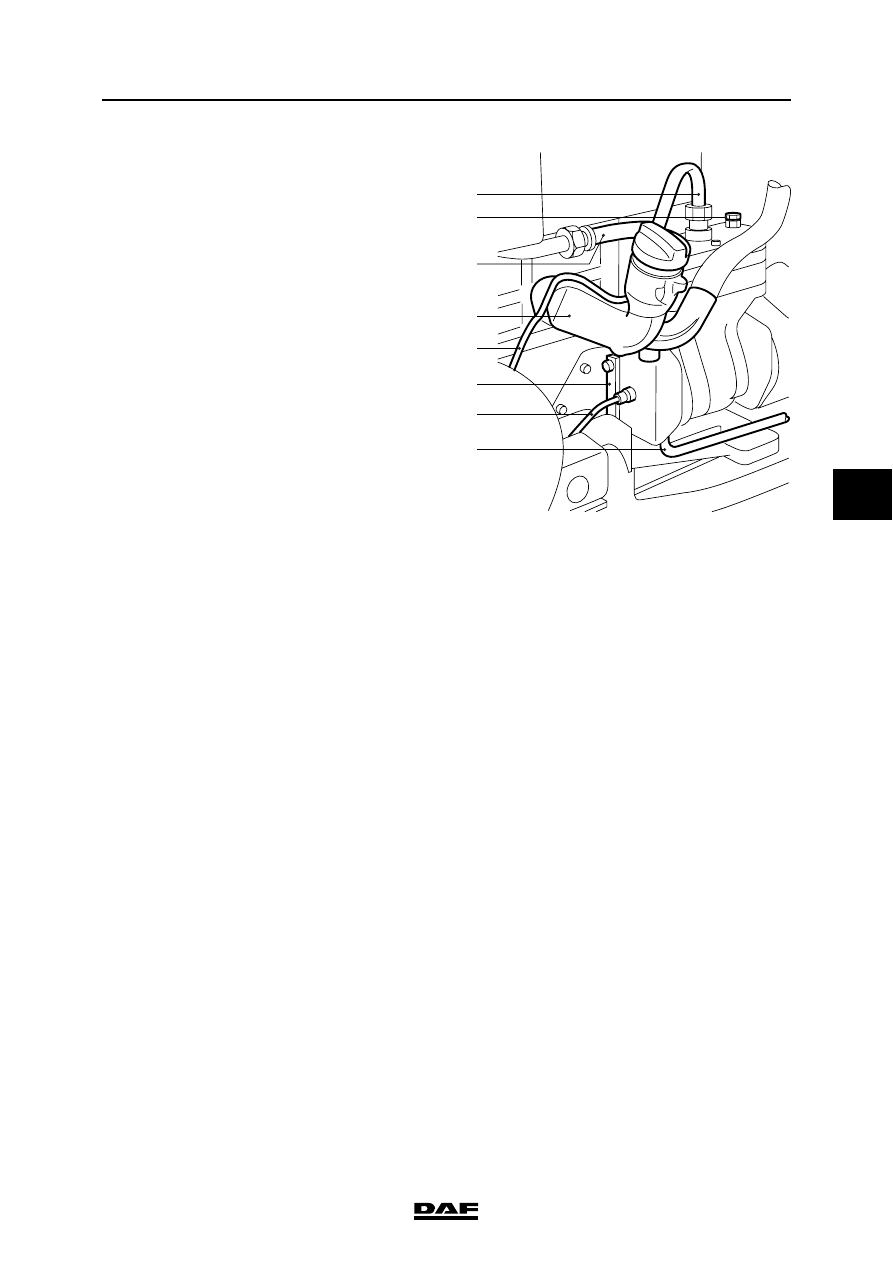

3.

Fit the mounting bracket (7) at the back of the

compressor. Tighten the attachment bolts to

the specified torque. See "Technical data".

4.

Fit the service pipe (8).

5.

Fit the lubricating oil pipe.

6.

Fit the air pipes (2 and 3).

7.

Fit the coolant pipes (1).

8.

Fill the cooling system.

M200763

4

7

4

8

5

2

1

3

PE ENGINE

4-14

©

 200324

Removal and installation

5

CF65/75/85 series

2

4.10 REMOVAL AND INSTALLATION, STEERING PUMP

Removing the steering pump
1.

Clean the steering pump and the

surrounding area.

2.

Remove the suction and delivery pipes from

the steering pump. Collect the steering oil

released from the system.

3.

Immediately plug the openings in the pump

and hoses to prevent dirt entering the

system.

4.

Remove the two attachment bolts in the

timing cover and take the pump from the

timing case.

5.

Check the gear for wear or damage.

6.

Remove the O-ring.

Installing the steering pump
1.

Fit a new O-ring.

2.

Fit the steering pump and tighten the

attachment bolts to the specified torque. See

"Technical data".

3.

Install the suction and delivery pipes of the

steering pump. Fit the banjo bolts. Tighten

the banjo bolts to the specified torque. See

"Technical data".

4.

Fill the oil reservoir with the specified oil. See

"Fluids and lubricants" specifications

manual.

5.

Bleed the steering system.

6.

Check the pipes for leaks.
