DAF CF65, CF75, CF85 Series . Manual - part 218

©

 200324

2-1

General

PE ENGINE

CF65/75/85 series

2

5

2. GENERAL

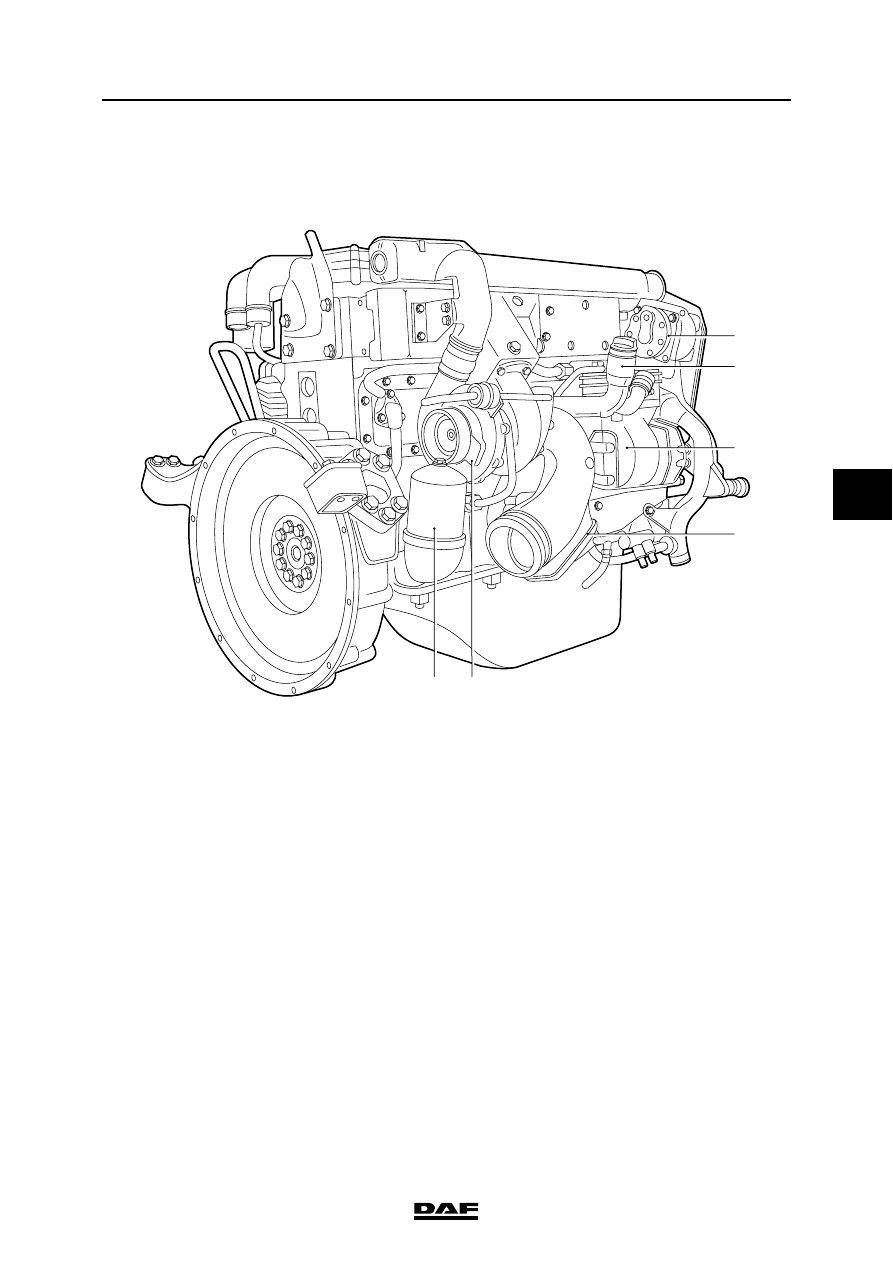

2.1 LOCATION OF COMPONENTS

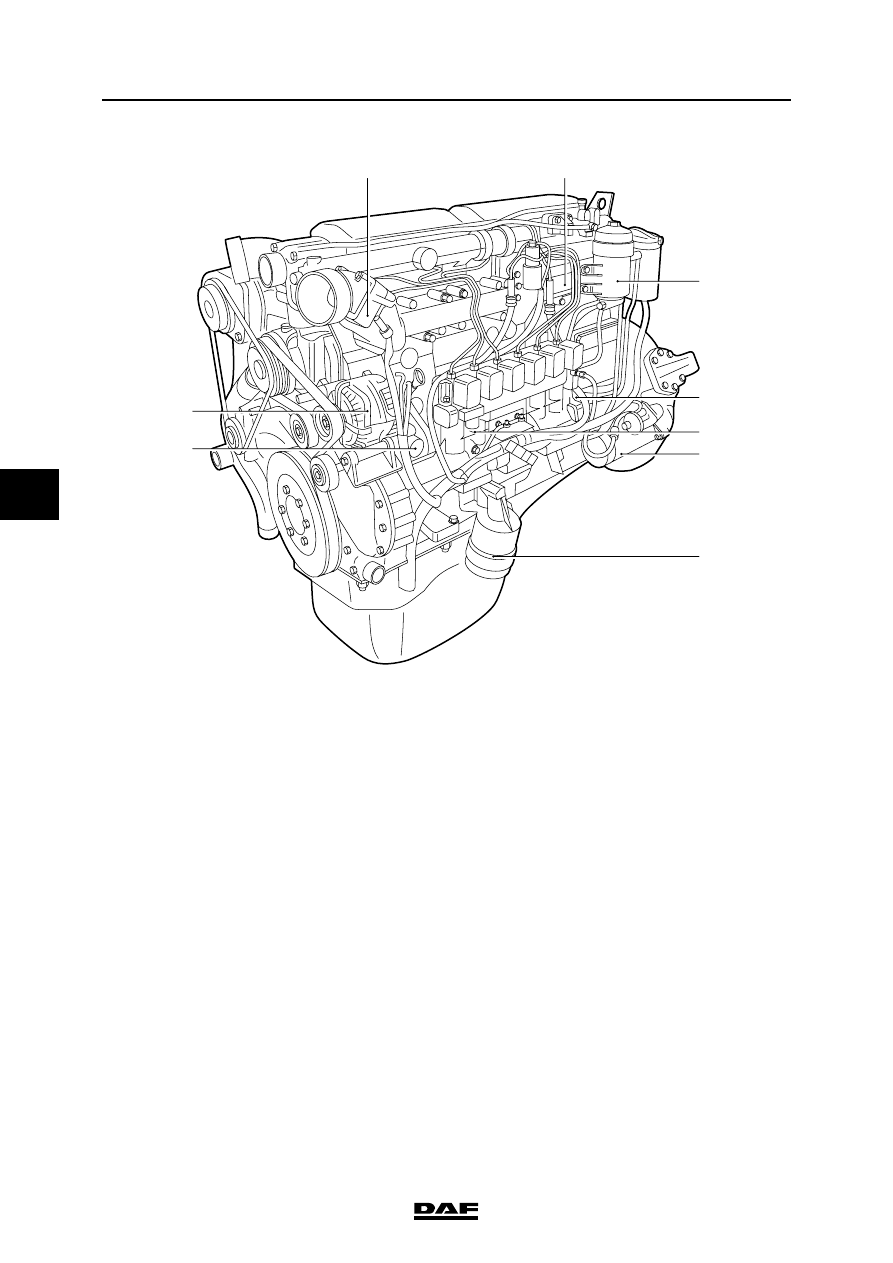

Legend
1.

Centrifugal oil filter

2.

Turbocharger

3.

Oil filler pipe

4.

Air-conditioning compressor

5.

Oil cooler

6.

Air compressor

M201116

5

2

3

6

4

1

PE ENGINE

2-2

©

 200324

General

5

CF65/75/85 series

2

Legend
1.

Alternator

2.

Glow plug

3.

Steering pump

4.

Engine identification plate

5.

Fuel lift pump/primer pump

6.

Fuel filter

7.

Oil filter

8.

UPEC pump housing

9.

Starter motor

M201117

9

7

8

5

6

3

1

4

2

©

 200324

2-3

General

PE ENGINE

CF65/75/85 series

2

5

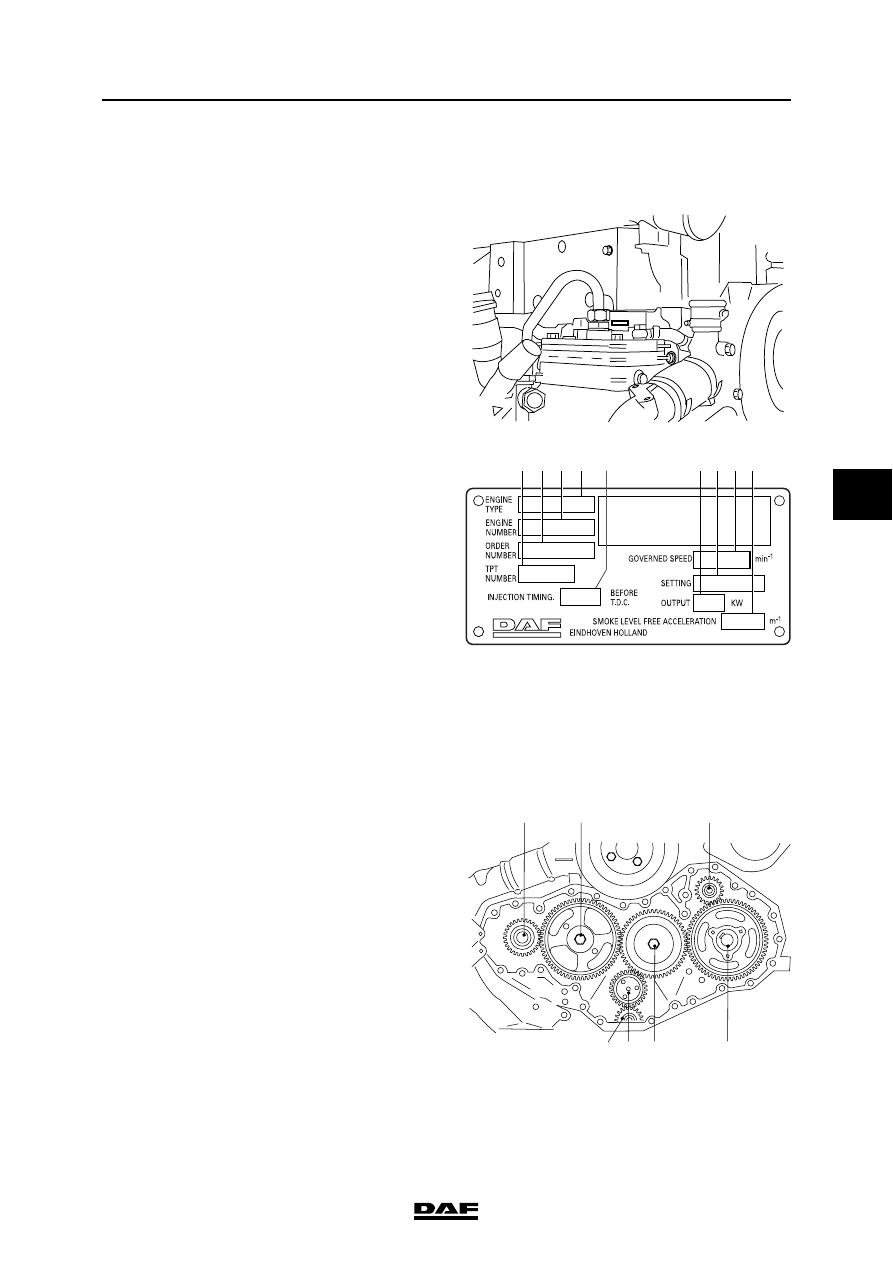

2.2 IDENTIFICATION

Engine number
The engine number is marked on the cylinder

block at front right-hand side (compressor side).

PE engine identification plate
Fitted to the inlet manifold

1.

Engine type

2.

Engine number

3.

Order number

(2)

4.

Maximum governed engine speed

5.

Number (for type approval)

6.

Smoke level at maximum no-load engine

speed

7.

Engine output

8.

Injection timing

(1)

9.

Transport number

(2)

(1)

Not filled in for PE engines

(2)

For production

2.3 OVERVIEW DRAWING, TIMING GEAR

1.

Crankshaft gear

2.

Camshaft gear

3.

Idler gear

4.

Steering pump gear

5.

Pump housing camshaft gear

6.

Air compressor gear

7.

Oil pump idler gear

M200748

M201088

9 3 2 1 8

7 5 4 6

6

1

7

3

5

2

4

M200744

PE ENGINE

2-4

©

 200324

General

5

CF65/75/85 series

2

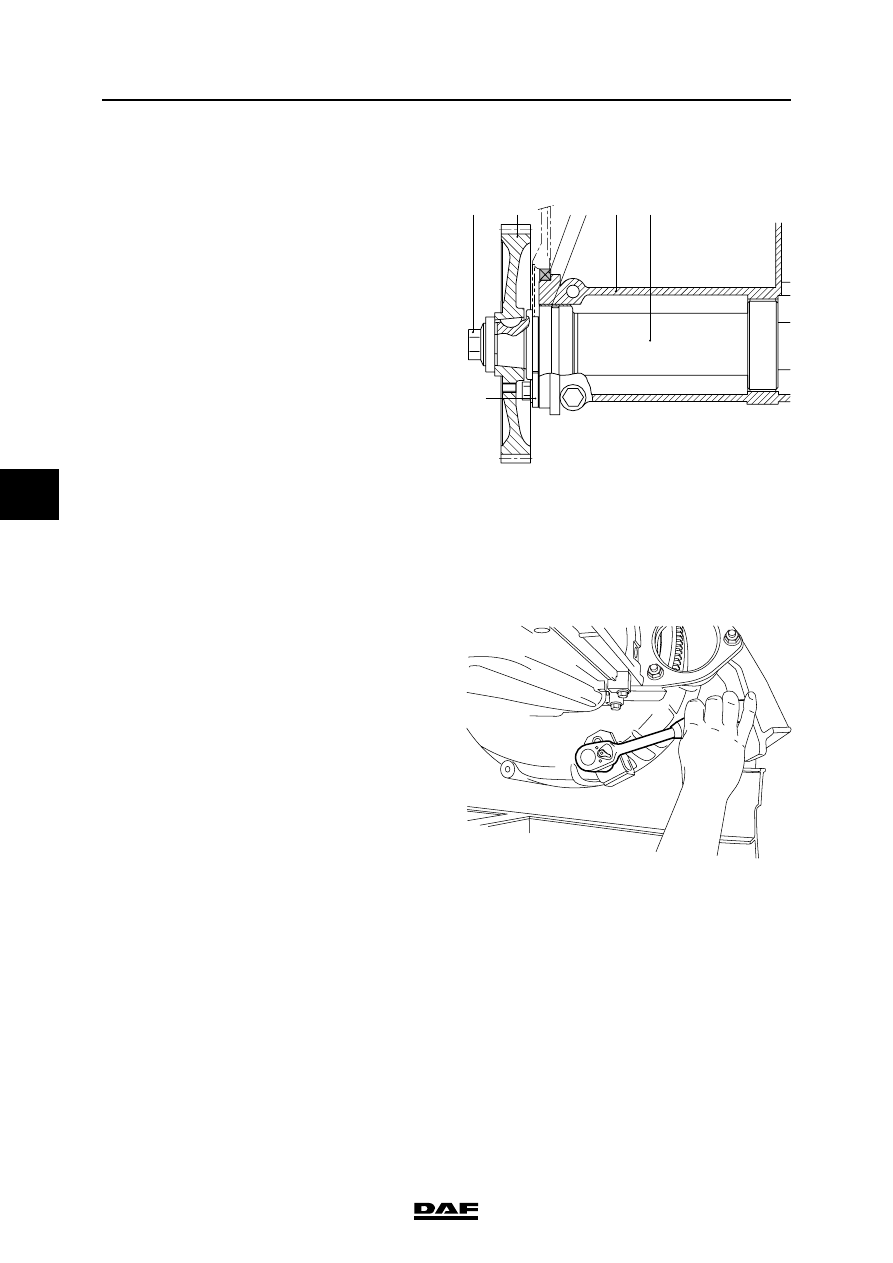

2.4 OVERVIEW DRAWING, PUMP HOUSING CAMSHAFT DRIVE

1.

Pump housing camshaft gear

2.

Timing case oil seal

3.

Pump housing

4.

Locking plate

5.

Pump housing camshaft

6.

Camshaft gear attachment bolt

7.

Camshaft bearing bush

2.5 CRANKING THE ENGINE

Cranking on the flywheel housing
1.

Place the special tool (DAF no. 1310477) on

the opening at the bottom of the flywheel

housing such that the pinion engages the

starter ring gear.

2.

Turn the crankshaft clockwise as seen from

the timing gear end (this corresponds to the

direction of rotation of the engine).

1

3

5

6

2 7

4

M200887

M201187
