5. DISASSEMBLY AND ASSEMBLY

5.1 DISASSEMBLY AND ASSEMBLY, LUBRICATING OIL PUMP

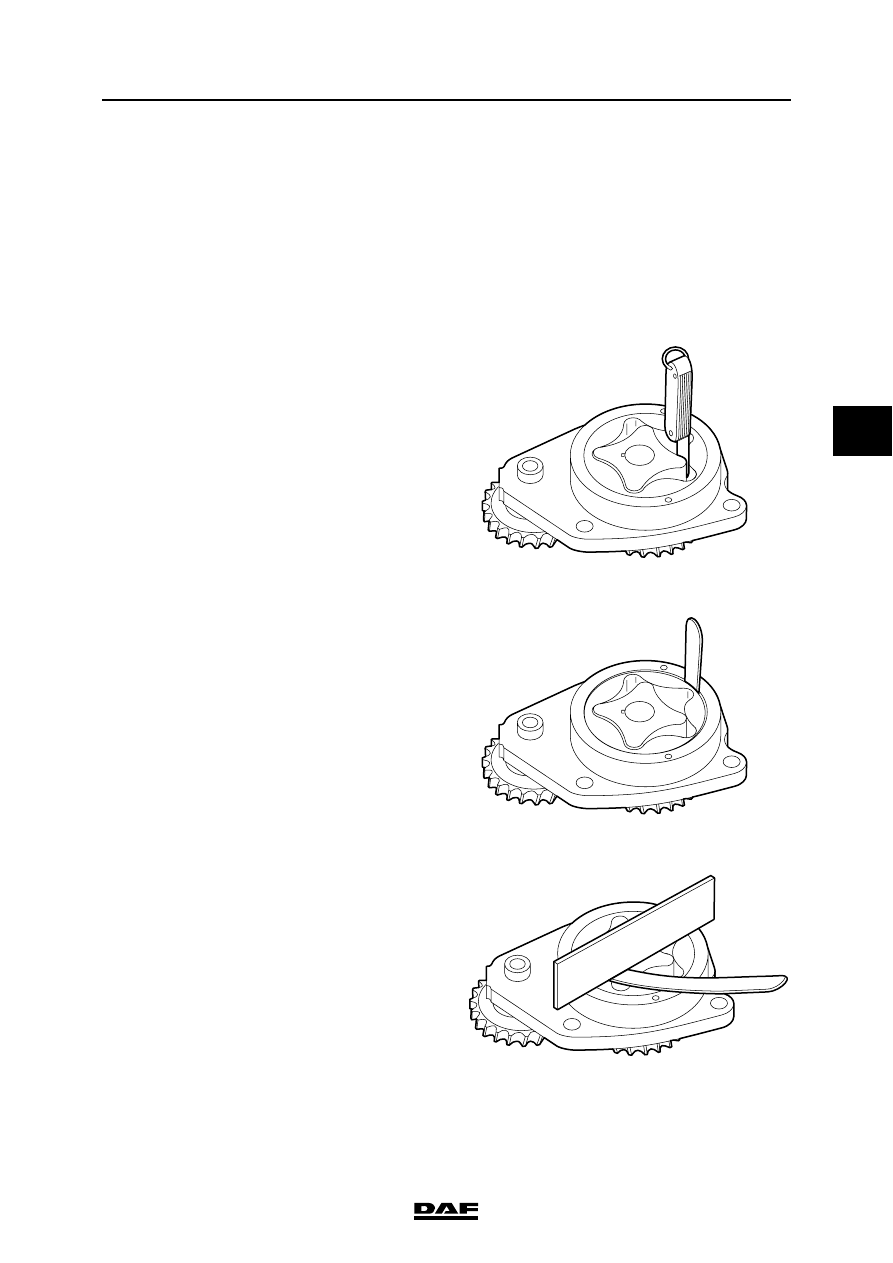

Disassembling the lubricating oil pump
1.

Check the lubricating oil pump gears for
damage and excessive wear.

2.

Remove the rear plate from the lubricating oil
pump.

3.

Check the play between the inner and outer
rotors using a feeler gauge. See "Technical
data".

4.

Check the play between the outer rotor and
the lubricating oil pump housing using a
feeler gauge. See "Technical data".

5.

Using a feeler gauge and a straight edge
check the play between the inner and outer
rotors in relation to the straight edge. See
"technical data".

6.

Check the gear backlash. See "Technical
data".

7.

Mark the top of the outer rotor and remove
the outer rotor.

8.

Check the inner rotor and outer rotor for
damage and excessive wear.

M201077

M201076

M201075

CE-ENGINE LUBRICATION SYSTEM

5-2

©

 200351

Disassembly and assembly

4

ΧΦ65/75/85 series

2

Assembling the lubricating oil pump
1.

Fit the outer rotor with the marked side
upwards.

2.

Fit the rear plate.

©

 200351

6-1

Draining and filling

CE-ENGINE LUBRICATION SYSTEM

ΧΦ65/75/85 series

2

4

6. DRAINING AND FILLING

6.1 DRAINING AND FILLING THE ENGINE OIL

}

To prevent skin injury, avoid
unnecessary contact with the
drained oil.

Draining the engine oil
1.

Ensure that the vehicle is standing on a flat
and level surface.

2.

Drain the engine oil at operating temperature
using the drain plug in the oil sump.

3.

Replace the drain plug sealing ring and
tighten the drain plug to the specified torque;
see "Technical data".

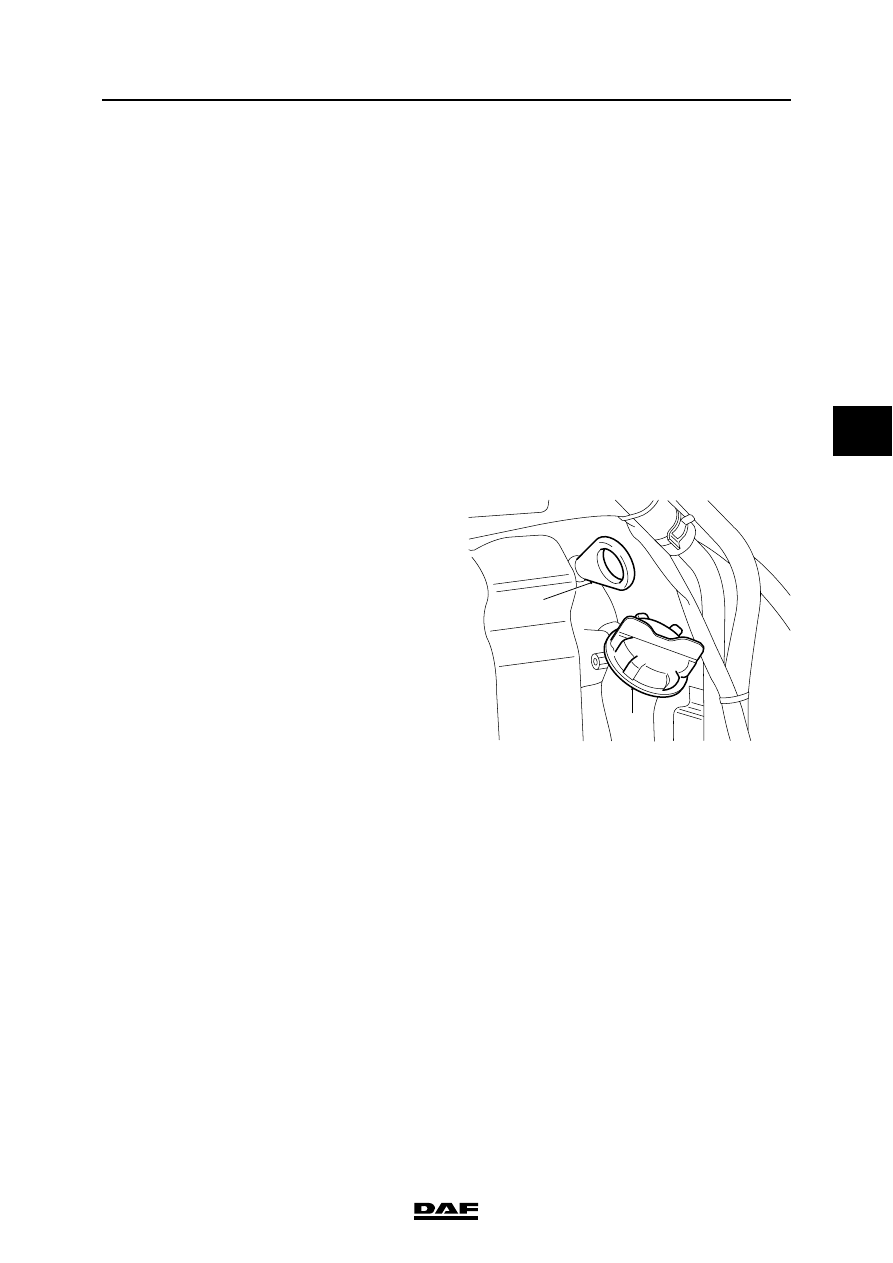

Filling the engine oil
1.

Fill the engine through the oil filler pipe (B)
with the specified quantity of engine oil; see
"Technical data".

2.

Check the engine oil level; see "Inspection
and adjustment".

V300417

1

B
