CE-engine cooling system

TECHNICAL DATA

ΧΦ65/75/85 series

2

0

2.3 FILLING CAPACITIES

Cooling system capacity

approx. 26 litres

TECHNICAL DATA

2-4

©

 200351

CE-engine cooling system

0

ΧΦ65/75/85 series

2

©

 200351

3-1

CE-engine lubrication system

TECHNICAL DATA

ΧΦ65/75/85 series

2

0

3. CE-ENGINE LUBRICATION SYSTEM

3.1 GENERAL

Oil pressure

Oil filter

Oil cooler

Lubricating oil pump

Oil consumption

Example:
Average measured fuel consumption: 25 litres /
100 km = 250 litres / 1000 km
Maximum permissible engine oil consumption:
0.5% x 250 = 1.25 litres / 1000 km

-

Engine oil consumption of 1.25 litres /
1000 km is permissible

-

Engine oil consumption > 1.25 litres /
1000 km; check the engine using the
diagnostics table. See "Diagnostics".

Lubricating oil pressure at engine idling speed

min. 0.69 bar

Lubricating oil pressure at full-load engine speed

min. 2.07 bar

Bypass pressure regulator opening pressure

3.52 bar

Type

disposable filter

Number

1

Installation in the oil circuit

full flow

Oil section test pressure

4.5 - 5.0 bar

Opening pressure of bypass valve at a pressure
difference of

3.45 bar

Maximum clearance, inner rotor - outer rotor

0.178 mm

Maximum clearance, outer rotor - lubricating oil
pump housing

0.381 mm

Maximum flatness of inner/outer rotor versus
straight edge

0.127 mm

Backlash (disassembled)

0.25 - 0.30 mm

Idler gear backlash (assembled)

0.15 - 0.25 mm

Oil pump gear backlash (assembled)

0.30 - 0.50 mm

Maximum permissible engine oil consumption

0.5% of the average fuel consumption

TECHNICAL DATA

3-2

©

 200351

CE-engine lubrication system

0

ΧΦ65/75/85 series

2

3.2 TIGHTENING TORQUES

The tightening torques specified in this section
are different from the standard tightening torques
cited in the overview of the standard tightening
torques. The other threaded connections not
specified must therefore be tightened to the
torque cited in the overview of standard
tightening torques.

When attachment bolts and nuts are replaced, it
is important that - unless stated otherwise - these
bolts and nuts are of exactly the same length and
property class as those removed.

Oil filter

Oil sump

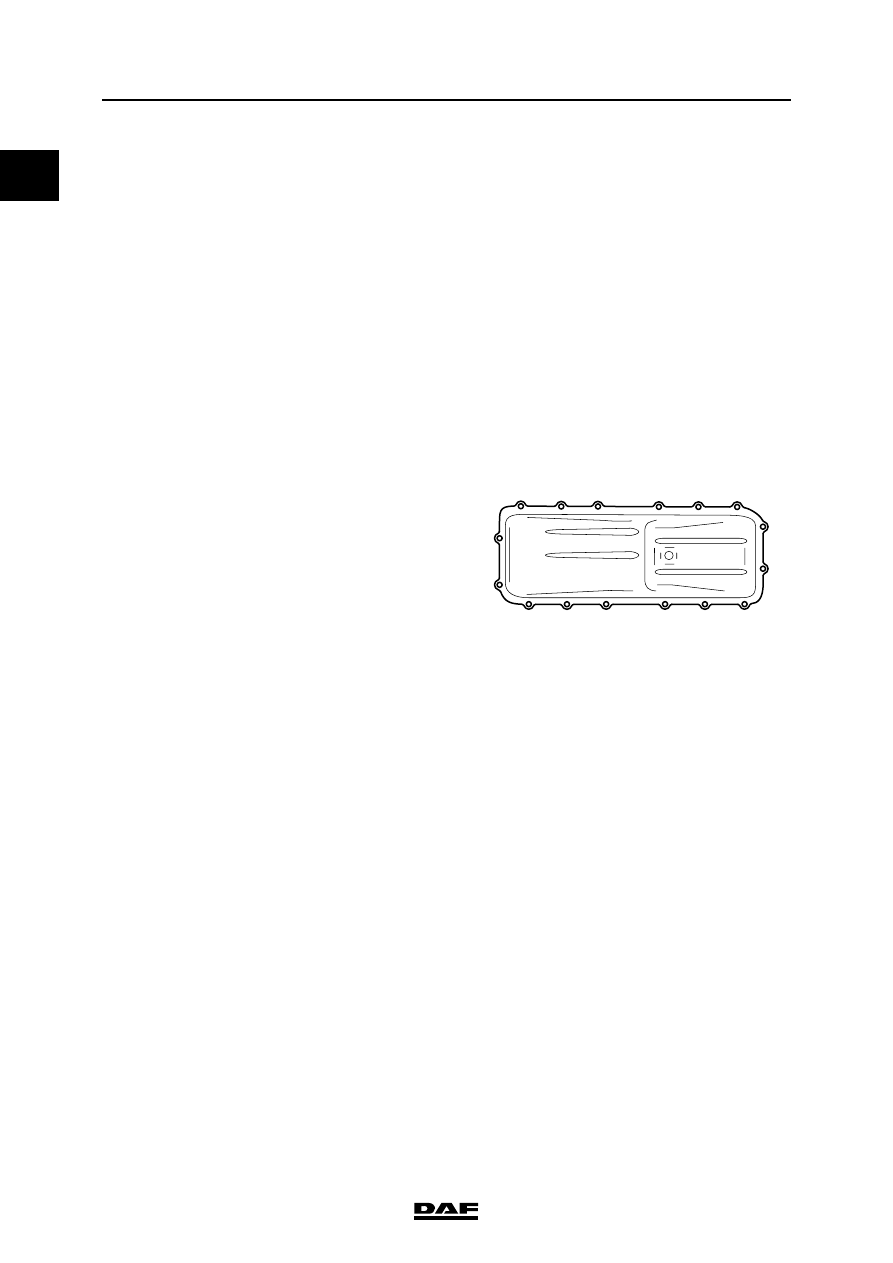

(1) Tighten the attachment bolts in the order indicated

Strainer

Bypass pressure regulator

Attachment bolts to connect filter head to engine
block

24 Nm

11

1

3

9

12

4

2

10

M201079

16

14

13

15

5

7

6

8

Oil sump attachment
bolts

24 Nm

(1)

Oil drain plug

60 Nm

Suction tube attachment bolts

24 Nm

Plug

80 Nm
