Removal and installation

ACCESSORIES

ΧΦ65/75/85 series

1

8

3.8 REMOVAL AND INSTALLATION, AIR HORN

Removing air horn on roof spoiler
1.

Remove the attachment bolts from the air
horn and remove the air horn from the roof
spoiler.

Note:
If, after removal of the attachment bolts, the air
horn cannot be removed from the spoiler, the air
horn has been retrofitted as an accessory. In this
case, detach the air pipe on the inside of the
spoiler.

Installing air horn on roof spoiler
1.

Fit the air horn to the roof spoiler using
attachment bolts.

Removing air horn on roof
1.

Remove the attachment bolts from the air
horn and remove the air horn from the roof.

Note:
If, after removal of the attachment bolts, the air
horn cannot be removed from the roof, the air
horn has been retrofitted as an accessory. In this
case, remove the headlining to disconnect the air
pipe.

Installing air horn on roof
1.

Fit the air horn to the roof using attachment
bolts.

ACCESSORIES

3-10

©

 200346

Removal and installation

8

ΧΦ65/75/85 series

1

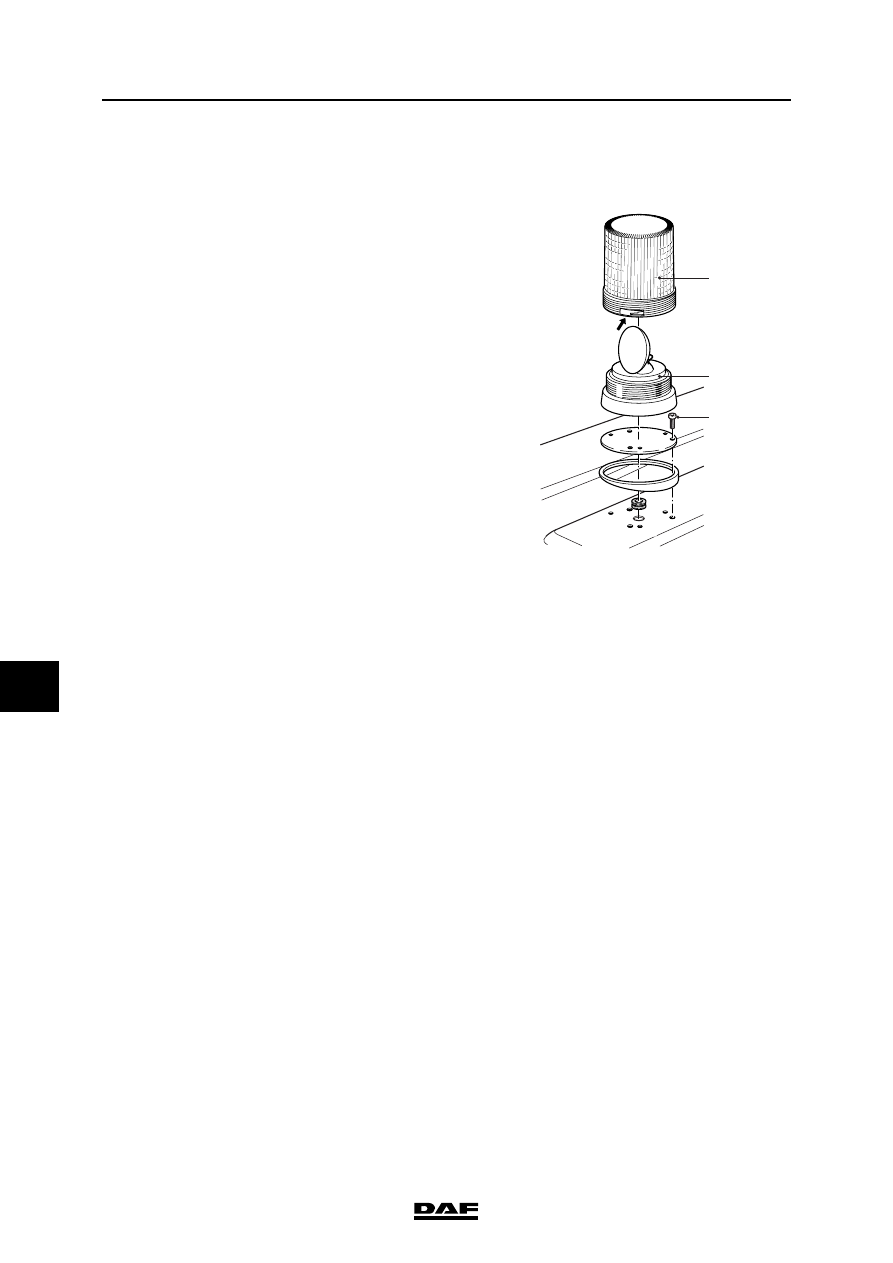

3.9 REMOVAL AND INSTALLATION, ROTATING BEACON

Removing rotating beacon
1.

Remove the glass (1) of the rotating beacon
by pressing the locking clip at the bottom of
the glass and turning the glass
counterclockwise out of the lamp socket (2).

2.

Loosen the connector.

3.

Remove the three attachment bolts (3) and
remove the lamp socket from the roof.

Installing rotating beacon
1.

Fit the lamp socket (2) to the roof and tighten
the attachment bolts (3).

2.

Fit the connector.

3.

Turn the glass (1) of the rotating beacon
clockwise onto the lamp socket (2). Continue
turning the glass until the locking clip 'clicks'
into the lock.

K1 01 414

1

2

3

©

 200346

3-11

Removal and installation

ACCESSORIES

ΧΦ65/75/85 series

1

8

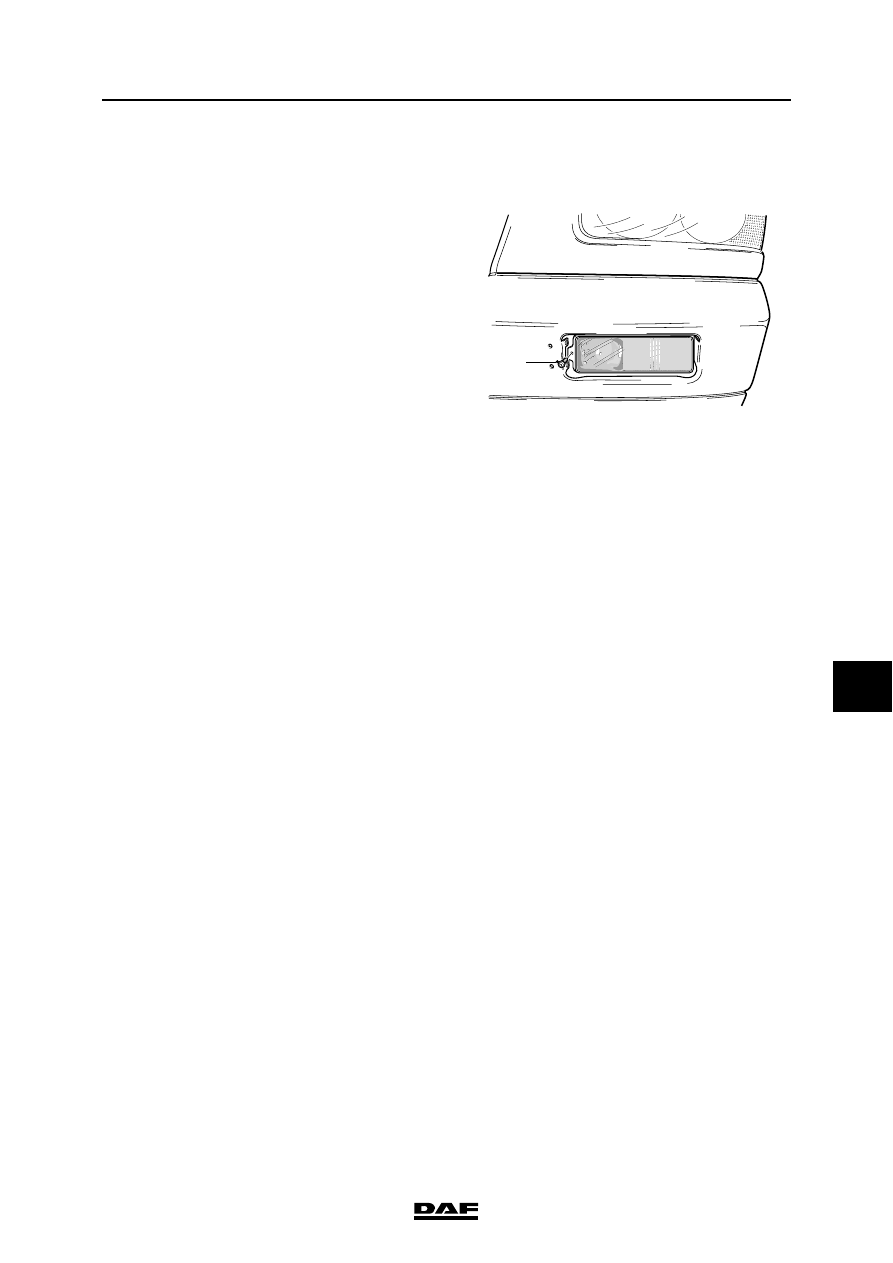

3.10 REMOVAL AND INSTALLATION, COMBI-LIGHT

Removing combi-light
1.

Remove the combi-light connector.

2.

Remove the attachment screw (1) and take
the combi-light out of the bumper.

Installing combi-light
1.

Fit the combi-light with attachment screw (1)
into the bumper.

2.

Fit the combi-light connector.

1

K1 01 358

ACCESSORIES

3-12

©

 200346

Removal and installation

8

ΧΦ65/75/85 series

1

3.11 REMOVAL AND INSTALLATION, 2

nd

 BUNK

Removing 2nd bunk, sleeper cab
1.

Remove the mattress and the bunk shelf
from the bunk frame.

2.

Remove the attachment bolts of the clamp
belt from the cab roof.

3.

Remove the attachment bolts of the bunk
hinges from the cab rear wall and remove the
bunk.

Installing 2nd bunk, sleeper cab
1.

Install the bunk and tighten the attachment
bolts of the bunk hinges to the cab rear wall.

2.

Fit the attachment bracket of the clamp belt
in the cab roof using the attachment bolts.

3.

Fit the bunk shelf and the mattress in the
bunk frame.

Removing 2nd bunk (cab with raised roof)
1.

Remove the mattress and the undermattress
from the bunk frame.

2.

Remove the attachment bolts of the clamp
belt from the cab roof.

3.

Remove the sealing plugs and the
attachment bolts of the bunk supports from
the cab rear wall and remove the bunk from
the cab.

Installing 2nd bunk (cab with raised roof)
1.

Place the bunk in the cab and fit the
attachment bolts and sealing plugs of the
bunk supports in the cab rear wall.

2.

Fit the attachment bracket of the clamp belt
in the cab roof using the attachment bolts.

3.

Fit the mattress and the undermattress in the
bunk frame.
