DAF CF65, CF75, CF85 Series . Manual - part 138

©

 200346

4-13

Removal and installation

CAB SUSPENSION

ΧΦ65/75/85 series

1

5

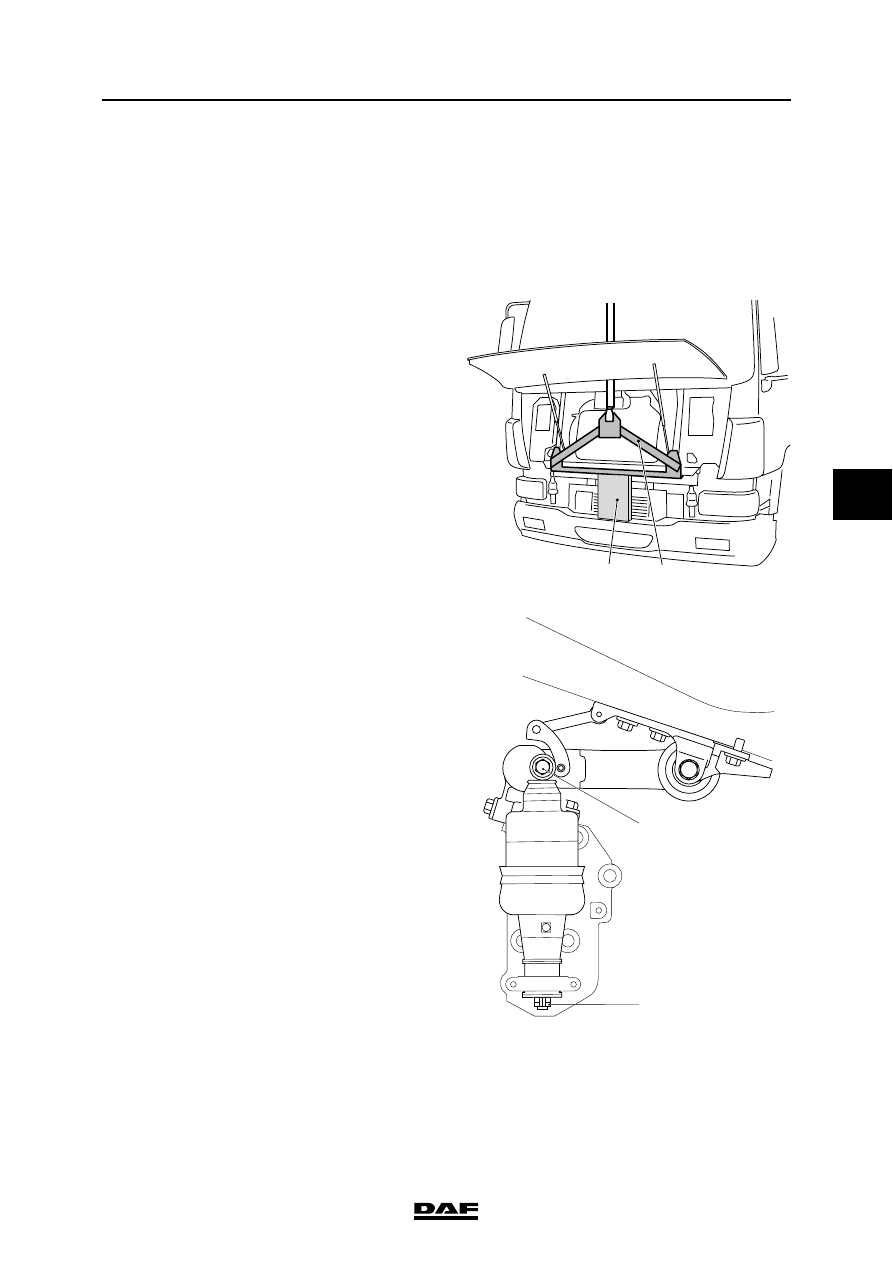

4.7 REMOVAL AND INSTALLATION, FRONT AIR SUSPENSION

}

When working on the cab
suspension provide extra supports
for the cab to avoid the risk of being
trapped.

Removing front air suspension
1.

Remove the corner pieces around the
headlights and the vehicle grille.

Note:
Do not raise the cab more than 10 cm
because of the available length of piping and
cables.

2.

Place the hoist yoke (A) (DAF no. 1329487)
and lift the cab at the front.

}

Place a block (B) or similar support
under the cab before working
underneath it.

3.

Remove the attachment nut from the spring
element (B) at the bottom.

4.

Remove attachment bolt (A) from the spring
element at the top.

5.

Remove the air pipe from the spring element.

6.

Remove the spring element.

K1 01 063

A

B

A

B

K1 01 107

CAB SUSPENSION

4-14

©

 200346

Removal and installation

5

ΧΦ65/75/85 series

1

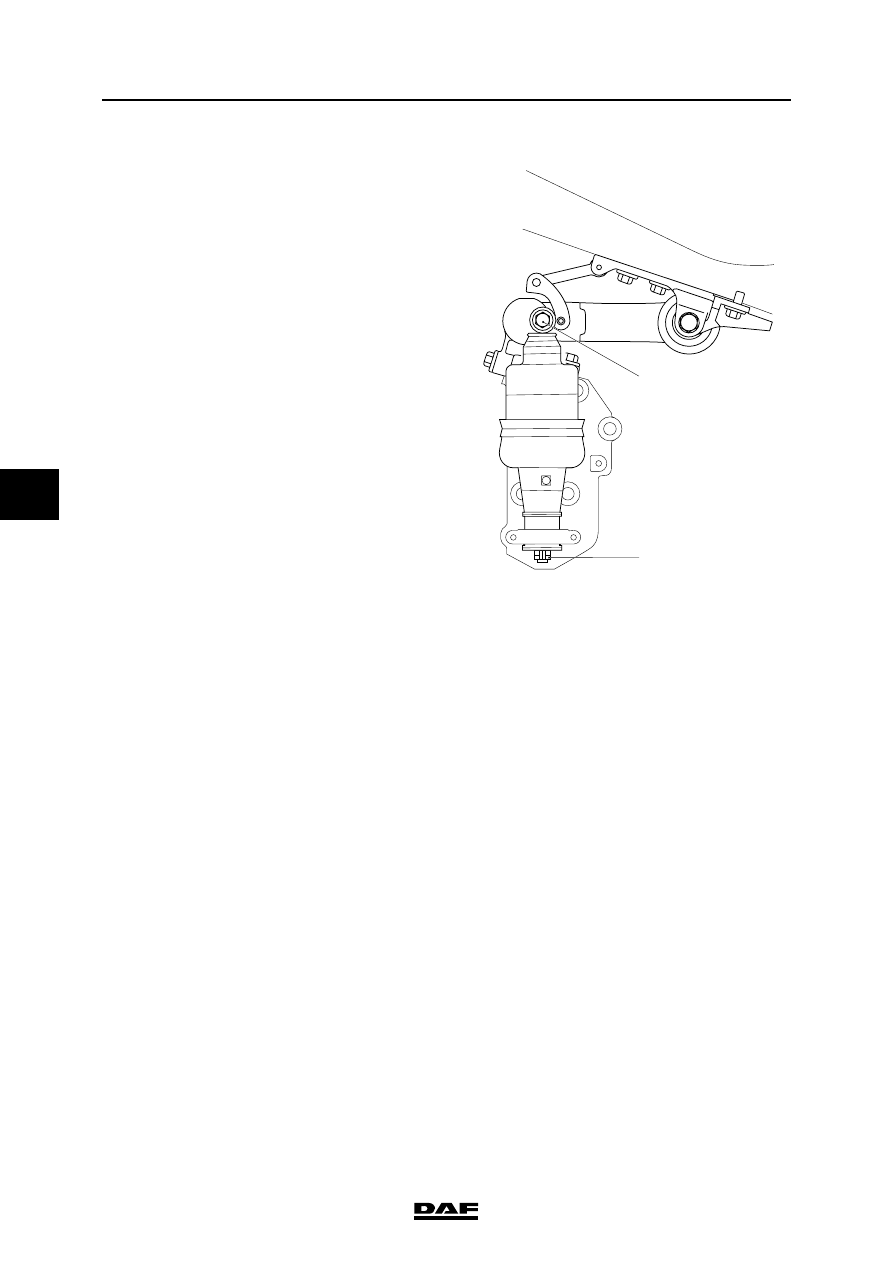

Installing front air suspension
1.

Put the spring element in place. Fit the
attachment bolt (A) at the top and tighten it to
the specified tightening torque, see
"Technical data".

2.

Connect the air pipe.

3.

Remove the block (or support)

4.

Lower the cab carefully and fit the
attachment nut (B) at the bottom. Tighten the
nut to the specified tightening torque, see
"Technical data".

5.

Remove the lifting yoke.

6.

Fit the corner pieces and the vehicle grille.

A

B

K1 01 107

©

 200346

4-15

Removal and installation

CAB SUSPENSION

ΧΦ65/75/85 series

1

5

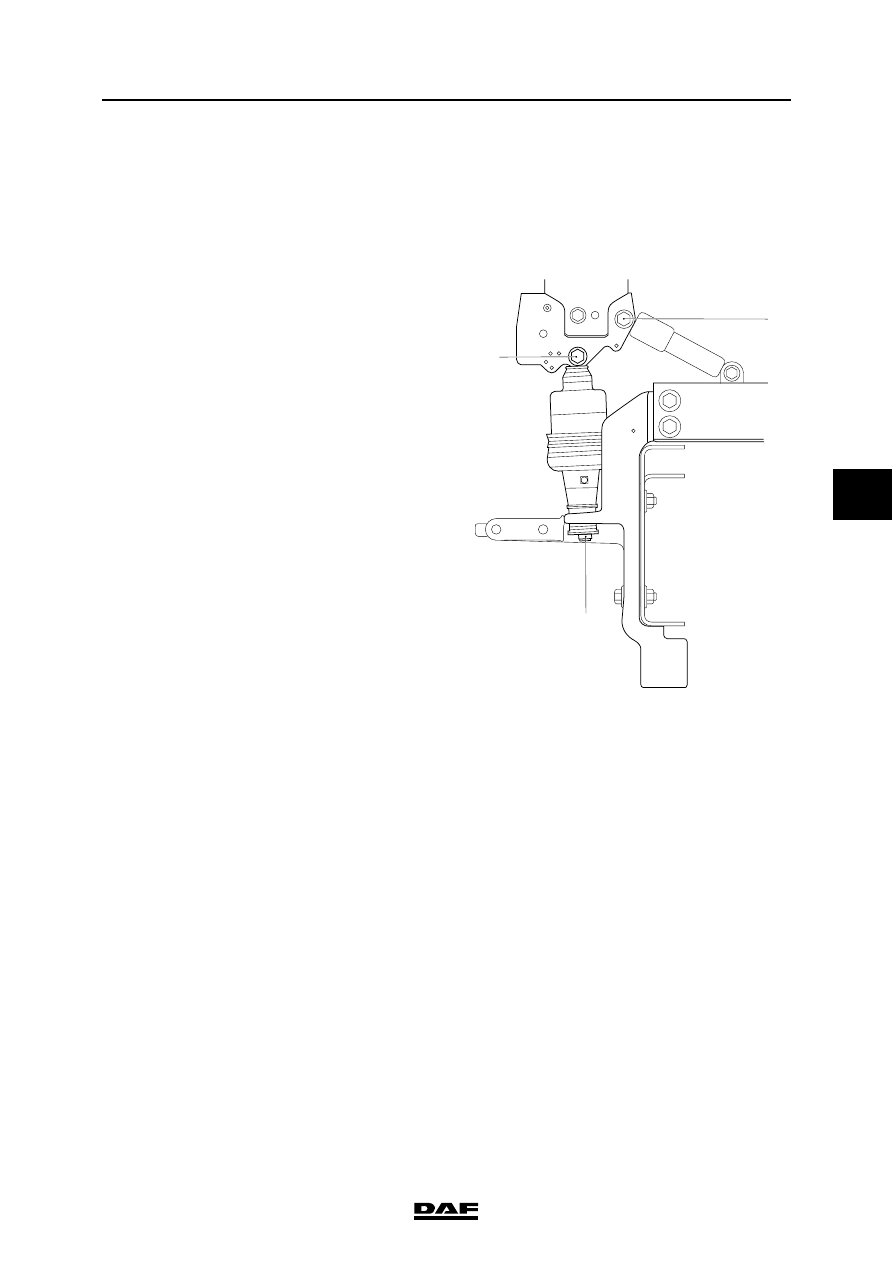

4.8 REMOVAL AND INSTALLATION, REAR AIR SUSPENSION

Removing rear air suspension
1.

Tilt the cab forward.

2.

Remove the air pipes

3.

Remove attachment bolt (B) from the
horizontal damper.

4.

Remove attachment bolt (A) from the cab
locking mechanism..

5.

Lay the cab locking mechanism to one side.

6.

Remove the attachment nut (C) at the
bottom.

7.

Remove the spring element.

Installing rear air suspension
1.

Put the spring element in place.

2.

Connect the air pipe.

3.

Fit the attachment nut (C) at the bottom.
Tighten the nut to the specified tightening
torque, see "Technical data".

4.

Fit the cab locking mechanism. Fit
attachment bolt (A) but do not tighten it yet.

5.

Fit attachment bolt (B) of the horizontal
damper. Do not yet tighten the bolt to the
specified tightening torque.

6.

Tilt the cab back.

7.

Tighten attachment bolt (B) of the horizontal
damper to the specified tightening torque,
see "Technical data".

8.

Tighten attachment bolt (A) of the cab
locking mechanism to the specified
tightening torque, see "Technical data".

K1 01 108

A

C

B

CAB SUSPENSION

4-16

©

 200346

Removal and installation

5

ΧΦ65/75/85 series

1

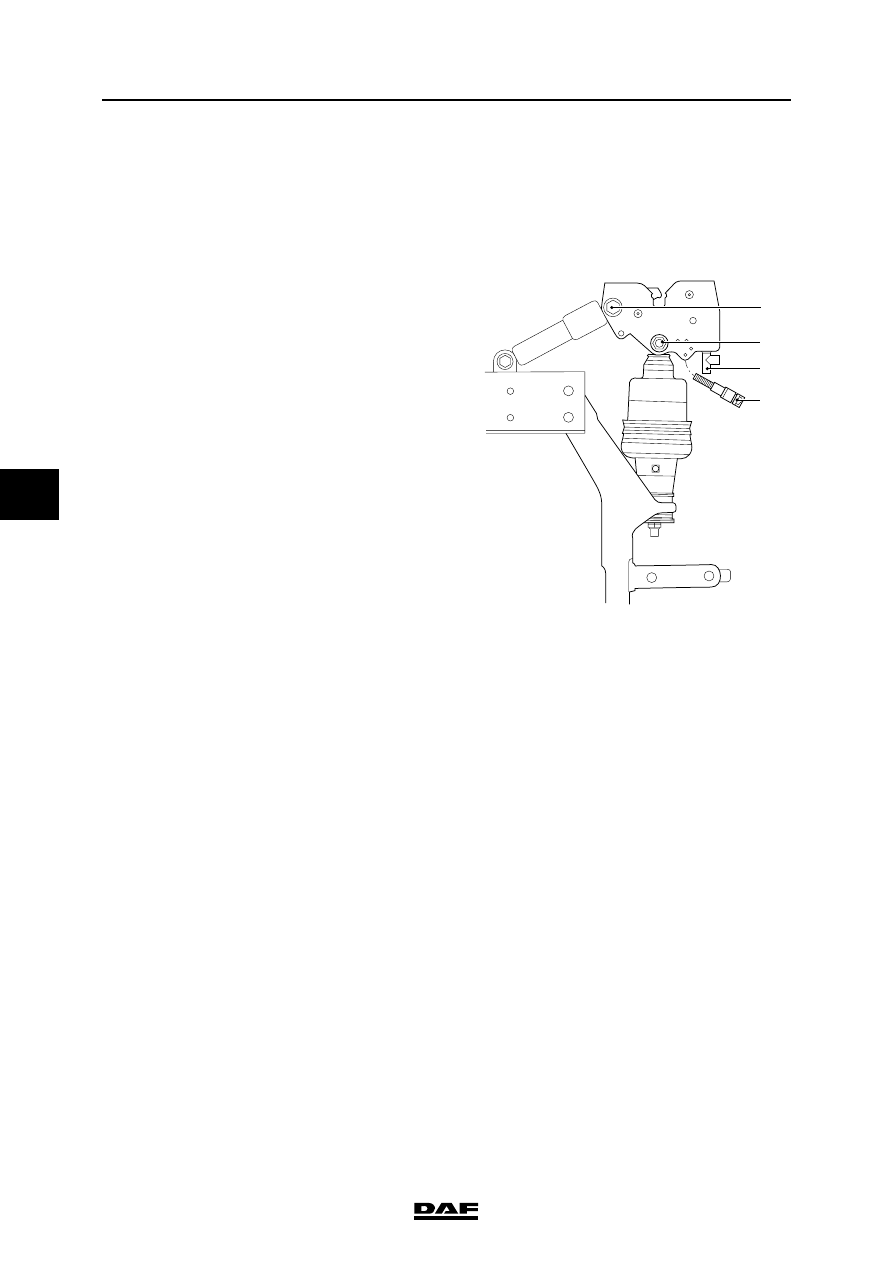

4.9 REMOVAL AND INSTALLATION, CAB LOCKING MECHANISM

Removing cab locking mechanism
1.

Tilt the cab.

2.

Switch the tilting pump to reverse tilting.

3.

Remove the proximity switch connector (D)
on the right-hand side.

4.

Remove the hydraulic line (C) and plug it.
Collect any oil flowing out of the system.

5.

Remove the attachment bolts (A) and (B).

6.

Remove the cab lock.

Installing cab locking mechanism
1.

Fit the cab locking mechanism. Do not yet
tighten the attachment bolts to the specified
tightening torque.

2.

Connect the connector (D) of the proximity
switch.

3.

Connect the hydraulic line (C).

4.

Carefully lower the cab. When doing so,
ensure that the locks are open.

5.

Tighten the attachment bolts to the specified
torque. See "Technical data".

6.

Bleed the tilting mechanism.

B

D

A

K1 01 109

C
