Removal and installation

CAB SUSPENSION

ΧΦ65/75/85 series

1

5

4.2 REMOVAL AND INSTALLATION, CAB STABILISER BEARING BRACKET

}

When working on the cab
suspension provide extra supports
for the cab to avoid the risk of being
trapped.

Removing cab stabiliser bearing bracket
1.

Remove the cab stabiliser.

2.

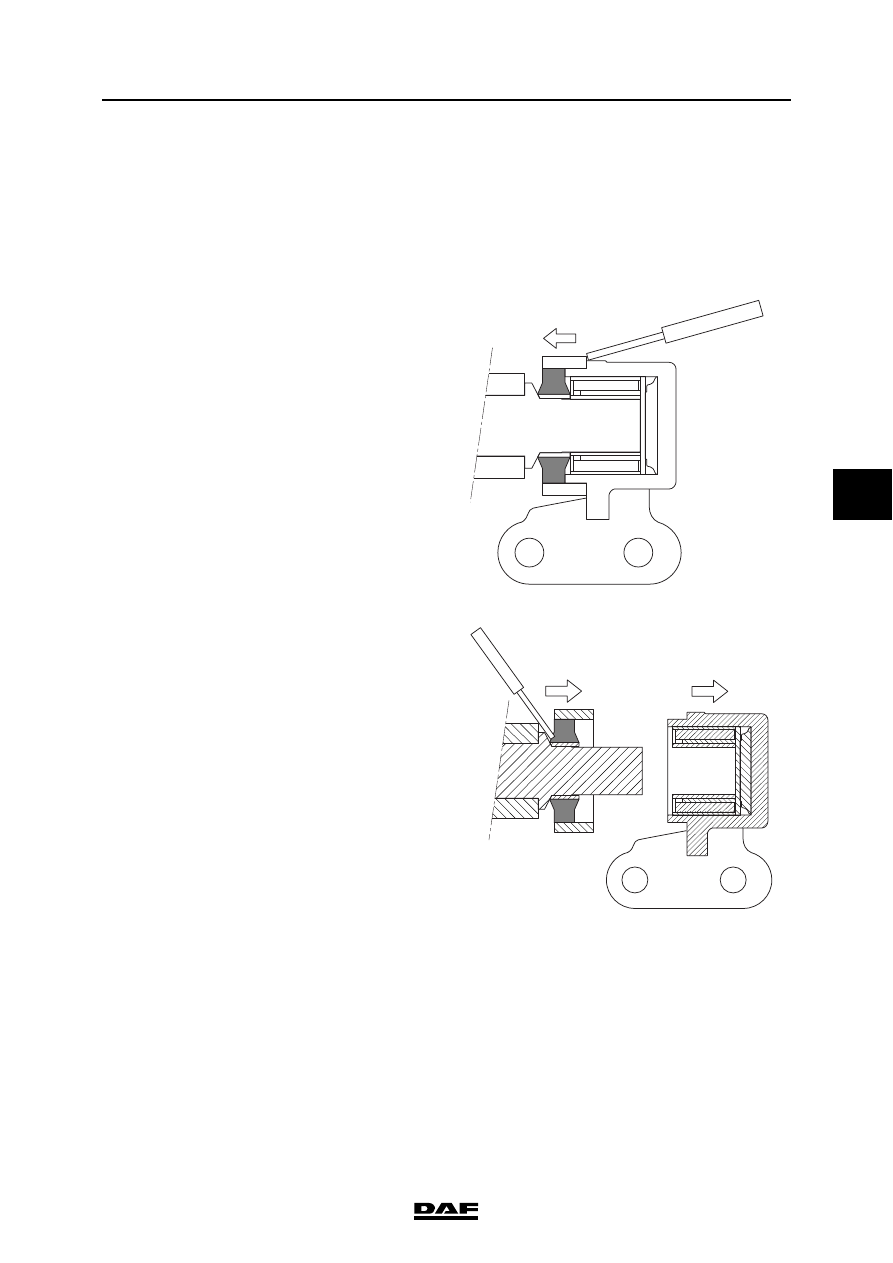

Using a punch, remove the outer ring (1) and
rubber seal from the bearing bracket.

3.

Remove the bearing bracket (2).

4.

Using a punch, remove the inner ring (3)
from the cab stabiliser.

;;

;;

;;

;;

;;

;;;;

;;;;

;;;;

;;;;

;;;;

;;;;;

;;;;;

;;;;;

;;

;;;;

;;;;

;;;;

;;;;

;;;;

;;;;;

;;;;;

;;;;;

;;;;;

;;;;;

;;;;;

;;;;;

;;;;;

;;

;;

;;

;

;

;

;

;;

;;

;;

;;

1

K1 00 939

2

3

K1 00 940

CAB SUSPENSION

4-6

©

 200346

Removal and installation

5

ΧΦ65/75/85 series

1

Installing cab stabiliser bearing bracket

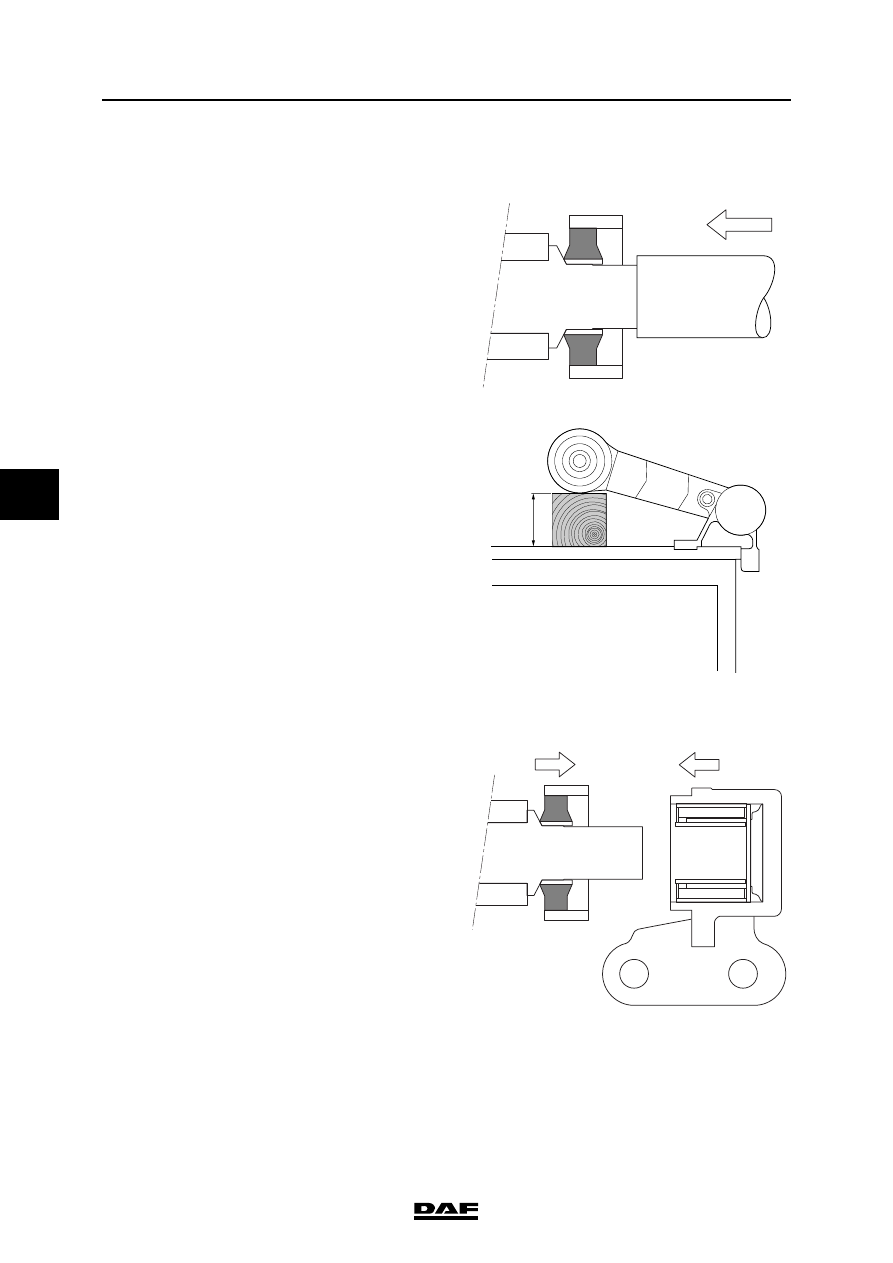

1.

Fit the rubber seal on the cab stabiliser using
a steel tube.

2.

Position the cab stabiliser and bearing
bracket as indicated, using an 80 mm
block (A).

3.

Pull the outer ring (3) using a pulley puller
(trade tool) on the bearing bracket (2).

4.

Put the cab stabiliser in place.

;;

;;

;;;

;;

;;

;;

;;

;;;;;;

;;;;;;

;;;;;;

;;;

;;

;;

K1 01 069

A

K1 01 001

;;

;;

;;

;;

;;

;;;;

;;;;

;;;;

;;;;

;;;;

;;

;;;;;

;;;;;

;;;;;

;;

;;;;

;;;;

;;;;

;;;;

;;;;

;;

;;;;;

;;;;;

;;;;;

;;;;;

;;;;;

;;;;;

;;;;;

;;;;;

;

;

;

;

2

3

K1 01 115

;;

;;

;;

;;

©

 200346

4-7

Removal and installation

CAB SUSPENSION

ΧΦ65/75/85 series

1

5

4.3 REMOVAL AND INSTALLATION, CAB SUPPORT

}

When working on the cab
suspension provide extra supports
for the cab to avoid the risk of being
trapped.

Removing cab support
1.

Remove the cab stabiliser.

2.

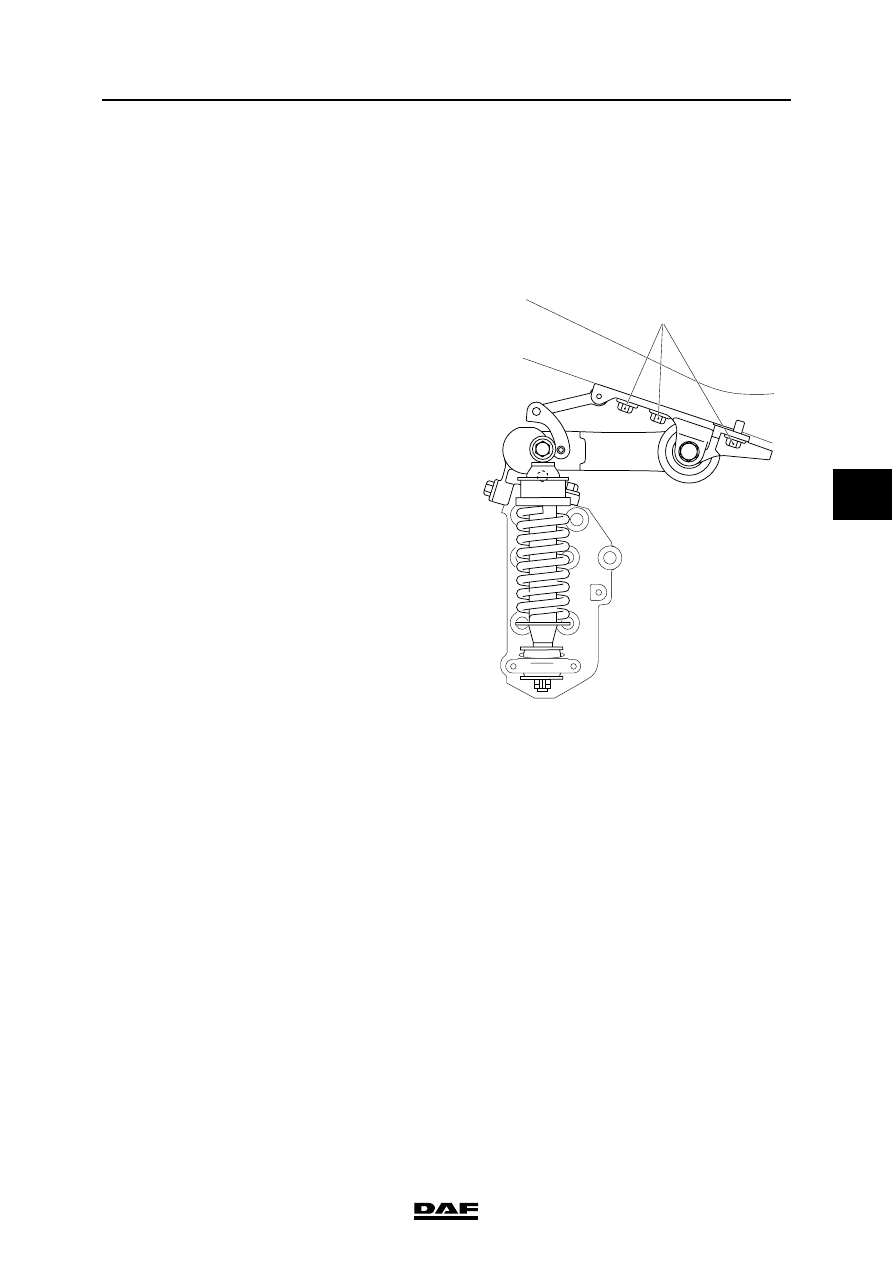

Remove the attachment bolts (A) from the
cab support and remove the cab support.

Installing cab support
1.

Fit the cab support and tighten the
attachment bolts to the specified torque. See
"Technical data".

2.

Put the cab stabiliser in place.

A

K1 01 091

CAB SUSPENSION

4-8

©

 200346

Removal and installation

5

ΧΦ65/75/85 series

1

4.4 REMOVAL AND INSTALLATION, CAB STABILISER SILENTBLOCKS

}

When working on the cab
suspension provide extra supports
for the cab to avoid the risk of being
trapped.

Removing cab stabiliser silentblocks
1.

Remove the cab support.

2.

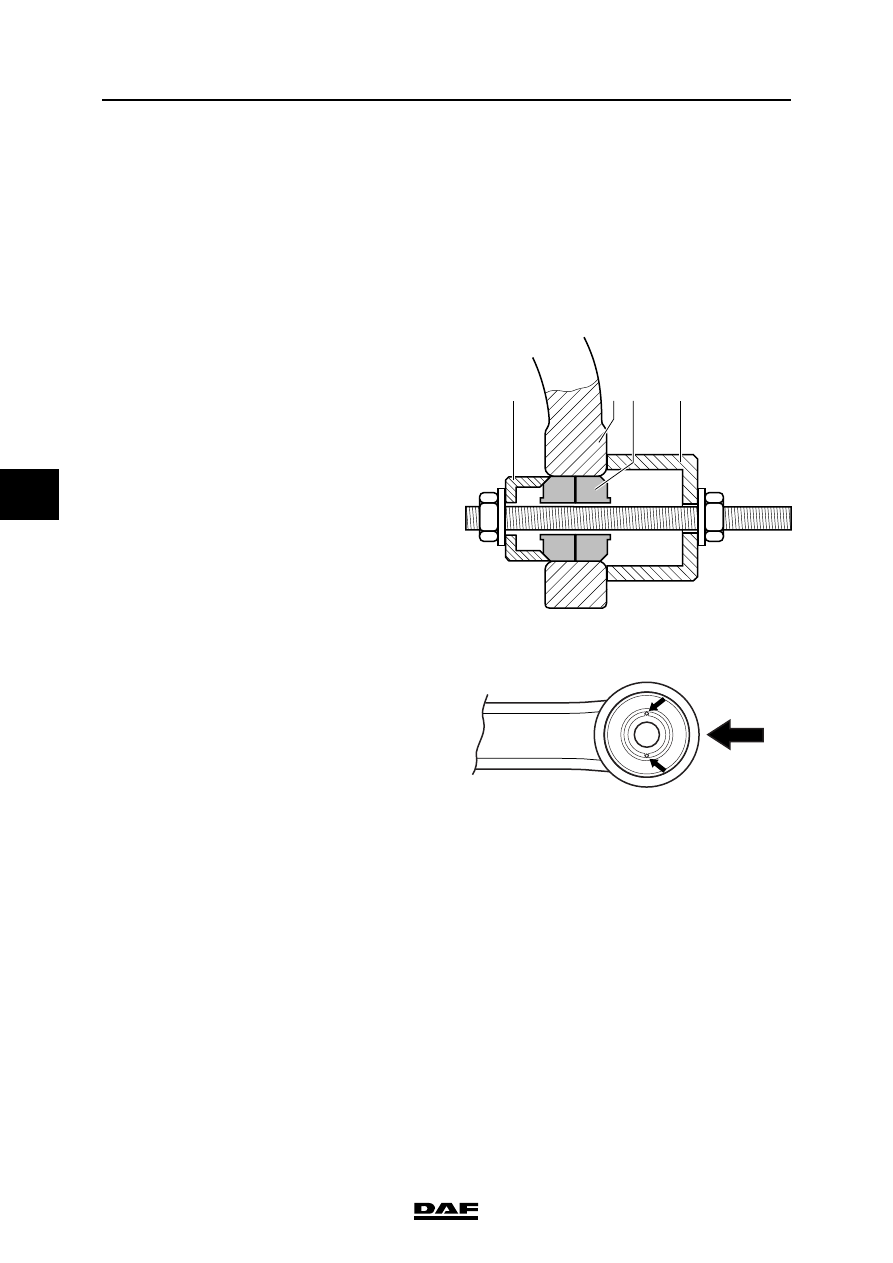

Force the silentblock (1), using the puller (A),
special tool (DAF no. 1329486), from the cab
stabiliser (2).

Installing cab stabiliser silentblocks

Note:
Fit the silentblocks with the marks in vertical
position, as shown in the illustration (cab in
driving position). The arrow (A) shows the driving
direction.

K1 01 410

A

A

1

2

K1 01 411

A
