Draining and filling

EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES

ΧΦ75 series

5

5.4 BLEEDING THE FUEL SYSTEM

While bleeding the fuel system, fuel

will escape. Collect the fuel to avoid

the risk of fire.

Dirt in the fuel system can lead to

significant damage to pump units

and housing.

Note:

The fuel system has to be bled if it has been

opened; this can be done in two ways.

-

With the fuel lift pump

-

By pressurising the fuel tank

Bleeding using the fuel lift pump
1.

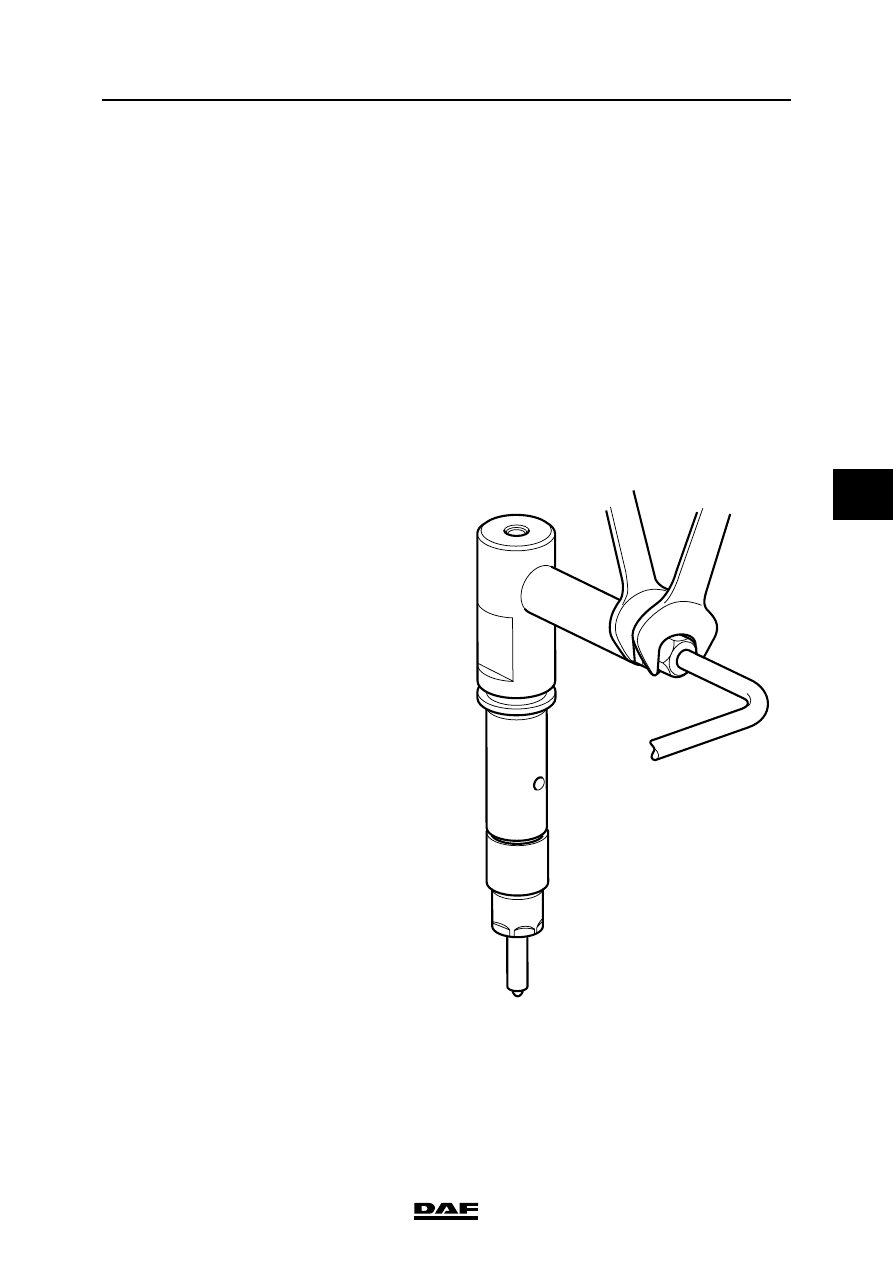

Loosen the union nut on the injector.

2.

Pump fuel out of the injector pipe with the

primer pump until no more air bubbles are

visible in the fuel.

3.

Tighten the union nut to the specified torque,

see "Technical data".

4.

Repeat points 1, 2 and 3 for the other

injectors.

}

}

i 400237

EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES

5-6

©

 200423

Draining and filling

5

ΧΦ75 series

Bleeding by pressurising the fuel tank

To prevent deformation of the fuel

tank, the delivery pressure in the fuel

tank must not exceed 0.4 bar.

1.

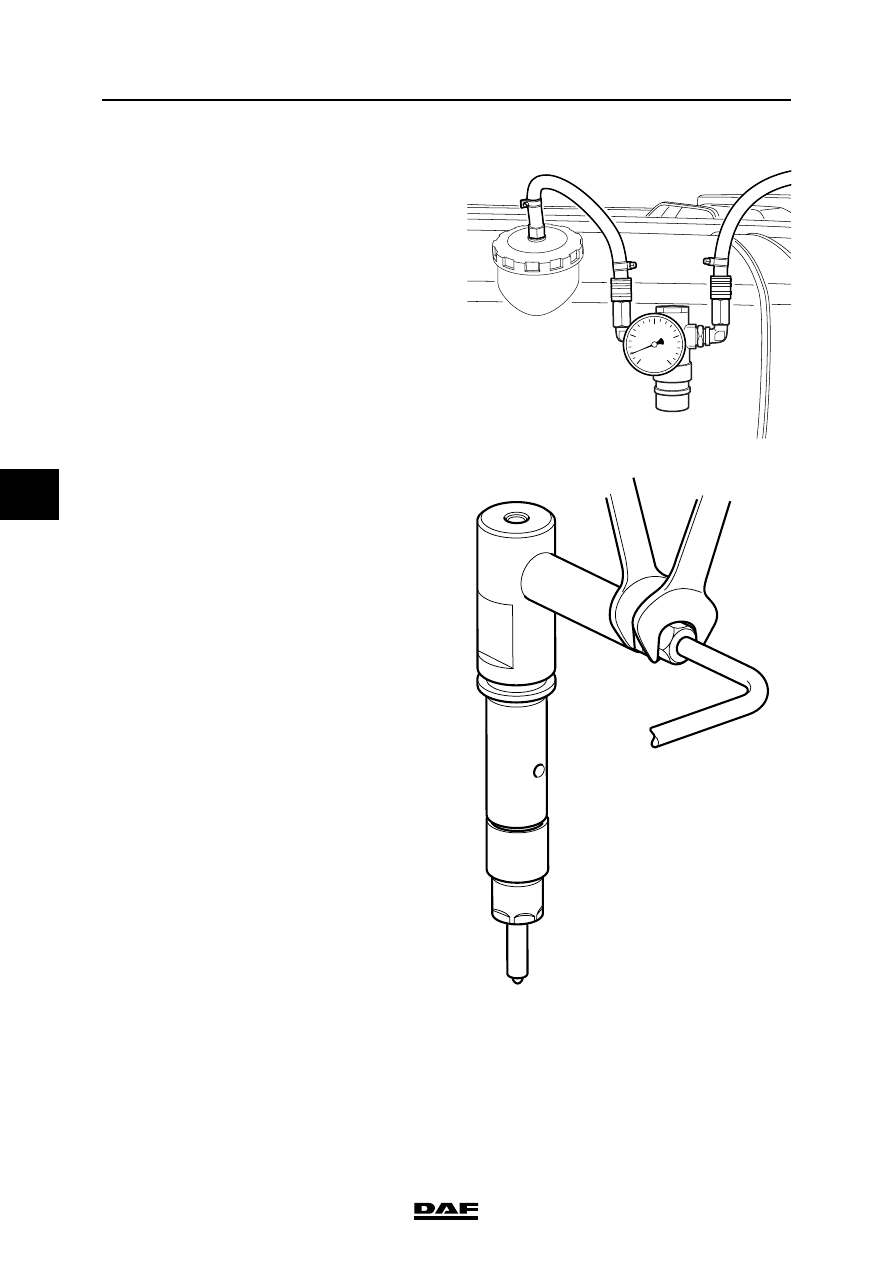

Remove the fuel tank cap and replace it by a

cap with an adjustable air connection.

Note:

Use a cap (without a vent) that has a

connection for a pressure reducer valve.

2.

Pressurise the tank to a maximum of 0.2 bar.

3.

Loosen the union nut on the injector.

4.

Tighten the union nut to the specified torque,

see "Technical data".

5.

Repeat points 1, 2 and 3 for the other

injectors.

Drive and chassis

i400600

1

3

0

4

2

}

i 400237

©

 200423

5-7

Draining and filling

EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES

ΧΦ75 series

5

5.5 DRAINING AND FILLING, DIFFERENTIAL

To prevent skin injury, avoid

unnecessary contact with the

drained oil.

Version: 1339 and 1347 axles

Draining the differential
1.

Position the vehicle on a level surface.

2.

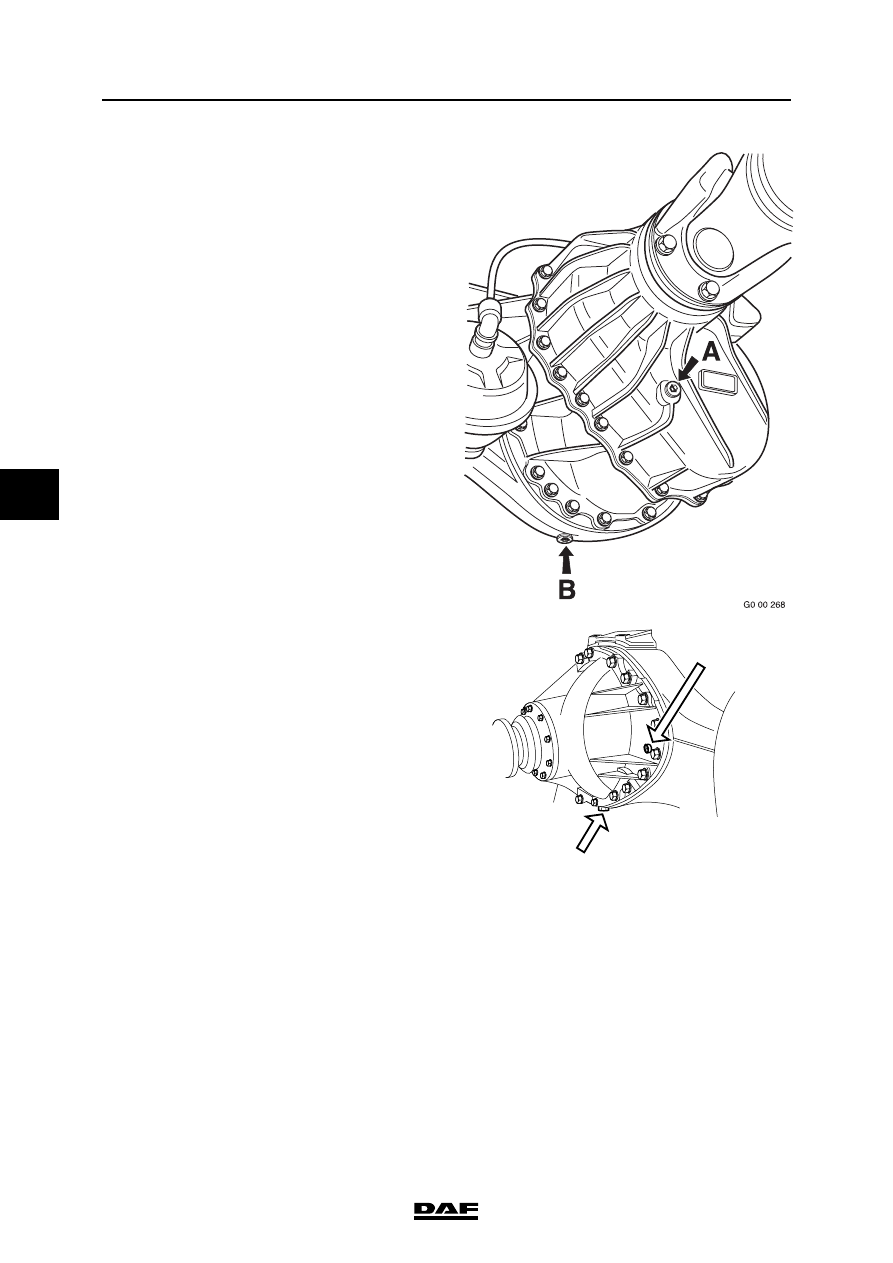

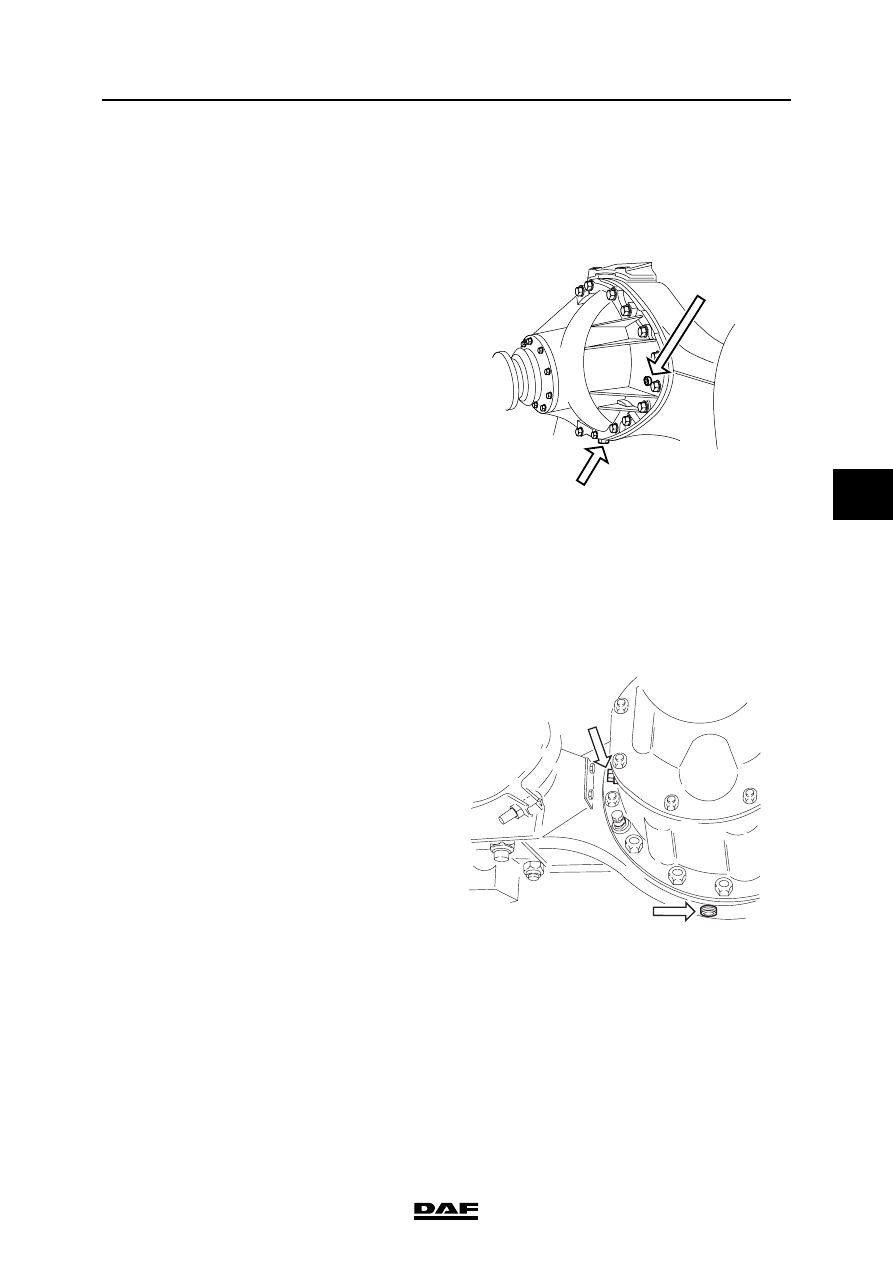

Remove the level check/filler plug (A) and

drain plug (B). Drain the oil.

3.

Fit the plug using the special Torx wrench

(DAF no. 1329493) and tighten to the

specified torque; see "Technical data".

Filling the differential
1.

Fill the differential gear through the level

check/filler plug (A) with the specified

quantity of oil; see "Technical data".

2.

Check the oil level after approx. 5 minutes: it

should reach up to the level check/filler plug.

3.

Fit the level check/filler plug (A) using the

special Torx wrench (DAF no. 1329493) and

tighten to the specified torque; see

"Technical data".

Version: 1354 axle

Draining the differential
1.

Position the vehicle on a level surface.

2.

Remove the level check/filler plug (A) and

drain plug (B). Drain the oil.

3.

Fit the plug using the special Torx wrench

(DAF no. 1329493) and tighten to the

specified torque; see "Technical data".

Filling the differential
1.

Fill the differential gear through the level

check/filler plug (A) with the specified

quantity of oil; see "Technical data".

2.

Check the oil level after approx. 5 minutes: it

should reach up to the level check/filler plug.

3.

Fit the level check/filler plug (A) using the

special Torx wrench (DAF no. 1329493) and

tighten to the specified torque; see

"Technical data".

}

M8013

A

B

B

A

M8048

EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES

5-8

©

 200423

Draining and filling

5

ΧΦ75 series

Version: 1132(T) 1st axle

Draining the differential
1.

Position the vehicle on a level surface.

2.

Remove the level check/filler plug (A) and
