 200423

5-9

Draining and filling

EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES

ΧΦ75 series

5

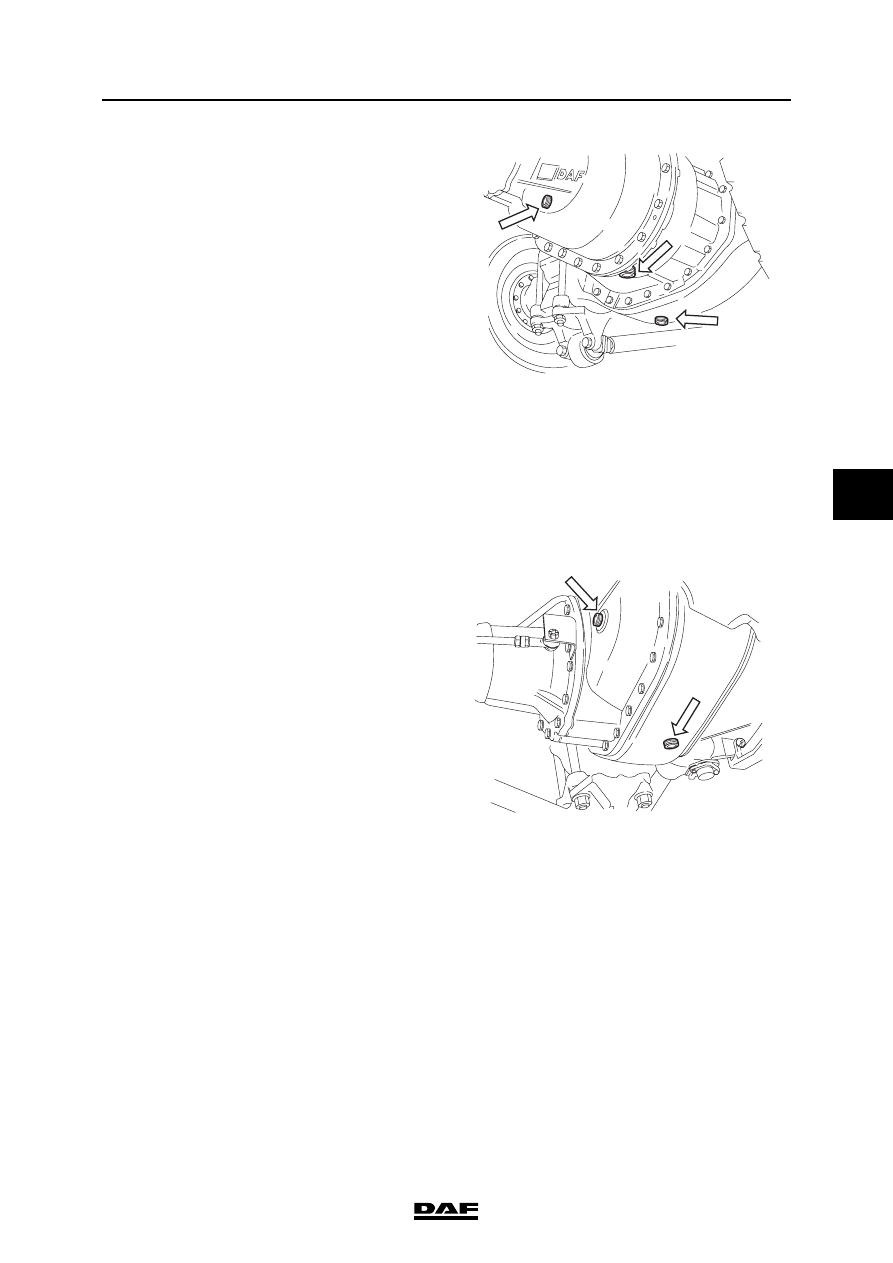

Version: 1355(T) 1st axle

Draining the differential
1.

Position the vehicle on a level surface.

2.

Remove the level check/filler plug (A) and

drain plug (B). Drain the oil.

3.

Fit the plug using the special Torx wrench

(DAF no. 1329493) and tighten to the

specified torque; see "Technical data".

Filling the differential
1.

Fill the differential gear through the level

check/filler plug (A) with the specified

quantity of oil; see "Technical data".

2.

Check the oil level after approx. 5 minutes: it

should reach up to the level check/filler plug.

3.

Fit the level check/filler plug (A) using the

special Torx wrench (DAF no. 1329493) and

tighten to the specified torque; see

"Technical data".

Version: 1355(T) 2nd axle

Draining the differential
1.

Position the vehicle on a level surface.

2.

Remove the level check/filler plug (A) and

drain plug (B). Drain the oil.

3.

Fit the plug using the special Torx wrench

(DAF no. 1329493) and tighten to the

specified torque; see "Technical data".

Filling the differential
1.

Fill the differential gear through the level

check/filler plug (A) with the specified

quantity of oil; see "Technical data".

2.

Check the oil level after approx. 5 minutes: it

should reach up to the level check/filler plug.

3.

Fit the level check/filler plug (A) using the

special Torx wrench (DAF no. 1329493) and

tighten to the specified torque; see

"Technical data".

B

B

A

M8049

B

A

M8050

EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES

5-10

©

 200423

Draining and filling

5

ΧΦ75 series

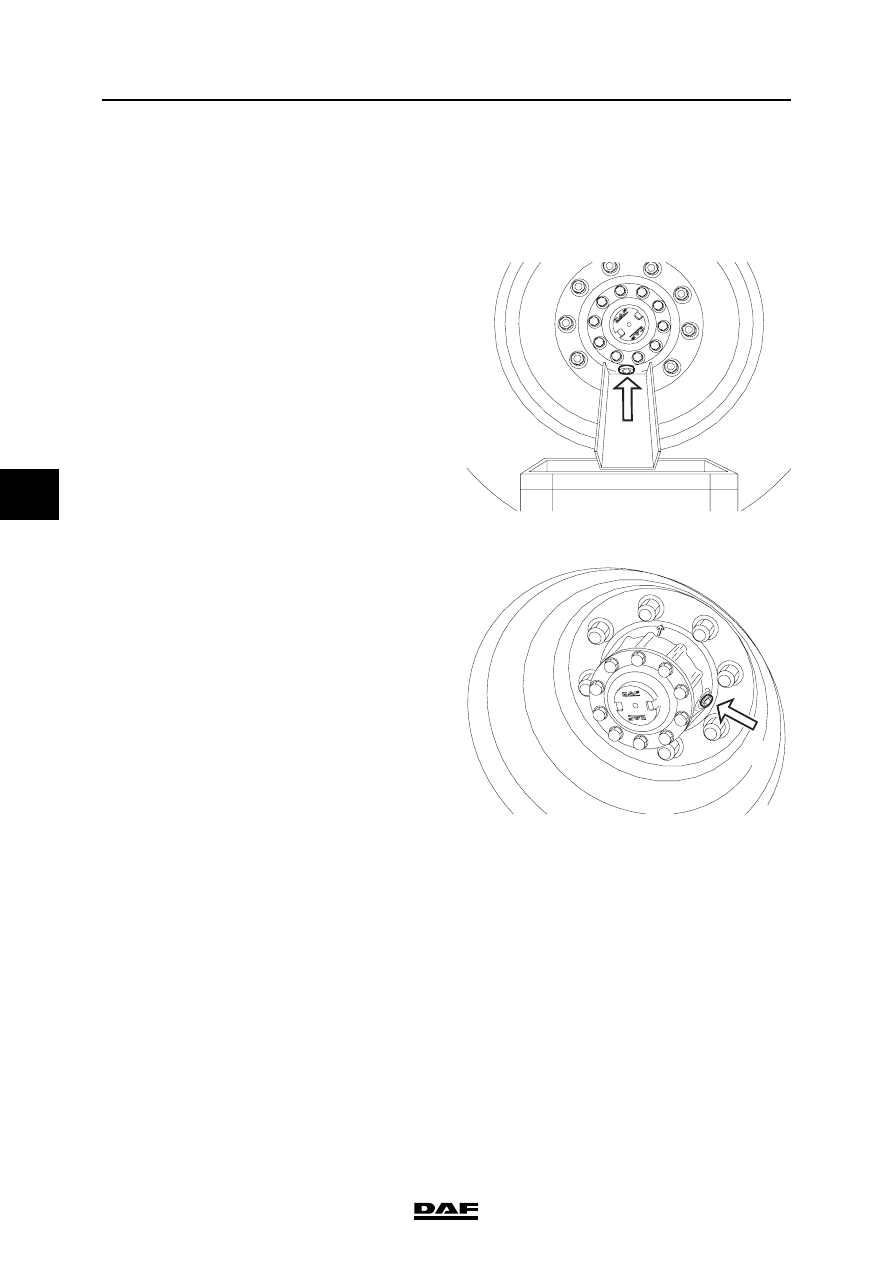

5.6 DRAINING AND FILLING THE WHEEL HUB

To prevent skin injury, avoid

unnecessary contact with the

drained oil.

Version: 1132(T) axle

Draining the wheel hub
1.

Position the vehicle on a level surface.

2.

Position the wheels in such a way that the oil

drain/filler plug (A) is on the underside.

3.

Remove the oil level check plug (B) and oil

drain/filler plug (A).

4.

Drain the oil and let the oil leak out of the

hub.

Filling the wheel hub
1.

Position the wheels so that the arrow on the

wheel hub points upwards. The oil drain/filler

plug (A) is now in the correct position.

2.

Fill the wheel hub with the specified quantity

of oil. See "Technical data".

3.

Check the oil level after approx. 5 minutes: it

should reach up to the level check/filler plug.

4.

Fit the plug using the special tool

(DAF no. 1329493) and tighten the plug to

the specified tightening torque. See

"Technical data".

}

M8010

A

M8009

A

©

 200423

5-11

Draining and filling

EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES

ΧΦ75 series

5

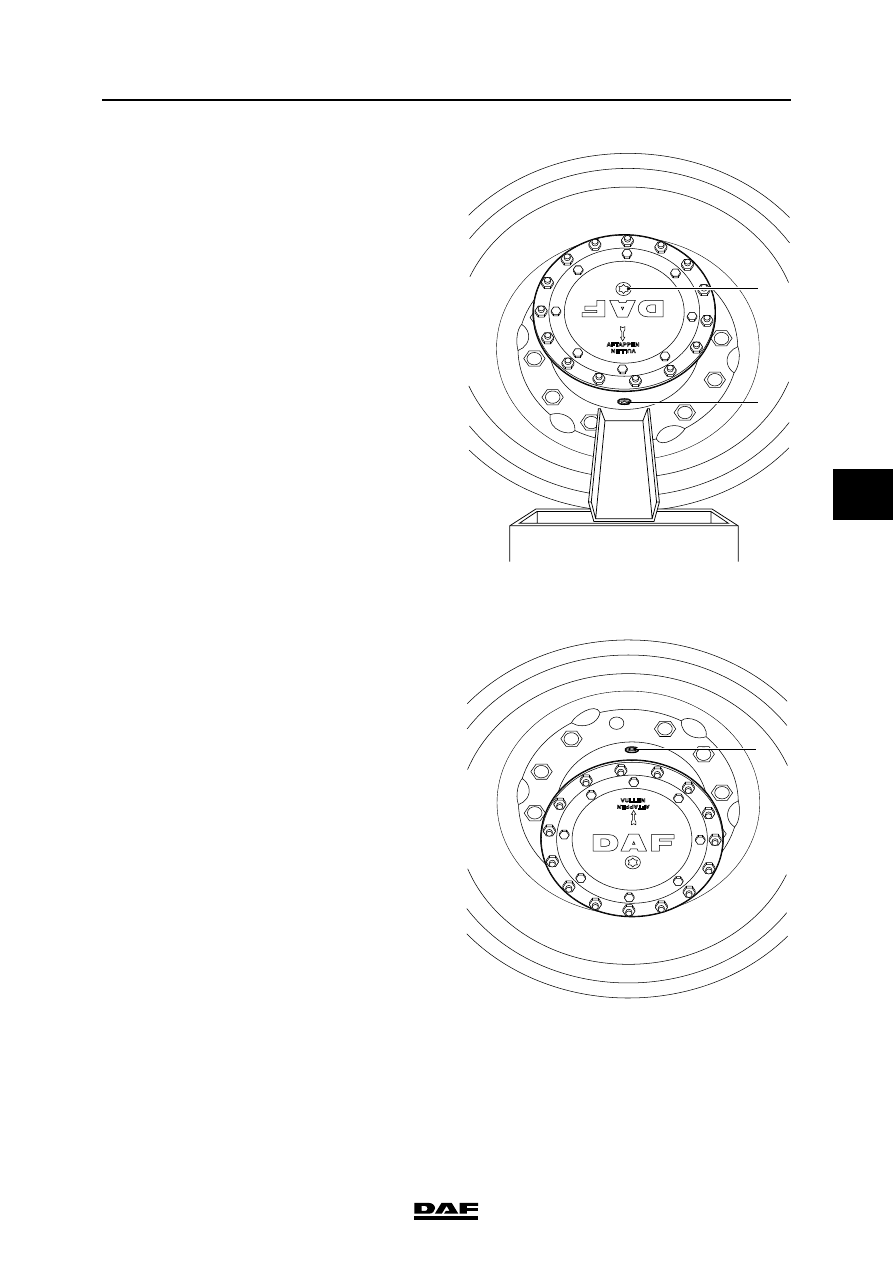

Version: 1354 and 1355(T) axles

Draining the wheel hub
1.

Position the vehicle on a level surface.

2.

Position the wheels in such a way that the oil

drain/filler plug (A) is on the underside.

3.

Remove the oil level check plug (B) and oil

drain/filler plug (A).

4.

Drain the oil and let the oil leak out of the

hub.

Filling the wheel hub
1.

Position the wheels in such a way that the oil

drain/filler plug (A) is at the top.

2.

Fill the wheel hub with the specified quantity

of oil. See "Technical data".

3.

Check the oil level after approx. 5 minutes: it

should reach up to the level check/filler plug.

4.

Fit the plug using the special tool

(DAF no. 1329493) and tighten the plug to

the specified tightening torque. See

"Technical data".

B

A

A8 00 363

A

A8 00 364

EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES

5-12

©

 200423

Draining and filling

5

ΧΦ75 series

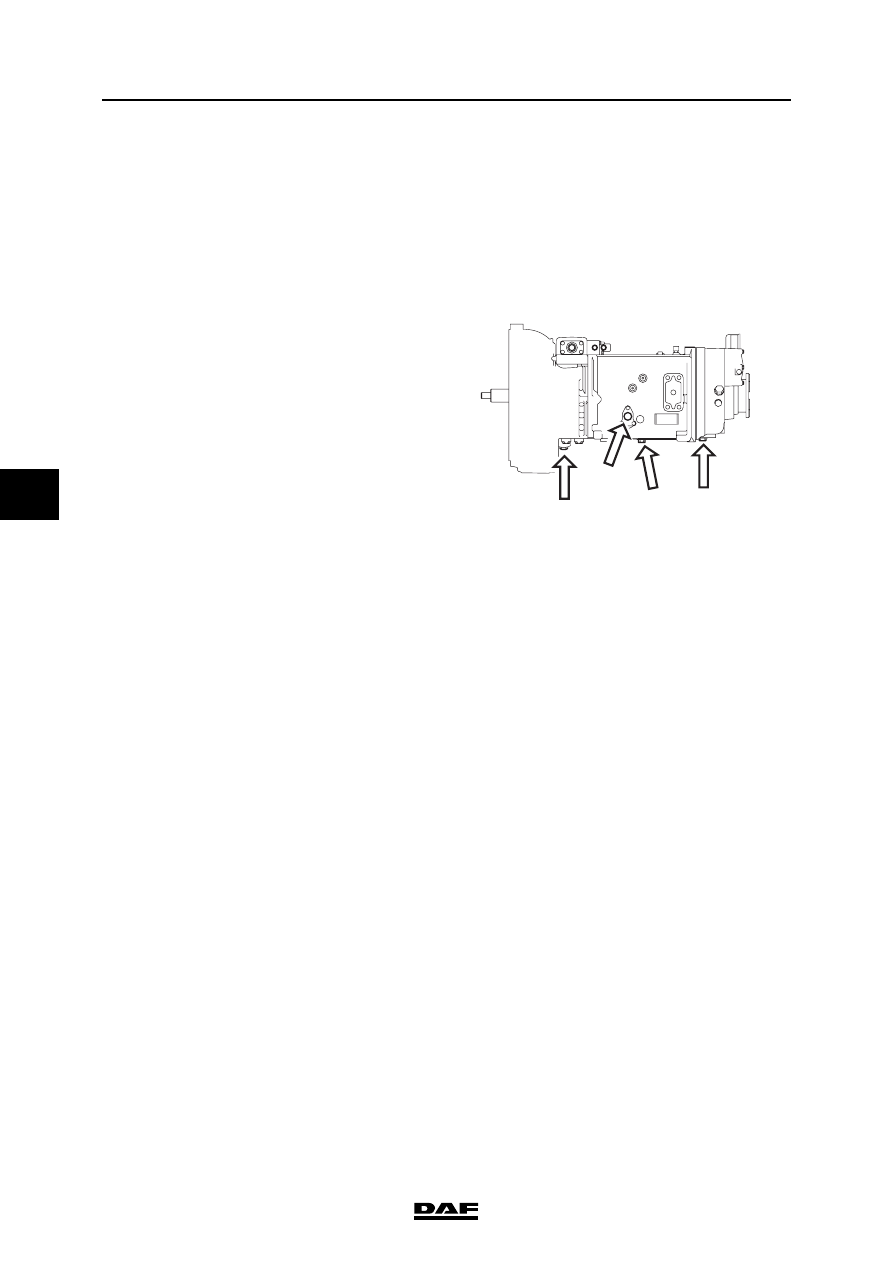

5.7 DRAINING AND FILLING, GEARBOX

To prevent skin injury, avoid

unnecessary contact with the

drained oil.

Version: ZF 8/16S-151

Draining the gearbox
1.

Position the vehicle on a level surface.

2.

Drain the gearbox at operating temperature.

3.

Remove the drain plugs (B), (C) and (D) and

the level check/filler plug (A) and drain the

oil.

Filling the gearbox
1.

Clean the drain plugs (B), (C) and (D) and

tighten them to the specified torque, see

"Technical data".

2.

Fill the oil through the level check/filling

opening (A) until the oil reaches the rim of the

filling opening.

3.

Fit the level check/filler plug (A), tightening it

to the specified torque, see "Technical data".

}

M3023

D

A

B

C
