DAF CF65, CF75, CF85 Series . Manual - part 1134





©

 200518

4-5

Removal and installation

EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES

ΧΦ65/65 (II) series

5

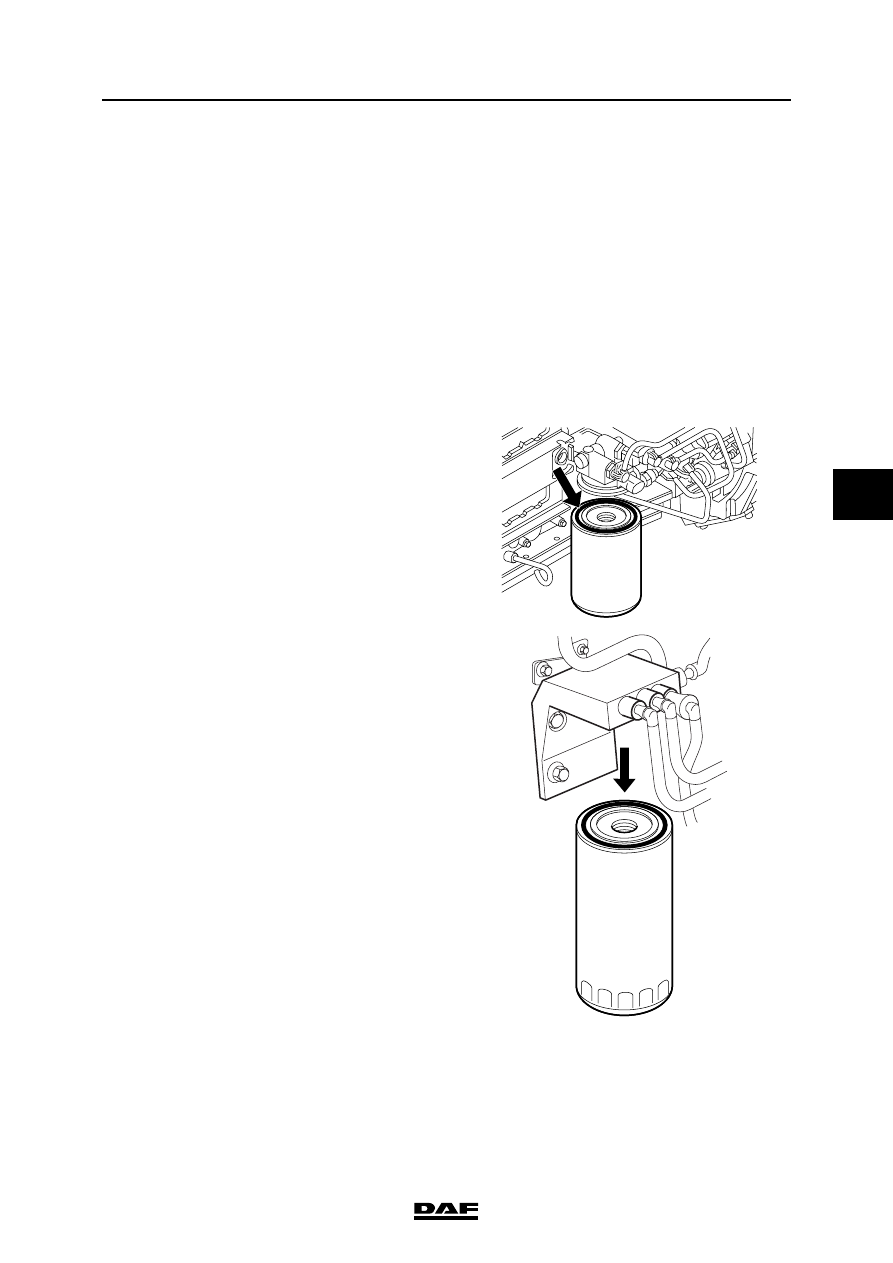

4.4 REMOVAL AND INSTALLATION, FUEL FINE FILTER

When removing the fuel fine filter, a

quantity of fuel will escape. Collect

the fuel and avoid the risk of fire.

Removing the fuel fine filter
1.

Place a container beneath the fuel fine filter

and remove the filter.

Note:

The fuel fine filter is a disposable filter and

must therefore not be cleaned and re-used.

Installing the fuel fine filter

Note:

Do not fill the fine filter with fuel until it has

been fitted. The fine filter is filled with fuel by

the primer pump after it has been fitted. This

considerably reduces the risk of dirt getting

into the fuel system.

1.

Check by hand whether the coupling piece

for the filter attachment is securely attached.

2.

Lightly lubricate the filter sealing ring with

clean engine oil.

3.

Fit the filter element onto the housing.

Tighten the filter element until the sealing

ring abuts. Tighten the filter element a further

∂ to • turn by hand.

4.

Bleed the fuel system. See "Inspection and

adjustment".

5.

Start the engine and check the fuel system

for leaks. If necessary, retighten the filter by

hand.

}

G0 00 201

i400964

EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES

4-6

©

 200518

Removal and installation

5

ΧΦ65/65 (II) series

4.5 REMOVAL AND INSTALLATION, FUEL PREFILTER/WATER SEPARATOR

FILTER ELEMENT

When removing the fuel prefilter/

water separator, a quantity of fuel

will escape. Collect the fuel and

avoid the risk of fire.

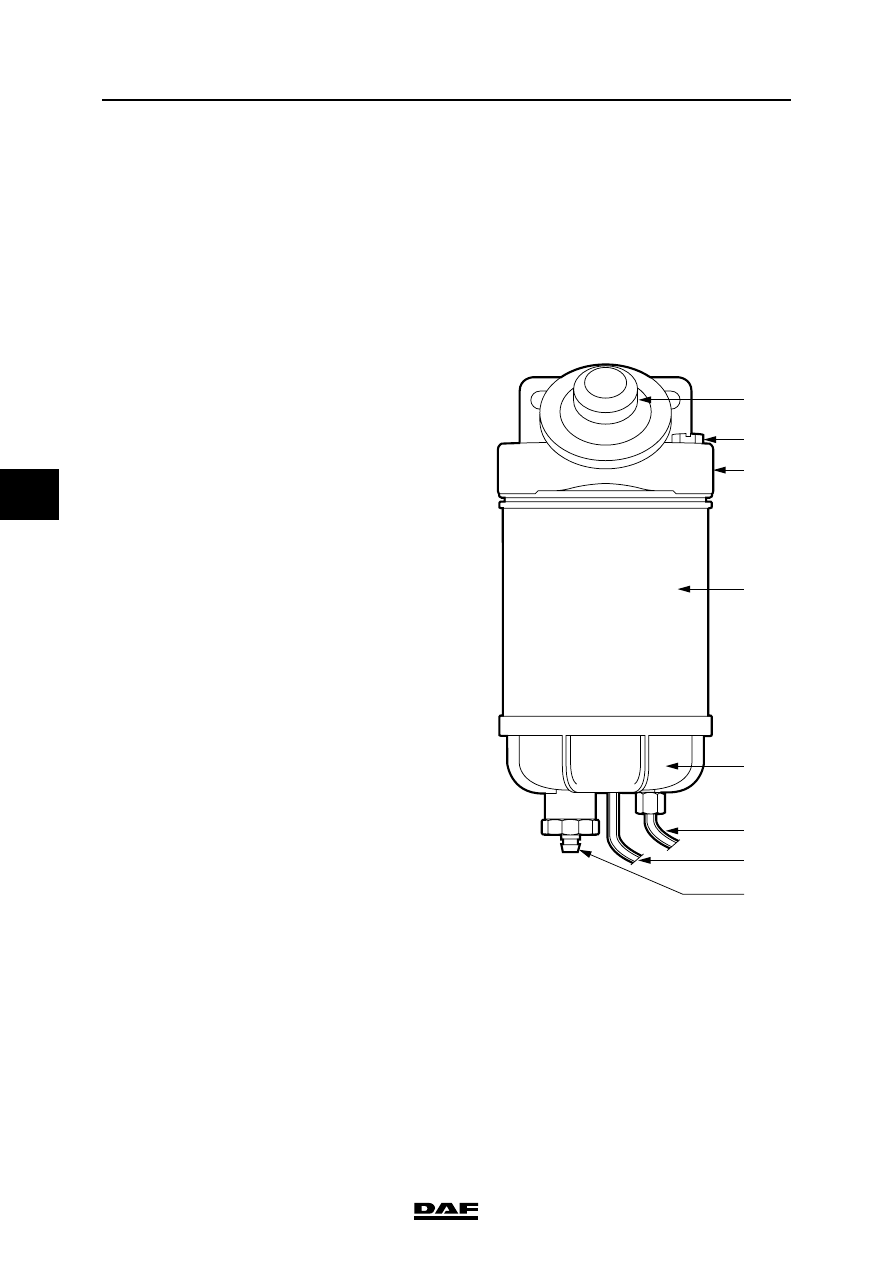

Racor fuel prefilter/water separator

Removing the fuel prefilter/water separator
filter element
1.

Place a tray beneath the filter to capture any

escaping fuel.

2.

Drain the fuel from the filter element by

unscrewing the vent plug (2) and opening the

drain plug (8).

3.

If fitted, disconnect the water sensor (6) and

the heating element (7) connectors.

4.

Remove the filter element (4) together with

the bottom cover (5) and clean the O-ring

seal.

Installing the fuel prefilter/water separator
filter element
1.

Apply a thin layer of engine oil to the O-ring

and the new sealing ring.

2.

Fit the bottom cover (5) onto the new filter

element (4).

3.

Fit the bottom cover (5) together with the new

filter element (4) onto the filter housing (3).

4.

Hand-tighten the new filter.

5.

If fitted, attach the water sensor and heating

element connectors.

6.

Bleed the fuel system. See "Inspection and

adjustment".

7.

Start the engine and check for leaks. If

necessary, retighten the filter element (4) of

the fuel prefilter/water separator by hand.

}

1

2

3

4

7

6

8

i400356

©

 200518

4-7

Removal and installation

EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES

ΧΦ65/65 (II) series

5

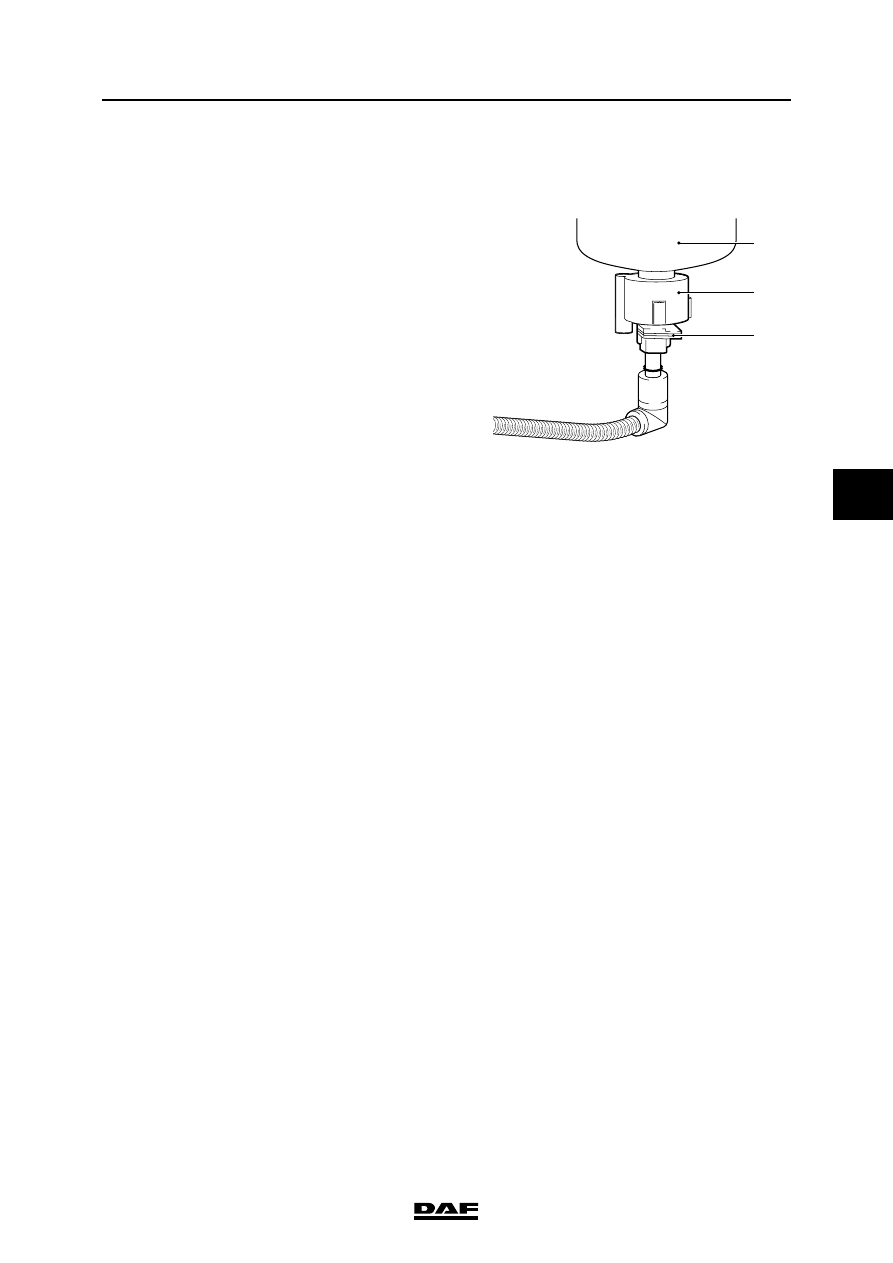

Fleetguard fuel prefilter/water separator

Removing the fuel prefilter/water separator
filter element
1.

Place a tray beneath the filter to capture any

escaping fuel.

2.

Remove the plug (3) from the water

sensor (2).

3.

Remove the filter element (1) of the fuel

prefilter/water separator by turning it anti-

clockwise.

4.

Remove the water sensor (2) from the filter

element (1).

Installing the fuel prefilter/water separator
filter element
1.

Check by hand whether the coupling piece

for the filter attachment is securely attached.

2.

Lightly lubricate the sealing ring with engine

oil.

3.

Fit the fuel prefilter/water separator filter

element (1) until the sealing ring abuts.

Tighten the filter element a further

∂ to •

turn by hand.

4.

Turn the water sensor (2) onto the filter

element until it abuts. Tighten the water

sensor by about a further

 -  turn.

Note:

Over-tightening the water sensor (2) may

damage the sensor and/or cause leakage.

5.

Fit the plug (3) on the water sensor (2).

6.

Bleed the fuel system. See "Inspection and

adjustment".

7.

Start the engine and check for leaks. If

necessary, retighten the filter element (1) of

the fuel prefilter/water separator by hand.

G0 00 220

1

2

3

EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES

4-8

©

 200518

Removal and installation

5

ΧΦ65/65 (II) series

4.6 REMOVAL AND INSTALLATION, VALVE COVER

When the engine or parts of the

engine are opened, dirt can get in.

This may cause serious damage to

the engine. The engine should

therefore be cleaned thoroughly

before any parts are opened.

Removing the valve cover
1.

Clean the area around the valve cover.

2.

Remove the banjo bolt and the attachment of

the plastic crankcase breather tube.

3.

Remove the valve cover attachment nuts.

4.

Remove the valve cover.

Installing the valve cover
1.

Clean the sealing surface of the valve sleeve

and the valve cover.

2.

Check the valve cover gasket. If the valve

cover gasket is not damaged, it may be re-

used.

3.

Fit the valve cover gasket to the valve cover.

4.

Fit the valve cover.

5.

Fit the valve cover attachment nuts and

tighten them to the specified torque; see

"Technical data".

6.

Fit the plastic crankcase breather tube and

the banjo bolt to the valve cover.

Steering gear and brake system

}
