Removal and installation

EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES

ΧΦ65/65 (II) series

5

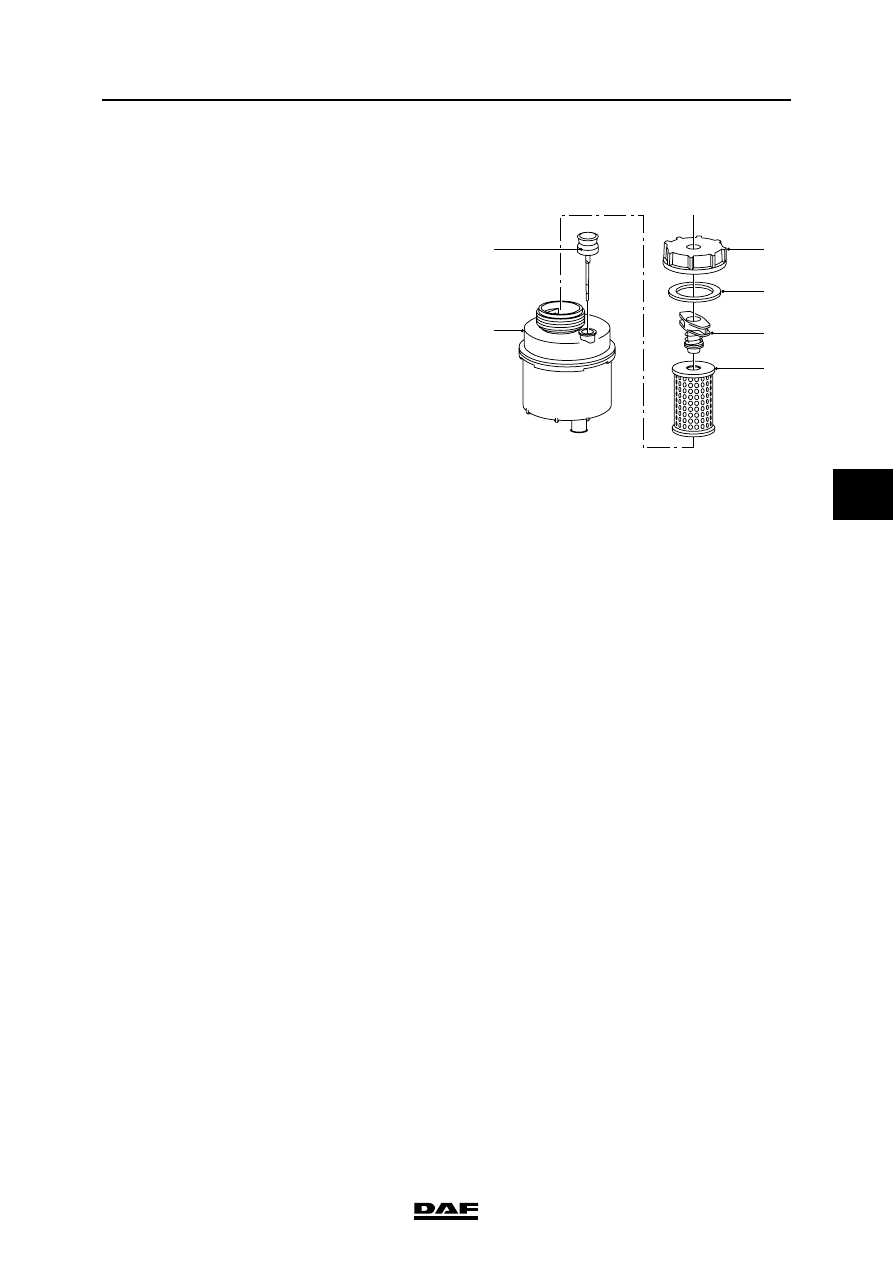

4.7 REMOVAL AND INSTALLATION, STEERING GEAR FILTER ELEMENT

Removing the steering gear filter element
1.

Clean the reservoir cover, so that absolutely

no dirt can get into the reservoir.

2.

Remove the cover (3).

3.

Rotate the filter holder (5) a quarter turn.

Slowly remove the filter holder (5) together

with the filter element (6) from the

reservoir (1).

Note:

The filter holder and filter element must be

removed from the reservoir (1) with care so

that no dirt remains in the reservoir (1).

4.

Remove the filter element (6) from the filter

holder (5).

Installing the steering gear filter element
1.

Fit a new filter element (6) in the filter

holder (5).

2.

Fit the filter holder (5) together with the filter

element (6) in the reservoir (1) and rotate the

filter holder (5) a quarter turn. Make sure that

the filter holder (5) engages in its locking

element.

3.

Check the sealing ring (4) for damage and

replace if necessary.

4.

Fit the cover (3).

5.

Check the fluid level using the dipstick (2);

see chapter "Inspection and adjustment".

S7 00 689

1

2

3

4

5

6

EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES

4-10

©

 200518

Removal and installation

5

ΧΦ65/65 (II) series

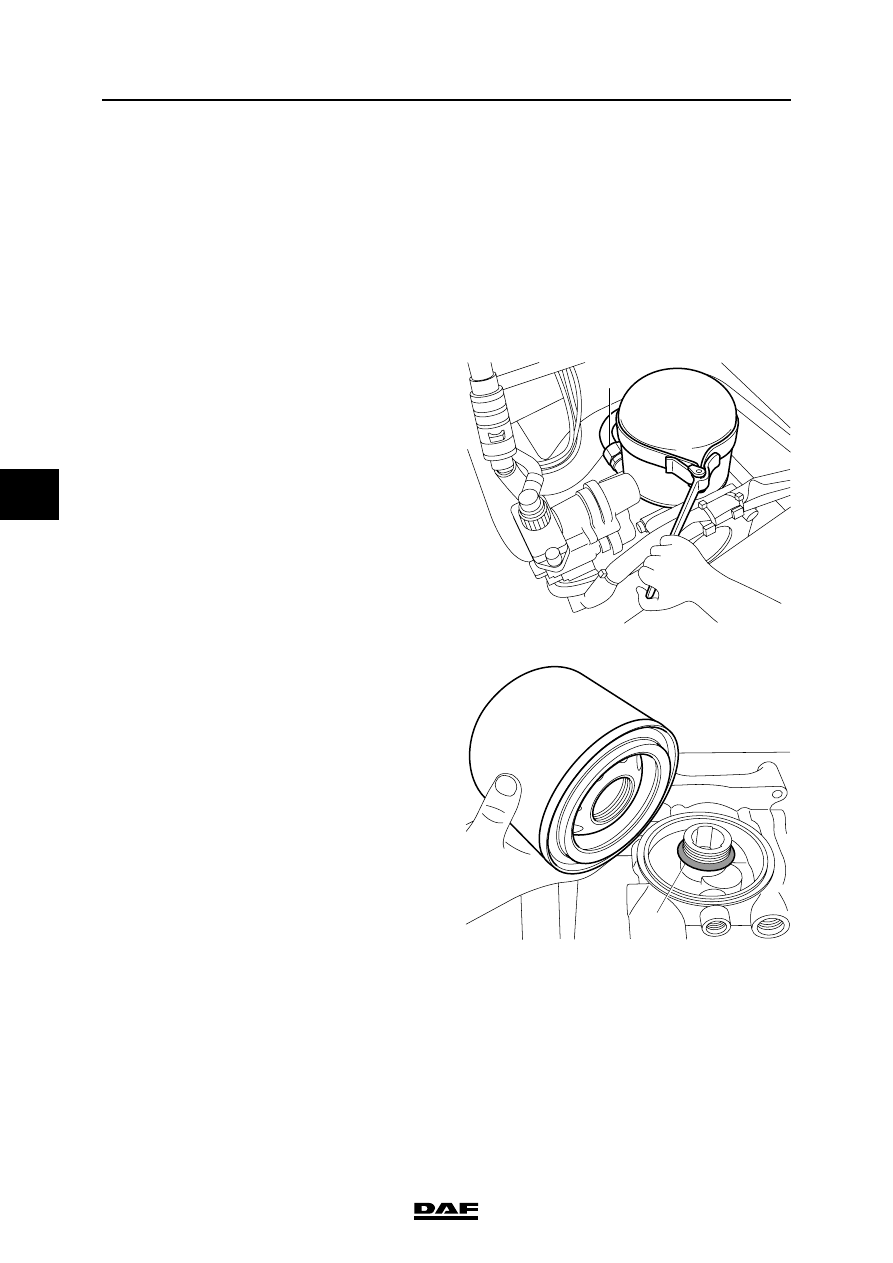

4.8 REMOVAL AND INSTALLATION, AIR DRYER FILTER ELEMENT

Note:

To be certain that the air dryer is functioning

properly, the air reservoirs should regularly be

checked for condensation. If more than the

normal amount of water is drained off repeatedly,

the air dryer element must be replaced. Under

normal circumstances the element must be

replaced at least once per year.

Removing air dryer filter element
1.

Vent the air dryer by allowing it to regenerate

or by loosening the compressor line (1), so

that the interior of the air dryer is

depressurised.

2.

Remove the filter element by turning it anti-

clockwise using a filter strap spanner.

3.

Dispose of the drying element as if it were an

oil filter.

4.

Clean the air dryer internally.

5.

Check the air dryer threaded connection (2)

for damage and then lubricate it sparingly

with grease.

Installing the air dryer filter element
1.

Lubricate the sealing ring of the new filter

element sparingly with grease.

2.

Fit the filter element by manually tightening it

until the sealing ring abuts. Then tighten the

element by hand (approx. 1 turn).

3.

Fasten the compressor line (1).

4.

Pressurise the system and then check the air

dryer for any air leaks.

R600525

1

R600526

2

©

 200518

4-11

Removal and installation

EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES

ΧΦ65/65 (II) series

5

5.

Using a water-resistant felt pen, write on the

sticker the latest date by which the dryer

element must be replaced (not later than

1 year after the date of fitting).

Drive and chassis

Artikelnummer

Reference

Teilenummer

Référence

Eerstvolgende vervanging

Next change

Nächster Wechsel

Prochain remplacement

1391510

R600523

EXPLANATORY NOTES ON THE MAINTENANCE ACTIVITIES

4-12

©

 200518

Removal and installation

5

ΧΦ65/65 (II) series

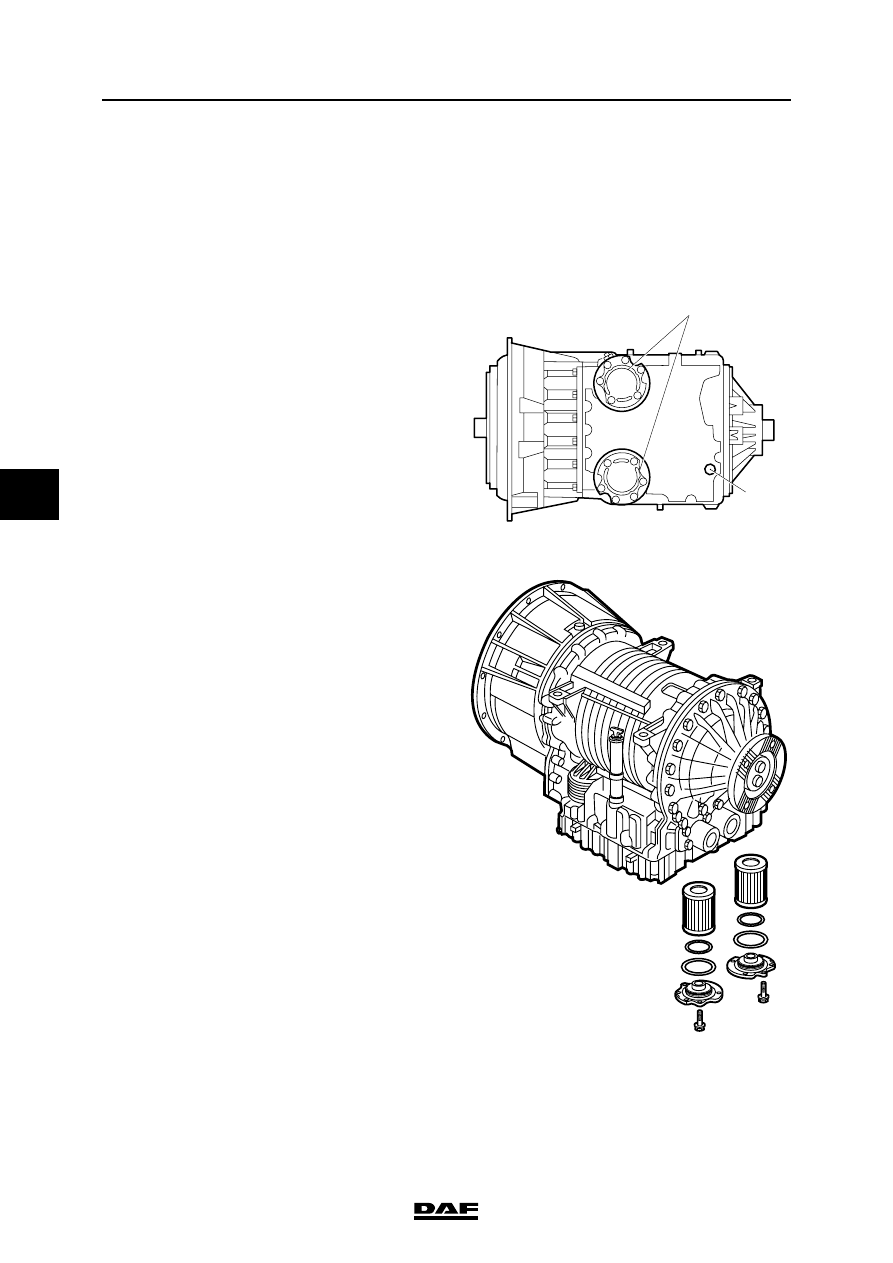

4.9 REMOVAL AND INSTALLATION, AUTOMATIC GEARBOX OIL FILTERS

To prevent skin injury, avoid

unnecessary contact with the

drained oil.

Removing automatic gearbox oil filters
1.

Remove the attachment bolts from the filter

covers (2) and remove the filter covers.

Collect any oil that is flowing out.

2.

Remove the oil filters from the oil sump.

3.

Remove the various O-rings from the filter

covers.

4.

If a gasket is used, remove the any pieces of

the gasket left on the filter covers and the

contact surfaces.

Fitting automatic gearbox oil filters
1.

Lightly lubricate the new O-rings with clean

gearbox oil and fit the various O-rings to the

filter covers.

Note:

Compare the new O-rings to the old O-rings

to ensure that the correct O-rings are used.

2.

If a gasket is used, fit a new gasket to the

filter cover.

3.

Lightly lubricate the rubber inner ring of the

oil filters with clean gearbox oil and fit the oil

filters to the filter covers.

4.

Fit the filter covers together with the oil filters

to the gearbox and tighten the attachment

bolts to the specified torque, see main group

"Technical data".

5.

Check the oil level, see chapter "Inspection

and adjustment".

}

V300371

2

1

W 3 03 103
