Removal and installation

INTERNAL CAB COMPONENTS

ΧΦ65/75/85 series

1

2

4.30 REMOVAL AND INSTALLATION, PARKING BRAKE SWITCH/BRAKE LIGHT

SWITCH

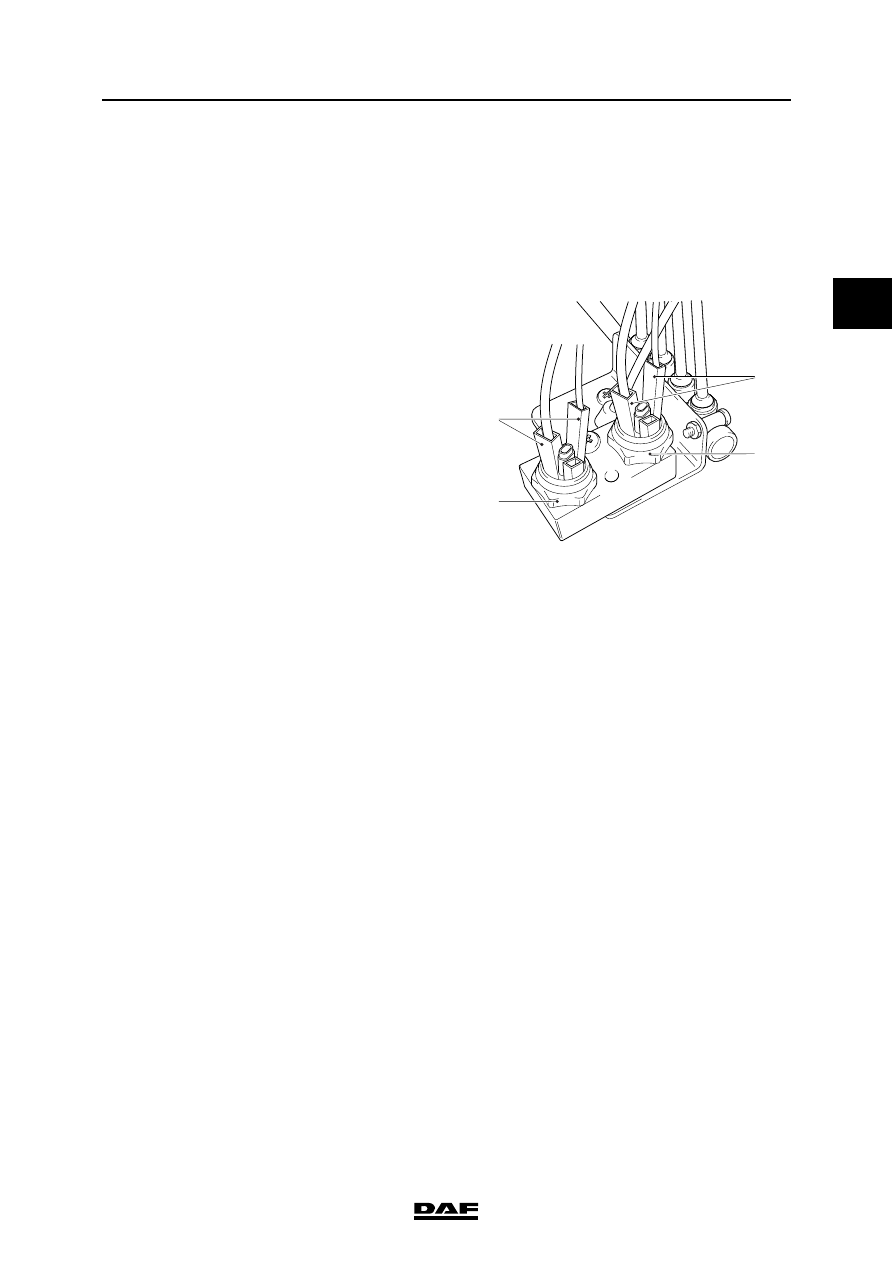

Removing parking brake switch
1.

Remove the dashboard panel at the top.

2.

Remove the radio panel.

3.

Remove the connectors (1).

4.

Position the parking brake in the parking
position.

5.

Remove the switch (2) from the holder.

Installing parking brake switch
1.

Fit the switch (2) in the holder.

2.

Fit the connectors (1).

3.

Fit the radio panel.

Removing brake light switch (conventional
braking system)
1.

Remove the dashboard panel at the top.

2.

Remove the radio panel.

3.

Remove the connectors (3).

4.

Remove the switch (4) from the holder.

Place the brake light switch (conventional
braking system)
1.

Fit the switch (4) in the holder.

2.

Fit the connectors (3).

3.

Fit the radio panel.

K1 01 015

1

2

3

4

INTERNAL CAB COMPONENTS

4-44

©

 200346

Removal and installation

2

ΧΦ65/75/85 series

1

4.31 REMOVAL AND INSTALLATION, HEADLINING

Removing headlining
1.

Remove the roof console.

Note:
Work on the headlining with clean hands or
with clean gloves. Use the correct tools to
remove the panel clamps.

2.

Remove the sun visor on the co-driver side.

3.

Remove the panels above the doors

4.

If necessary, remove the cord that operates
the valve for the air horn.

5.

Remove the roof trim from the roof hatch,
disconnect the lighting connector.

6.

Remove the panel clamps from the head
panel above the driver's position. Lower the
head panel and disconnect the connectors.

7.

Remove the headlining.

Installing headlining
1.

Fit the headlining and fasten it with the panel
clamps.

2.

Reconnect the lighting and refit the trim on
the roof hatch.

3.

If necessary, fit the cord that operates the
valve for the air horn.

4.

Fit the panels above the doors

5.

Fit the sun visor on co-driver side.

6.

Fit the roof console.

©

 200346

4-45

Removal and installation

INTERNAL CAB COMPONENTS

ΧΦ65/75/85 series

1

2

4.32 REMOVAL AND INSTALLATION, REAR WALL LINING

Note:
Use the correct tools to remove the panel clamps.

Removing rear wall lining
1.

Remove the panel clamps on the rear wall of
the cab.

2.

If necessary, remove the thermostat and the
clock from the framework using a small
screwdriver.

3.

Remove the rear wall supports.

4.

Remove the (mounting) handle.

5.

Remove the rear wall lining, think of the
connectors for the sensor for the cab heater
and lighting.

Installing rear wall lining
1.

Fit the rear wall and fasten it with panel
clamps. Think of the connectors for the
sensor for the cab heater and lighting.

2.

Replace the (mounting) handle.

3.

Fit the supports on the rear wall.

4.

If applicable, fit the thermostat and clock.

5.

If applicable, fit the storage trays.

6.

Fit the panel clamp on the rear wall of the
cab.

INTERNAL CAB COMPONENTS

4-46

©

 200346

Removal and installation

2

ΧΦ65/75/85 series

1

4.33 REMOVAL AND INSTALLATION, SIDE WALL LINING

Removing side wall lining
1.

Remove the covers in the door strut.

2.

Remove the steel plates that are fixed to the
rear wall.

3.

If the vehicle has a sleeper cab, then the
storage trays under the bed need to be
removed.

Note:
Use the correct tools to remove the panel
clamps.

4.

Remove the panel clamps and the side wall
lining.

Installing side wall lining
1.

Attach the side wall lining with panel clamps.

2.

If applicable, fit the storage trays.

3.

Fit the steel panels on the side walls.

4.

Fit the covers in the door strut.
