DAF CF65, CF75, CF85 Series . Manual - part 1096

©

 200448

3-1

Disassembly and assembly

STABILISERS AND TORQUE RODS

ΧΦ65/75/85 series

9

4

3. DISASSEMBLY AND ASSEMBLY

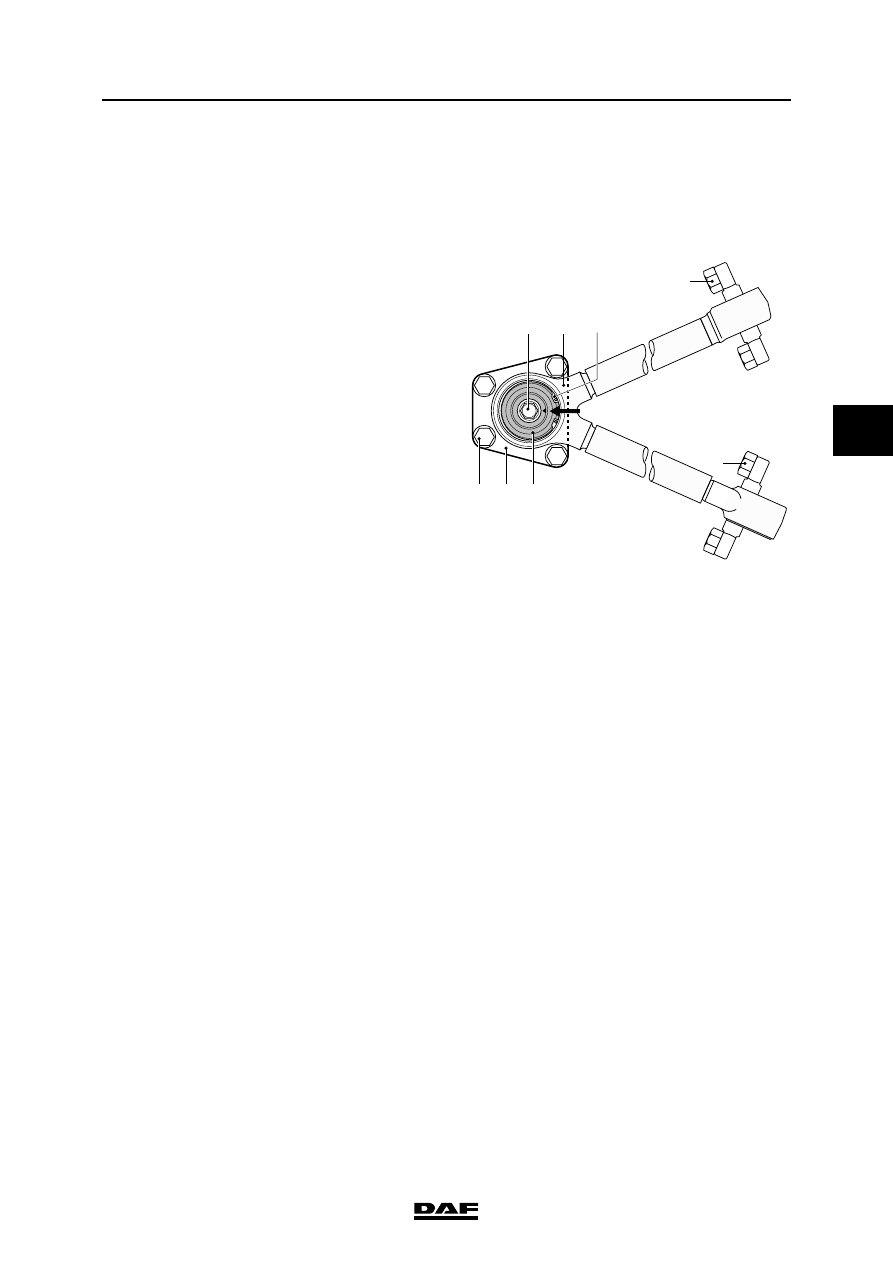

3.1 DISASSEMBLY AND ASSEMBLY, SILENTBLOCK OF TRIANGULAR LINK

Disassembling silentblock of triangular link
1.

Loosen the attachment bolts (7) a few turns.

2.

Remove the attachment bolt (1).

3.

Screw an M24 x 1.5 bolt into the silent-

block (4). This will remove the triangular

link (2) from the tapered attachment pin. If

the triangular link (2) cannot be removed, the

flange (5) must be removed from the axle

housing and be forced from the triangular

link (2) using a pressing tool.

4.

Remove the attachment bolts (7). Remove

the triangular link from under the vehicle.

This can only be done by two persons

working together.

5.

Remove the circlip (3).

6.

Remove the silentblock (4) from the

triangular link (2) using a pressing tool. Make

sure that the tool rests on the outer rim of the

silentblock (4).

Assembling silentblock of triangular link
1.

Clean the chamber in the triangular link (2).

2.

Remove all rust and grease from the tapered

part of the flange (5).

3.

Apply a thin layer of acid-free petroleum

jelly to the circumference of the new

silentblocks (4).

4.

Position the new silentblock (4) such that the

marking (see arrow) is positioned in between

the torque rods as indicated.

1

2

3

4

5

6

7

7

C9 00 300

STABILISERS AND TORQUE RODS

3-2

©

 200448

Disassembly and assembly

4

ΧΦ65/75/85 series

9

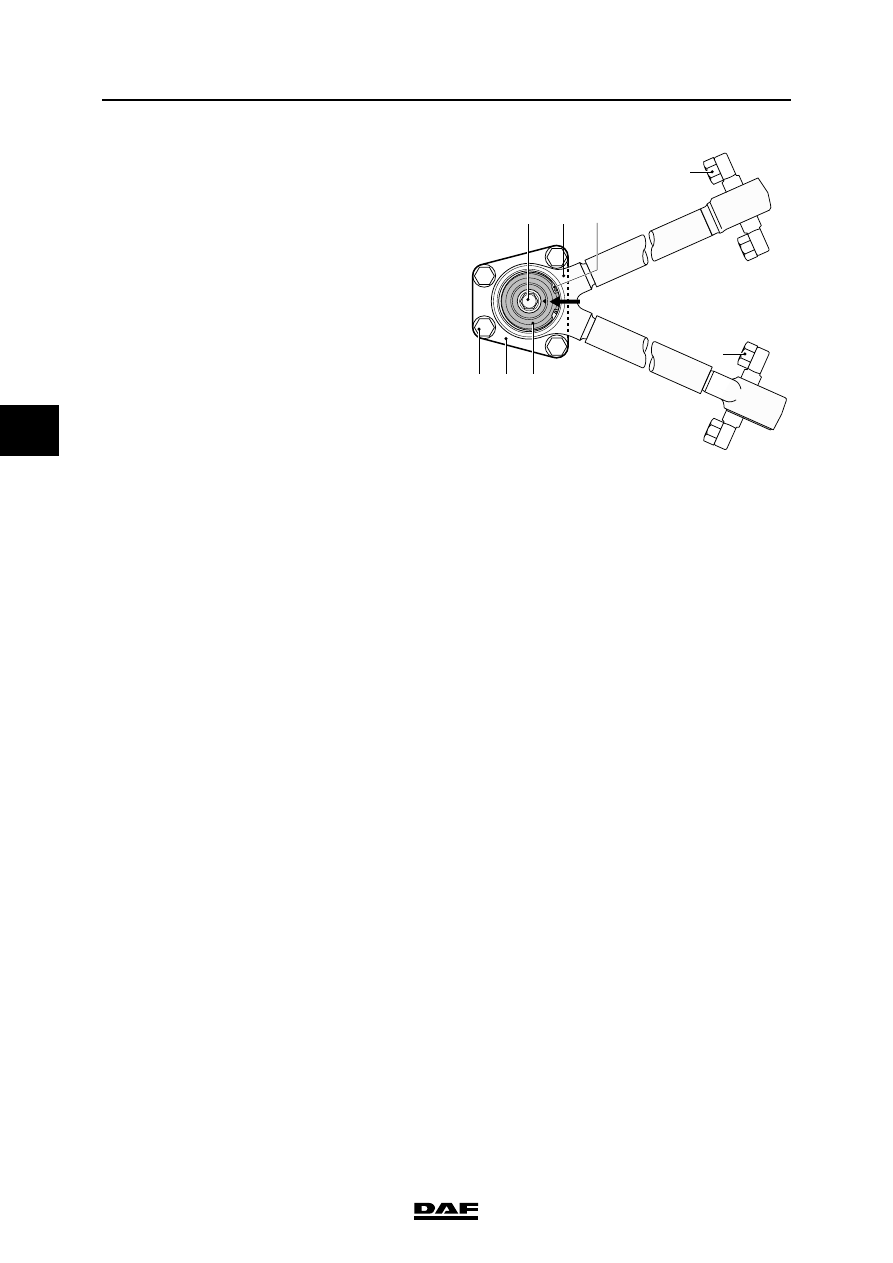

5.

Force the silentblock (4) into the triangular

link (2). Make sure that the tool rests on the

outer rim of the silentblock (4).

6.

Fit the circlip (3) as indicated. Make sure that

the entire circlip (3) is positioned correctly in

the groove.

7.

Install the flange (5), if it was removed, on the

axle housing. Check to see if the contact

surface of the flange (5) and the contact

surface on the axle housing are free from

grease and paint. Tighten the attachment

bolts (6) to the specified torque. See

"Technical data".

8.

Install the triangular link (2) under the

vehicle. This will take two persons working

together. Tighten the attachment bolts (7) by

hand.

9.

Fit the attachment bolt (1). Tighten the

attachment bolt (1) to the specified torque.

See "Technical data".

10. Secure the attachment bolts (7).

1

2

3

4

5

6

7

7

C9 00 300

©

 200448

3-3

Disassembly and assembly

STABILISERS AND TORQUE RODS

ΧΦ65/75/85 series

9

4

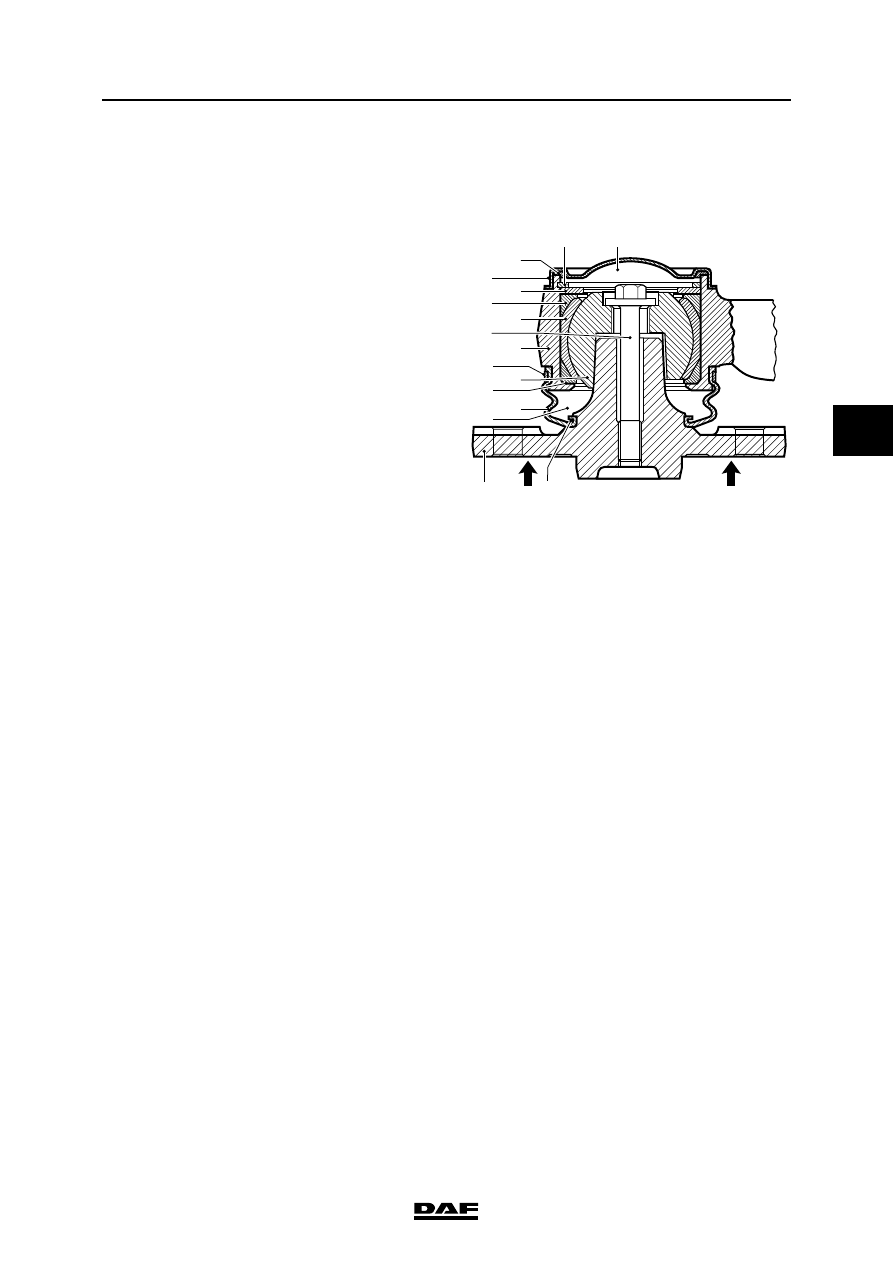

3.2 DISASSEMBLY AND ASSEMBLY, BALL JOINT OF TRIANGULAR LINK

Disassembling ball joint of triangular link
1.

Carefully grind away the tack welds on the

cover (1) and remove the cover and felt

ring (2).

2.

Remove the circlip (3), the steel washer (4)

and the triangular shim (5).

3.

Remove the attachment bolt (6).

4.

Screw an M20 x 1.5 bolt into the ball (7). This

will drive the ball and the ball socket (8) out

of the housing (14).

5.

Remove the triangular shim (9).

6.

Remove the clamping strip (10) from the

gaiter (11). The torque rod can now be

separated from the pin.

7.

Remove the spring (12) to replace the

gaiter (11).

Note:

It is not necessary to take the ball out of the

housing if only the gaiter (11) needs to be

replaced.

Remove the attachment bolt (6) and the clamping

strip (10).

By screwing an M20 x 1.5 bolt into ball (7), the

torque rod is separated from the flange (13), and

the gaiter can be replaced.

Assembling ball joint of triangular link
1.

Before assembly, thoroughly clean all parts

to be reused.

2.

Fit the gaiter (11) with the spring (12) onto

the flange (13). Repack the gaiter (space 15)

with approx. 125 cm

3

 of grease.

3.

Fit the triangular shim (9).

4.

Grease the ball (7) and the ball socket (8)

and insert them into the housing (14).

16

3

2

13

12

1

4

5

8

6

14

10

7

9

11

15

W9 03 010

STABILISERS AND TORQUE RODS

3-4

©

 200448

Disassembly and assembly

4

ΧΦ65/75/85 series

9

5.

Then fit the triangular shim (5), the steel

washer (4) and the circlip (3), in this order.

Make sure that circlip (3) is correctly fitted in

the groove of the housing.

6.

Fit the ball (7) which is installed in the

housing onto the pin of the flange (13), using

the attachment bolt (6). Tighten the

attachment bolt (6) to the specified torque.

See "Technical data".

7.

Attach the gaiter (11) to the housing (14)

using the clamping strip (10).

8.

Pack the space on top of the ball (space 16)

with approx. 35 cm

3

 of grease.

9.

Carefully tap the cover (1) and the felt ring (2)

into place with a nylon mallet.

10. Secure the cover with tack welds (3).

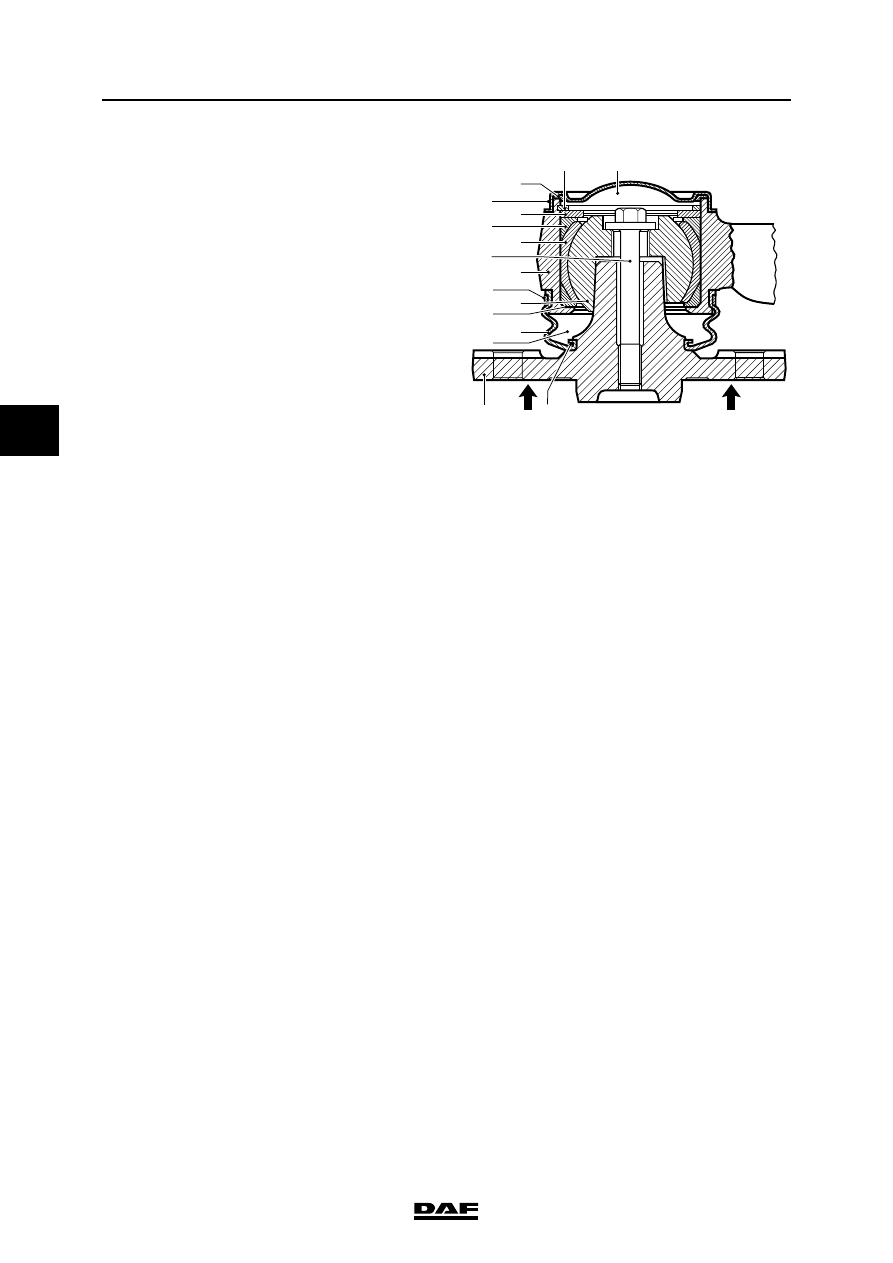

Note:

When the flange (13) has been removed and

repainted, the contact surface of the flange (see

arrows in drawing) should be made free of paint

before the flange is reinstalled.

16

3

2

13

12

1

4

5

8

6

14

10

7

9

11

15

W9 03 010
