DAF CF65, CF75, CF85 Series . Manual - part 1095

©

 200448

2-19

Removal and installation

STABILISERS AND TORQUE RODS

ΧΦ65/75/85 series

9

4

Removing lower torque rod
1.

Remove both attachment bolts (6) and

remove the torque rod (8).

Installing lower torque rod
1.

Before installation, check the rubber bushes

of the torque rod (8) for hairline cracks and

wear.

2.

Clean the contact surfaces if necessary.

These should be free from dirt and grease.

3.

Fit the torque rod (8) as shown.

4.

Fit the attachment bolts (6) with the heads

facing towards the front of the vehicle.

Tighten the attachment bolts to the specified

torque. See "Technical data".

STABILISERS AND TORQUE RODS

2-20

©

 200448

Removal and installation

4

ΧΦ65/75/85 series

9

2.11 REMOVAL AND INSTALLATION, AXLE LOAD COMPENSATION DEVICE ROD

Removing axle load compensation device rod
1.

Remove the ball end nuts on both sides of

the rod. Self-locking nuts must not be

reused.

2.

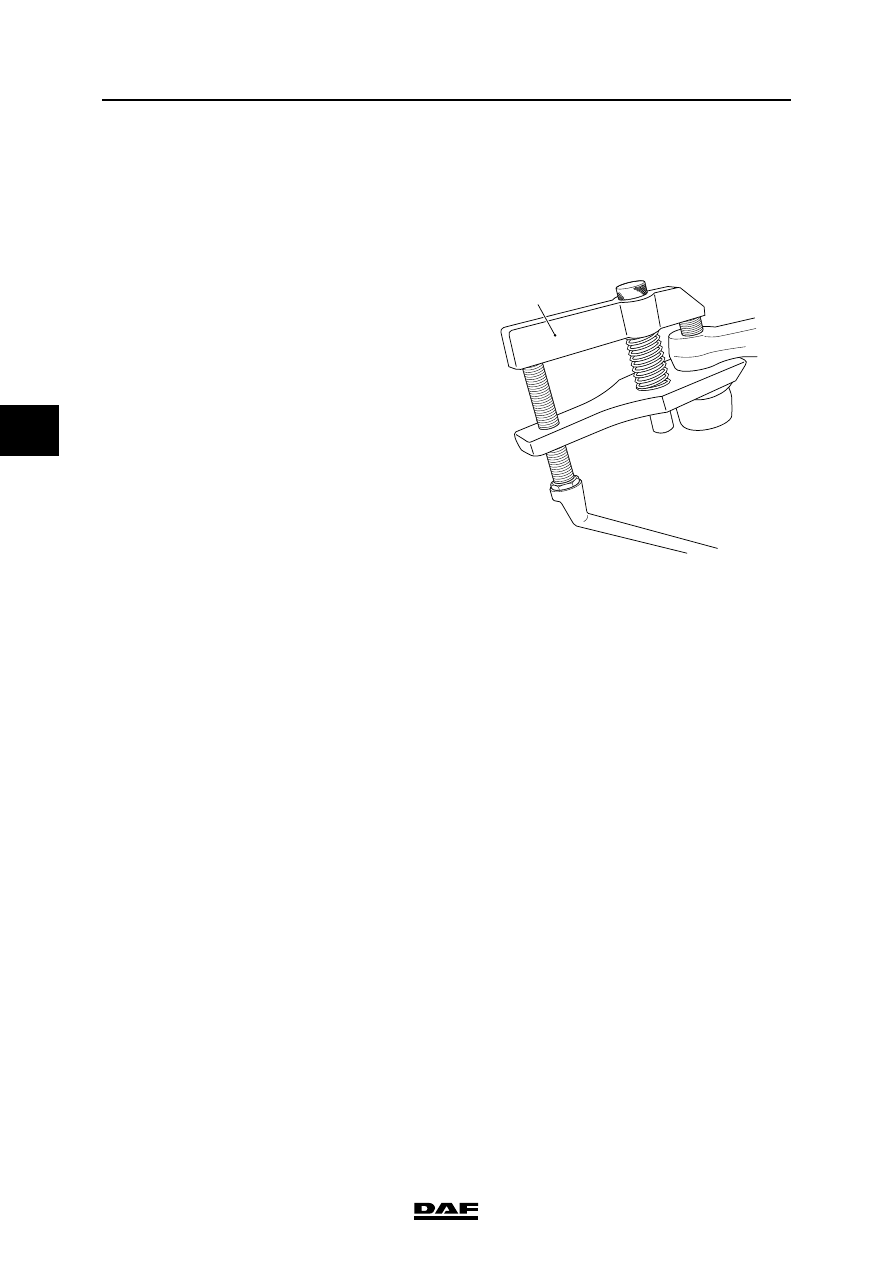

Remove the ball ends from the shackles

using a ball end puller (A).

Installing axle load compensation device rod
1.

Check the balls of the rod for wear and

damage.

2.

Check the ball end thread for damage before

fitting a new self-locking nut. To do so, hand-

tighten a new non-self-locking nut on the ball

end to be checked. If the new nut cannot be

fully hand-screwed onto the entire thread,

the ball end must be replaced.

Fitting a new self-locking nut to a

ball end with a damaged thread may

lead to dangerous situations.

3.

Clean the tapered contact surfaces of both

the balls and the shackles. The tapered

surfaces should be absolutely free from dirt,

grease and paint.

4.

Fit the rod.

S7 00 555

A

}

©

 200448

2-21

Removal and installation

STABILISERS AND TORQUE RODS

ΧΦ65/75/85 series

9

4

It is not allowed to fit a self-locking

nut to a ball end with split-pin hole.

5.

In the case of self-locking nuts, use new self-

locking nuts.

Tighten the ball end nuts to the specified

torque. See "Technical data".

In the case of a castle nut, if the ball end split-

pin hole does not match the recesses in the

castle nut, the castle nut should be tightened

further.

6.

In the case of castle nuts, secure them with

new split pins.

}

STABILISERS AND TORQUE RODS

2-22

©

 200448

Removal and installation

4

ΧΦ65/75/85 series

9
