Removal and installation

STABILISERS AND TORQUE RODS

ΧΦ65/75/85 series

9

4

2.6 REMOVAL AND INSTALLATION, SILENTBLOCK WITH RUBBER CASING

Note:

-

The silentblocks for the stabiliser bar and the

stabiliser bar shackle are identical to one

another.

-

The silentblocks have to be fitted using

special tool (DAF no. 1310476). It is not

possible to install the silentblocks

undamaged, without using this puller.

-

The stabiliser bar does not have to be

removed when replacing the silentblocks on

the stabiliser bar.

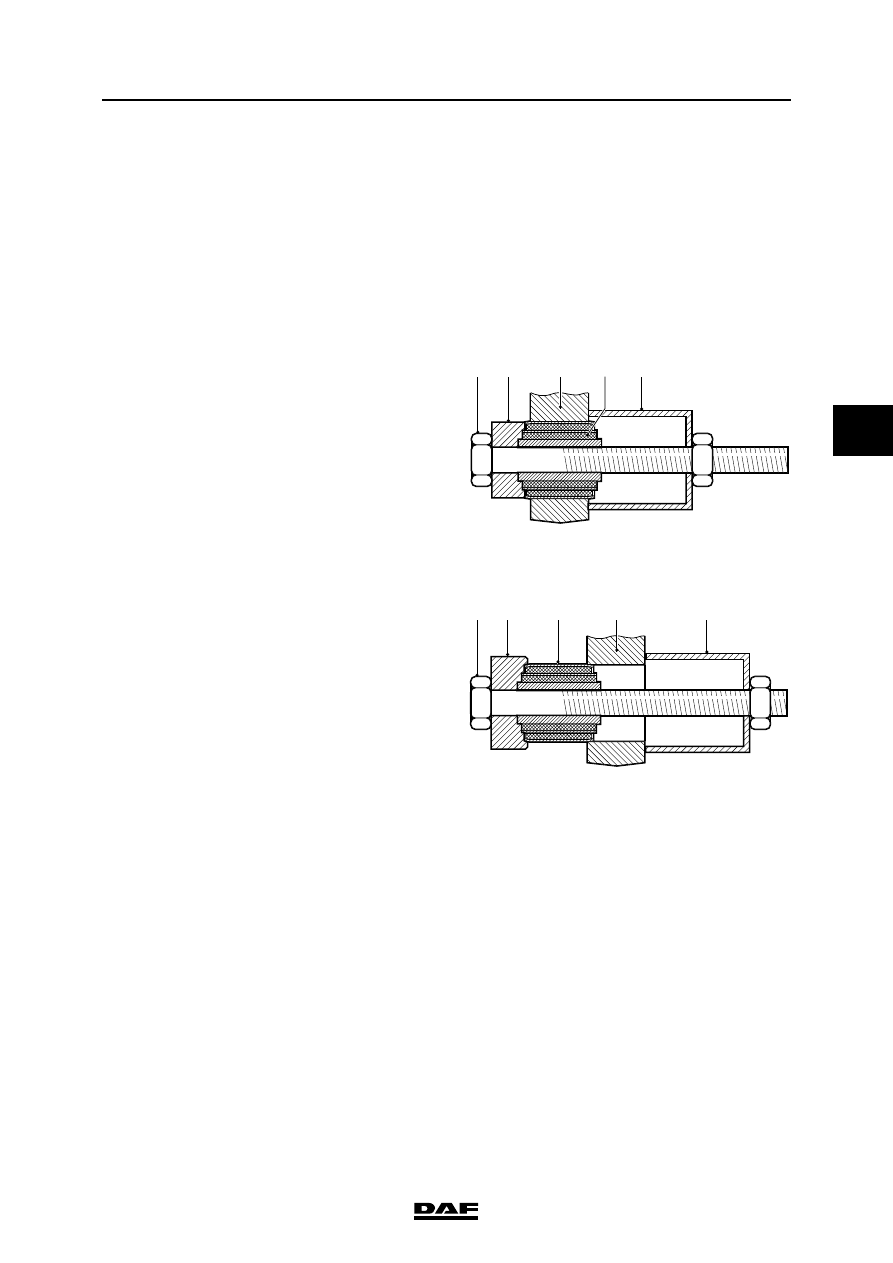

Removing silentblock with rubber casing
1.

Force the silentblock (1) - using the

puller (A), special tool (DAF no. 1310476) -

from the stabiliser bar (2) or the stabiliser bar

shackle (2).

Before fitting the puller, apply a lubricant to

the contact surface of the puller or the

silentblock, for example tyre grease or a

soap solution.

Installing silentblock with rubber casing
1.

Apply plenty of lubricant to the outer

circumference of the new silentblock (1) and

the contact surface of the puller or the

silentblock, for example tyre grease. Never

apply any grease or oil product to the new

silentblock.

2.

Place the guide sleeve (B), which forms part

of the puller, on the stabiliser bar or the

shackle.

3.

Place the new silentblock (1) on guide

sleeve (B) and pull the silentblock (A) into

the stabiliser bar (2) or the shackle (2) using

puller (A), special tool (DAF no. 1310476).

C9 00 308

A

1

2

A

A

1

B

A

2

C9 00 135

STABILISERS AND TORQUE RODS

2-12

©

 200448

Removal and installation

4

ΧΦ65/75/85 series

9

4.

Pull the silentblock into the eye until the

collar of the silentblock has been pulled fully

through the eye.

Remove the guide sleeve (B) and, if

necessary, slightly force the silentblock

backwards so that the collars of the

silentblock protrude from both sides of the

stabiliser bar or the shackle. See arrows in

drawing.

C9 00 307

©

 200448

2-13

Removal and installation

STABILISERS AND TORQUE RODS

ΧΦ65/75/85 series

9

4

2.7 REMOVAL AND INSTALLATION, SILENTBLOCK WITH STEEL CASING

Note:

-

The silentblocks with steel casing should be

fitted using special tool (DAF no. 1310479).

It is not possible to install the silentblocks

undamaged, without using this puller.

-

The stabiliser bar does not have to be

removed when replacing the silentblocks.

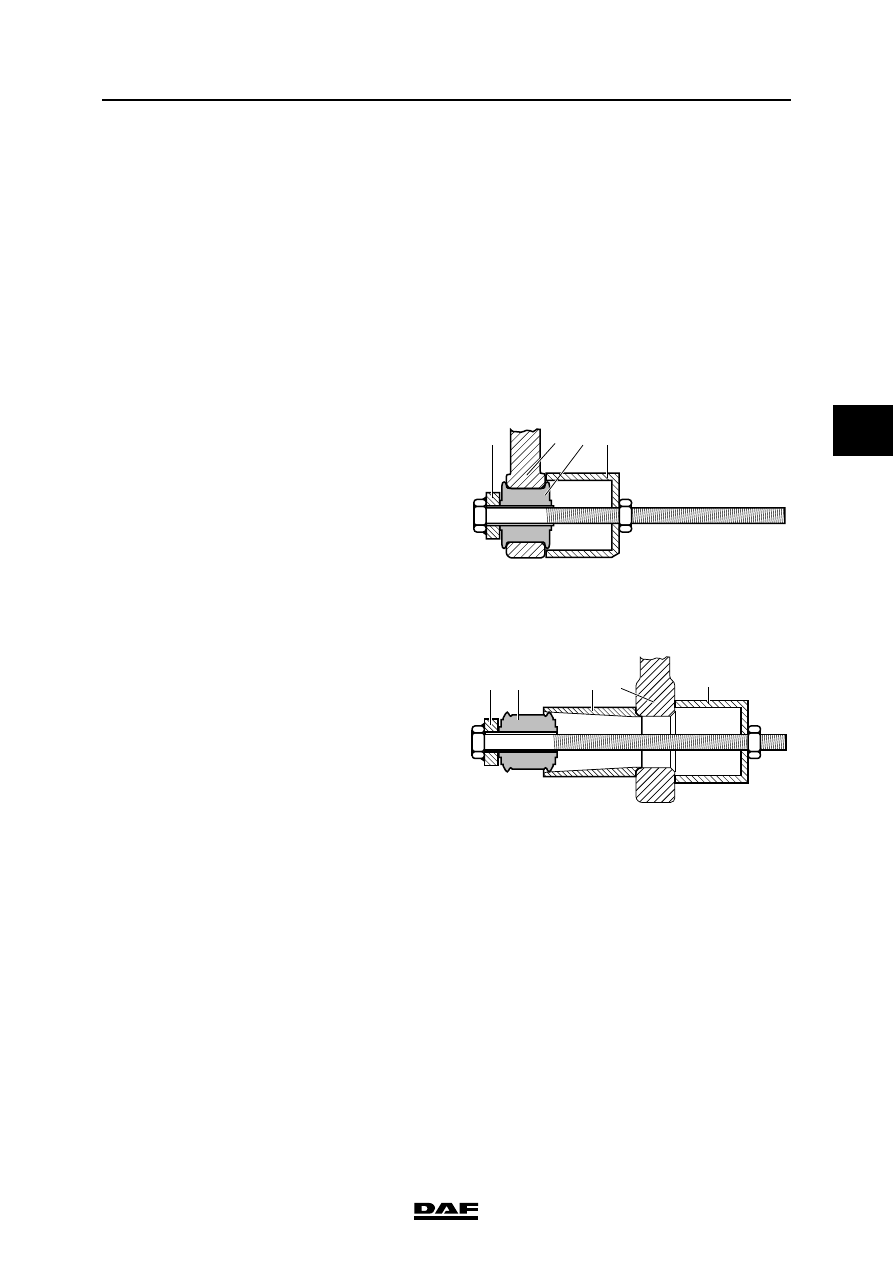

Removing silentblock with steel casing
1.

Fit the thrust piece with the smallest

diameter (B in the drawing) on the puller (A),

special tool (DAF no. 1310479).

2.

Apply a lubricant to the thrust piece, for

example tyre grease, and fit the puller.

3.

Using the puller, force the silentblock from

the stabiliser bar.

Installing silentblock with steel casing
1.

Place the thrust piece with the largest

diameter (C in the drawing) on the puller (A).

2.

Apply for example tyre grease to the thrust

piece, and place the puller (A) with the

silentblock (1) on the stabiliser bar (2).

3.

Force the silentblock into the stabiliser bar

using the puller. The thrust piece (C) must

just touch the stabiliser bar.

4.

Check whether the two sides of the

silentblock protrude equally out of the

stabiliser bar.

1

2

A

B

A

C9 00 149

2

A

C

A

1

C9 00 150

STABILISERS AND TORQUE RODS

2-14

©

 200448

Removal and installation

4

ΧΦ65/75/85 series

9

2.8 REMOVAL AND INSTALLATION, TRIANGULAR LINK AND AIR-SPRUNG

REAR AXLE TORQUE RODS

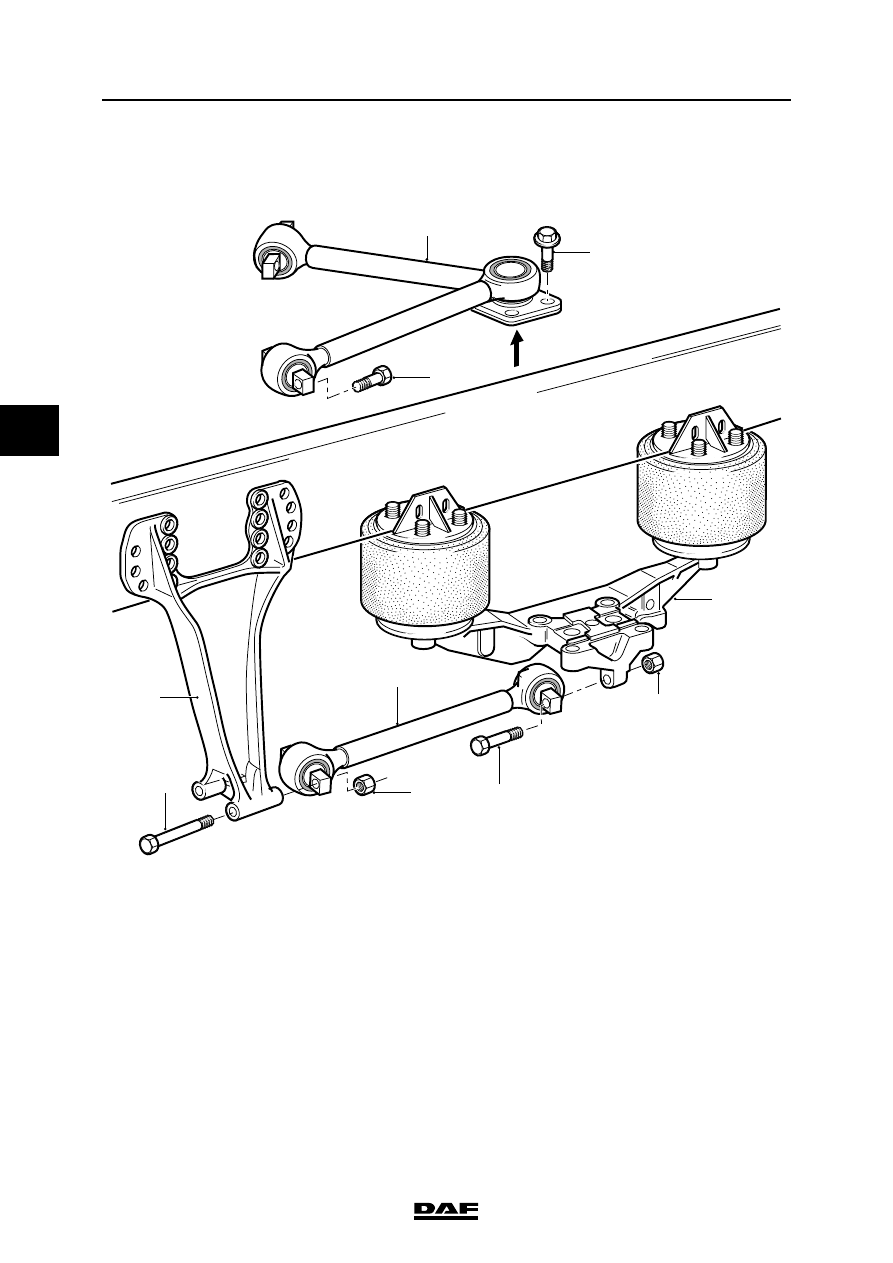

Removing triangular link
1.

Remove the attachment bolts (2).

2.

Remove the attachment bolts (3) and

remove the torque rod (1). This can only be

done by two persons working together.

C900299
