DAF CF65, CF75, CF85 Series . Manual - part 1091





©

 200448

2-3

Removal and installation

STABILISERS AND TORQUE RODS

ΧΦ65/75/85 series

9

4

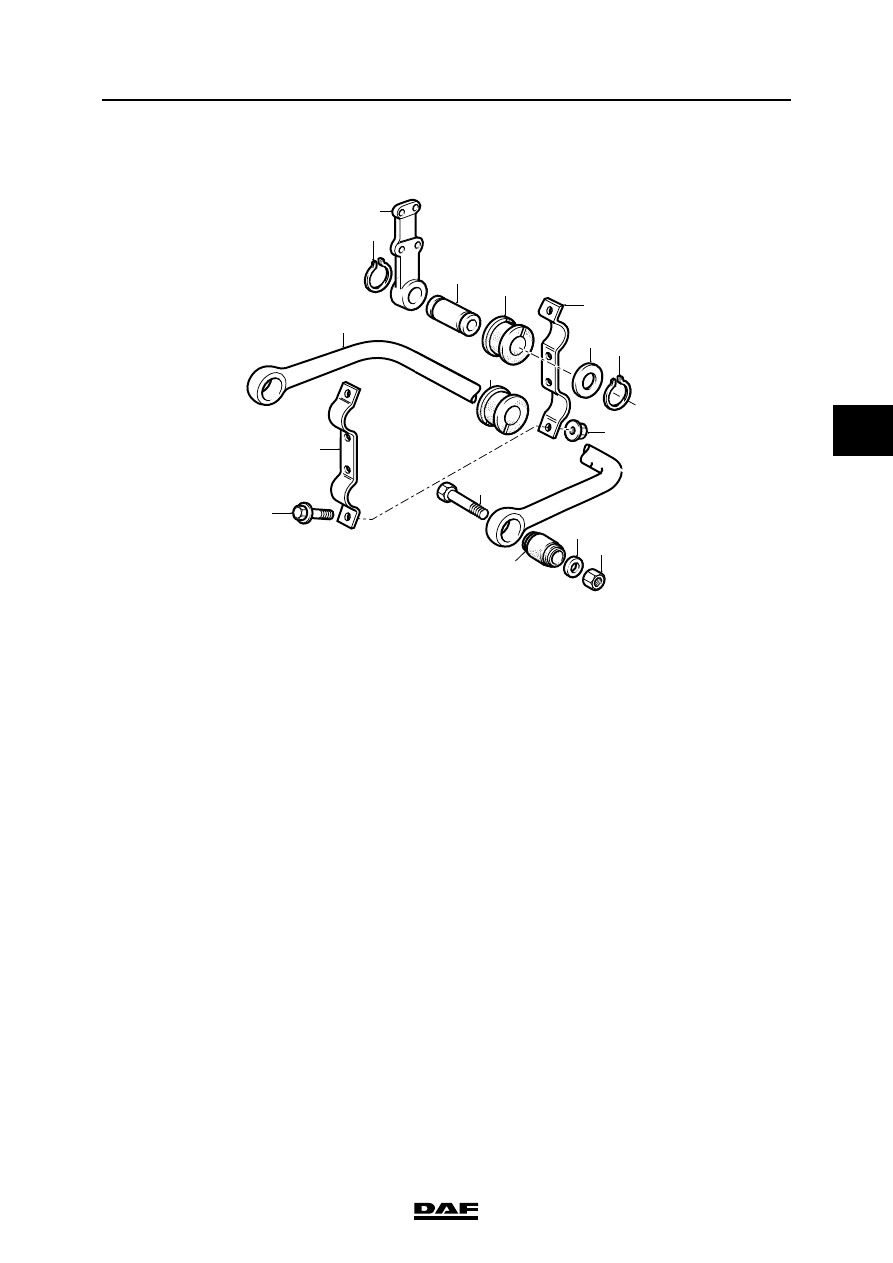

2.2 REMOVAL AND INSTALLATION, LEAF-SPRUNG REAR AXLE STABILISER

Removing leaf-sprung rear axle stabiliser
1.

Remove the brackets (5) and (11).

2.

Remove the attachment bolts (12).

3.

Remove the stabiliser bar (10) from under

the vehicle.

4.

Remove the bearing bushes (9) from the

stabiliser bar (10).

5.

Remove the circlip (7) with the washer (6)

and remove the bearing bush (4) from the

axle (3).

Installing leaf-sprung rear axle stabiliser
1.

Check the condition of the silentblock (14)

and the bearing bushes (4) and (9).

2.

Fit the bearing bushes (4), using new

circlips (7).

3.

Fit the bearing bushes (9) to the stabiliser

bar (10).

C9 00 425

11

1

3

4

6

7

9

8

13

15

12

16

10

2

5

14

STABILISERS AND TORQUE RODS

2-4

©

 200448

Removal and installation

4

ΧΦ65/75/85 series

9

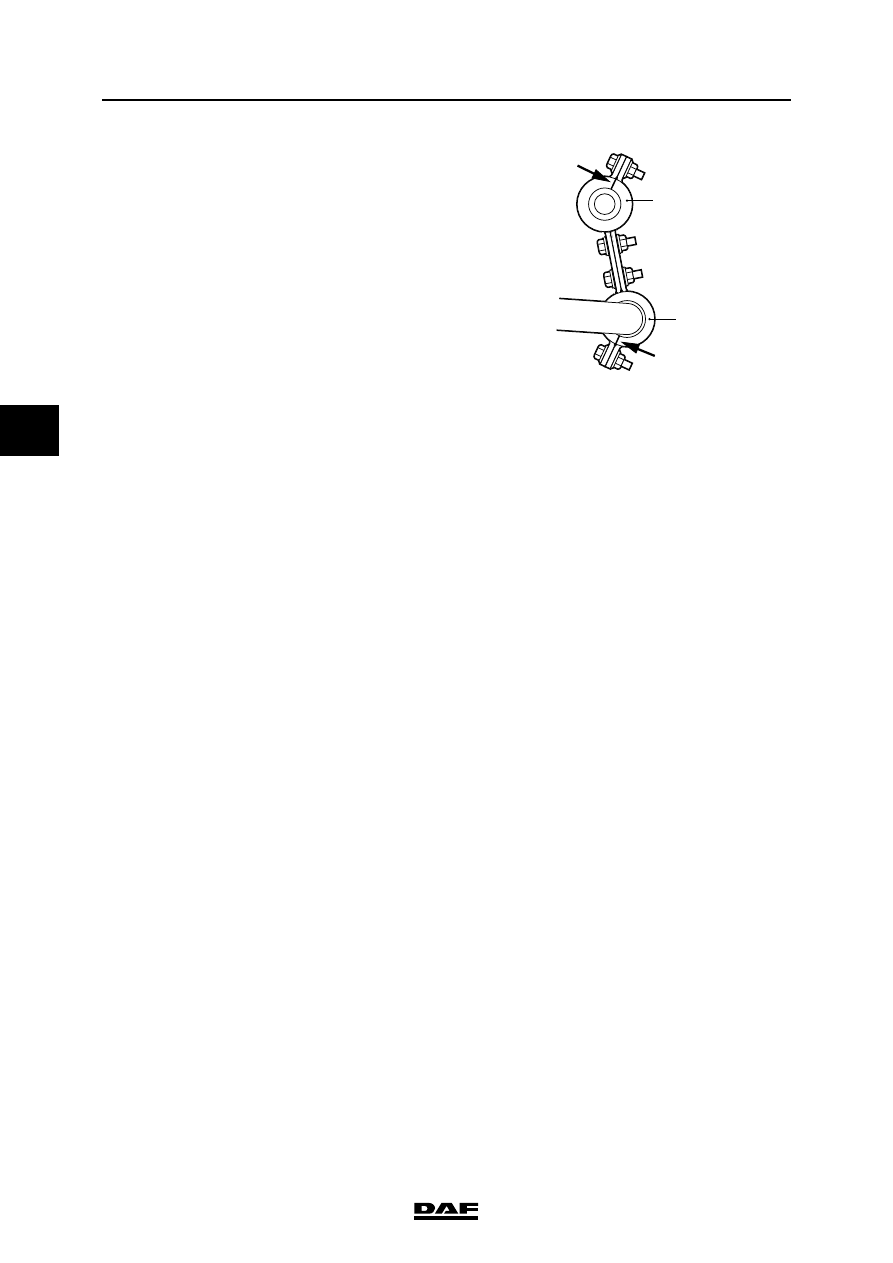

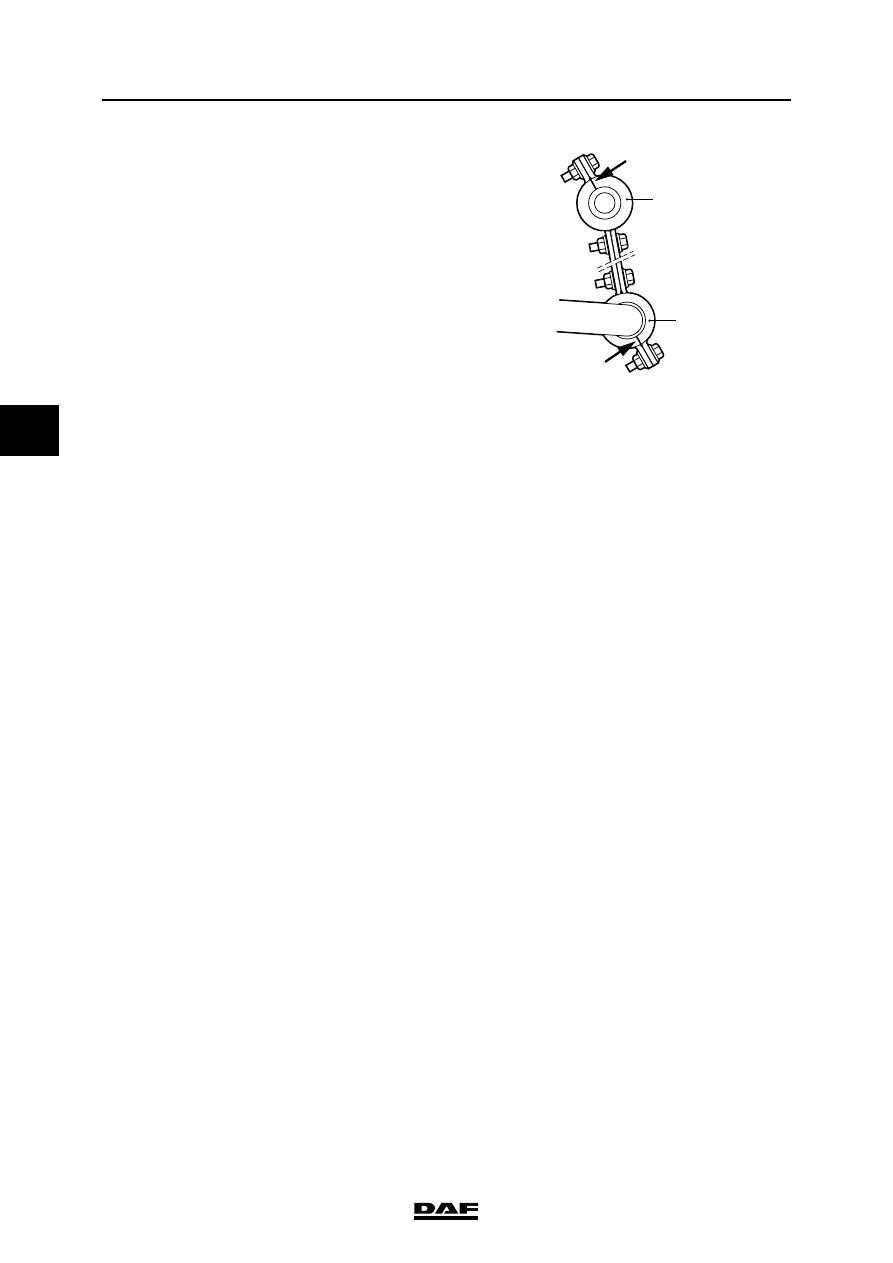

4.

Turn the bearing bushes (4) and (9) into the

indicated position.

5.

Fit the brackets (5) and (11). Fit the

attachment bolts (8) with the heads facing

towards the front of the vehicle and tighten

the bolts (8) to the specified torque, see

"Technical data".

6.

Fit the attachment bolts (12) with the heads

facing towards the chassis.

C9 00 310

4

9

©

 200448

2-5

Removal and installation

STABILISERS AND TORQUE RODS

ΧΦ65/75/85 series

9

4

2.3 REMOVAL AND INSTALLATION, STABILISER OF LEAF-SPRUNG TRAILING

AXLE AND PARABOLIC LEAF-SPRUNG TANDEM AXLE

Removing stabiliser of leaf-sprung trailing
axle and parabolic leaf-sprung tandem axle
1.

Remove the brackets (5) and (11).

2.

Remove the attachment bolts (12).

3.

Remove the stabiliser bar (10) from under

the vehicle.

4.

Remove the bearing bushes (9) from the

stabiliser bar (10).

5.

Remove the circlip (7) with the washer (6)

and remove the bearing bush (4) from the

axle (3).

Installing stabiliser of leaf-sprung trailing axle
and parabolic leaf-sprung tandem axle
1.

Check the condition of the silentblock (14)

and the bearing bushes (4) and (9).

2.

Fit the bearing bushes (4), using new

circlips (7).

3.

Fit the bearing bushes (9) to the stabiliser

bar (10).

C9 00 426

11

1

3

4

6

7

9

13

8

15

12

16

10

2

5

14

STABILISERS AND TORQUE RODS

2-6

©

 200448

Removal and installation

4

ΧΦ65/75/85 series

9

4.

Turn the bearing bushes (4) and (9) into the

indicated position.

5.

Fit the brackets (5) and (11). Fit the

attachment bolts (8) with the heads facing

towards the rear of the vehicle and tighten

the bolts (8) to the specified torque, see

"Technical data".

6.

Fit the attachment bolts (12) with the heads

facing towards the chassis.

C9 00 360

4

9
